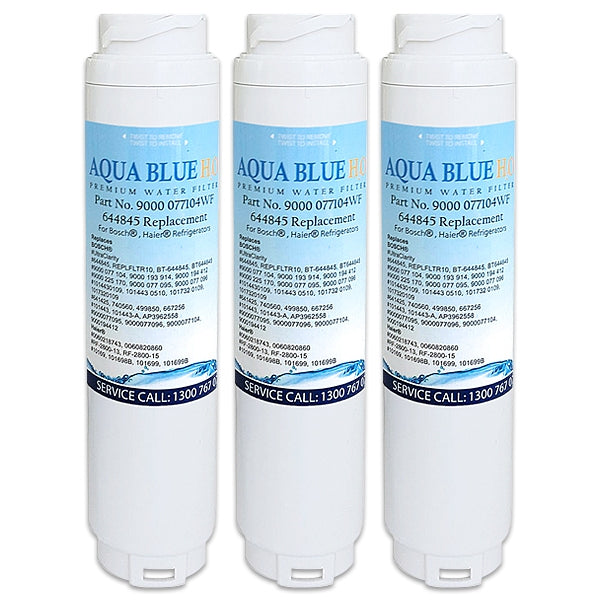

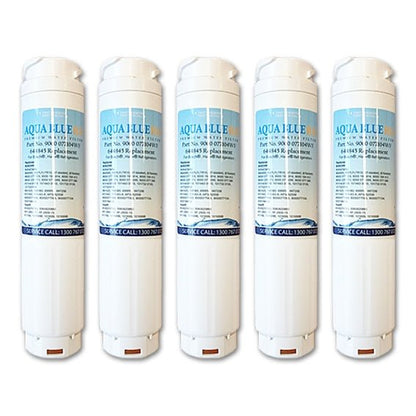

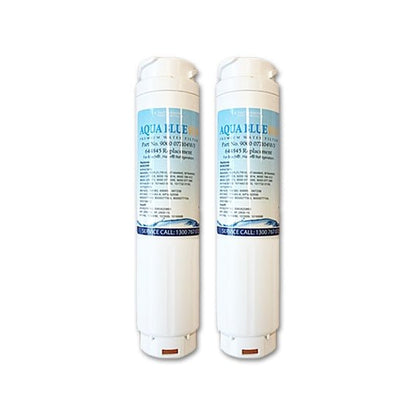

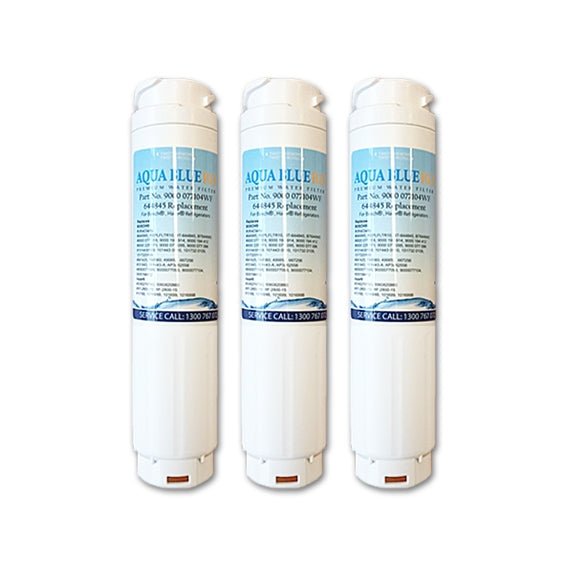

07134240 Refrigeration Accessories - Water Filter KB1000

07134240  MIELE   FRIDGE FILTER  REPLACEMENT  PART

KAD62V70AU FRIDGE WATER AND ICE MAKER FILTER 9000-077104 UltraClarity

 The 07134240  MIELE   FRIDGE FILTER  Refrigerator Water Filter, also known as the Bosch Ultra Clarity Refrigerator Filter, is an internal water filter that channels clean and better tasting ice and water through your Bosch refrigerator. The Bosch 644845 refrigerator filter replacement is used primarily to reduce the bad taste and odor of chlorine. This Bosch refrigerator filter is also known as the 740560 and the Bosch REPLFLTR10 filter.

07134240  MIELE   FRIDGE FILTER

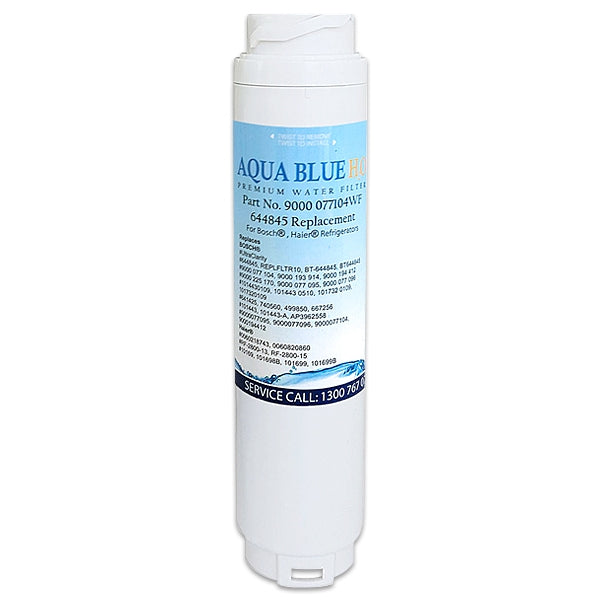

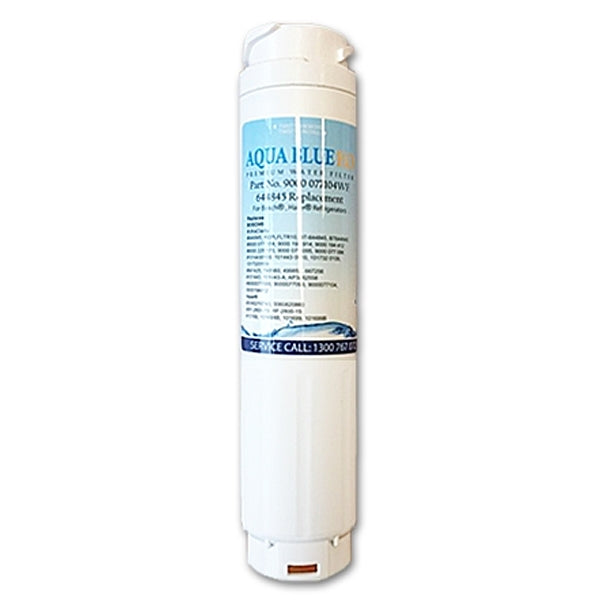

644845/ 740560  9000-077104 UltraClarity Fridge Filter for Bosch

Bosch: Internal Water Filter for KAD62, KA62 and K59
For hygiene reasons, the filter requires changing every 6 months
Appliance will indicate when the filter needs changing
After installing a new water filter always discard the ice.

Production of the first 24 hours after switching on the ice-maker.

·If ice has not been used for prolonged time discard all ice cubes in the bin and discard the ice production on the next 24 hours.
·If appliance or ice was not actively used for several weeks or months or ice cubes have an unpleasant taste or odor change water filter.
·Air trapped in system may cause water and cartridge to eject. Use caution when removing.
·Before replacing filter disconnect the water supply to the appliance.

 Instructions to replace the filter:

I. Push the button in the middle of the filter cover (some models may vary)remove the cover.

II. Rotate the cartridge by 90° gently in an anti-clockwise and pull gently.

III. Take your new one, removed protective cap

IV. Insert the new cartridge and rotate the filter 90° gently clockwise direction.

When to change a filter: There is a replacement indicator light for the water filter cartridge on the dispenser. The filter cartridge should be replaced when the filter light comes on, or every 6 months, or if you notice a decrease in flow of water.
Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

 View Installation Guide : Please CLICK here

The Bosch 644845 is the replacement refrigerator filter for various American model Bosch refrigerators which use the Bosch EVOLFLTR10 filter system including the Bosch Evolution 500 Series, Bosch 800 Series, and the Bosch KAD62 Series. It will also fit certain other models including the Siemens KA62 Series, Neff K5930 Series, and Neff K5920 series. This  filter Also  fit Milele KWF1000 Filters  as well.

Fits the following fridge model number:

KAD 62V70AU/03, KFN91PJ10A, KFD96AXEAA


Same filter as:

9000 077095 and 9000 077096

9000-194412
101443, 101443-A, 1014430109, 1017320109, 641425, 9000077095, 9000077096,  9000077104, 90000194412, 9000 225 170, BT-644845, BT644845,64125 and REPFLTR10, BORPLFRT10and Bosch 644845,Miele KWF1000,kfn91n OR ALL OTHERS WITH  KFN91N
KAD62V70AU, FI24DO30AU,KAD62V70AU/04,KAD92AI20A

9000 225 170, BT-644845, BT644845, 64125and REPFLTR10, BORPLFRT10and Bosch 644845.suit KAD62V70AU ,KFN91PJ10A/01 9000 077 104 ,34-8711-3100-8, FilterLogic FFL-110B, FFL110B

This  Filter also Fits  to Gaggenau freezer RF463201AU/28 FD 9208 RF463201AU

Important: Some manufacturers use the same fridge model number for fridges supplied with both internal and external filter systems, please make sure that your fridge uses an Internal water filter before ordering this item.

THIS  FILTER ALSO  FIT TO   ALL SIDE BY SIDE  FRIDGE FILTER KAD62, KA62 and K59 American-style Fridge Freezers

Flow Rate: 0.5 gallons per minute
Operating Temperature: 40 - 100 degrees Fahrenheit
Operating Pressure: min 25 psi / max 125 psi
Micron Rating: 5 microns
Capacity: 1,500 gallons
Service Life: 6 months

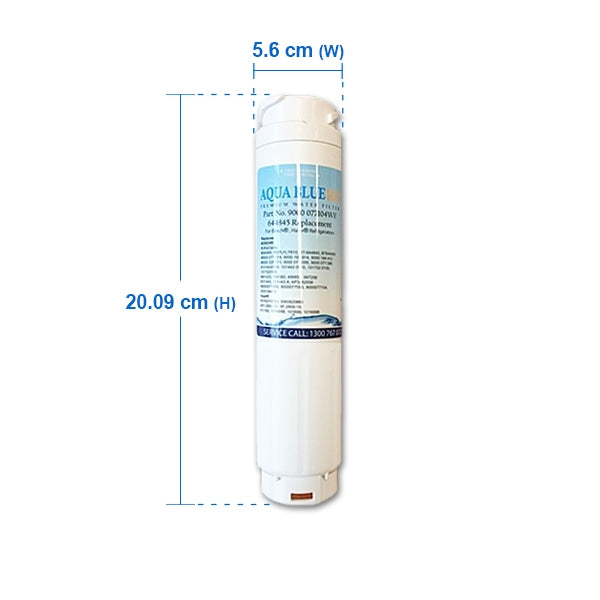

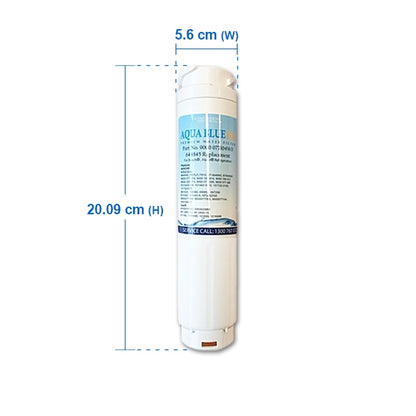

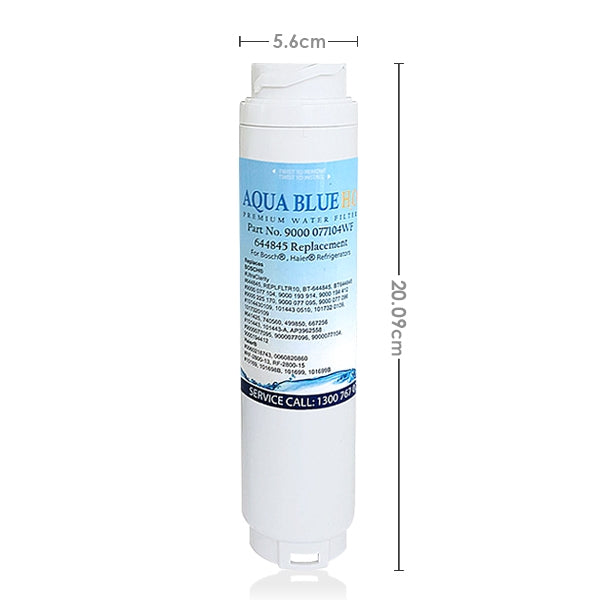

Dimensions: 22.5cm (length) x 5.5cm (diameter)

Filter cartridge should be replaced at least every 6 months

Water Filter Reduces the Following Health Related Contaminants:
97.60% of Chlorine Taste and Odour
98.40% of Particulates (Class I)
96.60% of Mercury at pH 6.5
88.90% of Mercury at pH 8.5
99.30% of Lead at pH 6.5
99.40% of Lead at pH 8.5
99.99% of Cysts
98.70% of Carbofuran
99.80% of p-Dichlorobenzene
99.00% of Asbestos
96.40% of Benzene
98.60% of Turbidity
