3 Stage Big Blue Whole House System including Cartridge

10" Big Blue Triple Whole House Rainwater Tank Water System

Watermarked & Certified The 10" Big Blue Whole House Water Filtration System treats all of the water entering your home, removing sand, silt, sediment, rust and other particles that can damage your water softener, prematurely foul carbon filters, or ruin plumbing fixtures and valves. This 3-Stage Water System ensures sparkling clean and great-tasting water throughout your whole house.

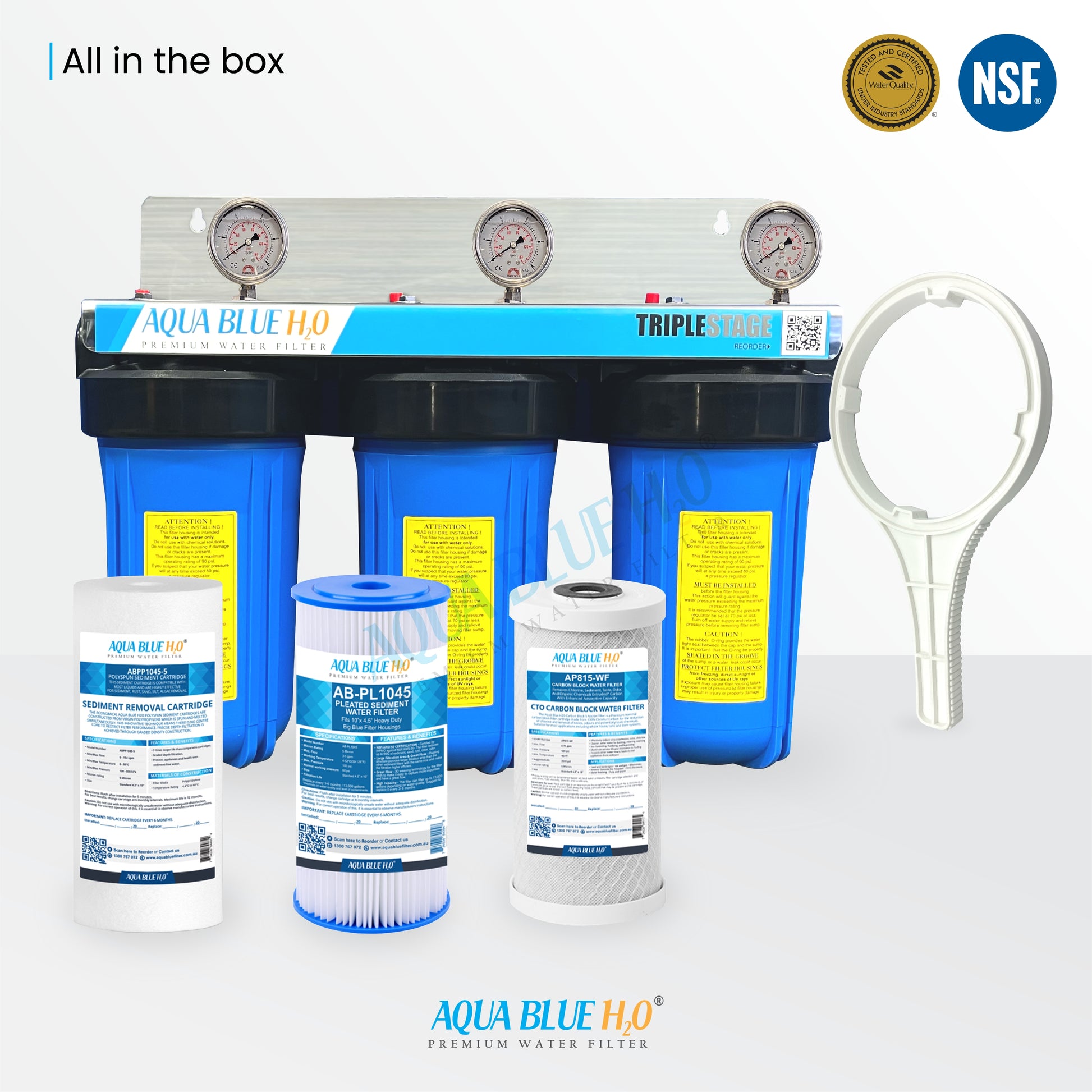

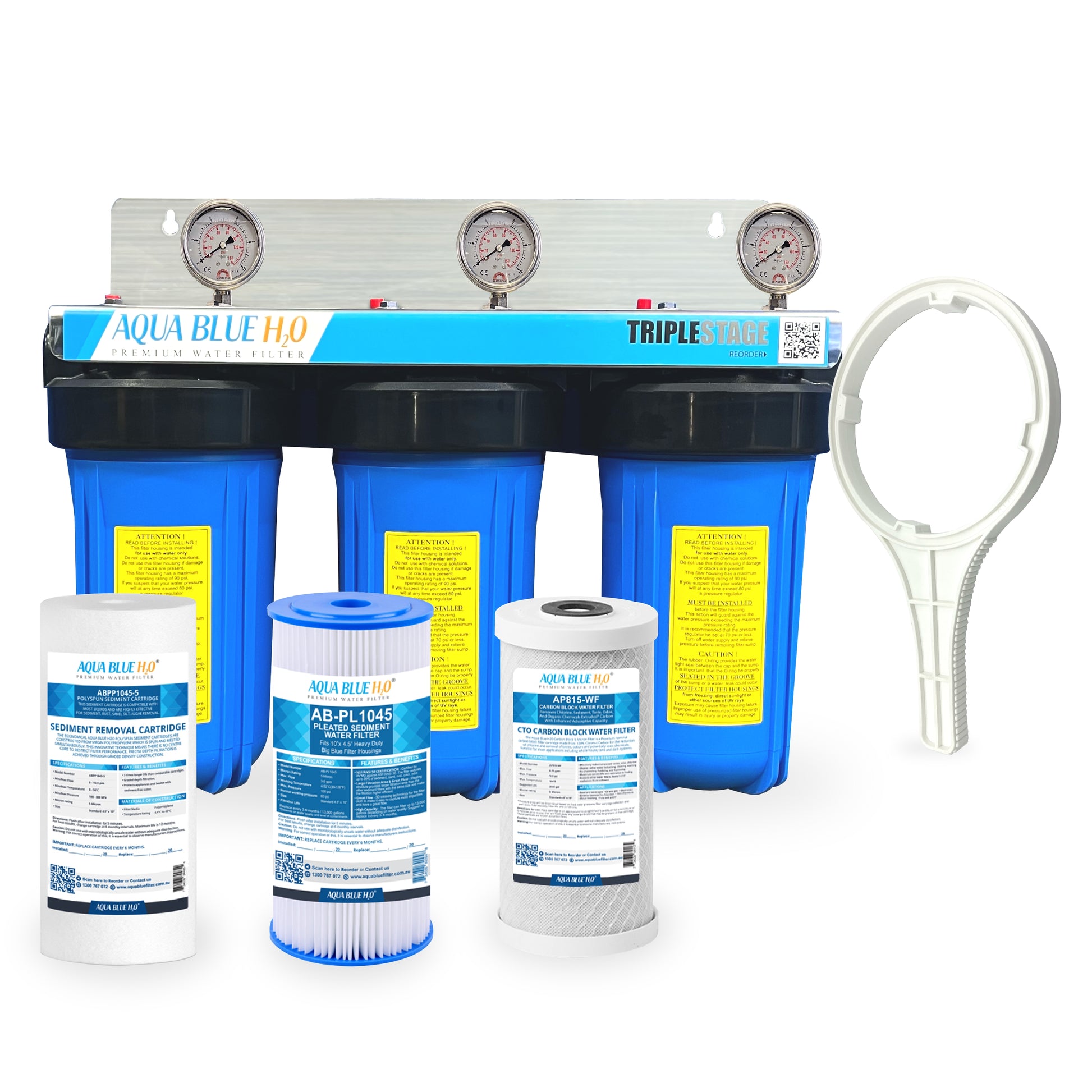

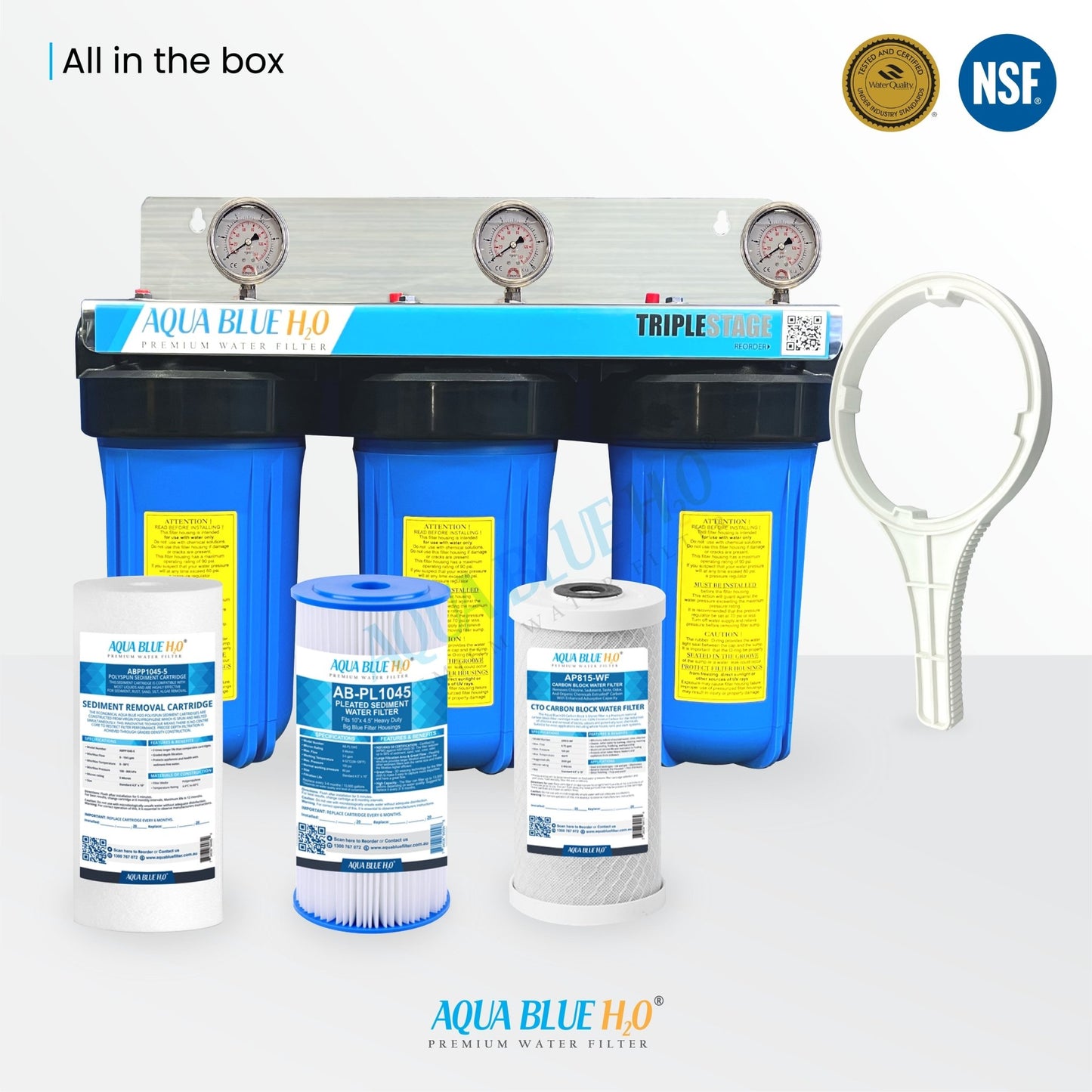

Kit Includes

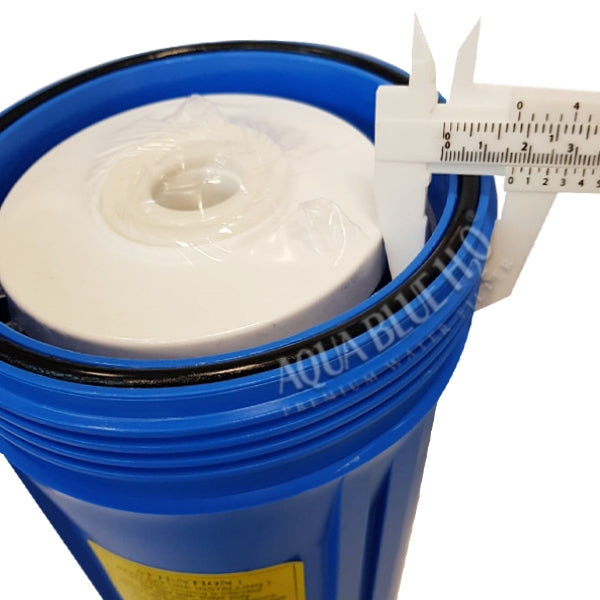

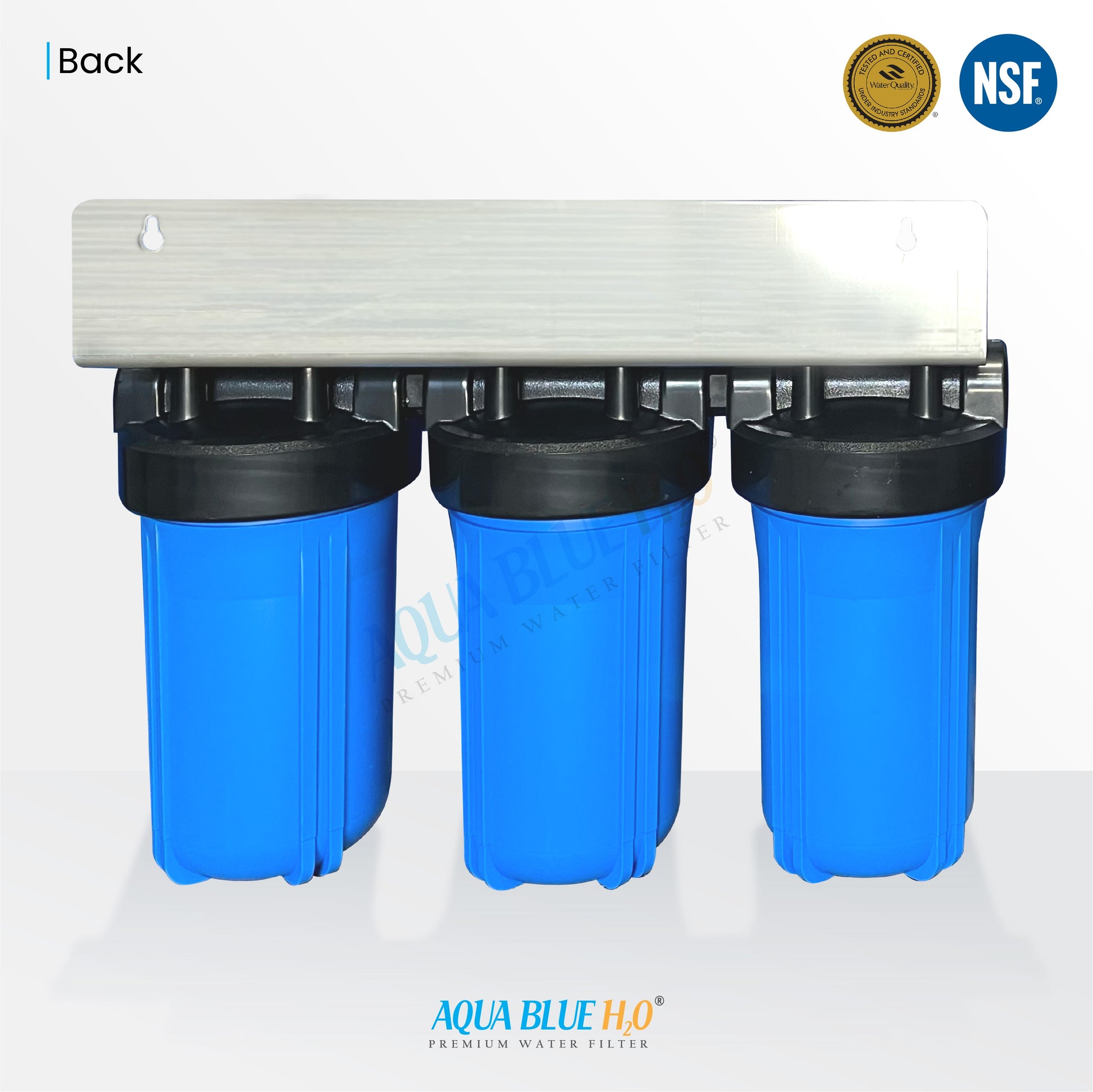

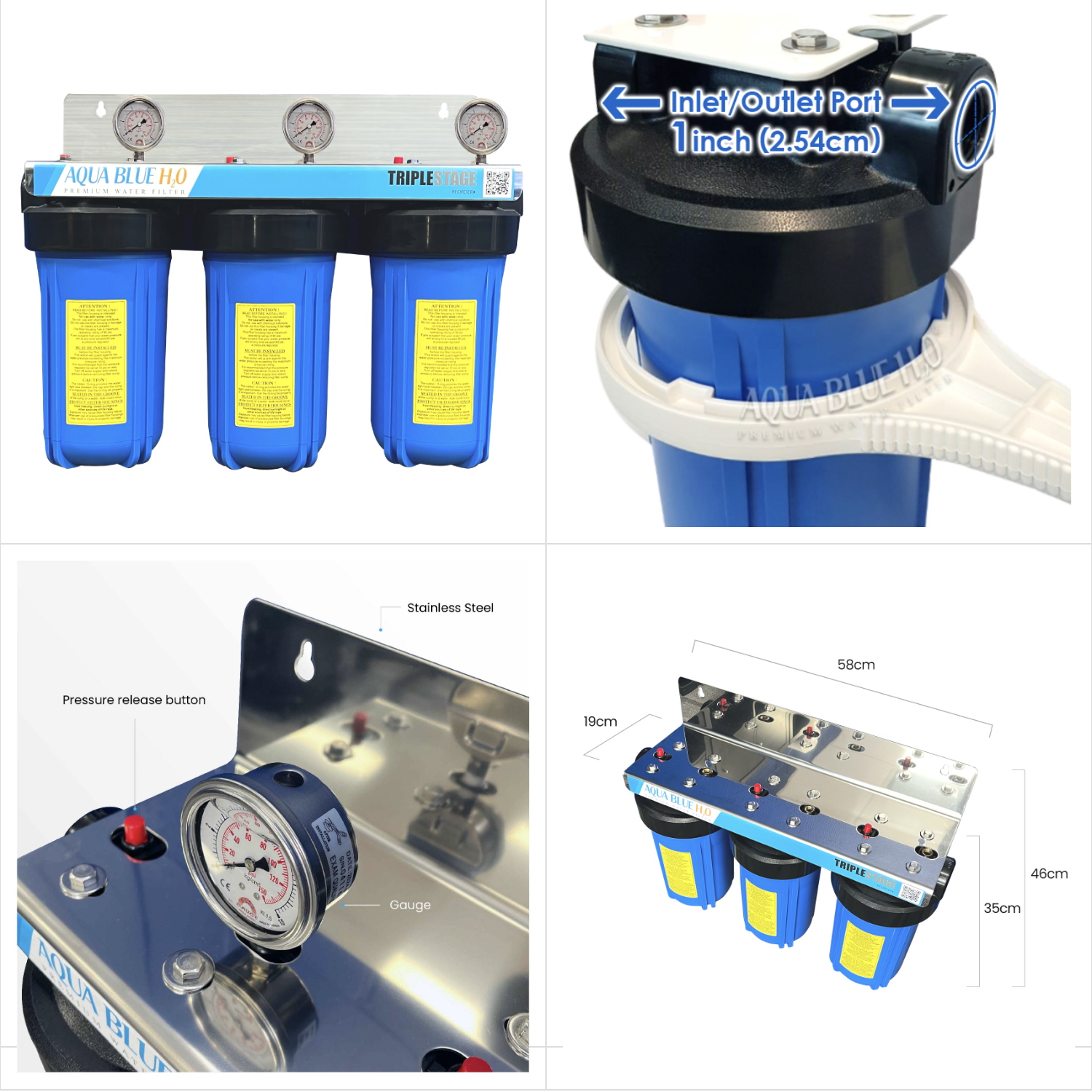

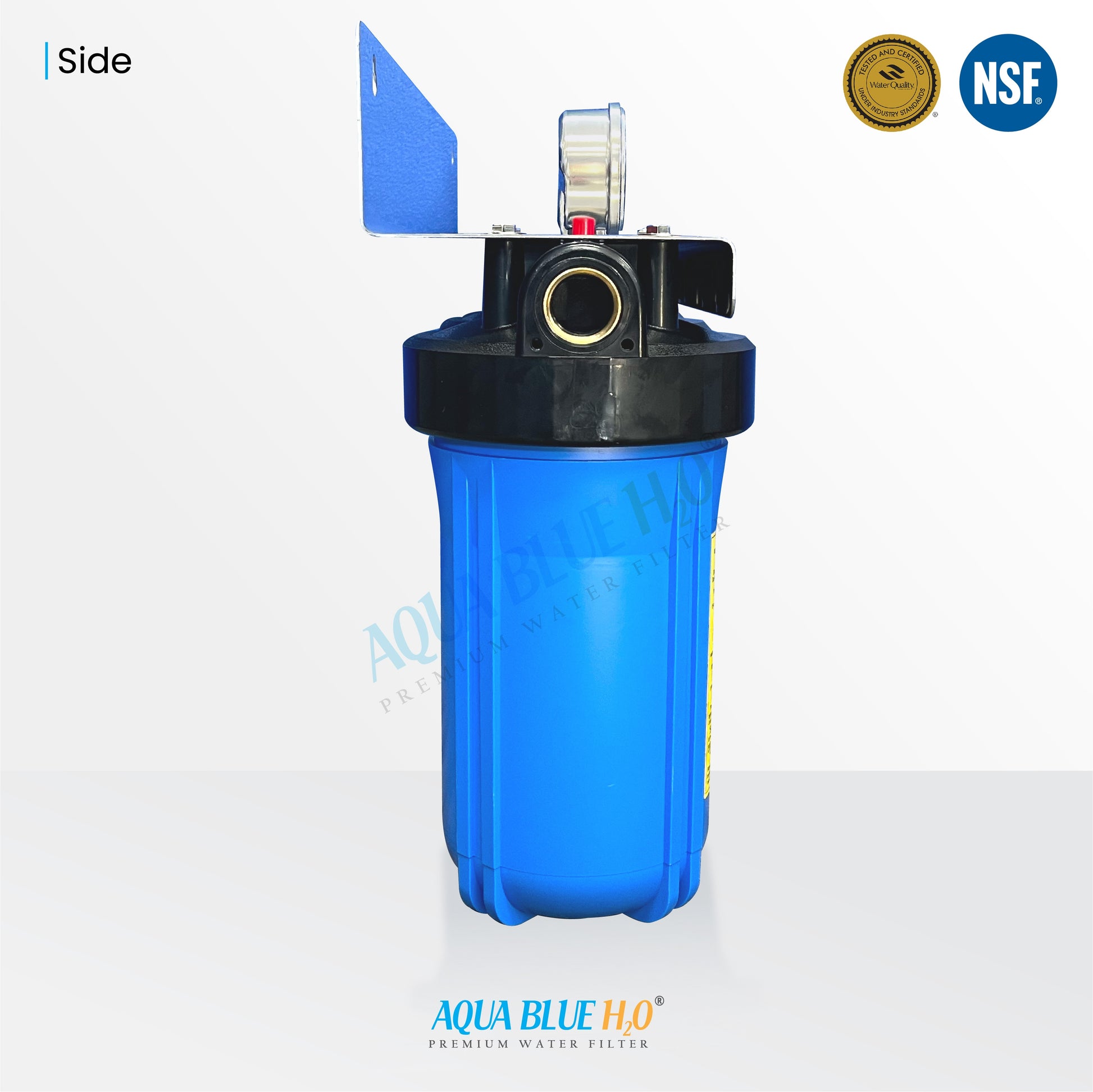

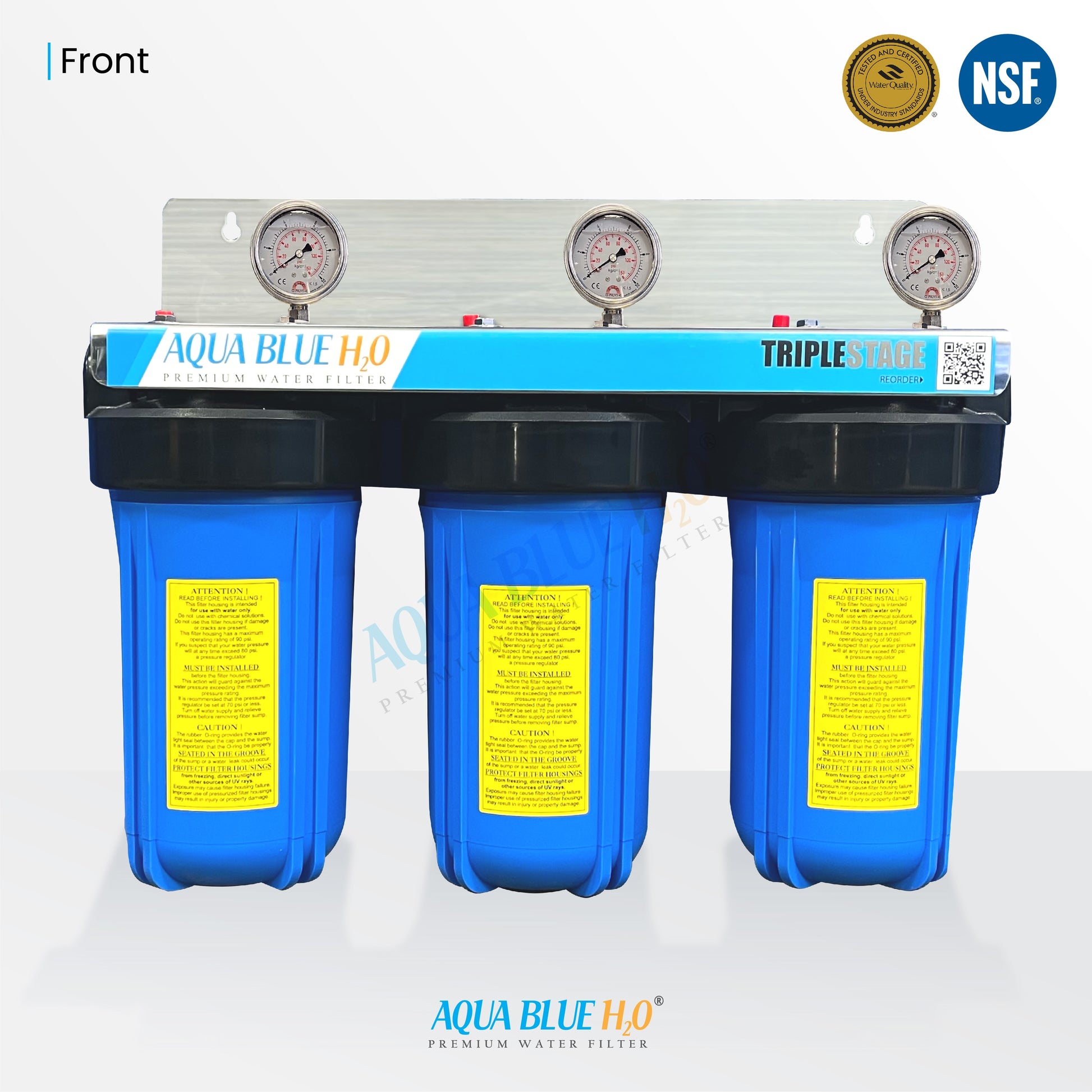

• 1 × (10" × 4.5") Big Blue Triple Water Filter Housing

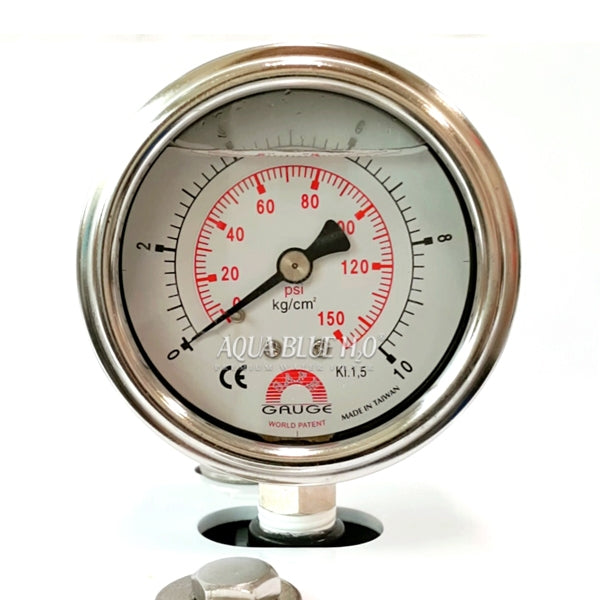

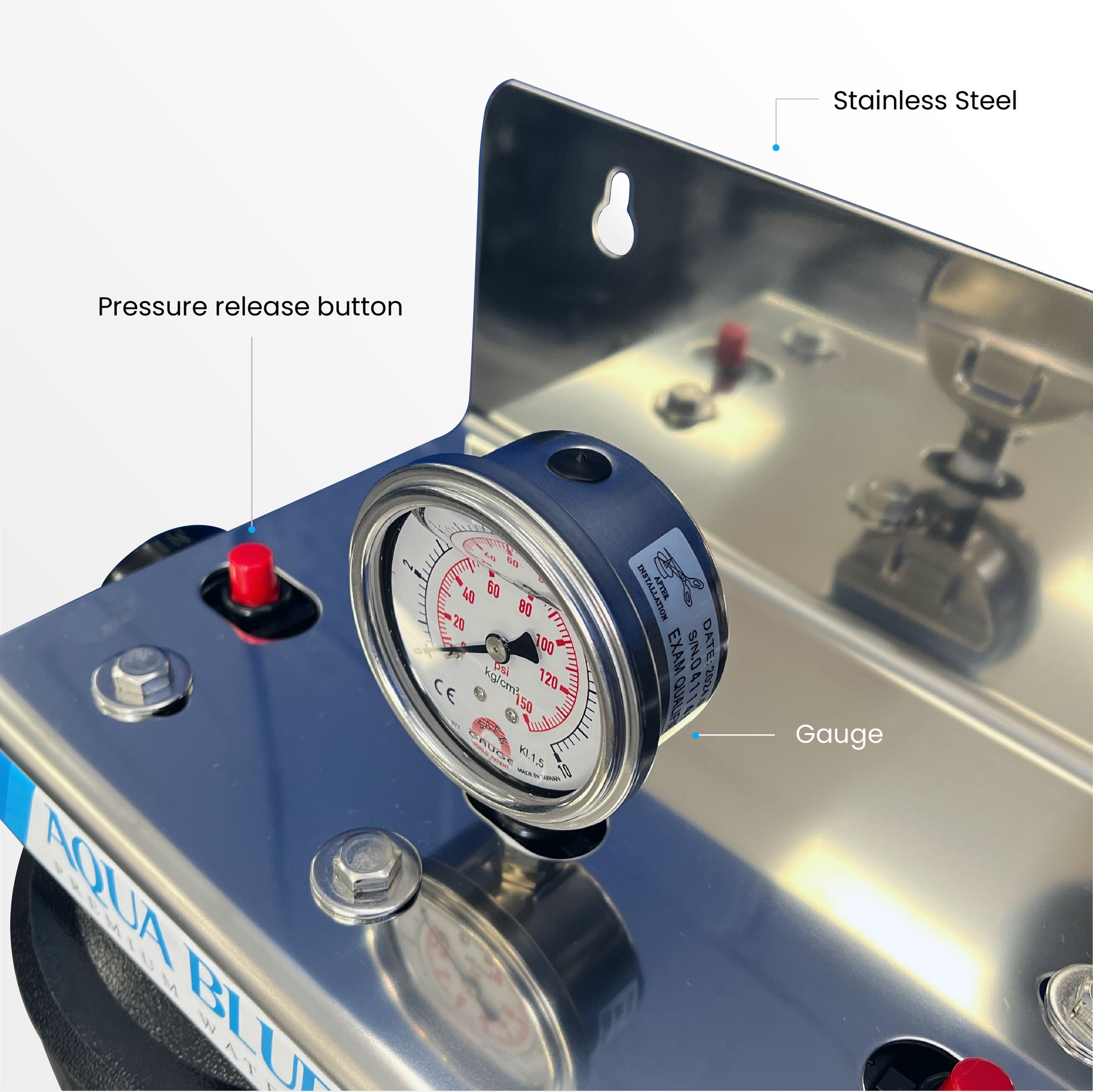

• 3 × Pressure Gauges
• 1 × Sediment Polyspun Pre-Filter (AB-PP1045)
• 1 × Pleated Sediment Filter (AB-PL1045)
• 1 × Premium CTO Carbon Block Filter (ABCTO1045-10M)
• 1 × Heavy Duty Metal Bracket
• 2 × (1" to 3/4") Bushings

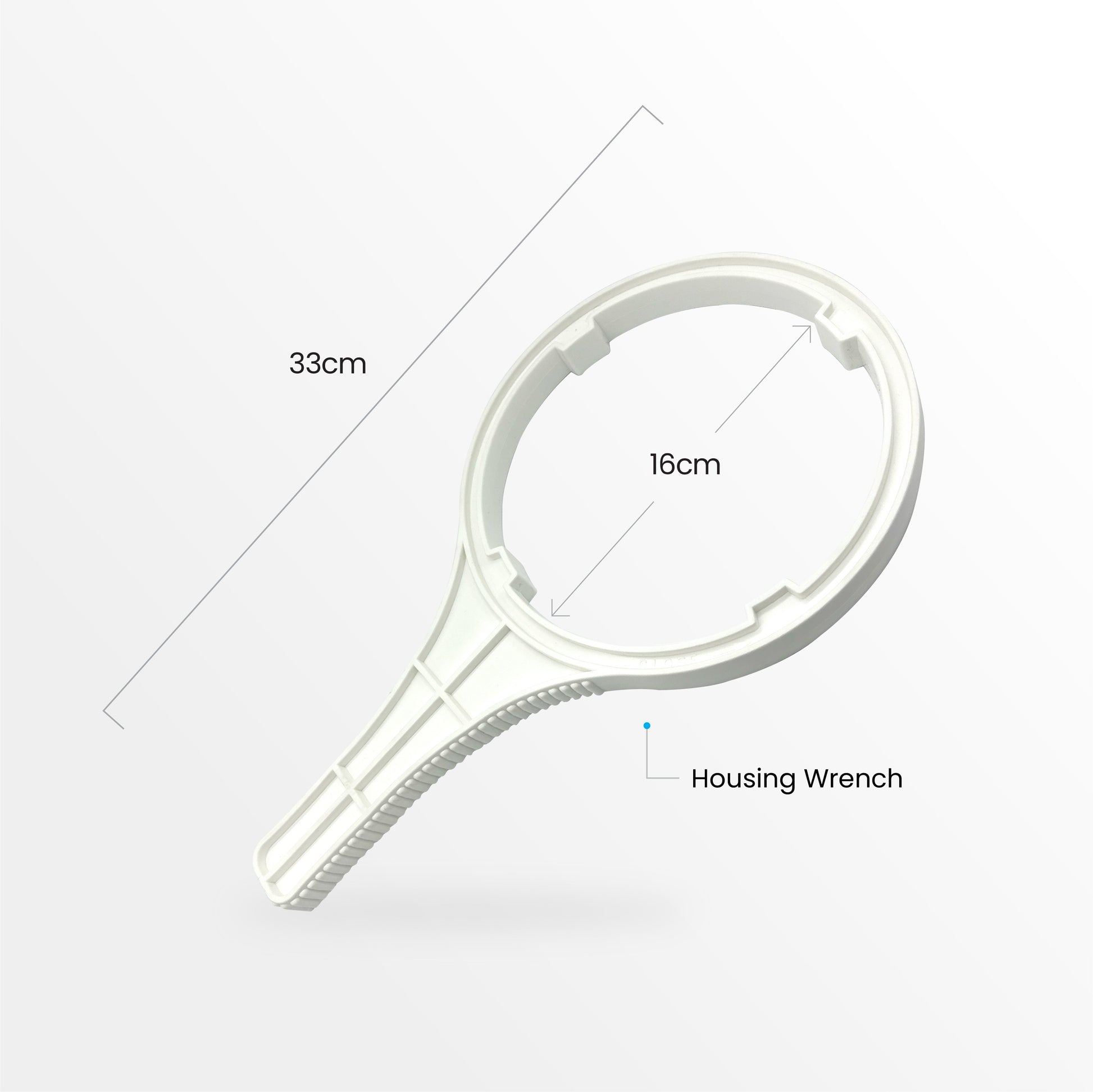

• 1 × Housing Wrench
• 1 × Extra O-Ring (for replacement)
• 1 × Teflon Tape

System Specifications

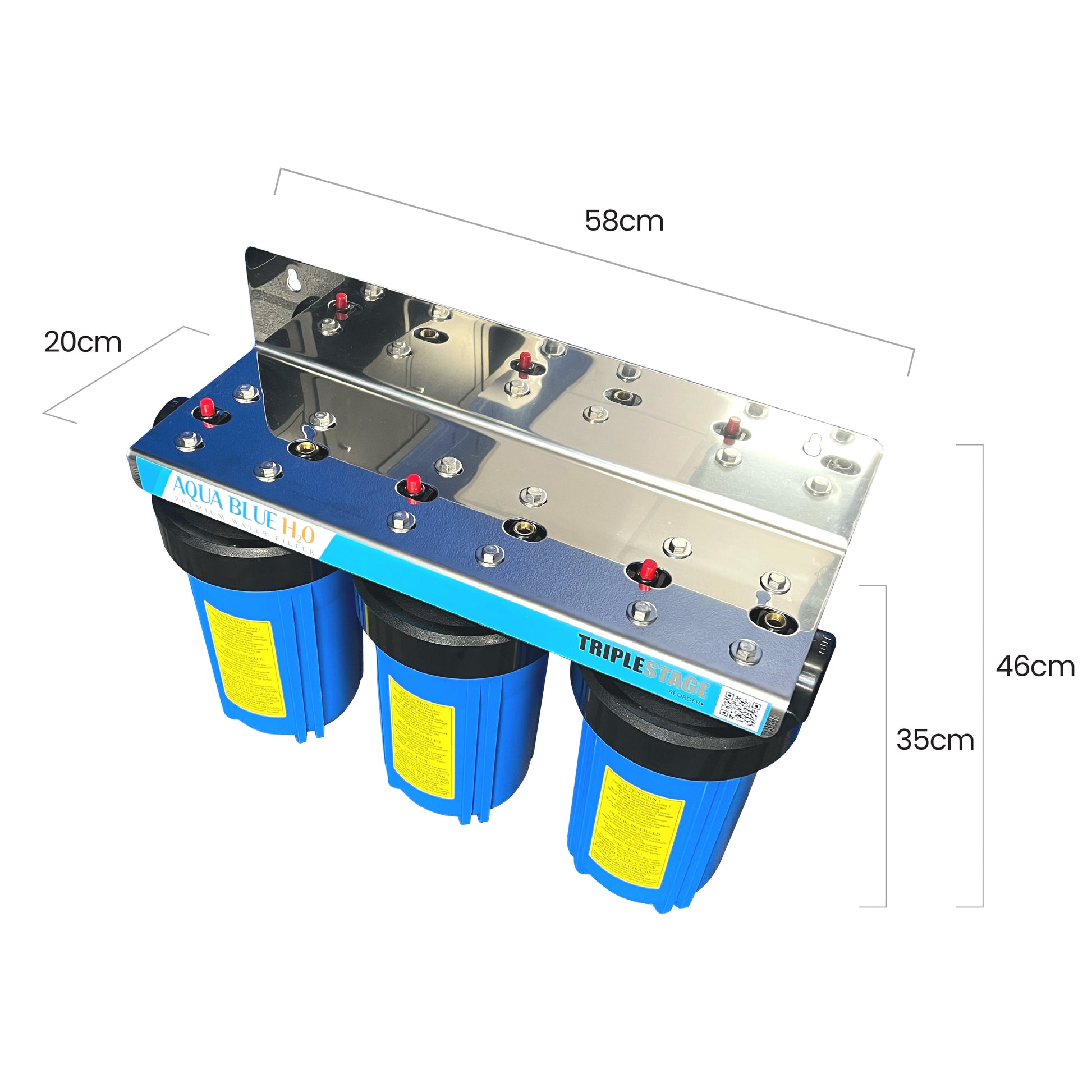

• Dimensions: 60(W) × 44.5(H) × 22.4(D) cm
• Weight: Net 14.33 kg / Gross 15.38 kg
• Stage 1: Sediment Polyspun Pre Filter – AB-PP1045
• Stage 2: Pleated Sediment Filter – AB-PL1045
• Stage 3: Premium CTO Carbon Block Filter – AP815-WF

Installed at the main water supply to treat all water in your home. Provides better water from every tap and protects appliances such as dishwashers and washing machines.

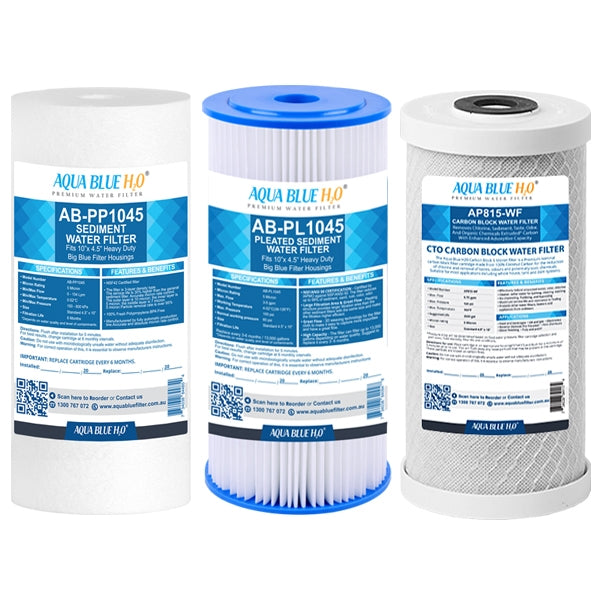

Filter Cartridges

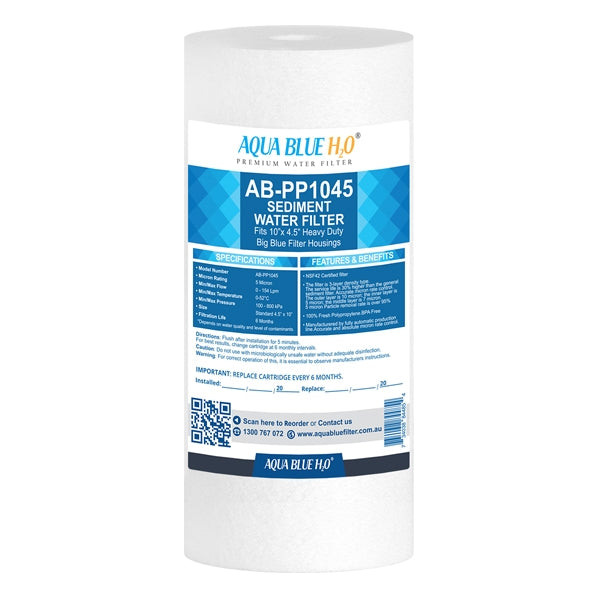

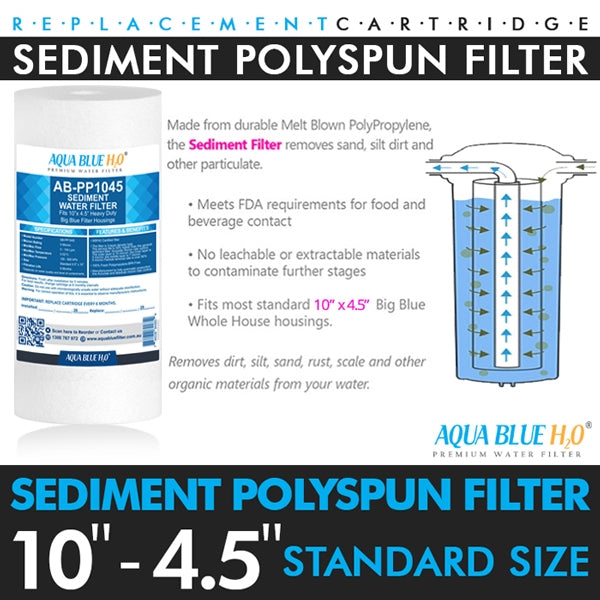

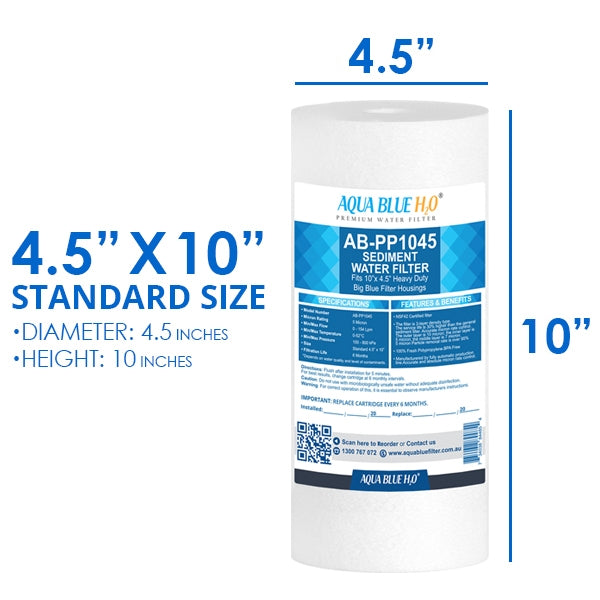

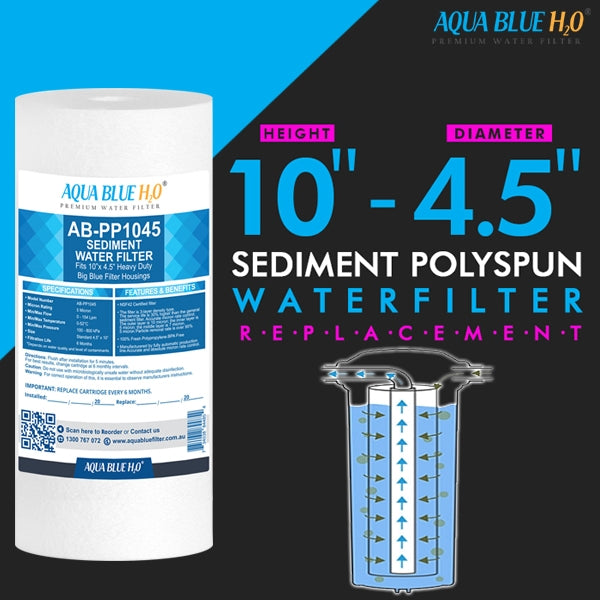

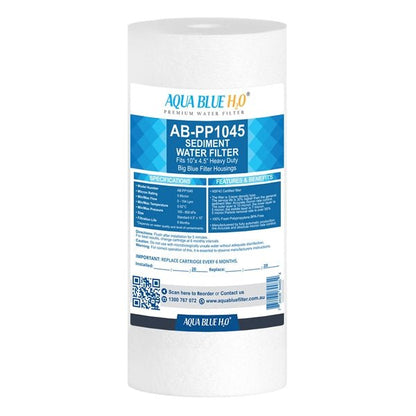

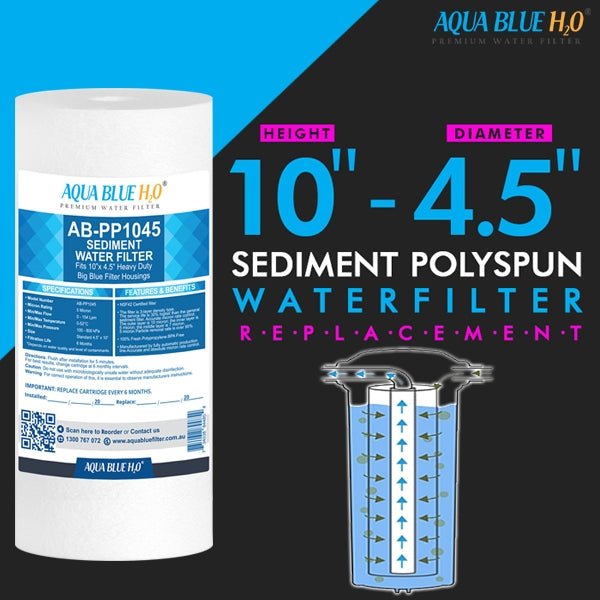

1. Polyspun Sediment Cartridge – AB-PP1045

• Micron Rating: 5 Micron (3-layer density: 10 / 7 / 5 micron)
• Flow Rate: 0 – 154 LPM
• Temperature Range: 0 – 52°C
• Pressure Range: 100 – 800 kPa
• Size: 10" × 4.5"
• Filtration Life: 6–12 months (depends on water quality)
• Material: 100% Fresh Polypropylene, BPA Free

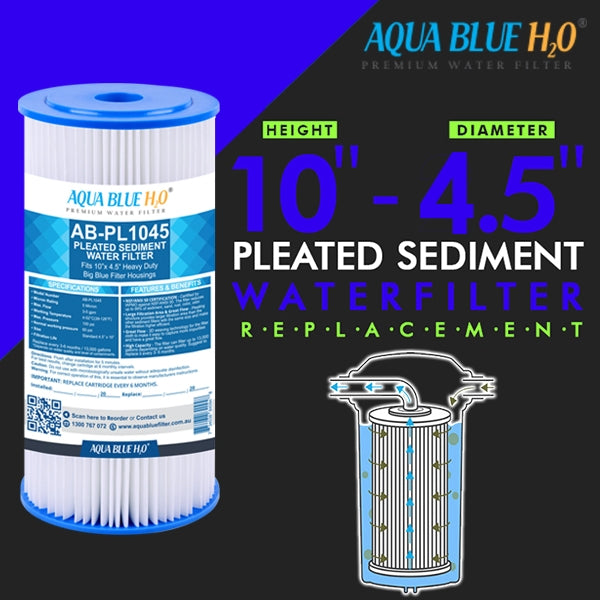

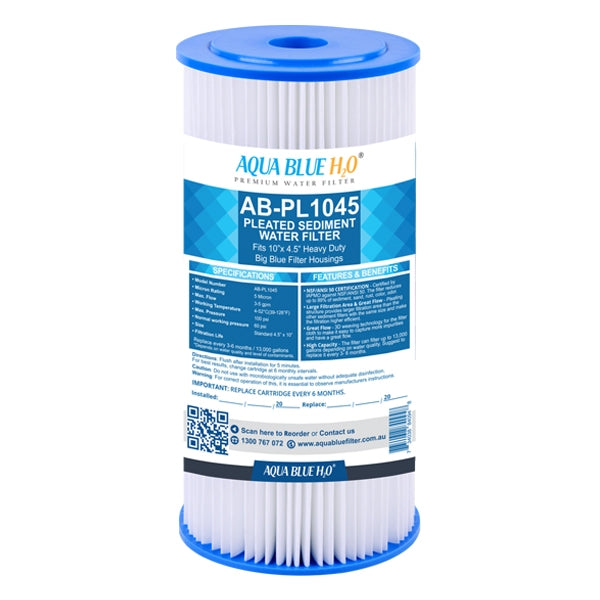

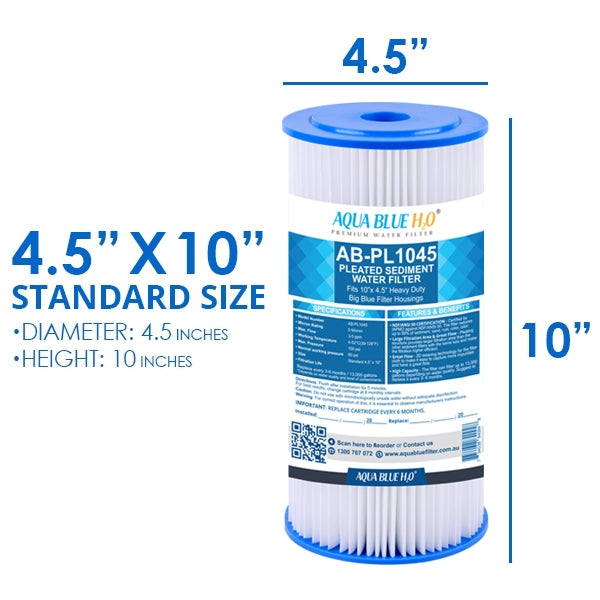

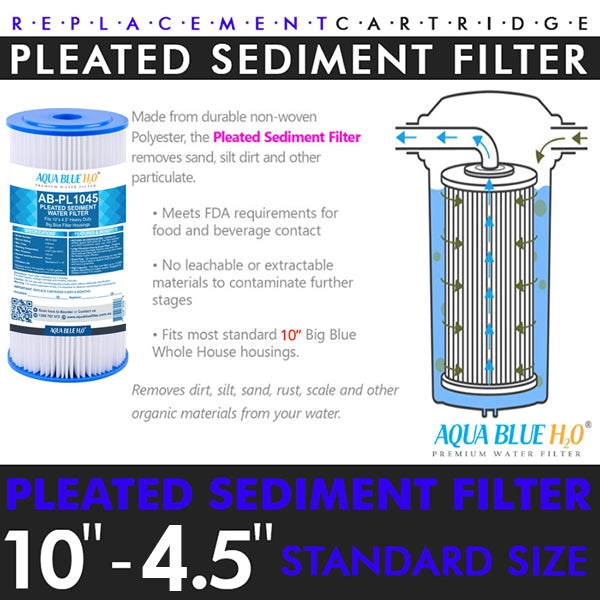

2. Pleated Sediment Cartridge – AB-PL1045

• Micron Rating: 5 Micron
• Max Flow: 0 – 154 LPM
• Temperature Range: 4 – 52°C
• Pressure: Max 100 psi / Normal 60 psi
• Capacity: Up to 13,000 gallons
• Filtration Life: 3–6 months (depends on water quality)
• Large filtration area with pleated design for higher efficiency

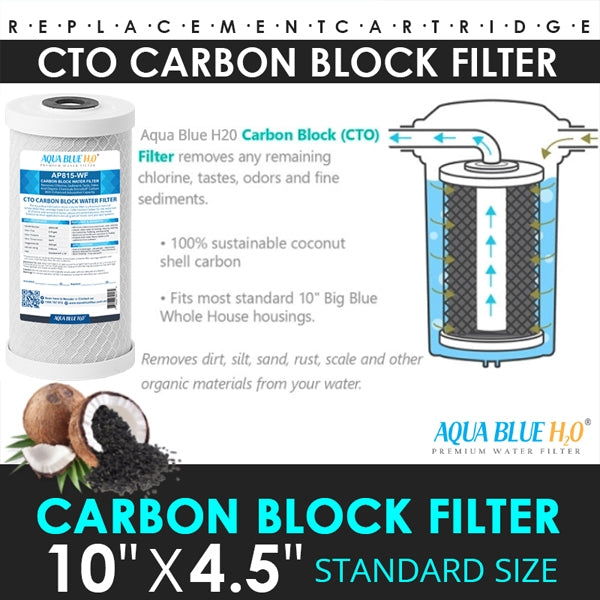

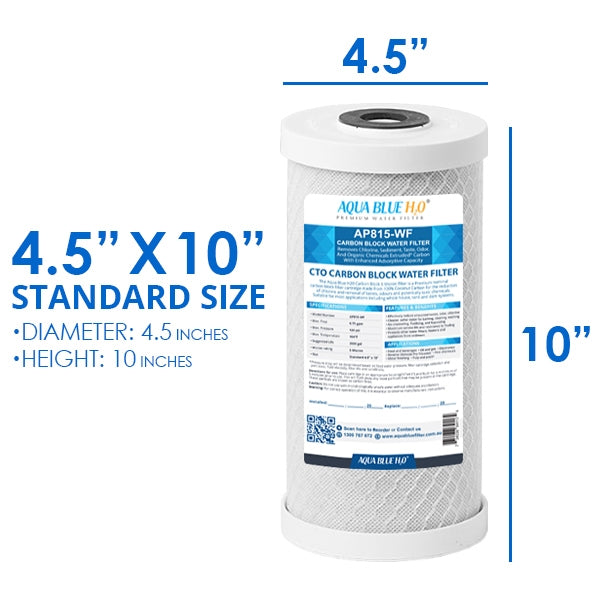

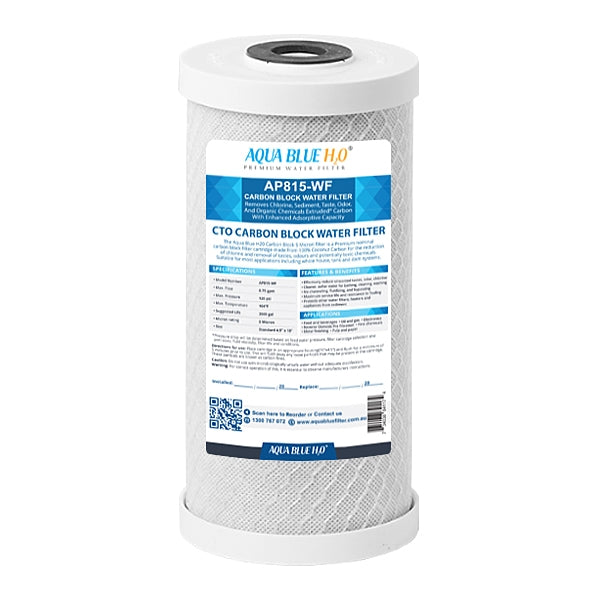

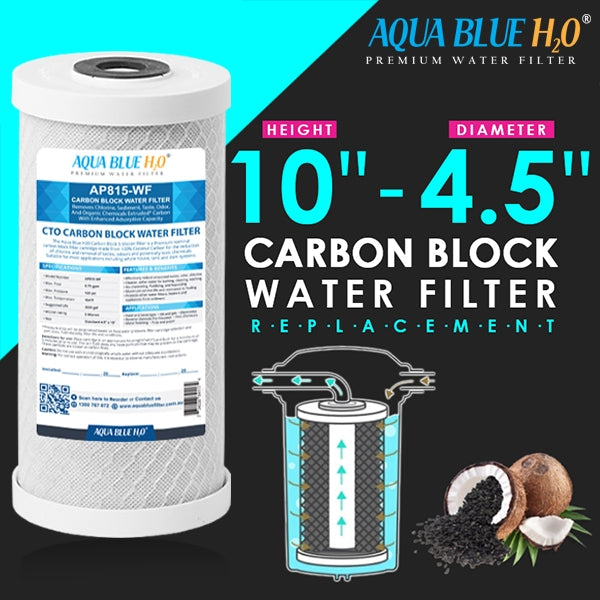

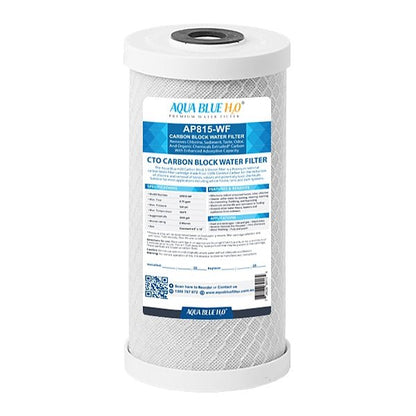

3. CTO Carbon Block Cartridge – AP815-WF

• Micron Rating: 5 Micron
• Max Flow: 54 LPM
• Pressure: Max 120 psi
• Temperature: Max 40°C (104°F)
• Service Life: 3500 gallons
• Material: 100% Coconut Shell Carbon
• Removes: Chlorine, taste, odor, chemicals
• Applications: Whole house, tank, dam, RO pre-filtration

Features & Benefits

• High-performance 3-stage water filtration
• Reduces sediment, chlorine, odor, iron and manganese
• Protects household appliances from scale and damage
• Cleaner, softer water for bathing, cleaning, and washing
• NSF/ANSI standard filtration components
• Easy installation with included fittings and wrench



Directions for Use

Install cartridges in 10" × 4.5" housings. Flush each cartridge for at least 5 minutes before first use to remove carbon fines. Do not use with microbiologically unsafe water without proper disinfection.



Directions for use: Place cartridge in an appropriate housing(10"x4.5") and flush for a minimum of 5 minutes prior to use. This will flush away any loose particals that may be present in the cartridge. These particals are known as carbon fines.
Caution: Do not use with microbiologically unsafe water without adequate disinfection.
Warning: For correct operation of this, it is essential to observe manufacturers instructions.
