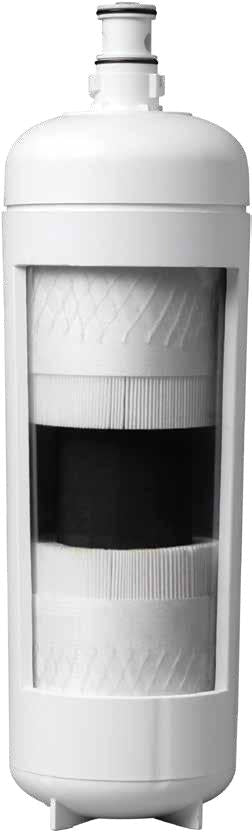

3M HF90 High Flow Series Replacement Water Filter Cartridge
Model: HF90
3M Order Code: 70020020155
Part Number: 5613503
Capacity: 54,000 gallons / 204,412 litres
Flow Rate: 5 gpm / 18.9 L/min
Micron Rating: 0.2 micron
Filter Type: SQC / Sanitary Quick Change
Series: 3M High Flow Series
Colour: White
Product Summary
The 3M HF90 High Flow Series Replacement Water Filter Cartridge is a genuine OEM food service water filter cartridge designed for commercial beverage and ice applications.
It uses 3M’s I.M.P.A.C.T. filtration media, which combines a membrane with a premium activated carbon block to help provide consistent, high-quality water. The cartridge helps reduce bacteria, cysts, sediment, chlorine taste and odour, improving beverage taste and helping protect commercial equipment.

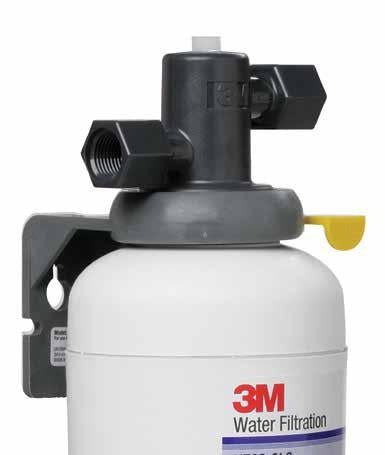

The HF90 is commonly used as a replacement cartridge for the BEV190 Cold Beverage Water Filtration System.
Key Features
- Genuine 3M HF90 replacement cartridge
- High capacity: 204,412 litres / 54,000 gallons
- High flow rate: 18.9 L/min / 5 gpm
- 0.2 micron filtration
- Helps reduce:
- Bacteria
- Cysts such as cryptosporidium and giardia
- Sediment / particulate
- Chlorine taste and odour
- Uses 3M I.M.P.A.C.T. Integrated Membrane Pre-Activated Carbon Technology
- SQC sanitary quick-change design for easy cartridge replacement
- Suitable for commercial beverage, vending, ice and food service applications
Applications
Suitable for:
- Cold beverage dispensers
- Coffee and hot tea systems
- Coffee and vending machines
- Ice machines
- Iced tea makers
- Office water systems
- Food service and hospitality water filtration
- Commercial refrigerator dispensing and ice making
Technical Specifications
| Specification | Details |
|---|---|
| Brand | 3M |
| Model | HF90 |
| 3M Order Code | 70020020155 |
| Part Number | 5613503 |
| Series | 3M High Flow Series |
| Capacity | 204,412 L / 54,000 gal |
| Flow Rate | 18.9 L/min / approx. 5 gpm |
| Micron Rating | 0.2 micron |
| Filter Type | SQC / Sanitary Quick Change |
| Reduction Claims | Bacteria, cyst, sediment, chlorine taste & odour |
| Maximum Operating Temperature | 37.8°C / 100°F |
| Pressure Range | Up to 125 psi / 862 kPa |
| Colour | White |
Dimensions — 확인 필요
제공하신 자료 안에 사이즈 정보가 서로 조금 다릅니다.
| Source 내용 | Size |
|---|---|
| Overall Height | 20.69 in / 52.548 cm |
| Another Height | 23.625 in / 60 cm |
| Overall Width | 4.45 in / 11.3 cm |
| Another Width | 8 in / 20.3 cm |
그래서 제품 등록할 때는 공식 3M 데이터시트 기준으로 한 번 더 확인하는 것이 좋습니다.
판매페이지에는 우선 아래처럼 쓰는 게 안전합니다:
Approx. Dimensions: 52.5 cm height x 11.3 cm width
또는
Please check your existing cartridge model and system compatibility before purchase.
Short Product Description
3M HF90 High Flow Series Replacement Water Filter Cartridge is a genuine OEM 3M food service cartridge designed for commercial beverage and ice applications. With a high capacity of 204,412 litres and flow rate of 18.9 L/min, it helps reduce bacteria, cysts, sediment, chlorine taste and odour for consistent, high-quality water.
Compatible Models
Please refer to the product description above for compatible filter numbers, refrigerator models and system model information.
Need Help Confirming Compatibility?
If you cannot find your model number or are unsure whether this product is suitable for your refrigerator or filtration system, please contact us before purchasing.
Contact Us for Compatibility SupportGeneral Installation Guide
Please use the general guide below to help identify your filter type and follow the correct replacement process. Filter location and replacement steps may vary depending on your refrigerator or water filtration system model. Always refer to your appliance manual for the exact filter location and specific instructions.
Need Help Finding the Correct Filter?
Before ordering, compare your old filter, check the model number or filter code and confirm the connector type. If you are unsure, please contact Water Filter Distributors for assistance.
Whole House System Installation Manual
For whole house filtration systems, please refer to the detailed installation manual below. Professional installation by a licensed plumber is recommended.
View Whole House Installation ManualTwin Cartridge Under Sink Installation Guide
For twin cartridge under sink systems, please refer to the installation guide below. This guide is suitable for systems supplied with a dedicated faucet, diverter valve, tubing and installation kit.
Important Installation Notes
- Filter location and replacement steps may vary depending on your appliance or filtration system model.
- Always compare the new filter with your existing filter before installation.
- Remove all protective caps, plugs and packaging before installation.
- Flush approximately 5–10 litres or 3–5 minutes of water after installing the new filter.
- Use with cold potable water only unless the product instructions specifically state otherwise.
- Check all connections carefully for leaks after installation.
- Always follow your appliance manufacturer's instructions where applicable.
Need Installation Assistance?
If you are unsure how to install this product, please send us your refrigerator model number, filtration system model number or a clear photo of your existing filter and connections.
Contact Us for Installation SupportCertification & Quality Assurance
