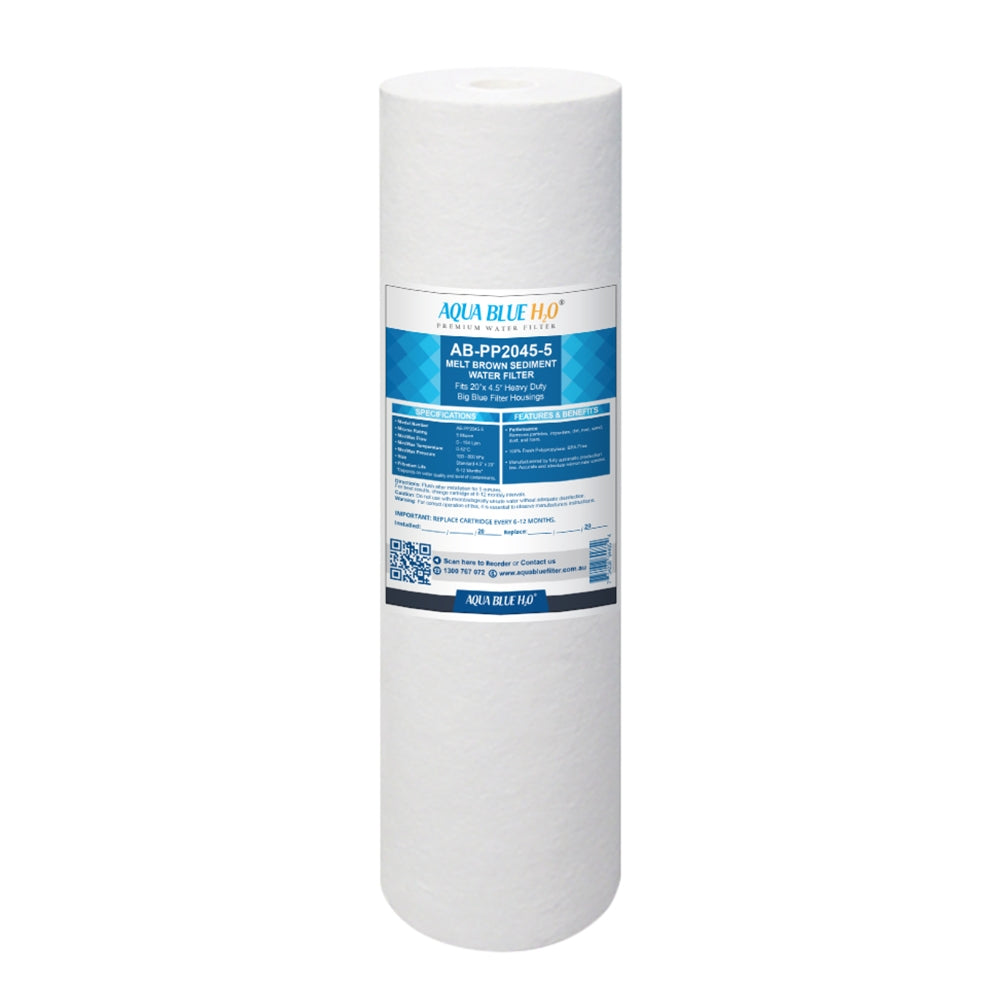

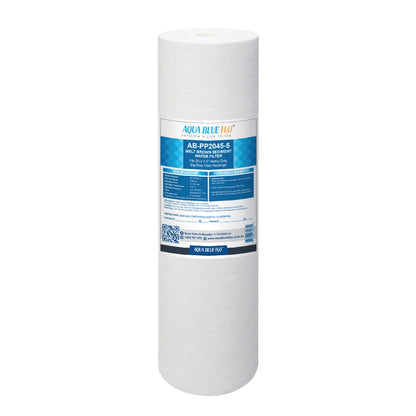

20" x 4.5" Big Blue PP Sediment Filter Cartridge – 1, 5, 10 & 20 Micron

A polyspun sediment cartridge offers a simple means of filtration, ideal for use as a preliminary stage pre-filter within your Whole House & High Flow filter system.

They are made from spun bonded polypropylene, the manufacturing technique of these cartridges results in no centre core to the filter, thus not restricting the filter performance. The materials also provide a resilient barrier to bacterial/chemical influence – preventing any build of unwanted waste (e.g. algae).

These sediment filters are compatible with most liquids and are highly effective for sediment, rust, sand, silt, and algae removal.

Replacement of this cartridge is recommended approximately every 6-12 months, dependent on usage and the water quality.

Heavy-Duty Melt Blown Polypropylene Sediment Filter | Available in 1, 5, 10 & 20 Micron

The Aqua Blue H2O 20" x 4.5" Big Blue PP Sediment Filter Cartridge is designed for high-capacity sediment filtration in residential, commercial and whole-house water filtration systems.

Manufactured from 100% polypropylene (PP) using a melt-blown graded-depth structure, the cartridge effectively captures sediment, dirt, rust, sand, silt and other suspended particles while providing excellent dirt-holding capacity and reliable water flow.

Available in 1, 5, 10 and 20 Micron, allowing you to select the filtration level best suited to your water quality and application.

Which Micron Should I Choose?

Tip: A lower micron rating provides finer filtration but may restrict flow sooner when the incoming water contains a high sediment load. For most general-purpose applications, 5 Micron provides an excellent balance of filtration performance, flow rate and filter life.

Key Features

• Available in 1, 5, 10 & 20 Micron

• Heavy-duty 20" x 4.5" Big Blue / Jumbo size

• Made from 100% polypropylene (PP)

• Melt-blown graded-depth filtration

• Multi-layer structure for high sediment holding capacity

• Reduces dirt, rust, sand, silt and suspended sediment

• High contaminant holding capacity

• Thermally bonded construction

• No binders or adhesives used

• Suitable for residential, commercial and whole-house filtration systems

• Helps protect downstream filters, plumbing and water-using appliances

• Individually wrapped for hygiene and protection

Product Specifications

Filter Type: Melt Blown PP Sediment Filter
Micron Options: 1, 5, 10 & 20 Micron
Material: 100% Polypropylene (PP)
Dimensions: 20" x 4.5" (approximately 508 mm x 114 mm)
Configuration: Big Blue / Large Diameter
Maximum Operating Pressure: 125 PSI
Operating Temperature: 40–100°F (approximately 4–38°C)
Maximum Flow Capacity: Up to 15 GPM*
Construction: Thermally bonded, binder and adhesive free

What Does This Filter Remove?

This sediment cartridge is designed to mechanically reduce suspended particulate matter including:

• Dirt

• Rust particles

• Sand

• Silt

• Pipe scale

• Fine suspended sediment

Please note: This is a sediment filter. It is not designed by itself to remove dissolved chemicals, chlorine, taste, odour, heavy metals or microorganisms.

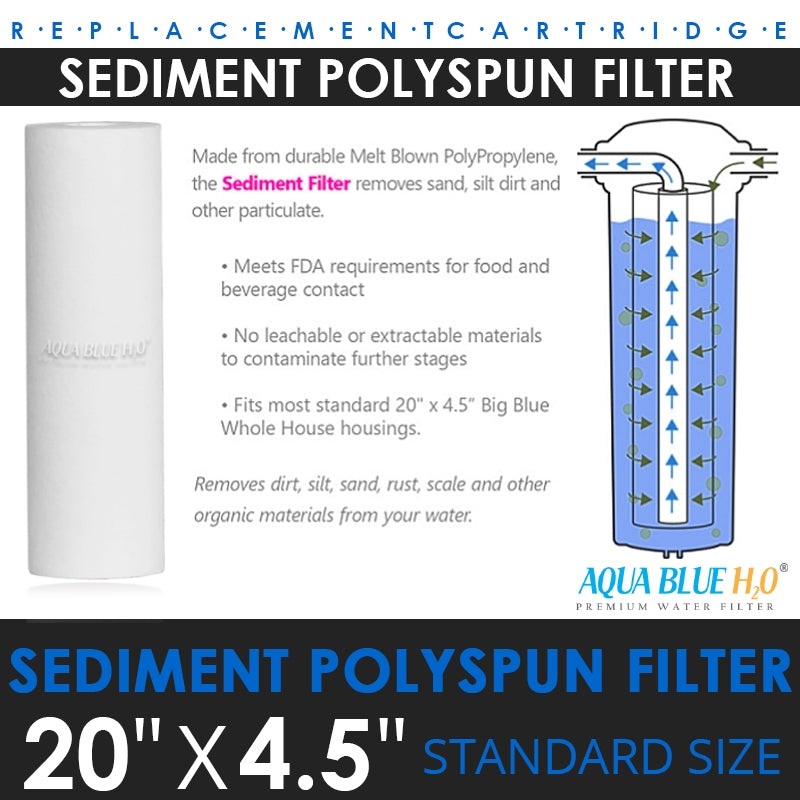

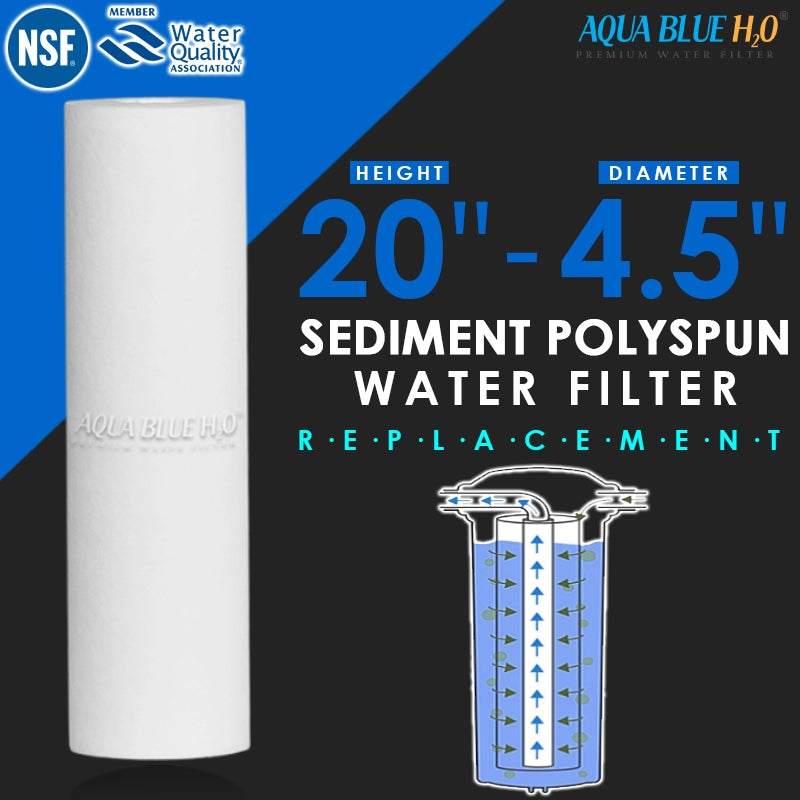

Graded Depth Filtration

Unlike a simple surface filter, the melt-blown polypropylene structure provides depth filtration, allowing larger particles to be captured in the outer layers while progressively finer particles are retained deeper within the cartridge.

This design provides:

• High sediment holding capacity

• Longer usable filter life

• Efficient particle removal

• Reduced premature surface blockage

• Reliable filtration across a wide range of applications

Ideal Applications

Suitable for:

• Whole-house water filtration

• Residential water filtration systems

• Commercial filtration systems

• Bore and tank water pre-filtration*

• Rainwater filtration*

• Pre-filtration before carbon cartridges

• Protection of downstream filtration equipment and appliances

*Additional treatment may be required depending on the source and intended use of the water.

Choosing the Right Micron Rating

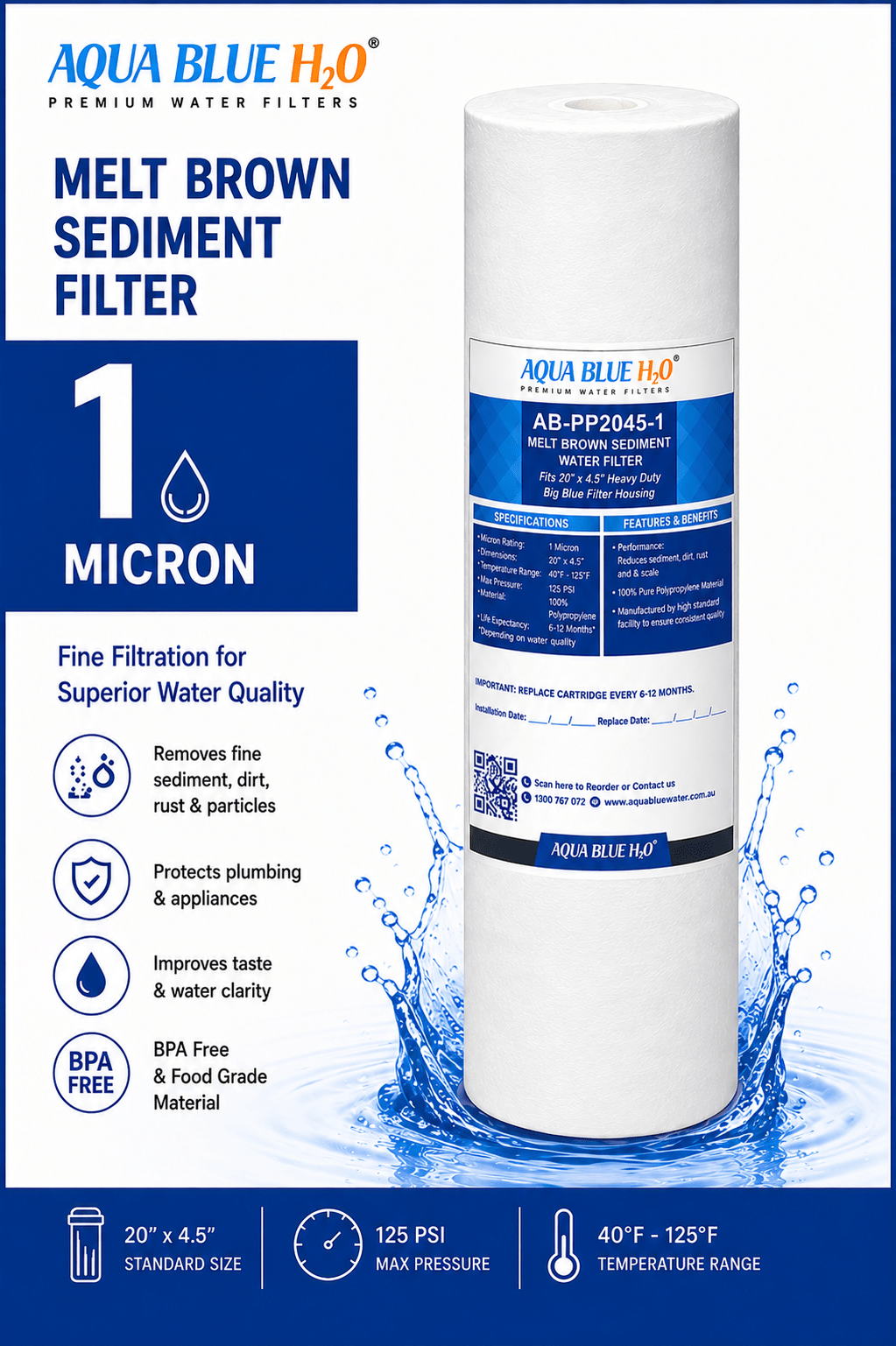

Choose 1 Micron when very fine sediment removal is the priority.

Choose 5 Micron for most general-purpose applications and where you want a good balance between fine filtration, flow and cartridge life.

Choose 10 Micron when the water contains moderate sediment and a higher flow rate is preferred.

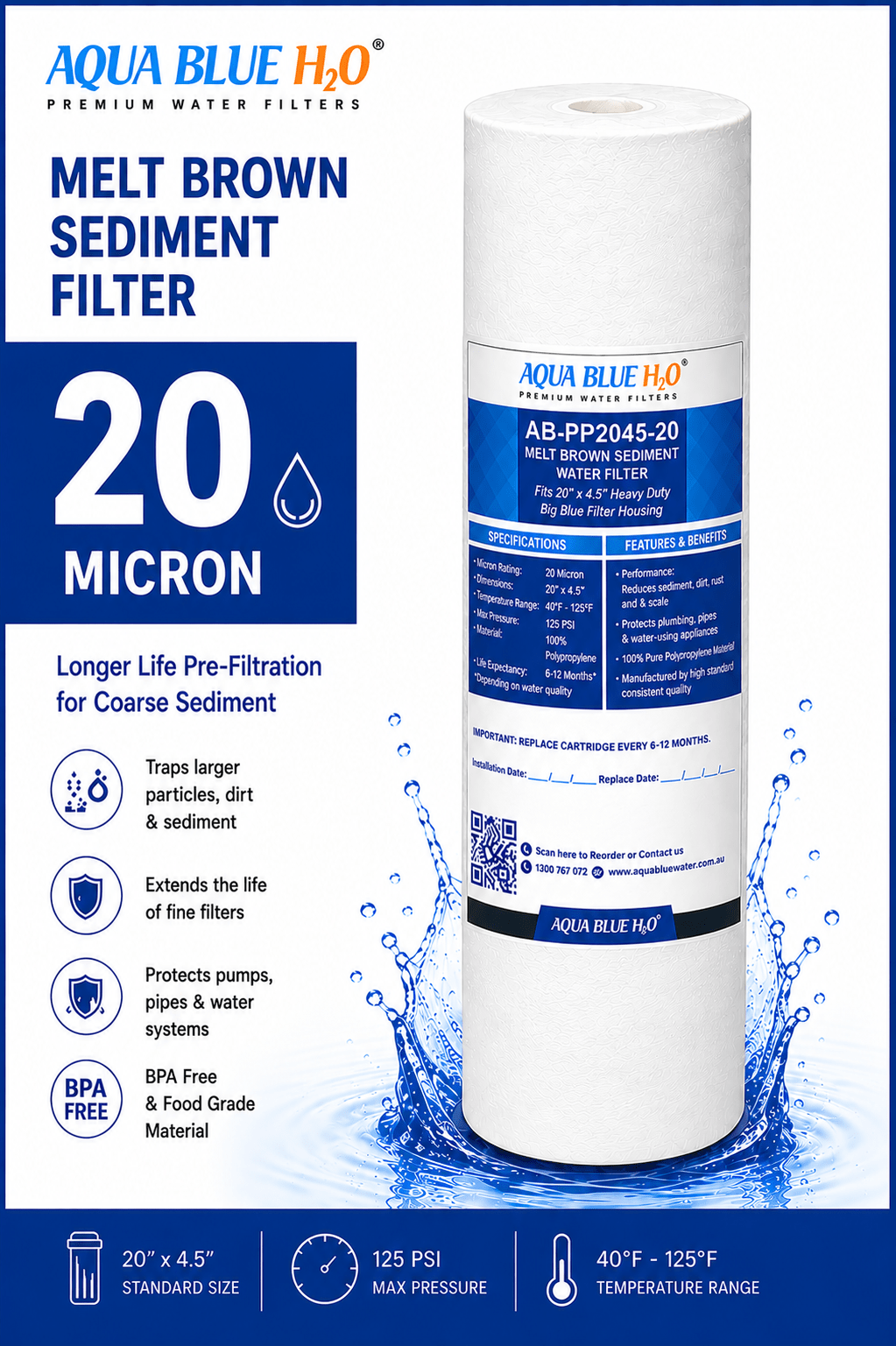

Choose 20 Micron for heavier sediment loads or as the first filtration stage before a finer sediment or carbon filter.

Multi-Stage Filtration Example

For water with a high sediment load, cartridges can also be used progressively:

20 Micron → 10 Micron → 5 Micron → 1 Micron

This allows larger particles to be captured first, helping reduce the sediment load on finer downstream cartridges.

Important: Actual flow rate and pressure drop will vary depending on the selected micron rating, incoming water pressure, sediment concentration, cartridge condition, housing port size, water temperature and other installation conditions. Replace the cartridge when water flow noticeably decreases or according to the maintenance requirements of your filtration system.
