Bosch Fridge Filter EFF-6026B Generic Fridge Filter

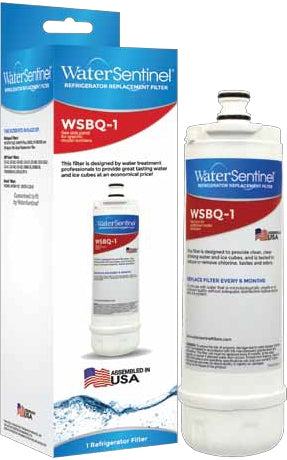

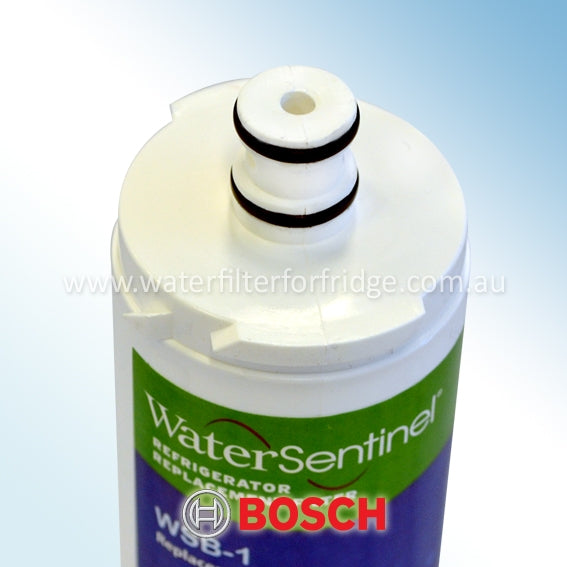

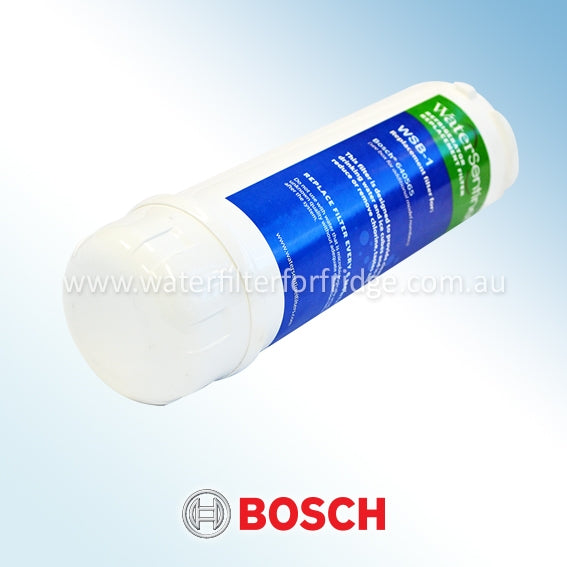

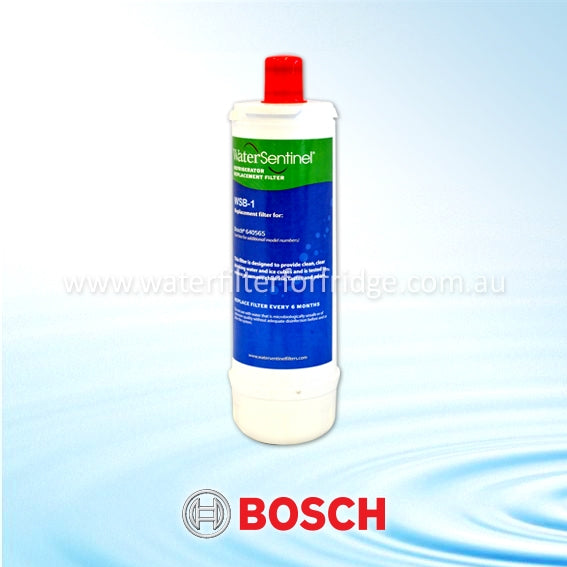

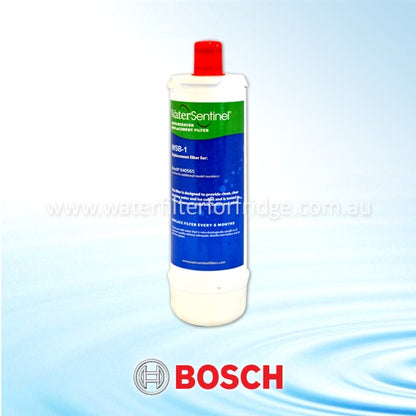

CS-52 Generic Filter Water Sentinel WSB-1

USA made generic Water Sentinel WSB-1 replaces Bosch CS-52, 5586605, 640565 water filters

THIS  ITEM  WILL SHIP   WITH  GENUINE  CS-52







Installation and replacement procedure for WSB-1 filter:
  1. Close shut off valves before and after filter head. Depressurize filter.
  2. Grasp head and cartridge securely, and turn used cartridge slowly to the left. If water line has not been properly depressurized, a small discharge of water may occur. Gently pull cartridge straight out and discard.
  3. Align tabs of new cartridge with head and insert new cartridge into head. Turn cartridge to the right until the filter stops.
  4. Place the inlet shutoff valves in regular working position. Due to air and carbon fines water may initially run cloudy but will clear. Flush system in accordance with Performance Data sheet.

When to change a filter: There is a replacement indicator light for the water filter cartridge on the dispenser. The filter cartridge should be replaced when the filter light comes on, or every 6 months, or if you notice a decrease in flow of water.



Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty



View Installation Guide : Please CLICK here











The WSB-1 Water Filter Fits Models:
 - The WSB-1 is compatible with the following :
CS-52, 1257074, 55866-05, 55866-06, 5586605, 5586606, 56932, 640565, 70020002518, AP3961137, B20CS5, B20CS8, CS-450, CS-451, CS-452, CS-51, CS450, CS451, CS452, CS51, CS52, EVOLFLTR10, W1085590, WHCF-R-PLUS, WHCFRPLUS WHKF-R-PLUS, WHKFRPLUS, FilterLogic FFL-111B, FFL111B
 - old part numbers : 640565, CS-51, CS-452, CS-450, B20CS5, and 5586605.

 Bosch-Neff-Siemens-Abode-3M CS-52 640565 5553629 fridge water filter

The WaterSentinel WSB-1 is compatible with the following obsolete or alternate filter part numbers:

1257074

2168701

55866-05

55866-06

5586605

5586606

56932

640565

70020002518

AP3961137

B20CS5

B20CS8

CS-450

CS-451

CS-452

CS-51

CS-52

CS450

CS451

CS452

CS51

CS52

EVOLFLTR10

W1085590

WSB-1







Important: Some manufacturers use the same fridge model number for fridges supplied with both internal and external filter systems, please make sure that your fridge uses an Internal water filter before ordering this item.



The aftermarket WaterSentinel WSB-1 Premium Ice & Water Filter is used in refrigerators by Bosch and others. The WSB-1 is designed to replace the Bosch 640565 filter.  It creates better tasting water for drinking and making beverages as well as clean, clearer, healthy ice.

Features:
High quality, inexpensive alternative to factory original filterHelps reduce chlorine taste and odorHelps reduce contaminants found in tap water and improves its quality

Made in the USA



The Genuine WSB-1 Operating Specifications are as Follows:

Micron Rate 5 microns

Operating Temperature min 0.6°C / max 38°C

Operating Pressuremin 180 kPa (25 psi) / max 862 kPa (125 psi)

Function Chemical and Mechanical Reduction

Capacity 1,500 gallons

Service Life6 months

Actual Size8 1/4 inches (length) x 2 1/2 inches (diameter)



Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Filter Life: 6 months or 1500 gallons (whichever comes first)

Flow Rate: 0.5 gallons per minute

Operating Pressure: 25 - 125 psi

Operating Temperature: 40 - 100 degrees Fahrenheit

Micron Rating: 5 microns

Actual Size: 8 1/4 inches (length) x 2 1/2 inches (diameter)

Bosch Part Number: CS-52

UPC: 016145068805
Country of Origin: U.S.A.

This is a WSB-1 Water Filter reduce chlorine taste and odor, rust, and other impuritie

 - 5 micron carbon - suitable for sediment, chemical and scale reduction. Reduces bad tastes and odours.



 - Made in the USA by Cuno 3M



 This bayonet style filter suitable for internal use in Bosch Fridges. This filter protects the ice and water dispenser whilst delivering clean and clear drinking water. The filter sits horizontally and twists in and out for easy changeover.
