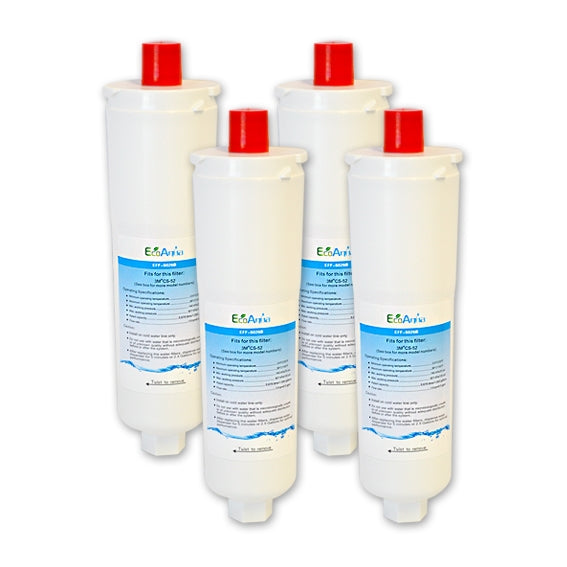

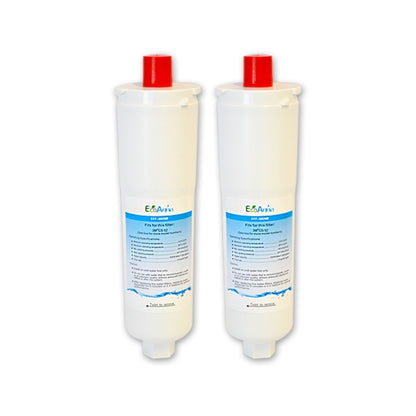

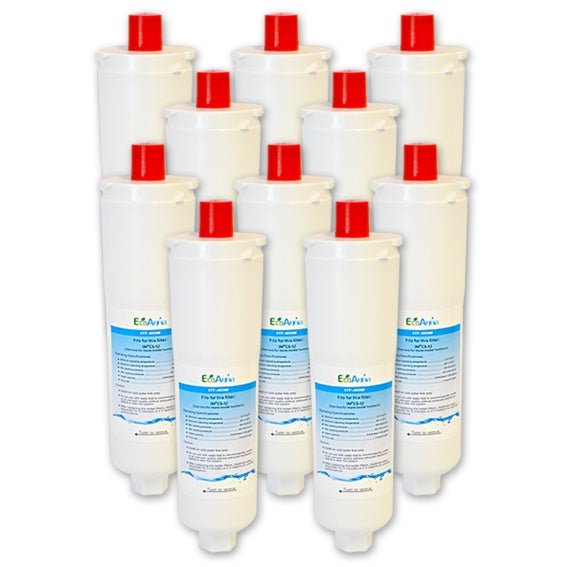

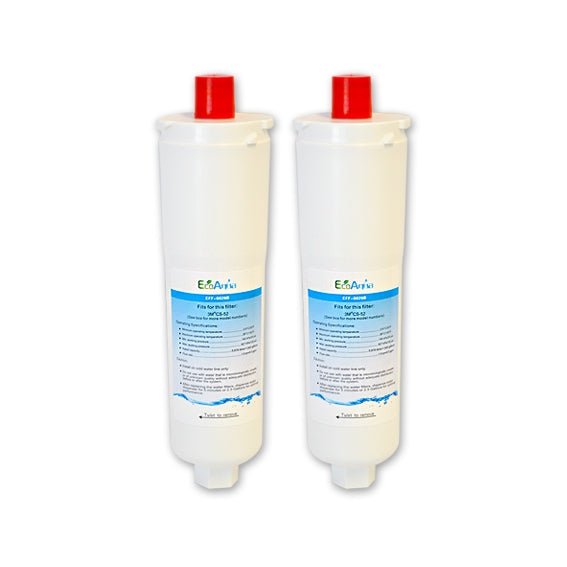

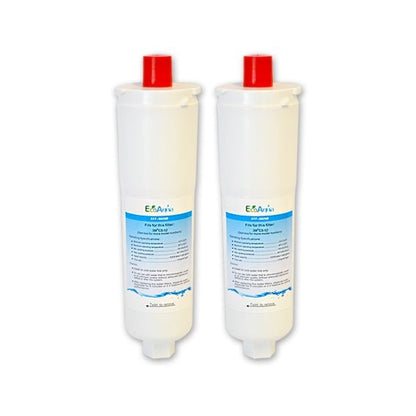

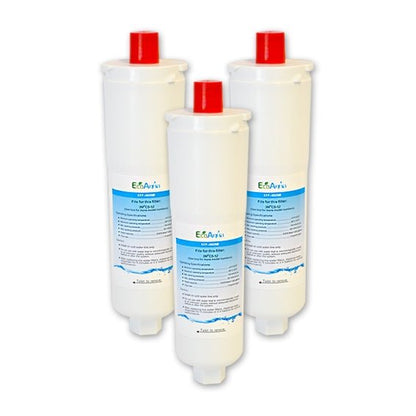

Bosch Internal Fridge Filter Generic Replacement CS-52 EFF-6026B

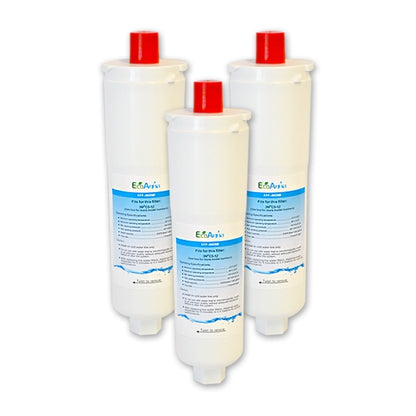

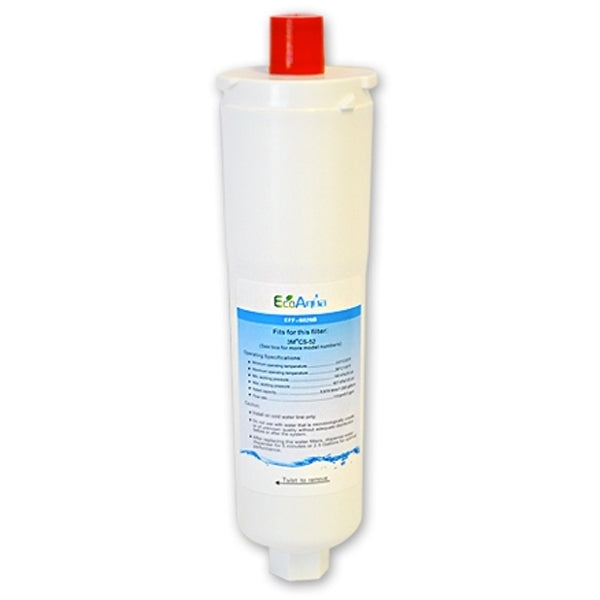

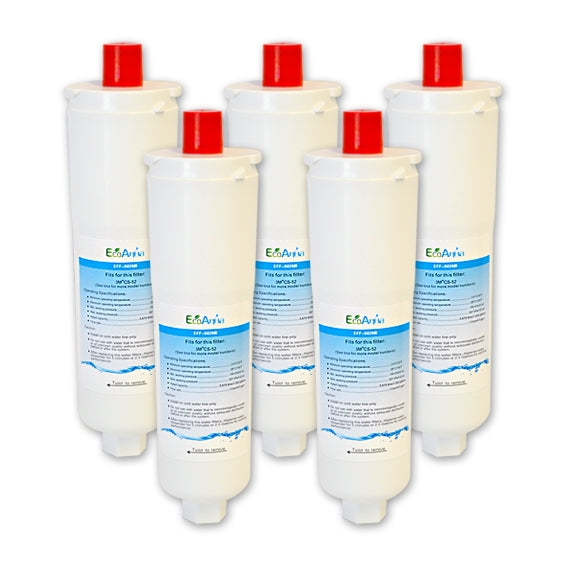

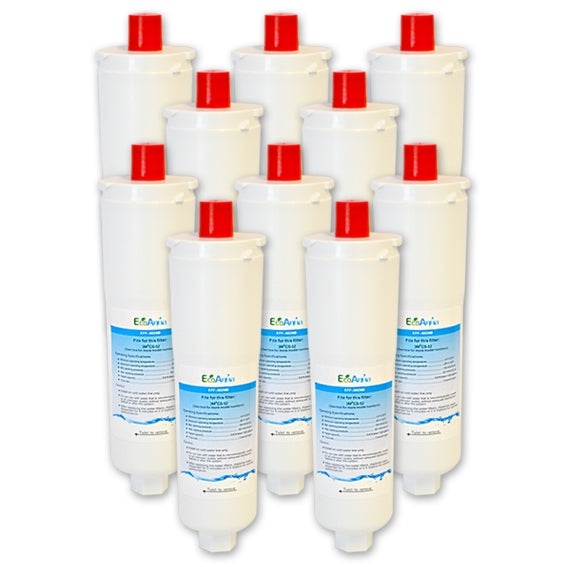

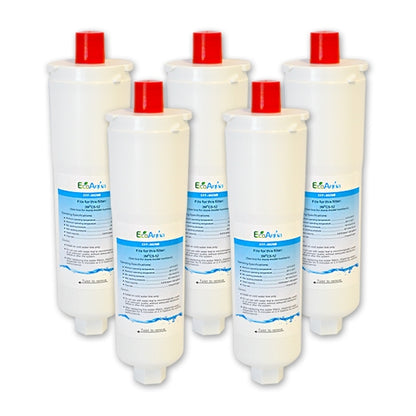

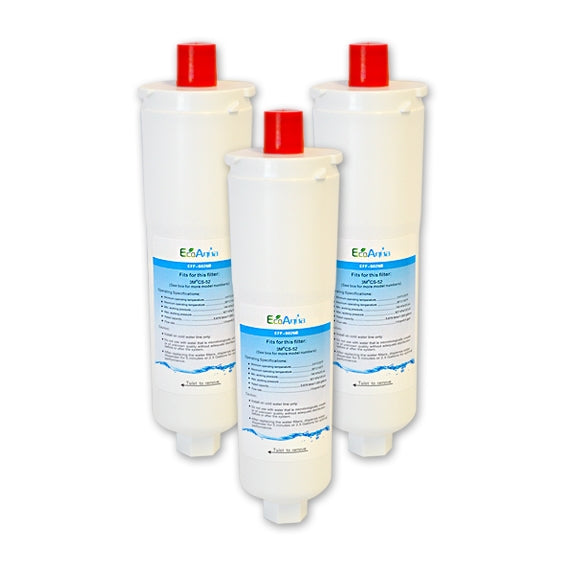

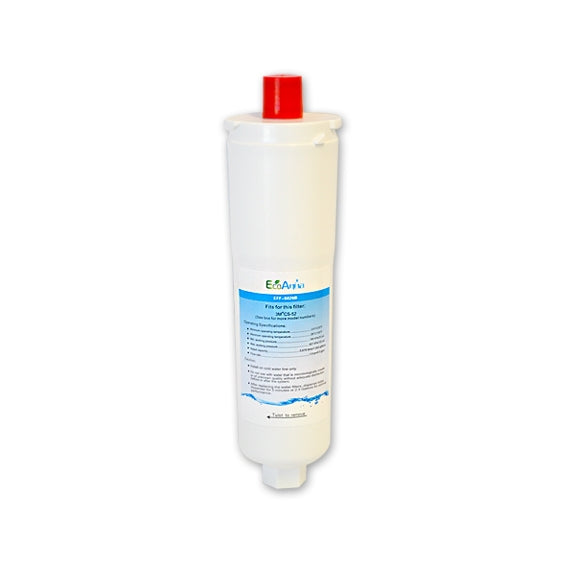

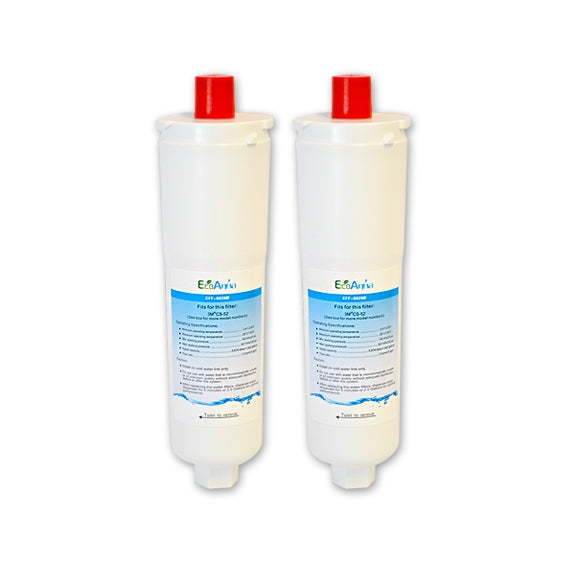

ECO AQUA EFF-6026B



The replacement filter for 3M BOSCH CS-52













  Installation Instructions:

Disconnect the refrigerator water supply and unplug the refrigerator

Push the button at the top of the filter case and remove the case from the compartment

Twist the old filter a quarter-turn counterclockwise

Pull the filter straight out and discard

Remove the protective cap from the new filter

Push the new filter into the fridge until it stops

Twist the new filter a quarter-turn clockwise

Replace the filter case back into the compartment

Reconnect the refrigerator water supply and plug the refrigerator back in

When to change a filter: There is a replacement indicator light for the water filter cartridge on the dispenser. The filter cartridge should be replaced when the filter light comes on, or every 6 months, or if you notice a decrease in flow of water.



Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty



View Installation Guide : Please CLICK here











The EFF-6026B is compatible with the following:CS-52, CS-52-2, 1257074, 55866-05, 55866-06, 55866055586606, 56932, 640565, 70020002518, AP3961137B20CS5, B20CS8, CS-450, CS-451, CS-452CS-51, CS450, CS451, CS452, CS51CS52, EVOLFLTR10, W1085590, WHCF-R-PLUS, WHCFRPLUSWHKF-R-PLUS,WHKFRPLUS, WHKF-R-PLUS, WHKFRPLUS
Bosch filter number EVOLFLTR-10, FilterLogic FFL-111B, FFL111B
KAN58A40AU.







Important: Some manufacturers use the same fridge model number for fridges supplied with both internal and external filter systems, please make sure that your fridge uses an Internal water filter before ordering this item.





Filter Life: 6 months or 1500 gallons (whichever comes first)

Flow Rate: 0.5 gallons per minute

Operating Pressure: 25 - 125 psi

Operating Temperature: 40 - 100 degrees Fahrenheit

Micron Rating: 5 microns

Actual Size: 8 1/4 inches (length) x 2 1/2 inches (diameter)

Bosch Part Number: CS-52

UPC: 016145068805



Genuine

replacement

3M Dual Action Filter

CS-52, CS-452,

00640565, 640565, 5553629, 5586605,

BWF100, WF033, 700203119060,

refrigerator

fridge ice water filter cartridge

( one water filter - in total )

3M

CS400 Series

Dual Action Filter

Bosch

Refrigerator Appliance Models

American Style
USA Style or US Style

side-by-side

French doors or double doors
twin doors or swing doors
refrigerator appliance

fridge freezers

replace

5553629, 5586605,

EVOLFLTR10,

640565, 00640565, BWF100,

C00378330,

CS-52, CS-452,

WF033,

Model = CS-52WF

Dual Action filter

CS-52WF

Evolution Series refrigerators

utilising
Cuno CS400 Series filters

*

replace
BWF100, 640565,

00640565,

70020002518, 70020319060,
CS-52, CS52, CS-452, CS452, CS 452,

5586605, 55866-05, 5553629,

EVOLFLTR10,

Cuno OCS,

CS-51, CS51, CS-451,

CS451, CS 451,

C00378330,

5586606, 55866-06, 5553631,

640565, 00640565,

*
Adobe Aquifier

AT2002 Safelock (TM)

compatible water filter cartridge

*

note

original Is manufactured by

3M Purification Inc.

*
Internationality Water Quality

NSF/ANSI

Safety Standard 42
chlorine reduction + removal

With taste + odour improvements







IF YOU ARE NOT 100% SATISFIED WITH YOUR PURCHASE WE OFFER A FULL REFUND OR REPLACEMENT.
