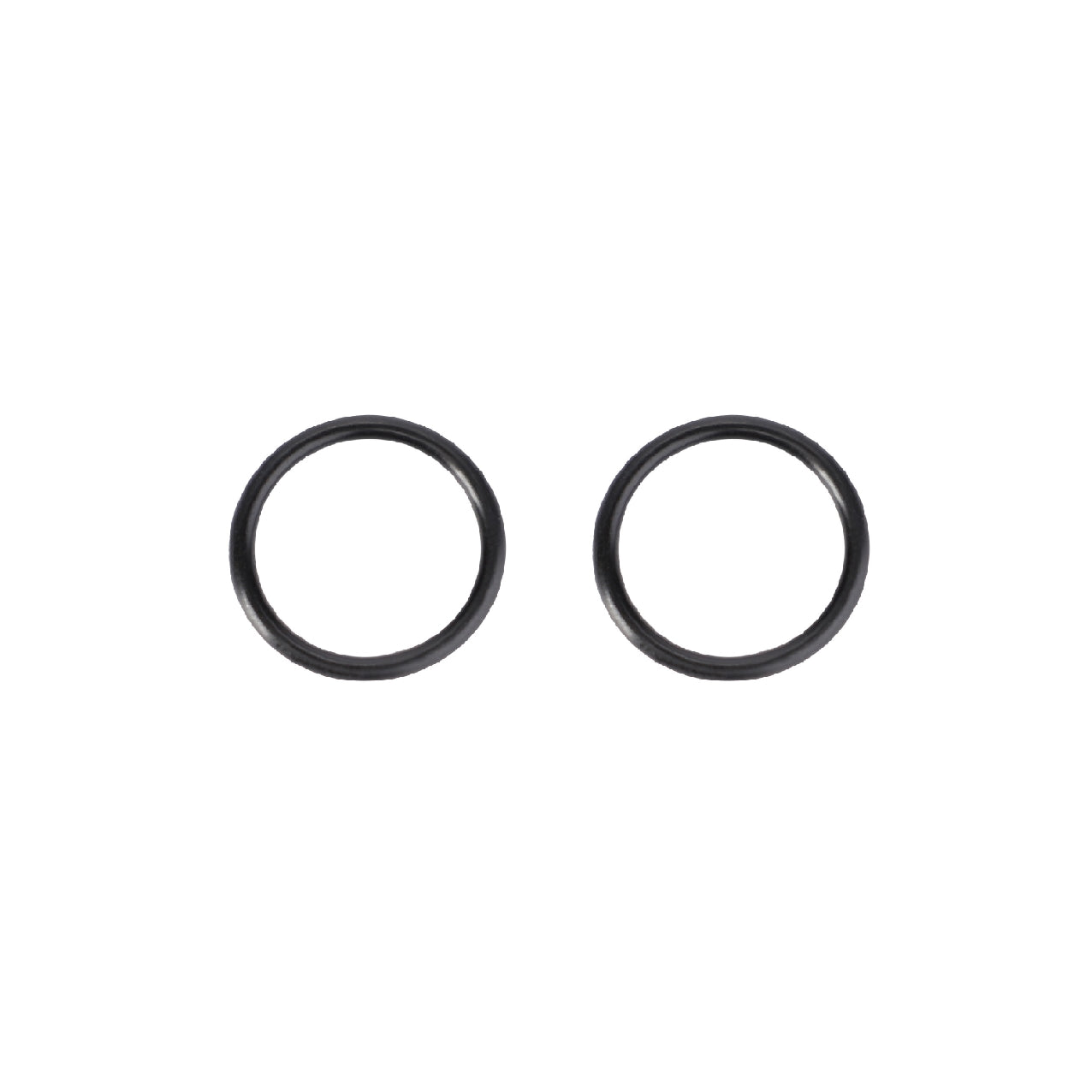

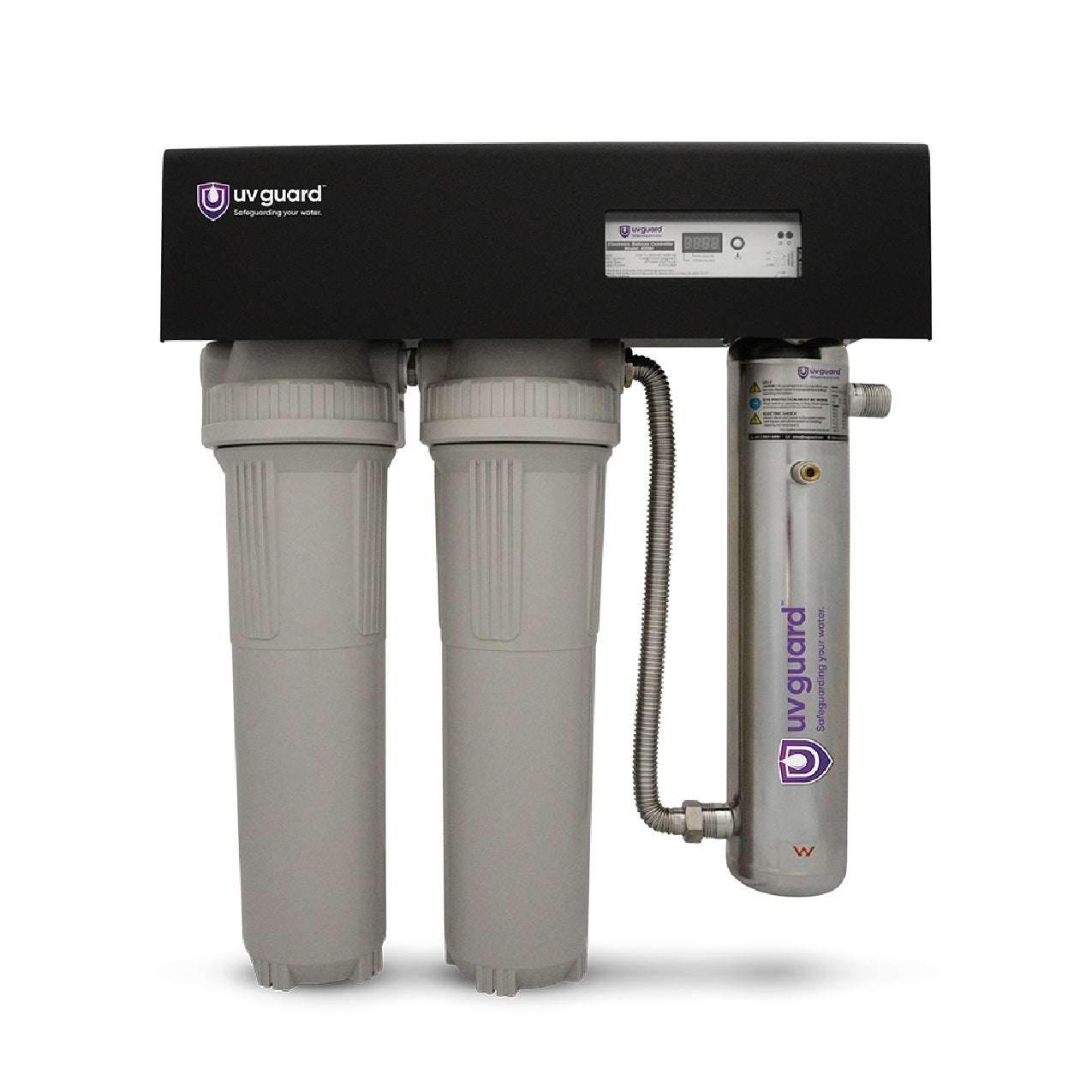

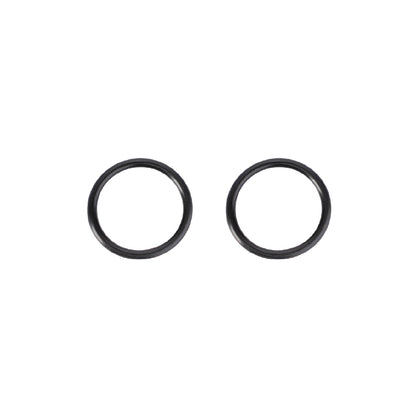

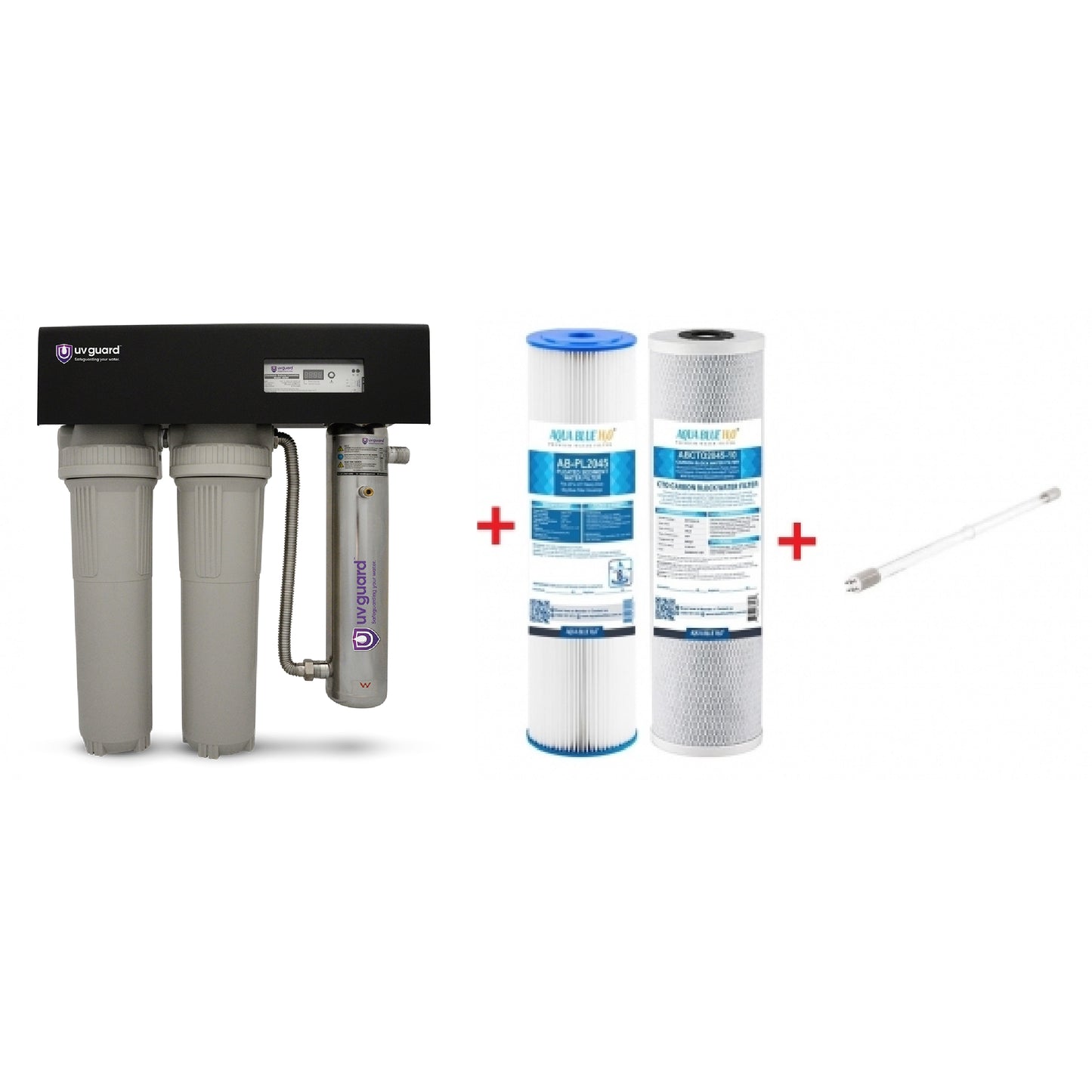

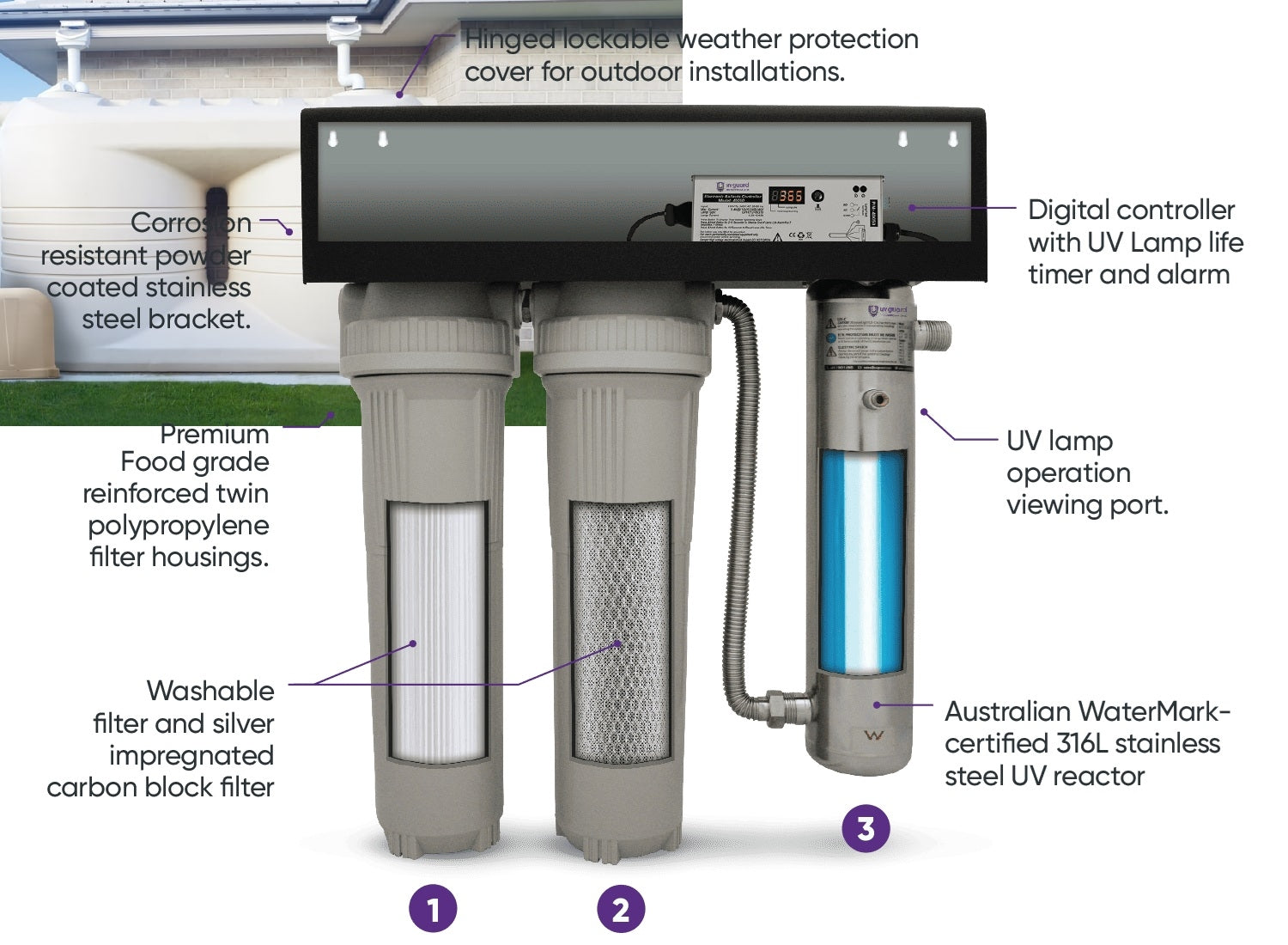

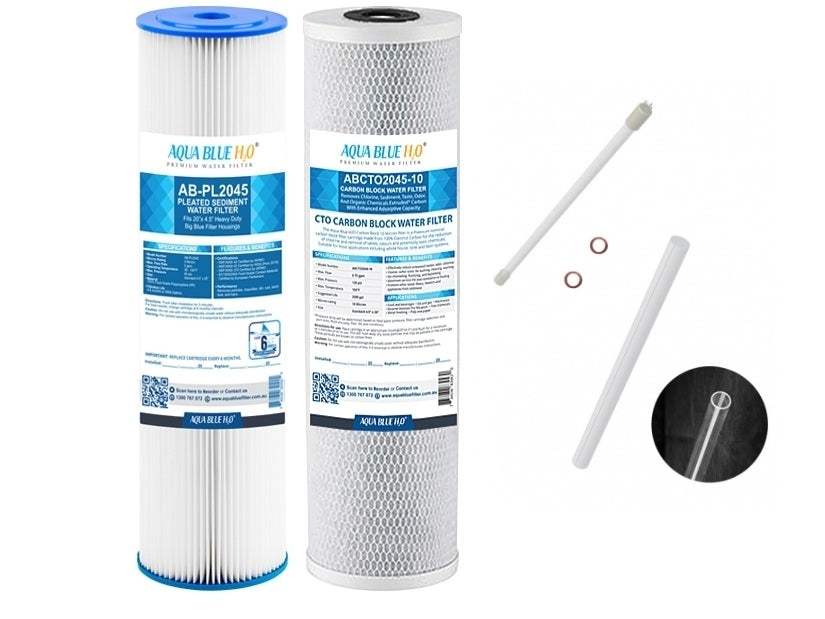

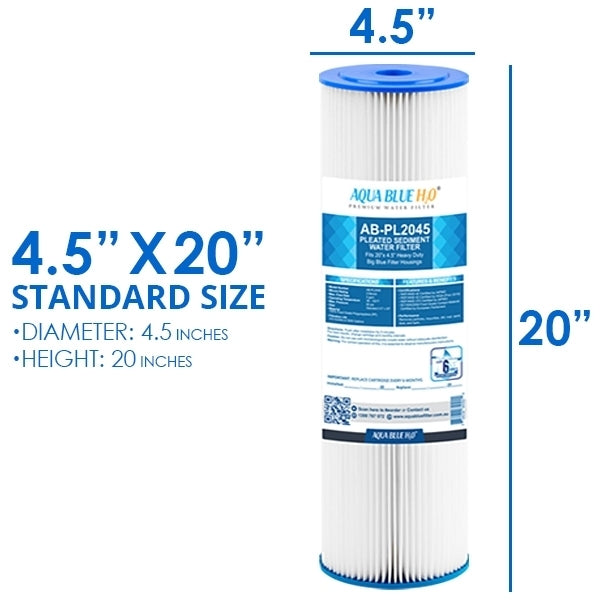

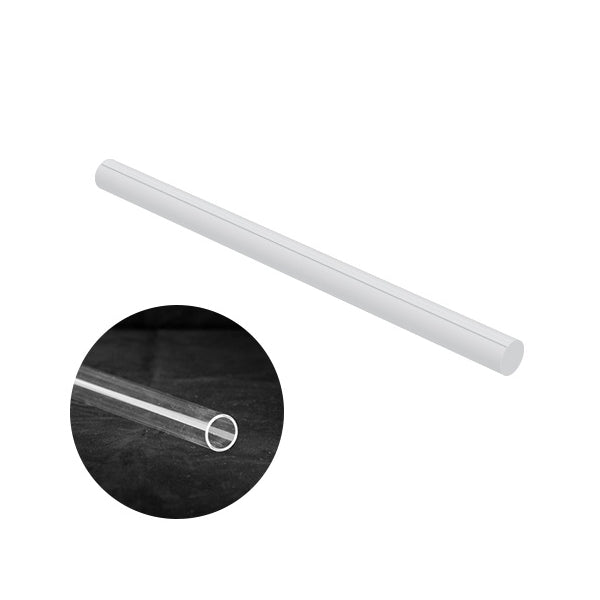

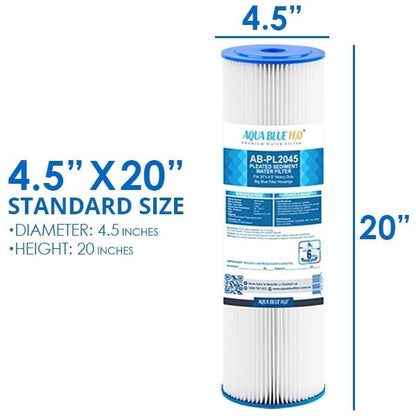

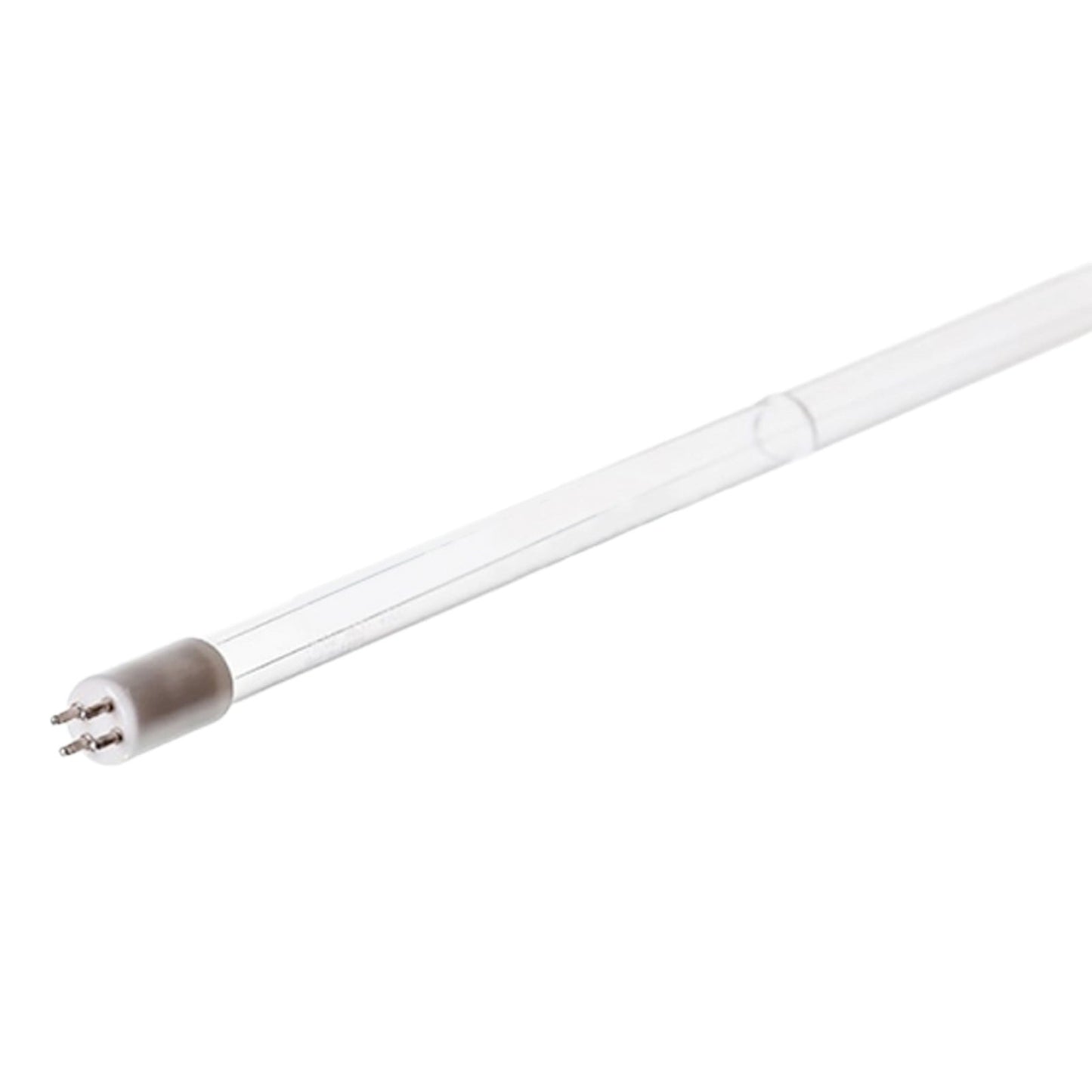

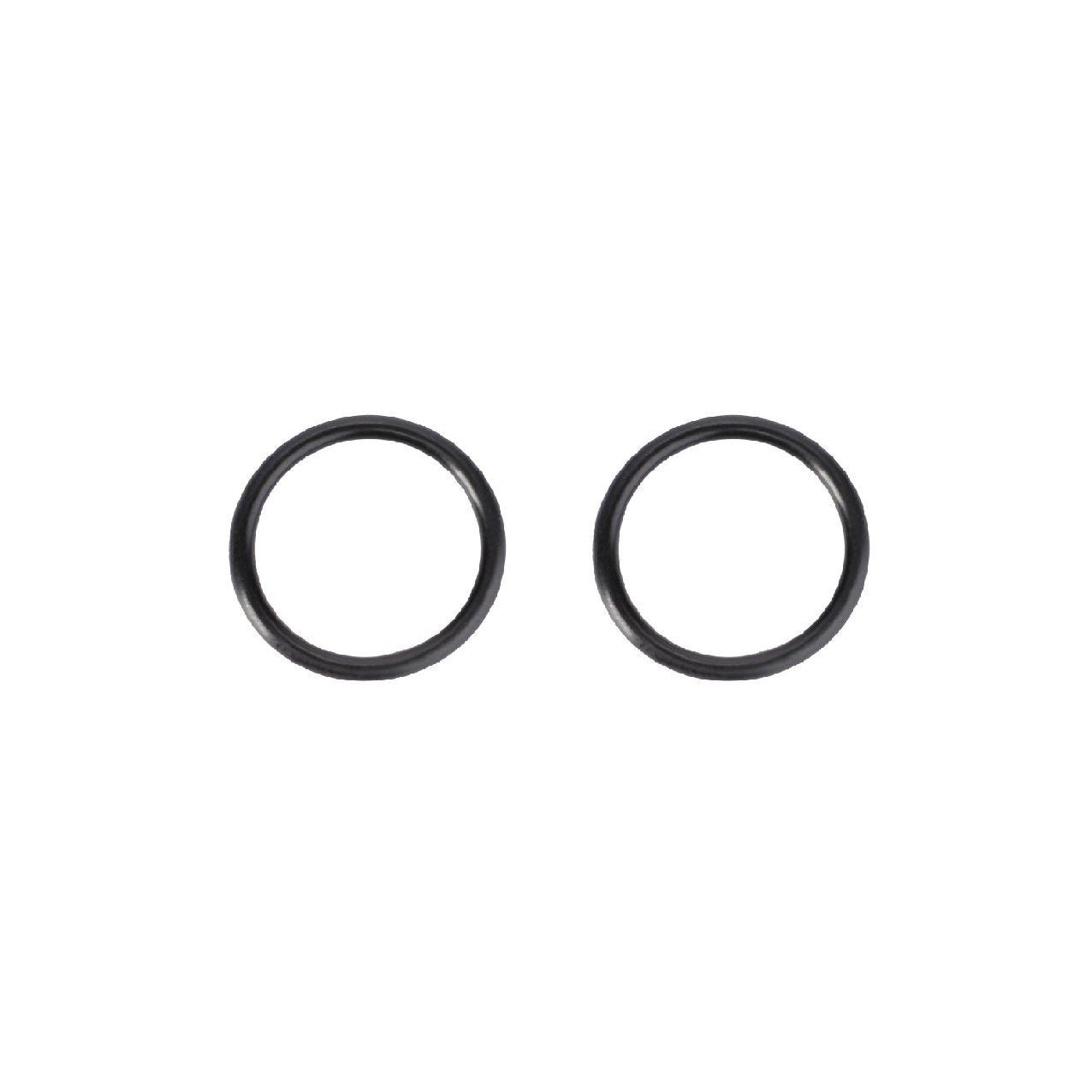

UVG CWP55, complete water purification in one unit with weather protection cover (small house) with two 20” x 4.5” poly filter housings, 20 micron washable pleated sediment filter, 5 micron anti-bacterial carbon block taste and odour filter, 316 grade stainless steel reactor, 55W UV lamp, quartz and o-ring preassembled onto a powder coated steel bracket.

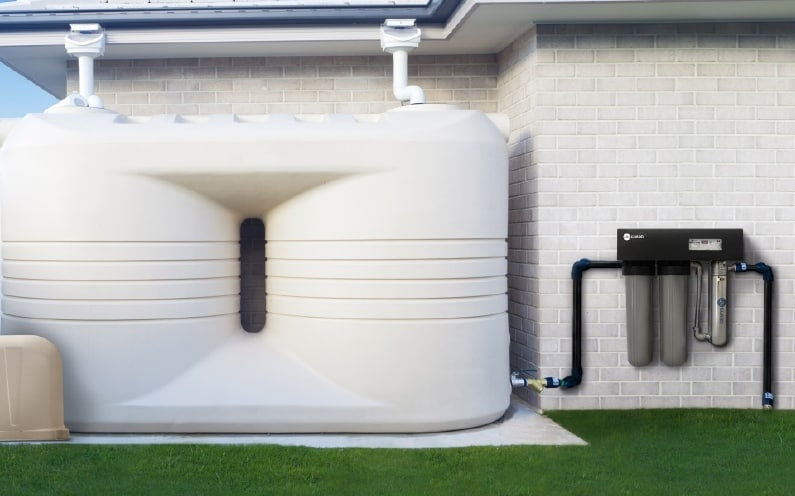

UV-Guard’s CWP-Series purifies water to allow it to be safely consumed or used throughout your home or commercial facility. This complete water treatment system combines filtration, adsorption and UV disinfection – three processes proven to remove sediment, improve taste, clarity & odour, and inactivate bacteria and pathogens in your water. An effective rainwater treatment system – transforming your collected tank water to safe drinking water. Can also be used for bore water and town water treatment.
SPECIFIC CHARACTERISTIC
• Removes sediment and improves taste colour and odour of your drinking water.
• Destroys 99.99% of E.Coli, Cryptosporidium, Giardia and other harmful pathogens.
• Corrosion resistant stainless steel bracket and lockable cover.

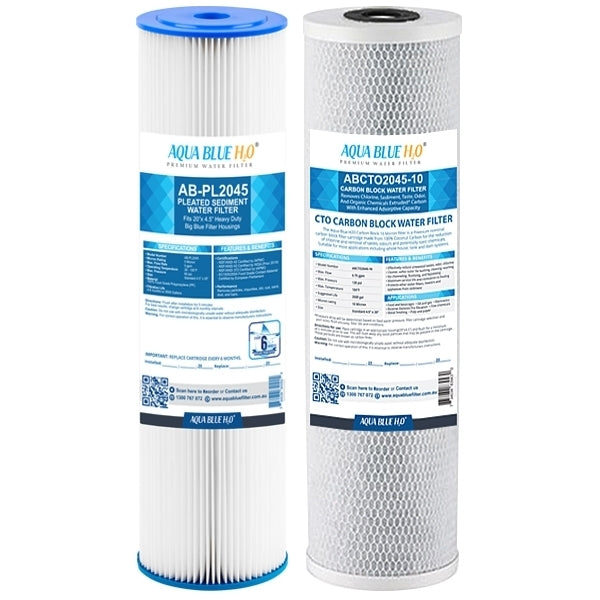

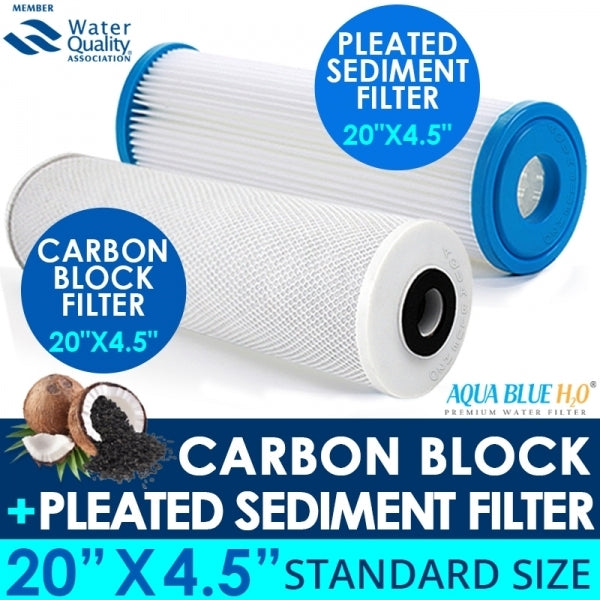

• Premium twin filter housings with pleated washable filter and silver impregnated carbon block filter.
• Australian WaterMark certified 316 stainless steel UV reactor with lamp operation view port and digital controller.
Product Information
UV Guard’s CWP-Series purifies water to allow it to be safely consumed or used throughout your home or commercial facility. The unit delivers complete water treatment in 3 stages – filtration, adsorption and UV disinfection – to remove sediment, bacteria and other pathogens while improving taste, clarity and odour. Suitable for rainwater, bore water and townwater treatment.
APPLICATION
|
Residential |
Drinking Water |
Rain Water |
Advantages
All systems in the CWP-Series are compact, weather-resistant and easy to use and maintain. By naturally disinfecting water without the use of harsh chemicals, it offers a safer and more sustainable solution for drinking water treatment. Over the life of the system, its simplicity also brings real time and cost savings for both residential and commercial users.
Key Features
- Destroys 99.99% of pathogens including E. Coli, Cryptosporidium and Giardia making it safe for drinking
- Removes sediment and improves taste, colour and odour of rainwater, bore water and town water
- Corrosion-resistant stainless-steel bracket and lockable cover
- Premium twin filter housings with pleated washable filter and silver impregnated carbon block filter
- Australian WaterMark-certified 316L stainless steel UV reactor with lamp operation view port and digital controller
- Pre-assembled for quick ‘plug & play’ installation.
3-Stage – Filtration, Adsorption & UV disinfection
Using globally proven UV technology, the CWP-Series features a highly effective 3-Stage Drinking Water Treatment System:

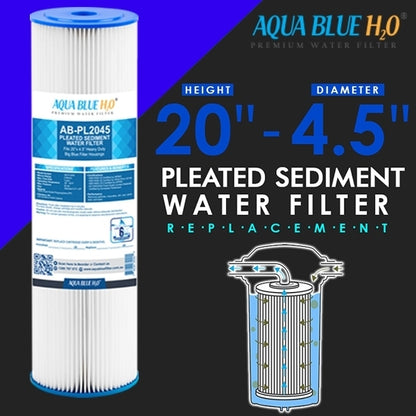

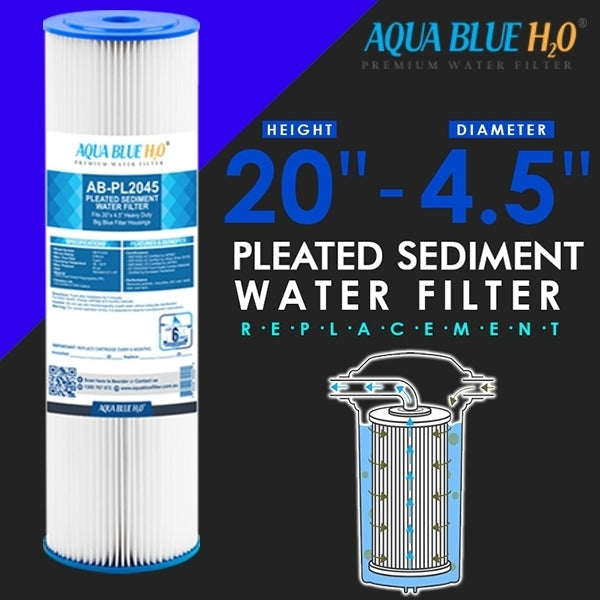

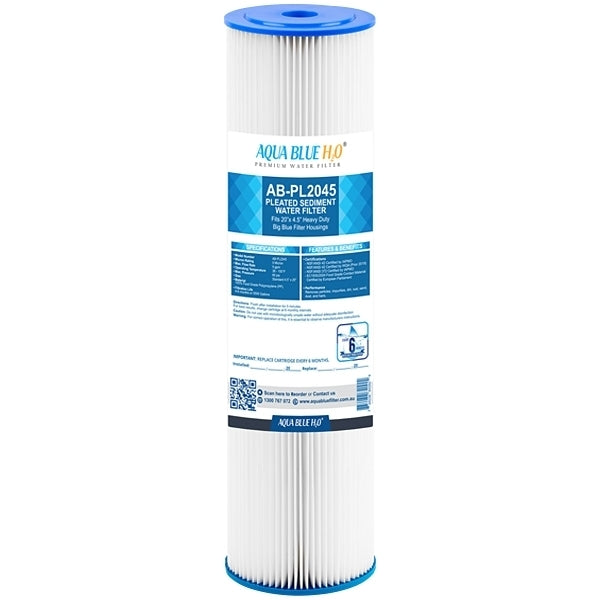

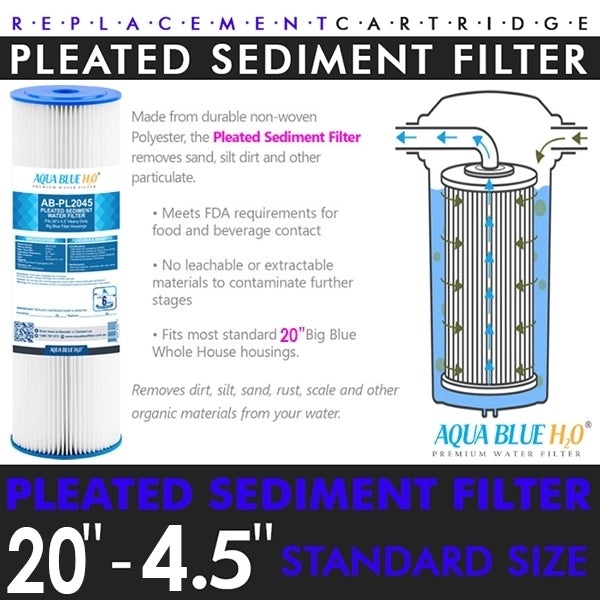

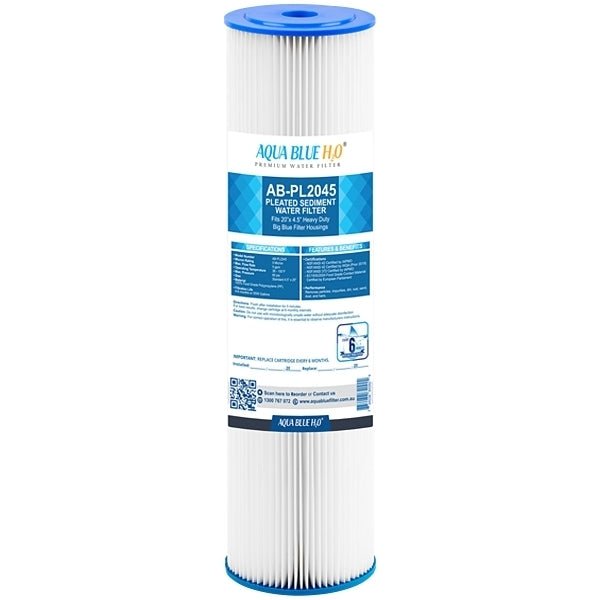

Stage 1 – Sediment Filtration: Removes common water impurities such as silt, dirt and rust.

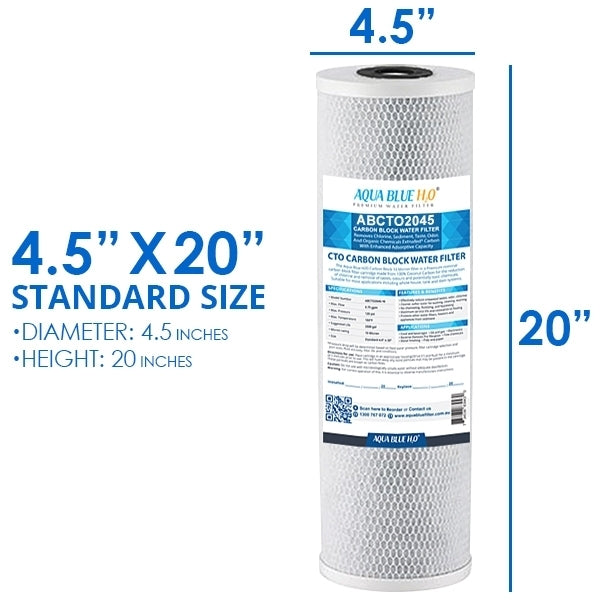

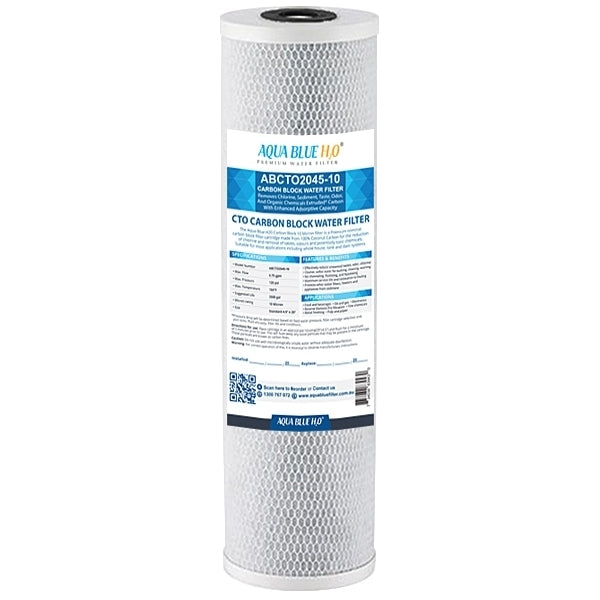

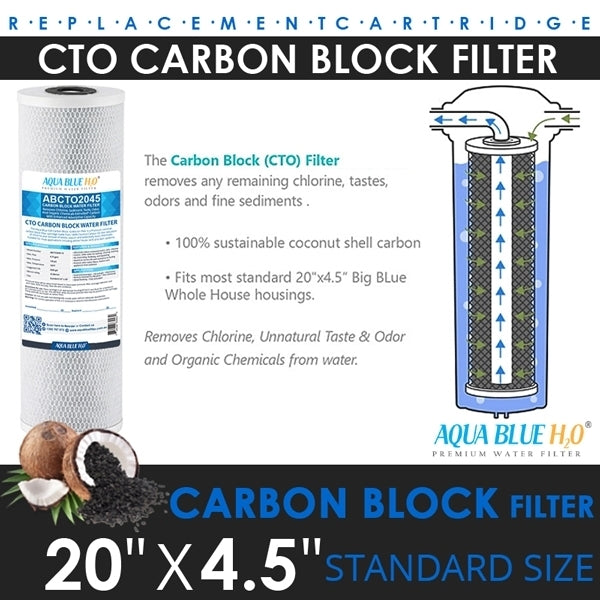

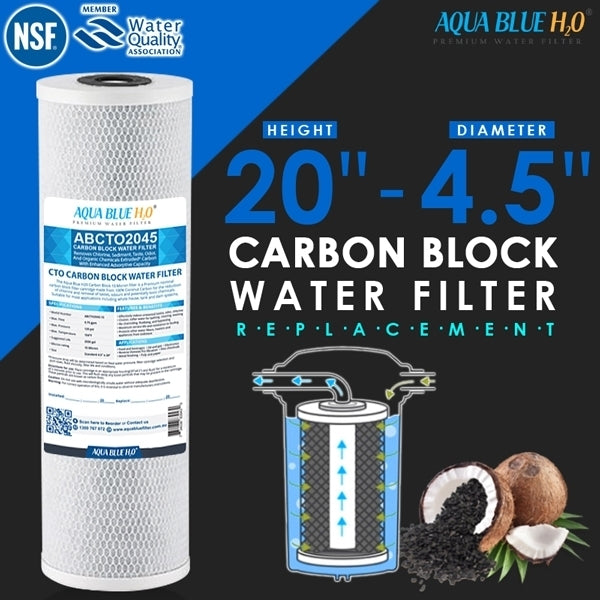

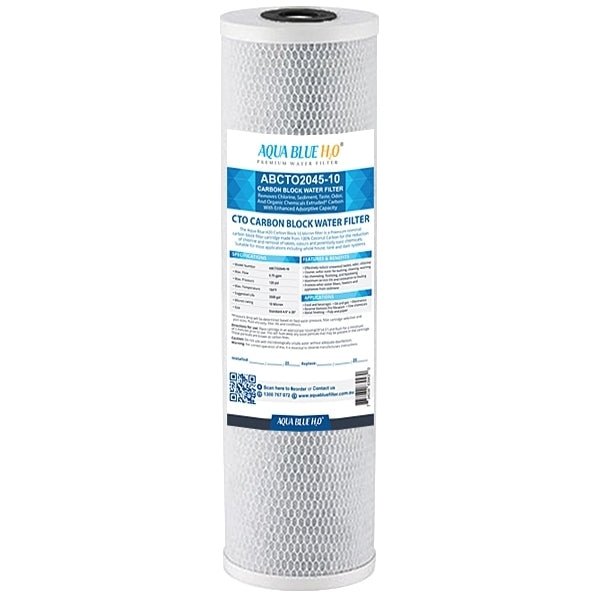

Stage 2 – Adsorption: Silver-impregnated antibacterial carbon block filter improves taste, odour and clarity whilst preventing bacteria from establishing.
Stage 3 – UV Disinfection: Chemical-free process that destroys bacteria and other harmful pathogens in the water. No pathogen is known to be immune to UV Disinfection.
Models & Specifications
| Model | Dimensions | UV Dose Flow Rates | ||||
|---|---|---|---|---|---|---|
| A | B | C | 16mJ/cm2 | 30mJ/cm2 | 40mJ/cm2 | |
| CWP30 | 60 | 66 | 22 | 78 lpm | 42 lpm | 31 lpm |
| CWP55 | 60 | 74 | 22 | 142 lpm | 77 lpm | 56 lpm |
| Model | Inlet | Outlet | Sediment Filter | Adsorption Filter | UV Lamp | Maximum Pressure |
|---|---|---|---|---|---|---|
| CWP30 | 1” Female BSP (25mm) | 1” Male BSP (25mm) | 20 micron pleated washable | 5 micron silver antibacterial carbon | 30W | 875 kPa |
| CWP55 | 55W |
