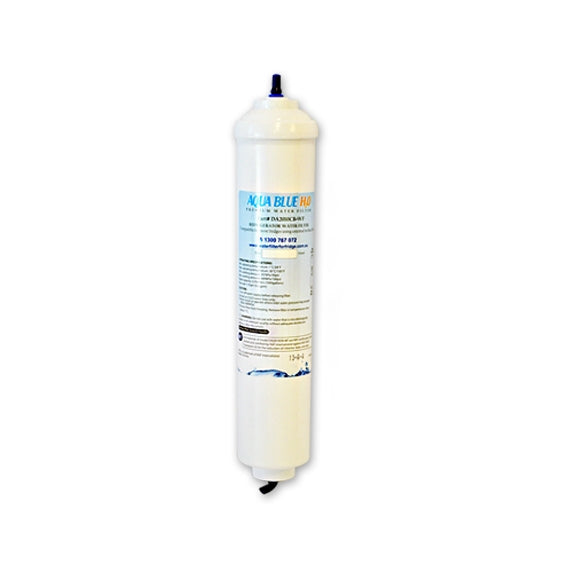

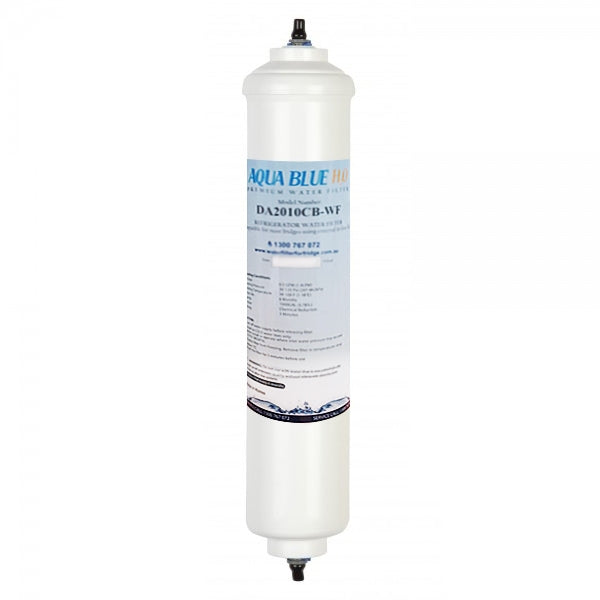

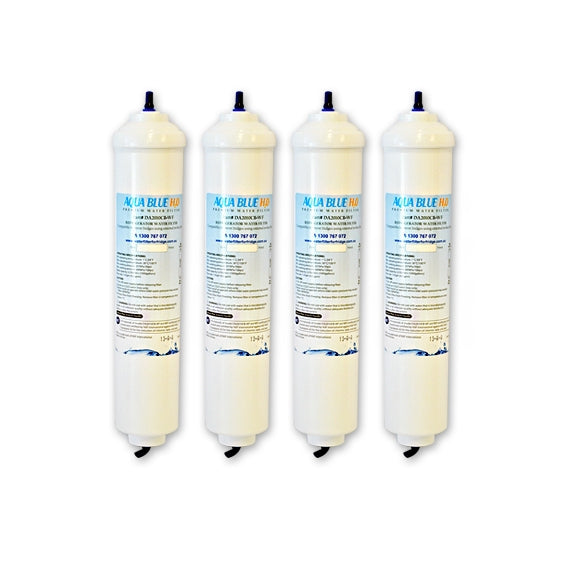

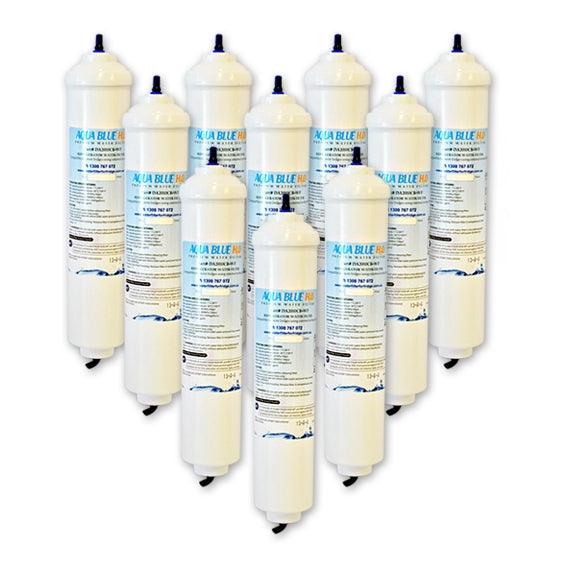

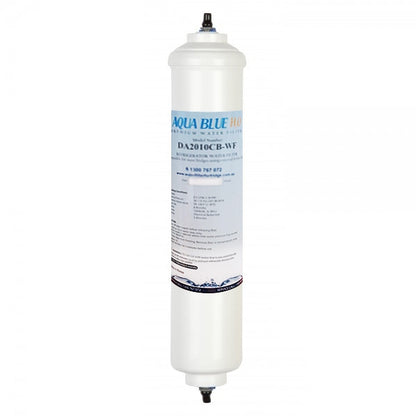

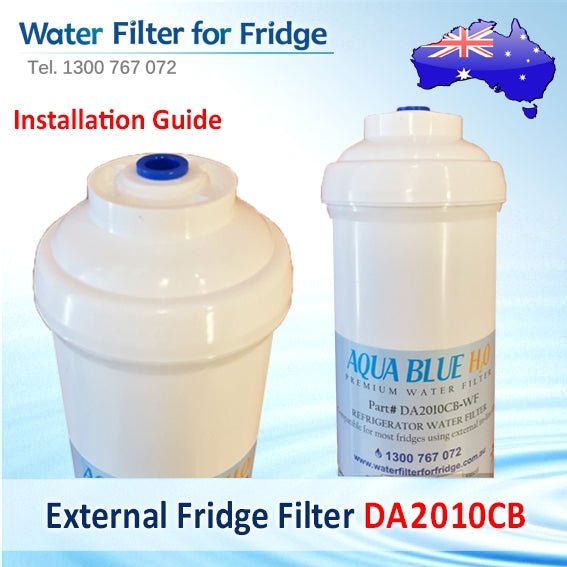

Daewoo Replacement Fridge Filter DD-7098 (DA2010CB)

AQUA BLUE H2O COMPATIBLE EXTERNAL INLINE FRIDGE WATER FILTERS DA2010CB

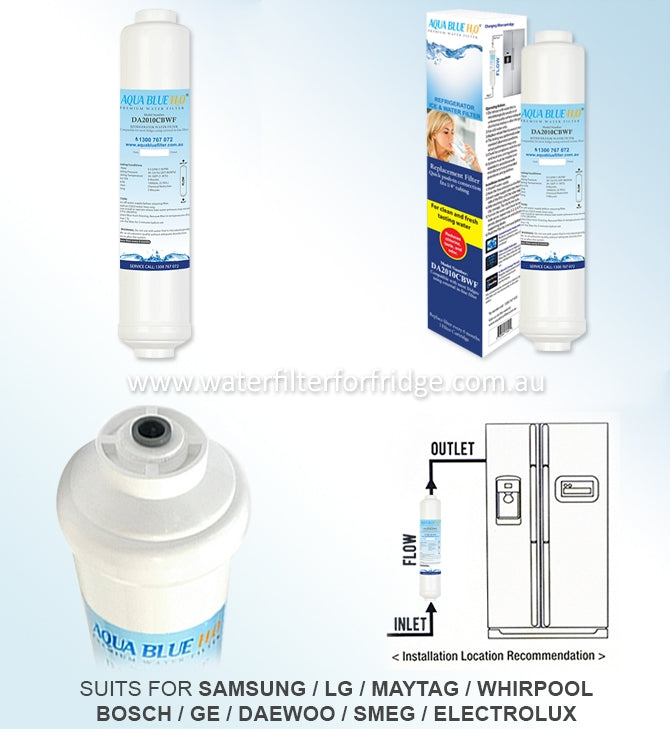

SUITS FOR  FRN-U20DDTI  DAEWOO FRDIGE FILTERS DD-7098 DA2010CB is a compatible external inline refrigerator water filter is a long lasting replacement cartridge for side-by-side refrigerators that have externally fitted cartridges

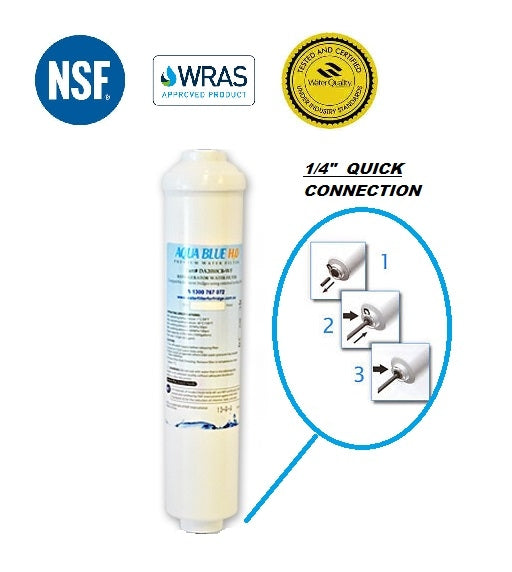

This is for external compatible water filters with 1/4" pushfit connections
You are buying Superior Quality compatible filters with push-fit connections.

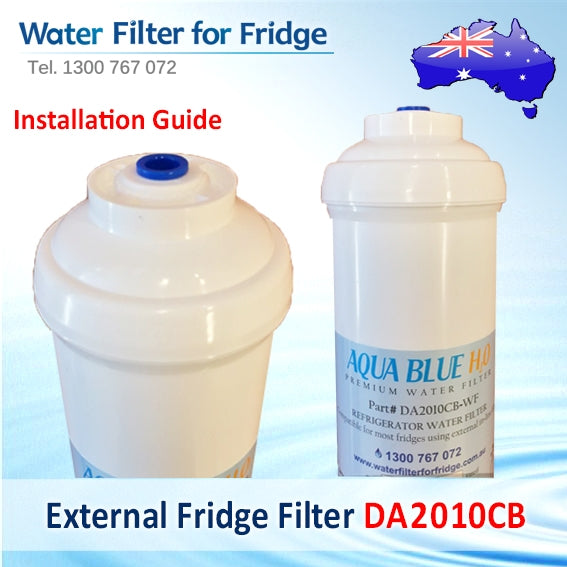

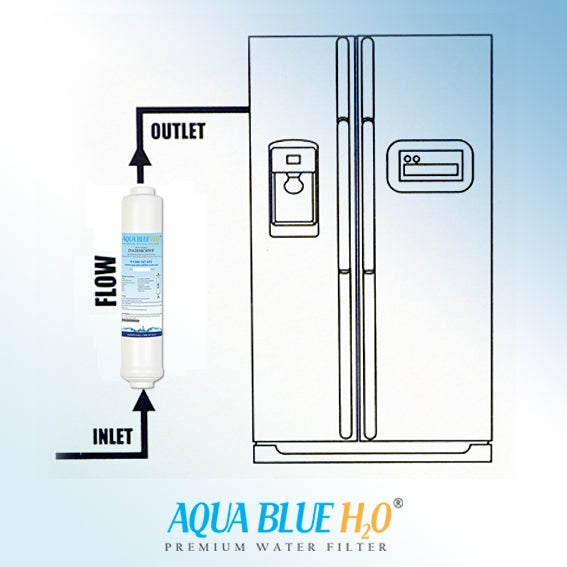

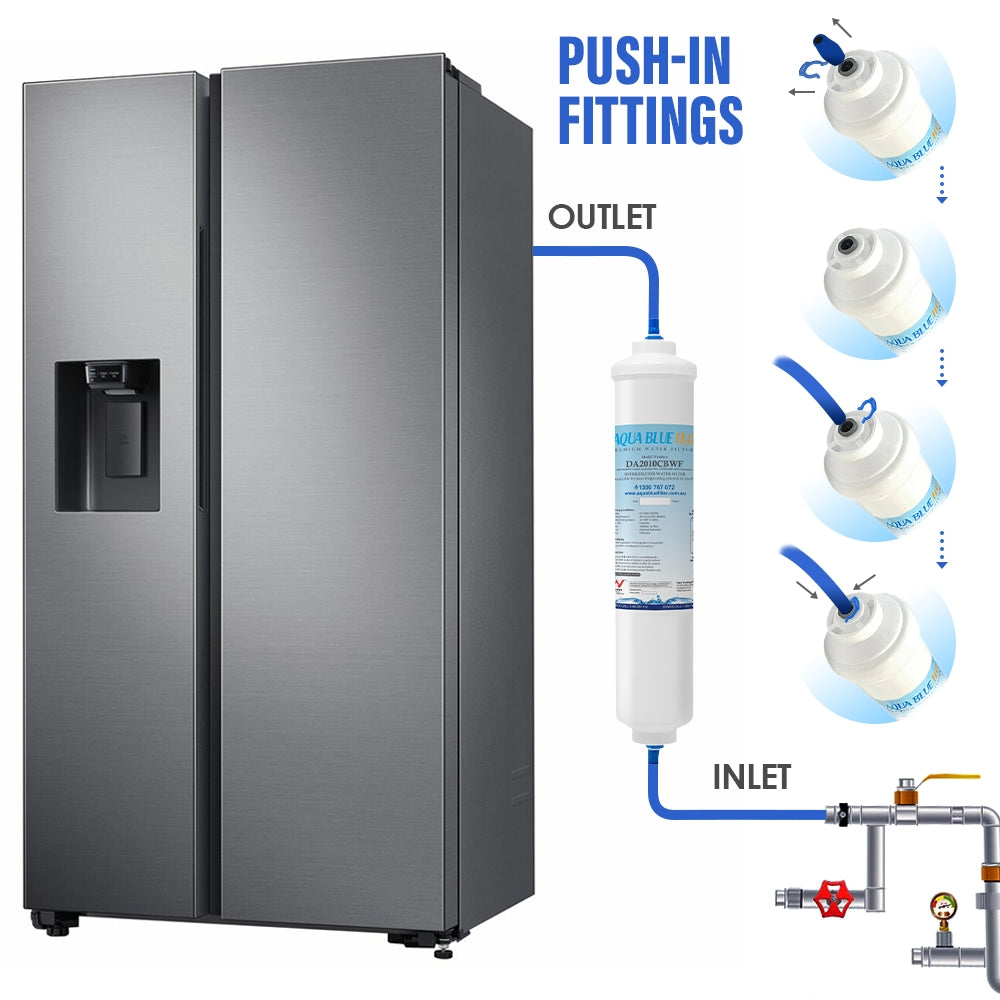

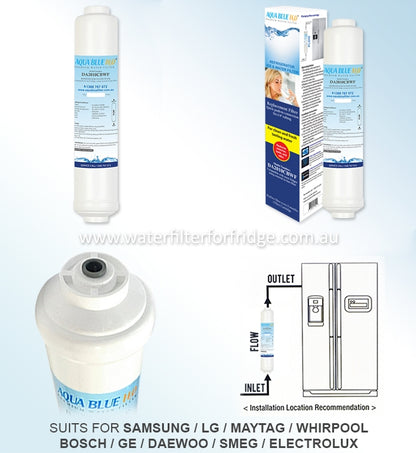

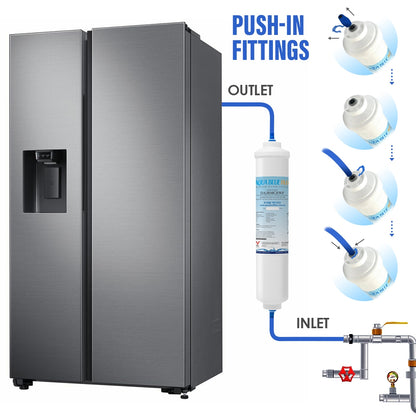

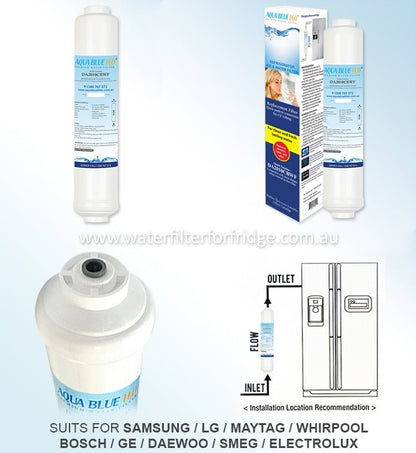

Installation and replacement procedure for the Compatible External fridge water filter:

1. Find isolation valve which will be located somewhere on the water supply line to the fridge. Turn it off and to depressurise the system draw a large glass of water from the water outlet at the fridge.

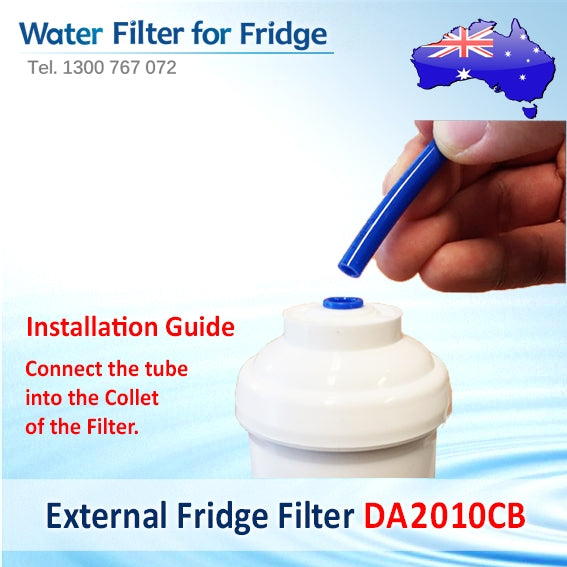

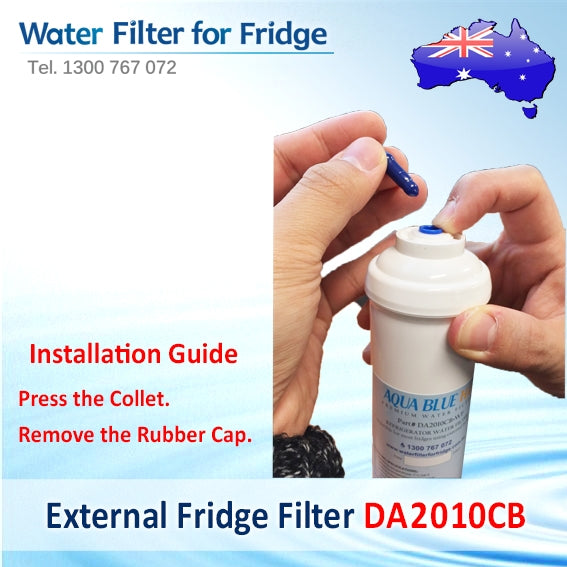

2. Have a bucket and towel ready as there will be a small spillage of water during this process. Remove the old filter by depressing the locking collar at each end of the filter with your thumb nail (or similar) and at the same time pull out the water supply line. Discard the old filter.

3. Take the new filter, making sure the flow direction is correct and insert the inlet side only, the line will go in approx 5 – 10mm and you will feel it hit home.

4. IMPORTANT - Placing the filter in the bucket, turn on the water supply and allow about 5 litres of water to flow through the filter and into the bucket. This will remov e any loose carbon fines. Turn off the water supply and connect the line that feeds into the fridge. Turn on the water supply and run approx 2 litres through the system.

5. Complete the Replacement Due sticker and place in a visible area inside the fridge door.

Note: The green light changes to orange after five months to indicate that you should soon change the water filter. It changes to red after an additional one month (6 months after the water filter was changed or installed) to indicate that you must change the water filter. If the water filter indicator lights up red, press the ICE TIMER and ICE MODE buttons at the same time for about three seconds to reset the water filter indication light from red to green.
Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

As with all built-in refrigerator water filters, the compatible external fridge water filter does not remove Fluoride.

Note: The filter provides cleaner, fresher water ice.
Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water

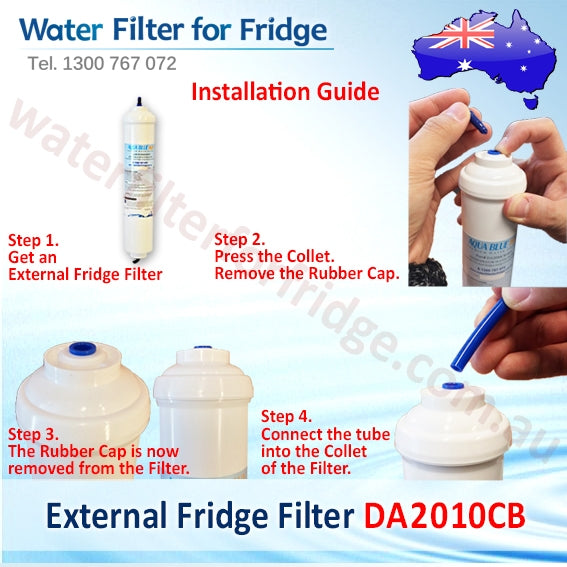

View Installation Guide : Please CLICK here

Suits the Following Fridge Models: :
DAEWOOFRNU20DAI
FRNU20DAW
FRNU20DEV
FRNU20DFBI
FRNU20DFVI
FRNU20DFWI
FRNU20FAI
FRNU20FCC
FRNU20FCCI
FRNU20FEV
FRNU20FFVI
FRNU20GAI
FRNU20GFBI
FRNU20GFWI
FRNY22D2V
FRNY22D2W
FRS2011EAL
FRS2011IAL
FRS2030IBE
FRS2031EAL
FRS2031IAL
FRS2031WAL
FRS2032IBE
FRS2041WAL
FRS2411IAL
FRS2431IAL
FRSNU20DCC
FRST20DAA
FRST20DAM
FRST20DAML
FRST20DAN
FRST20DAS
FRST20FAM
FRST20FAN
FRST20FAS
FRST22DAM
FRST22FAS
FRST24FAN
FRSU20DA
FRSU20DAI
FRSU20DAV
FRSU20DCB
FRSU20DCC
FRSU20DCI
FRSU20FAI
FRSU20FAV
FRSU20GAI
FRSU21DAI
FRSU21DAV
FRSU21DCB
FRSU21DFV
FRSU21FAI
FRSU21FAV

The Aqua Blue H2O Compatible External Water Filters Operating Specifications are as Follows:

Flow Rate	1.9 lpm
Operating Temperature	min 1°C / max 38°C
Operating Pressure	min 207 kPa (30 psi) / max 862 kPa (125 psi)

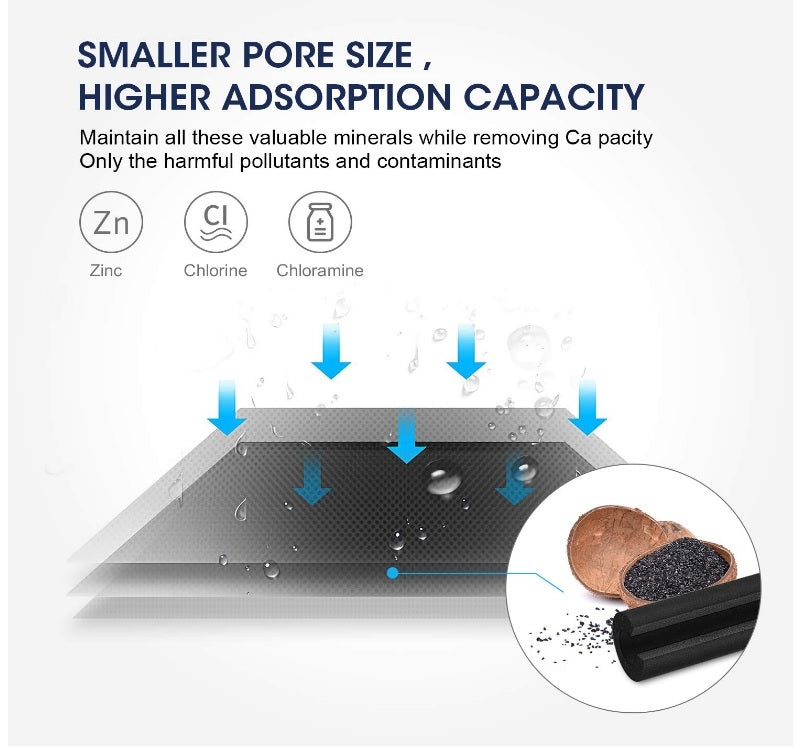

Technology	High quality Carbon Block
Function	Chemical and Mechanical Reduction
Capacity	3,785 litres
Service Life	6 months

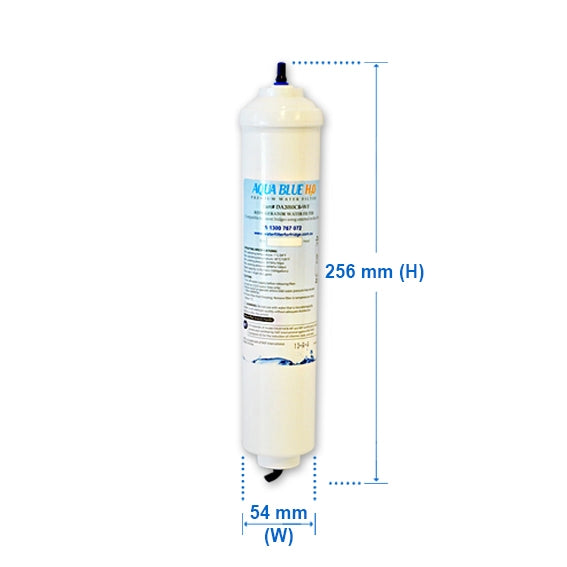

Dimensions approximately	5 cm x 25.5 cm
UPC	643129713415
Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.   Filter cartridge should be replaced at least every 6 months Water Filter Reduces the Following Health Related Contaminants: 97.60% of Chlorine Taste and Odour 98.40% of Particulates (Class I) 96.60% of Mercury at pH 6.5 88.90% of Mercury at pH 8.5 99.30% of Lead at pH 6.5 99.40% of Lead at pH 8.5 99.99% of Cysts 98.70% of Carbofuran 99.80% of p-Dichlorobenzene 99.00% of Asbestos 96.40% of Benzene 98.60% of Turbidity EXTERNAL WATER FILTER + HOSE (5M 1/4") KIT SET $50 APEX FMP 350 KPA WITH 1/4" TUBE PORTS $39 1/4" TUBE 350KPA/50PSI PRESSURE LIMITING VALVE $15 JOHN GUEST (1M 1/4") HOSE TUBING HIGH PRESSURE $5
