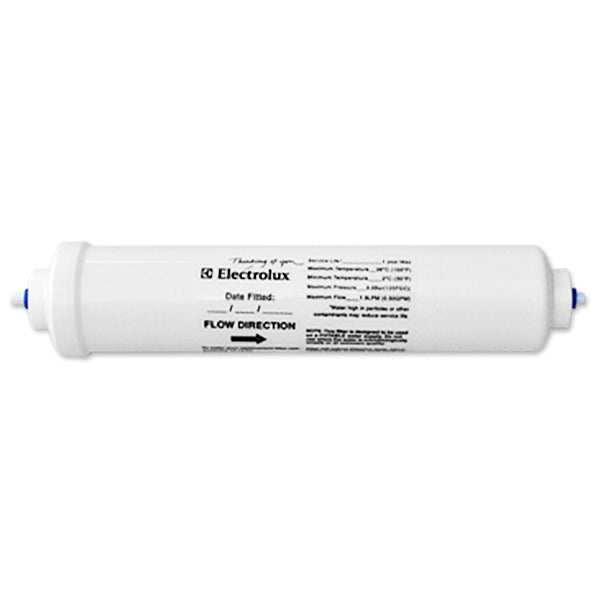

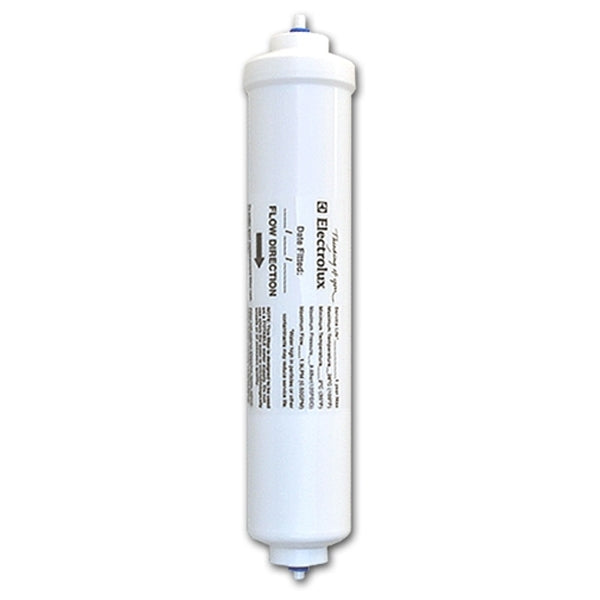

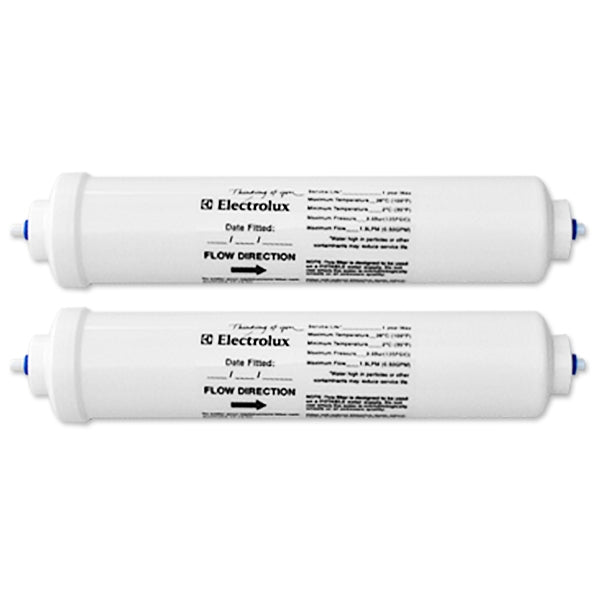

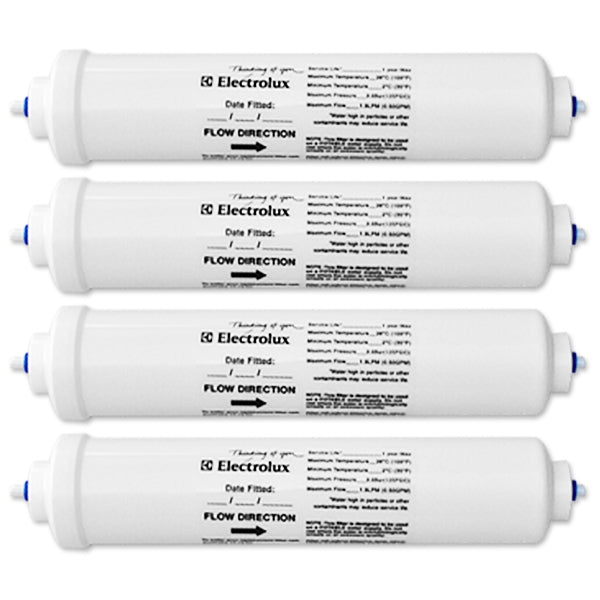

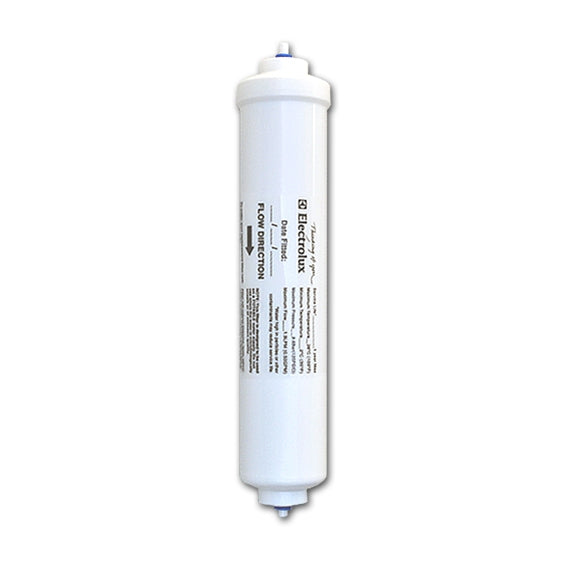

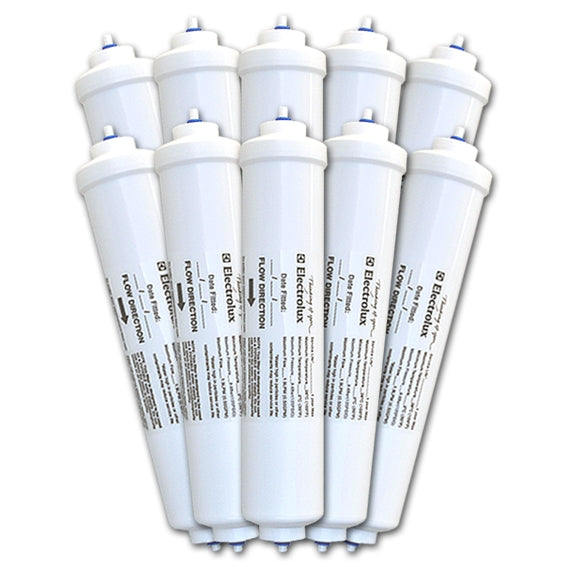

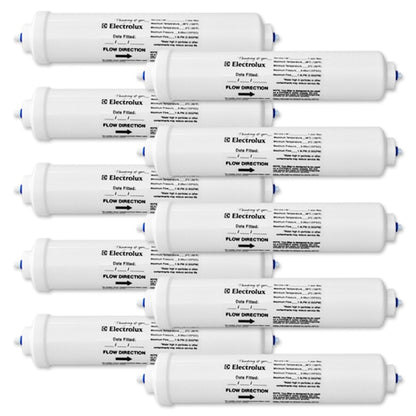

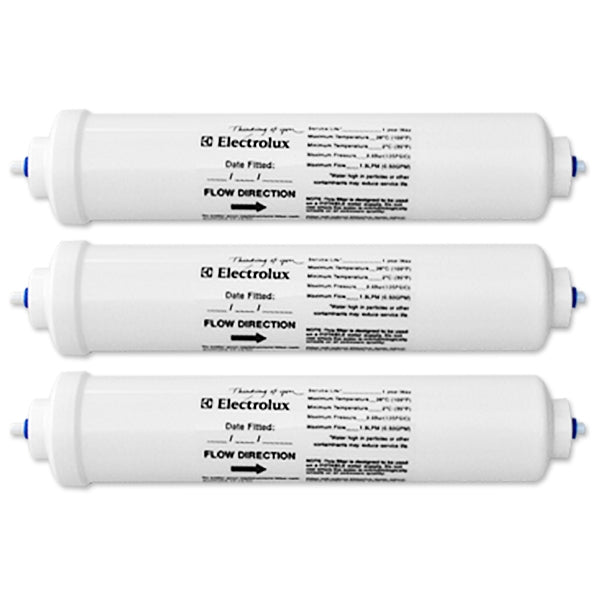

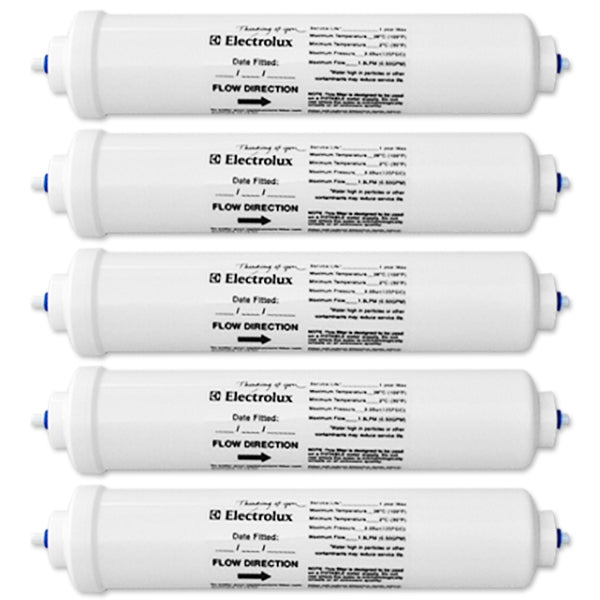

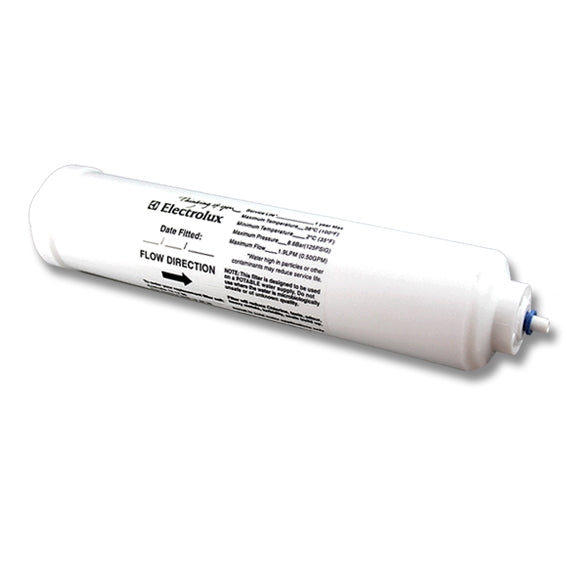

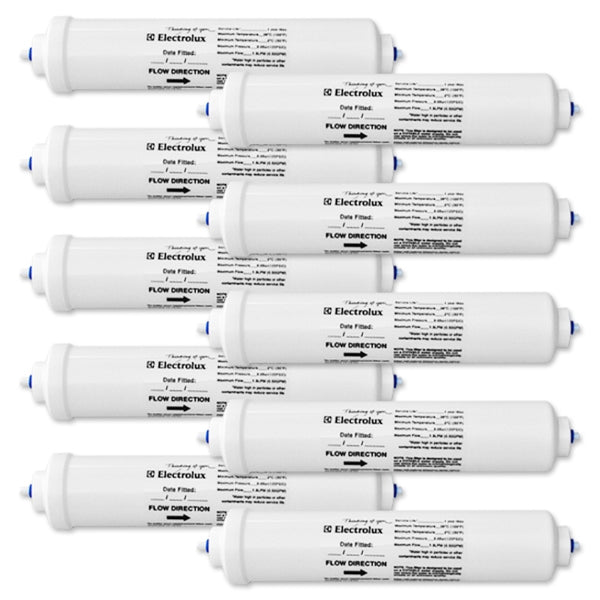

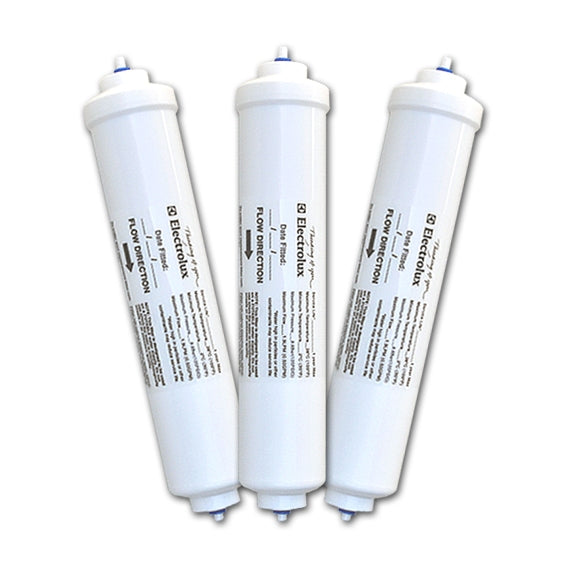

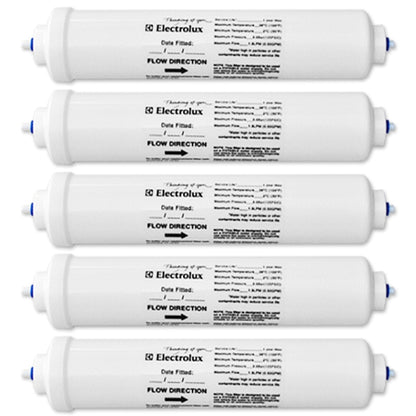

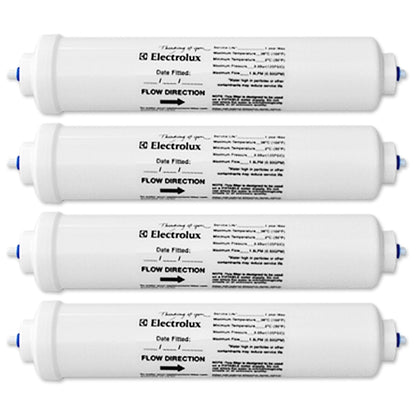

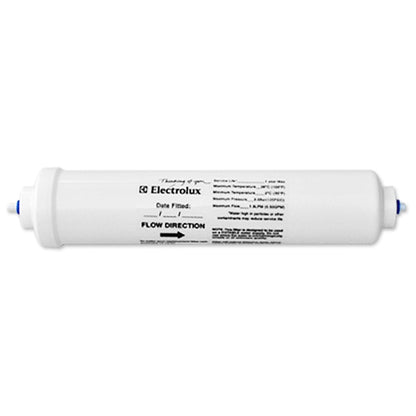

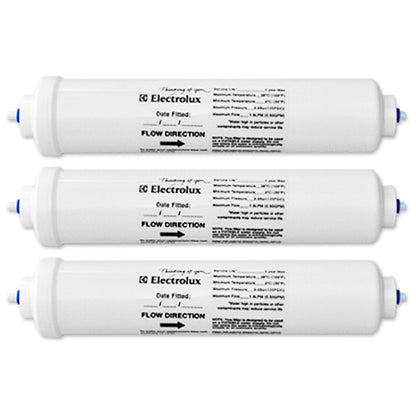

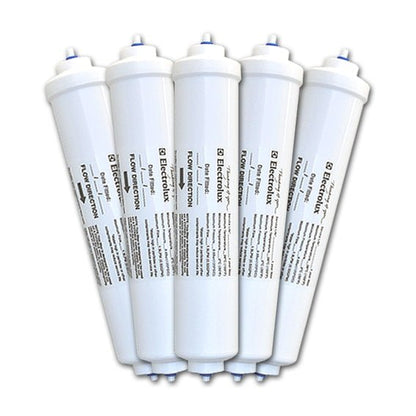

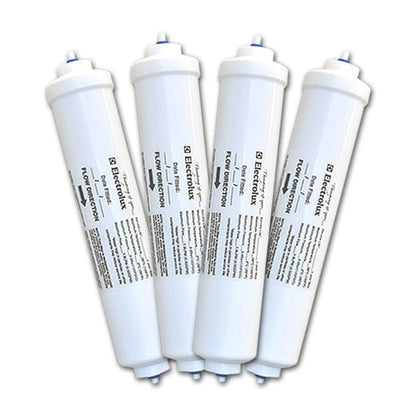

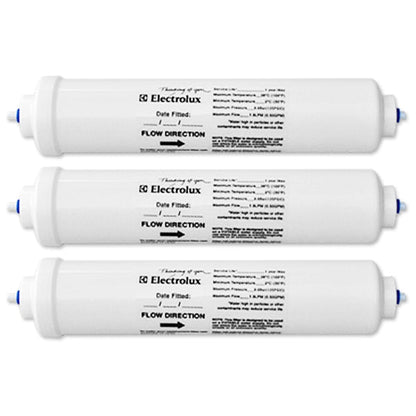

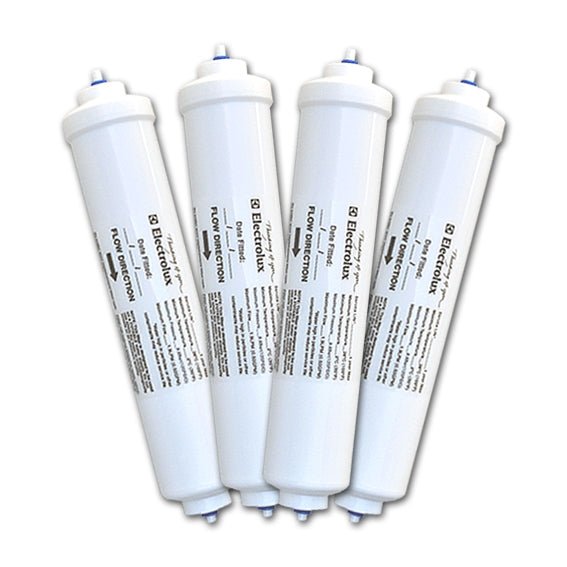

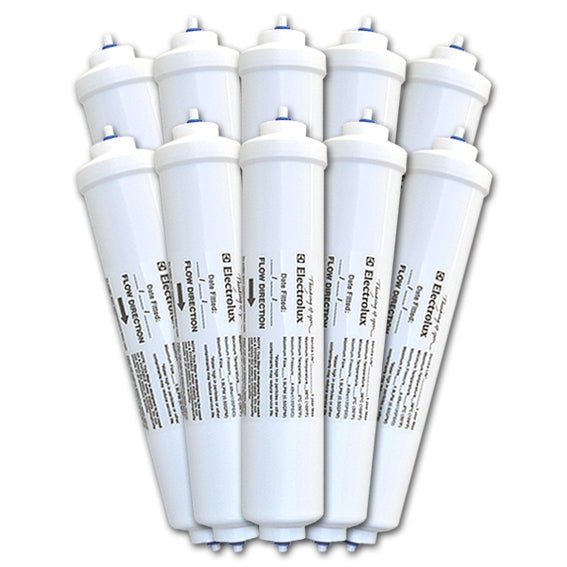

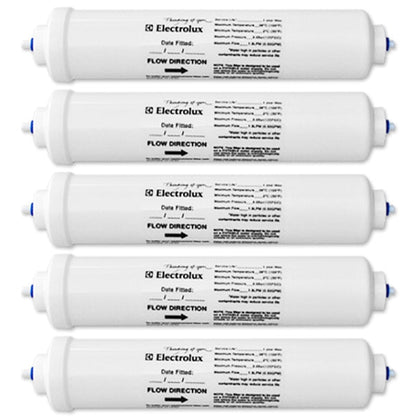

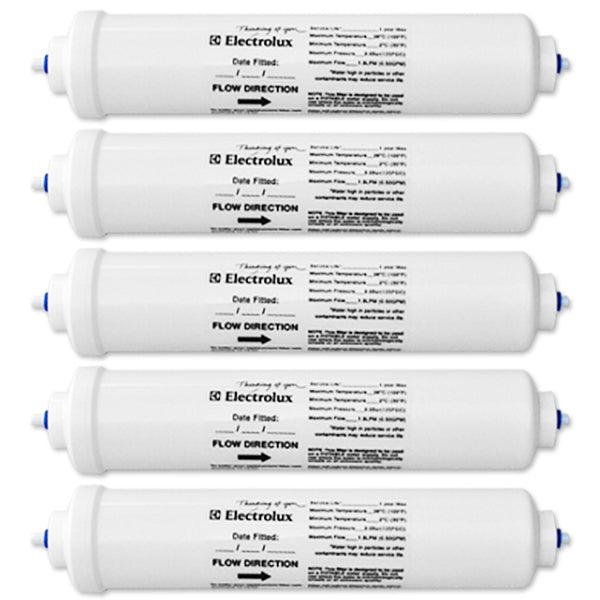

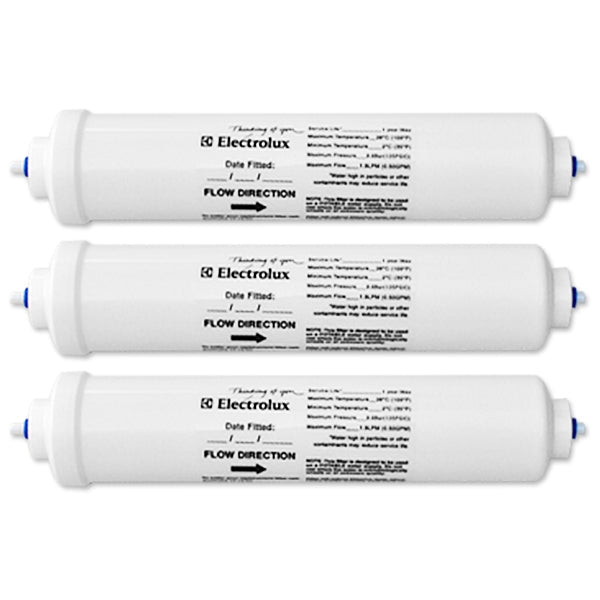

Electrolux Westinghouse 1458682 Genuine External Filter

GENUINE  Electrolux / Westinghouse

1450970 External Filter

This filter suit for  Westinghouse, Frigidaire, Electrolux 1450970 REPLACEMENT  FILTER  240396407, 1458682, AC139

 Please note: packaging may vary at any time. Manufacturer may change their packaging design without prior notice.

This is for external Genuine 1458682/1450970 water filters with 1/4" push fit connections


As you can see, 1458682 corresponds to the same item as 1450970. However, 1458682 is an old Electrolux part number that is no longer in use

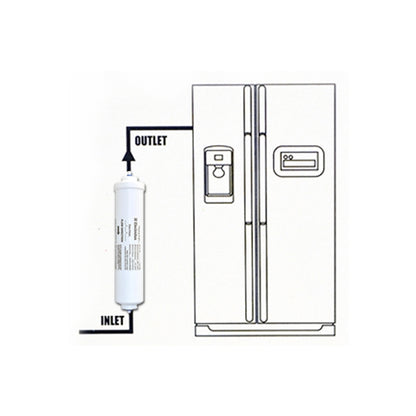

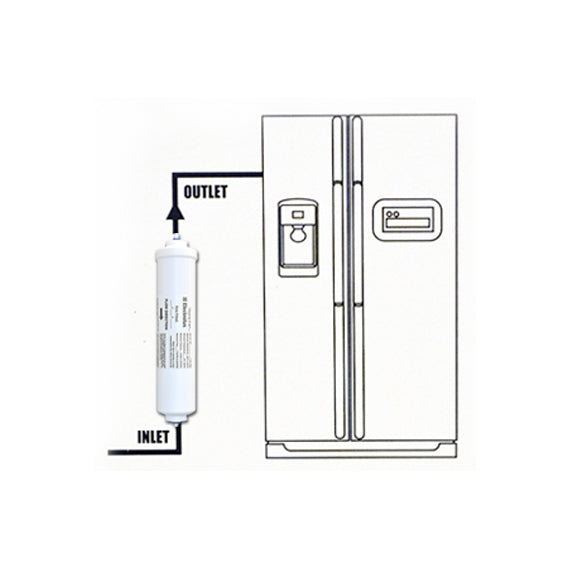

Installation and replacement procedure for the Compatible External fridge water filter :

1. Find isolation valve which will be located somewhere on the water supply line to the fridge. Turn it off and to depressurize the system draw a large glass of water from the water outlet at the fridge.

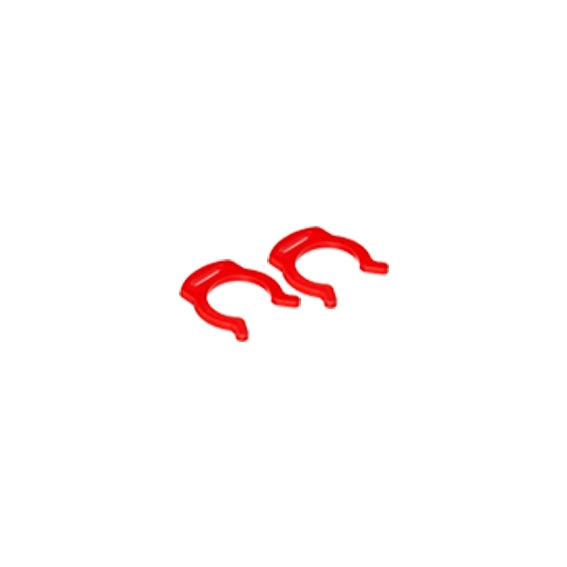

2. Have a bucket and towel ready as there will be a small spillage of water during this process. Remove the old filter by depressing the locking collar at each end of the filter with your thumb nail (or similar) and at the same time pull out the water supply line. Discard the old filter.

3. Take the new filter, making sure the flow direction is correct and insert the inlet side only, the line will go in approx 5 – 10mm and you will feel it hit home.

4. IMPORTANT - Placing the filter in the bucket, turn on the water supply and allow about 5 litres of water to flow through the filter and into the bucket. This will remov e any loose carbon fines. Turn off the water supply and connect the line that feeds into the fridge. Turn on the water supply and run approx 2 litres through the system.

5. Complete the Replacement Due sticker and place in a visible area inside the fridge door.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

As with all built-in refrigerator water filters, the compatible external fridge water filter does not remove Fluoride.

Note: The filter provides cleaner, fresher water ice.

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water

  View Installation Guide : Please CLICK here

 External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges replaces: External in-line Fridge Filter, 1450970 & many other filter part numbers, will fit all brands of fridges that use an external in-line fridge filter.

Most fridges with internal filters can be converted over to use these filters.




Suitable for:
External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges

Suits the Following Fridge Models

Electrolux model

: ESE607WA*05, ESE607WA*06, ESE6977SC, ESE6077SC,WSE6070SB*7

Westinghouse

:  WSE6070SA, WSE6070PB*06, WSE6070SB*06, WSE607WB*06, WSE6970PA, WSE6970SA, WSE6970WA,WSE6970WF ,WSE6970SF,WSE6970SE, WBE5160SCRH, WBE5160S, WBE5160,WHE5160SA,WSE6070SA,WSE 6070SB*5

Electrolux fridge filter

: ESE6977S, CESE6977SE, ESE6077SC, ESE6077SE, ESE6077SF, ESE6977SF, ESE6077SG, ESE6977SG,ESE6078WA,EHE5167SB,

THIS  FILTER ALSO  SUIT  FOR   PART NUMBER  1456145K OR  00740560,1458682

 This in-line filter is easy to fit with quick connect push-in 1/4" tube fittings suitable for plastic tubing and copper pipe.
5 micron rating will remove sediment, chemicals, bad taste, scale build up & odors.

1450970 /1458682 EXTERNAL FILTER Operating Specifications are as Follows:

Flow Rate	1.9 lpm (0.50 GPM)
Operating Temperature	min 2°C(35℉) - max 38°C(100℉)
Operating Pressure	8.6 Bar(125 PSIG)
Technology	High quality Carbon Block
Function	Chemical and Mechanical Reduction
Capacity	6,000 litres
Service Life	12 months
Dimensions approximately	250 mm x 50 mm

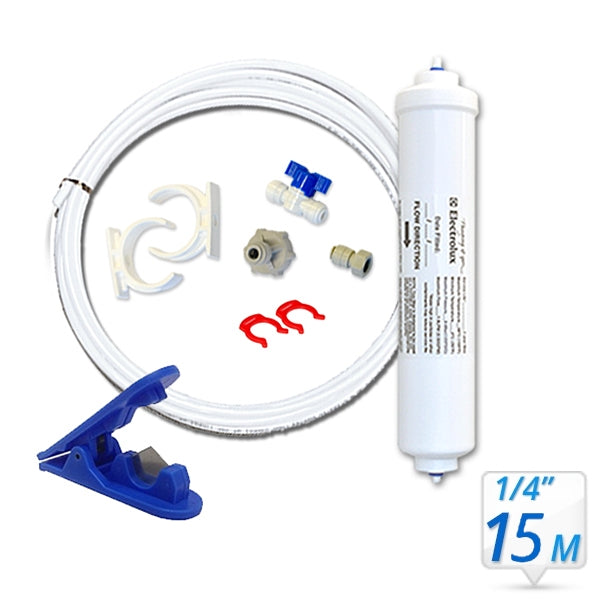

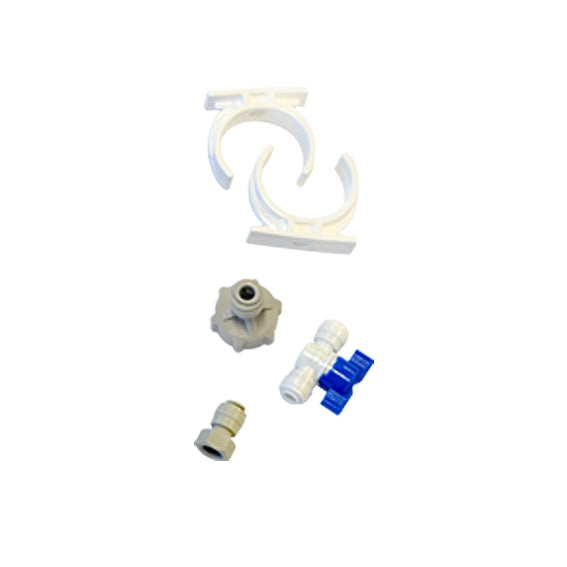

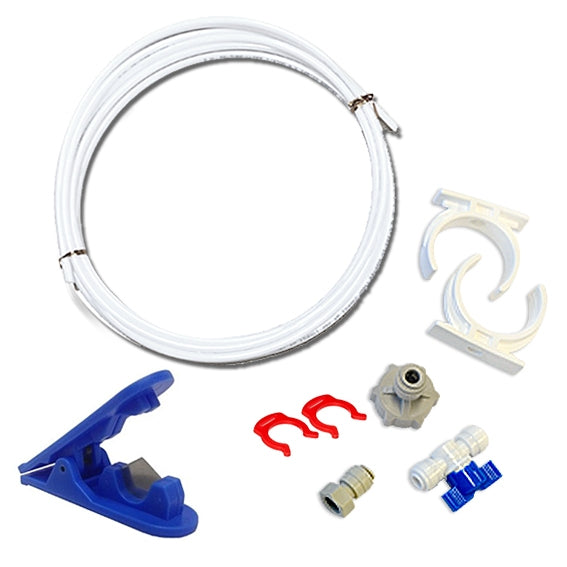

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.         EXTERNAL WATER FILTER + HOSE (5M 1/4") KIT SET $50   APEX FMP 350 KPA WITH 1/4" TUBE PORTS $39   JOHN GUEST (1M 1/4") HOSE TUBING HIGH PRESSURE $5
