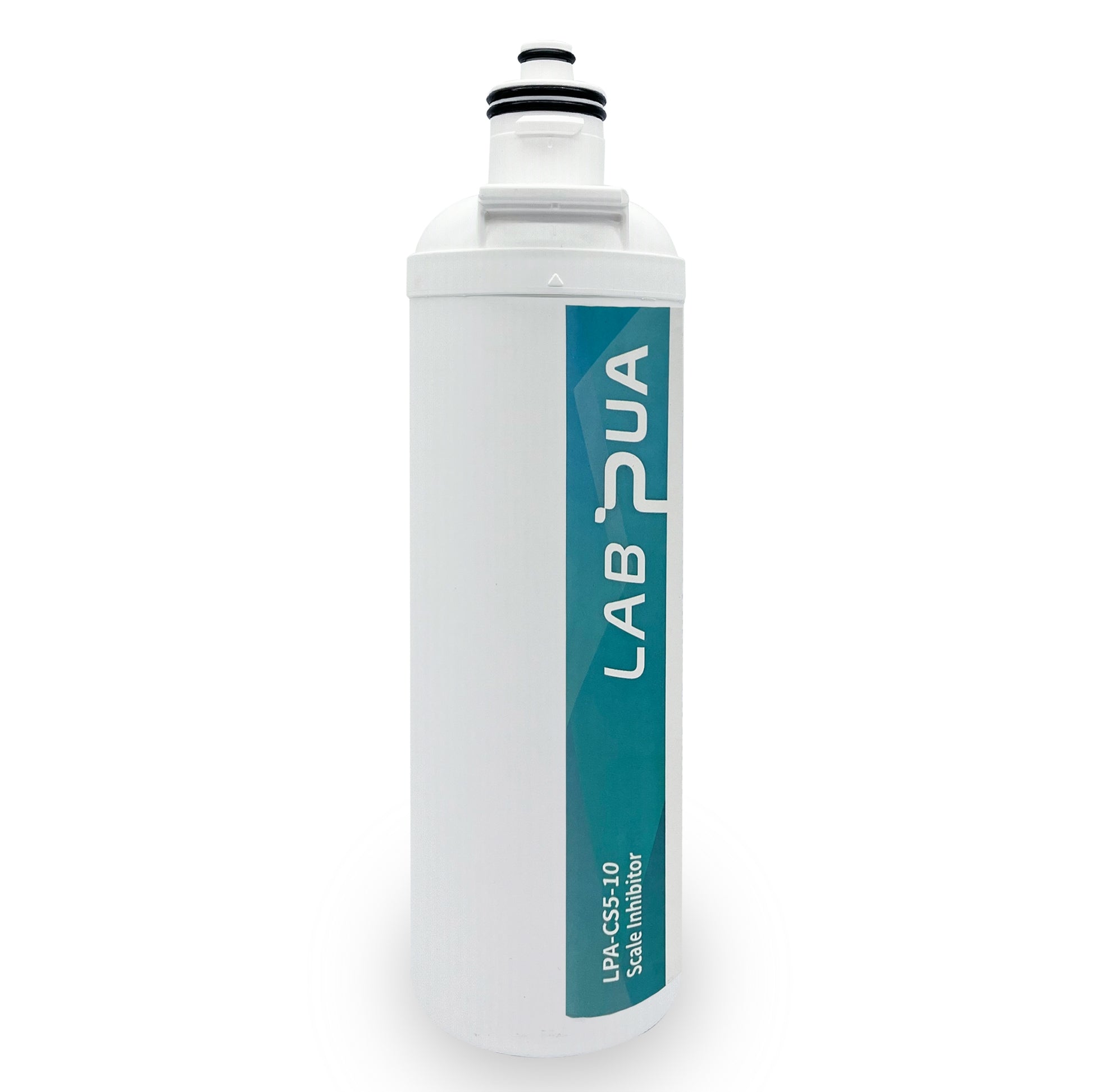

LPA CS5 10

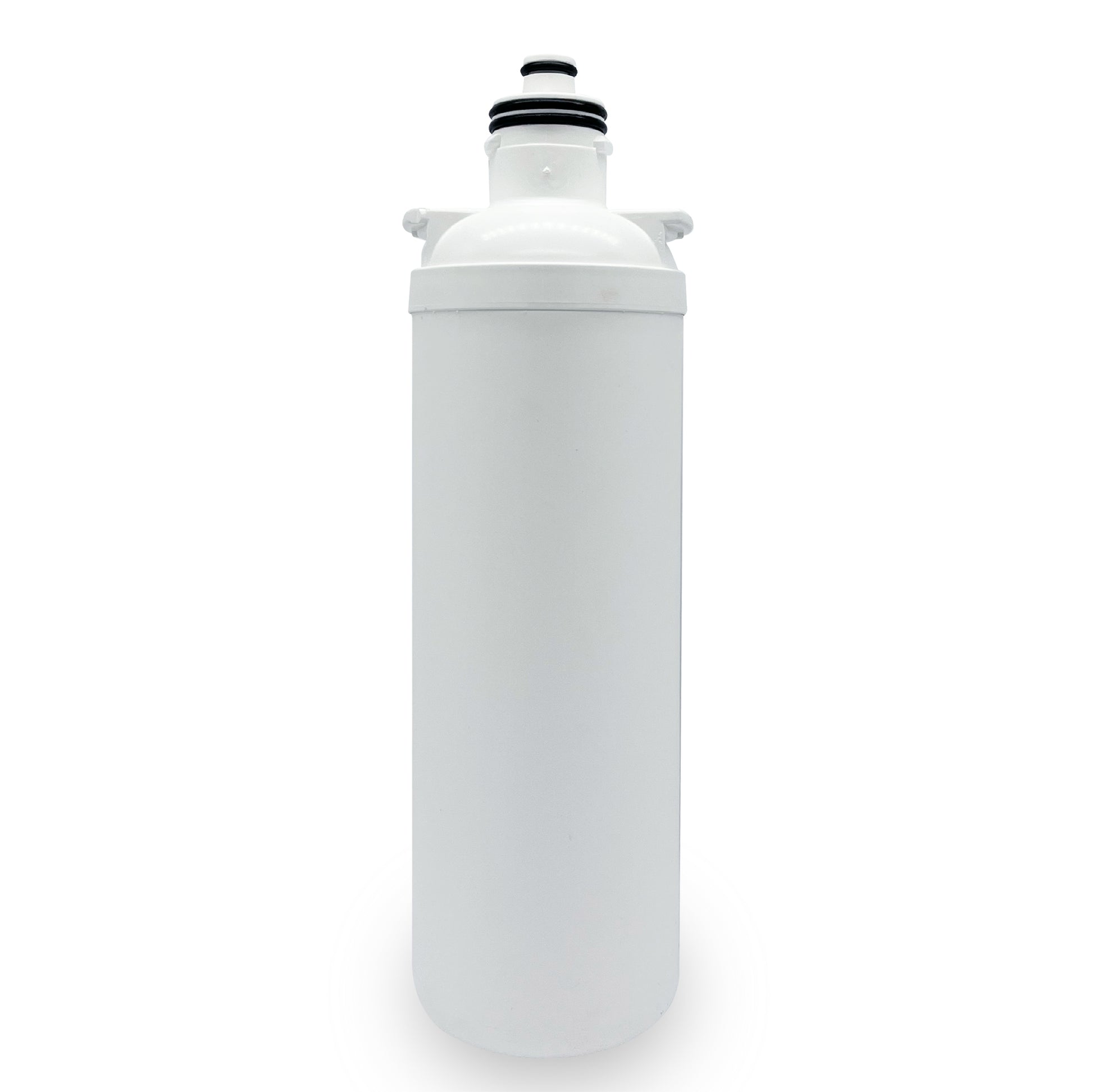

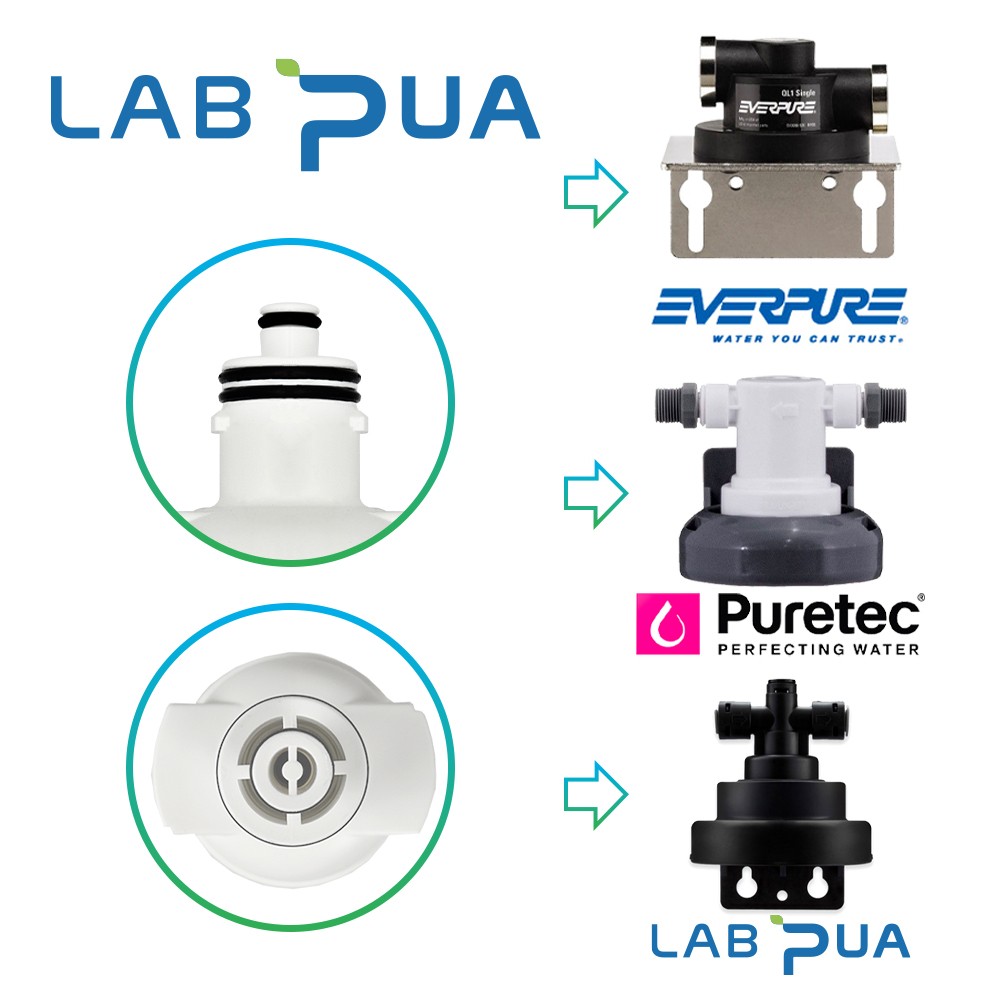

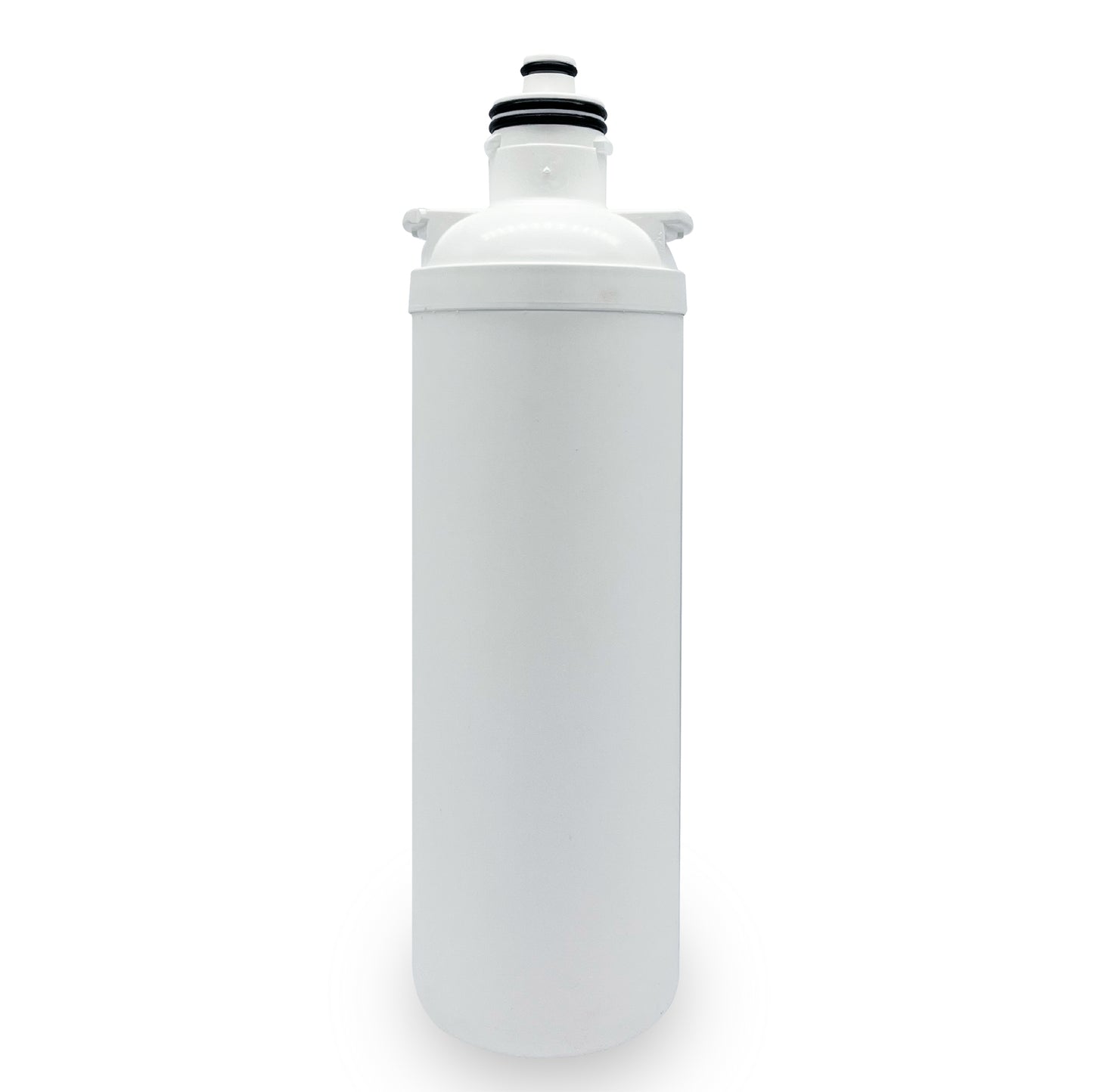

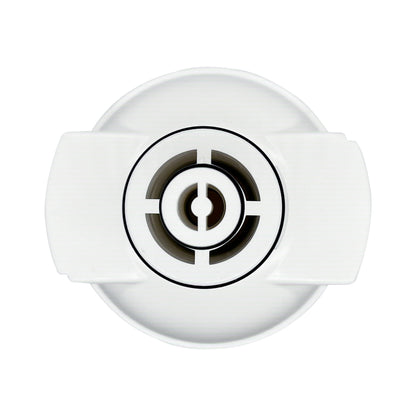

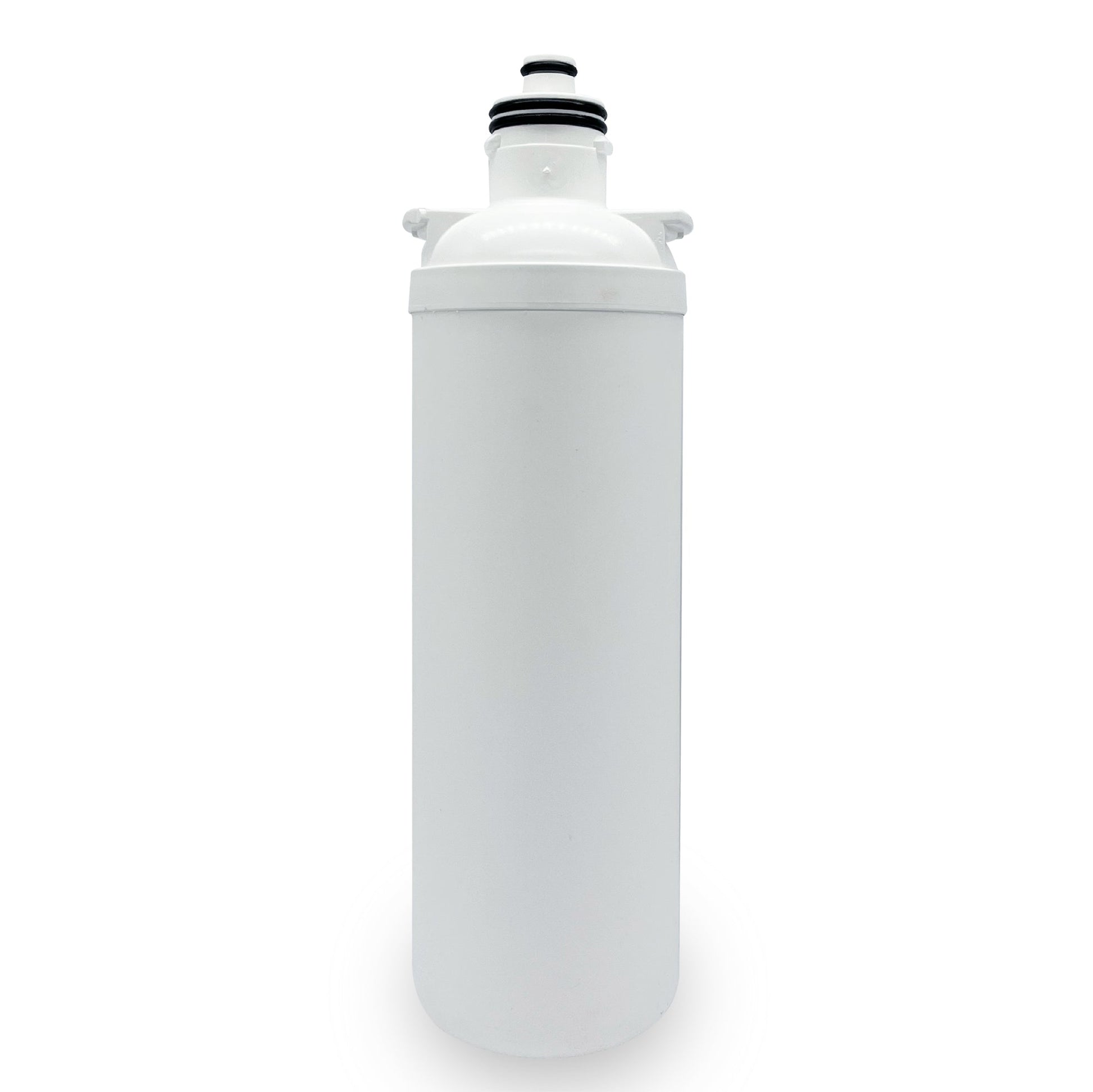

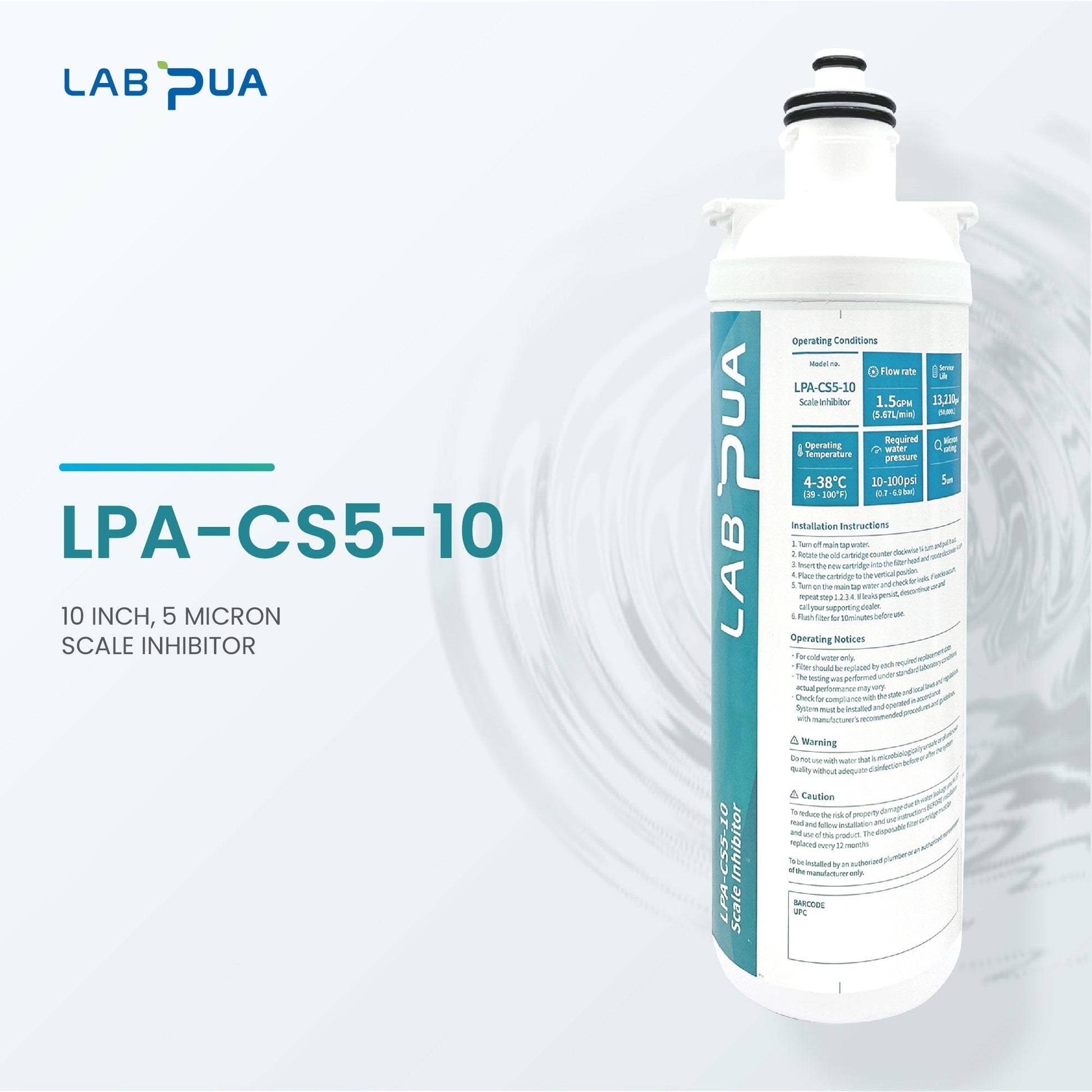

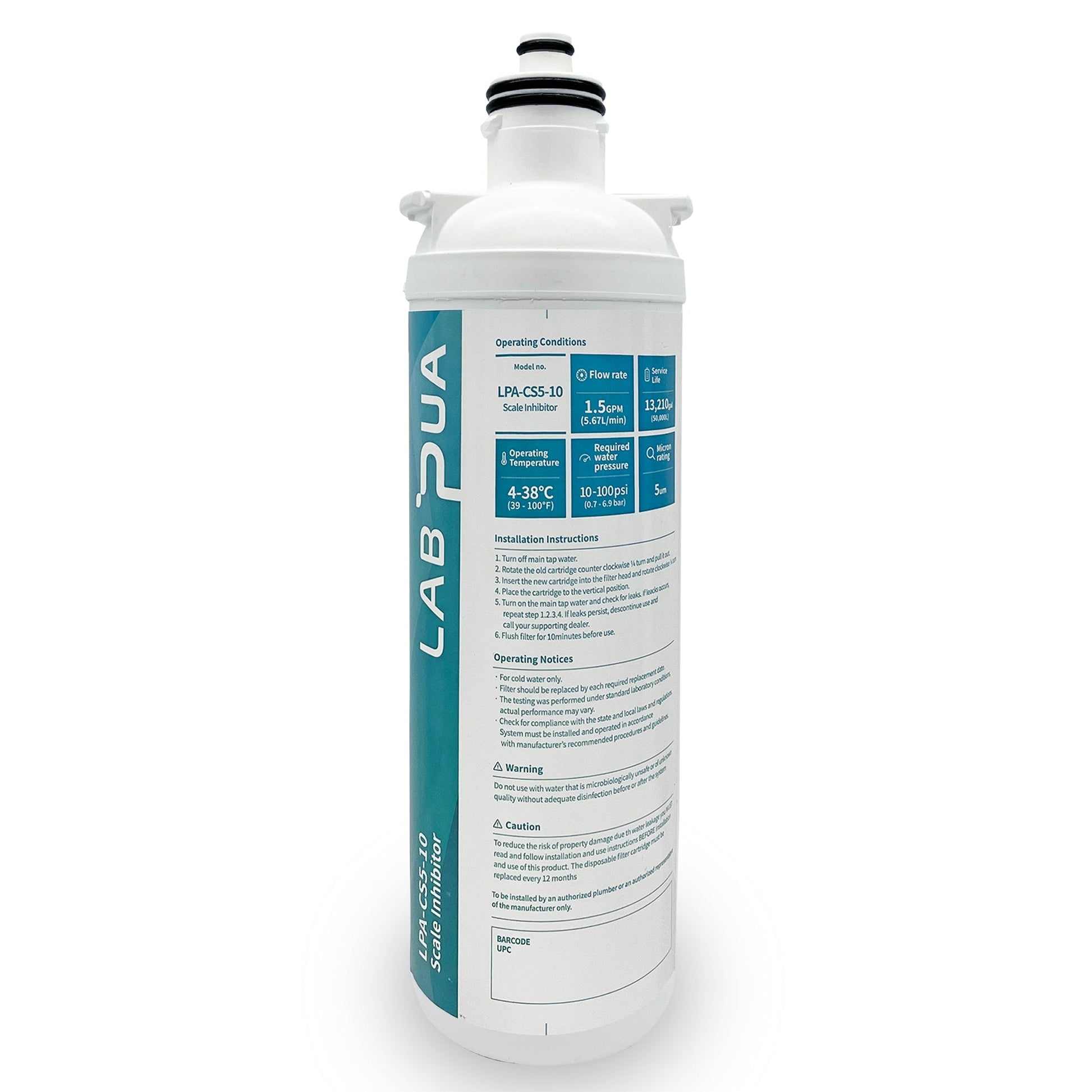

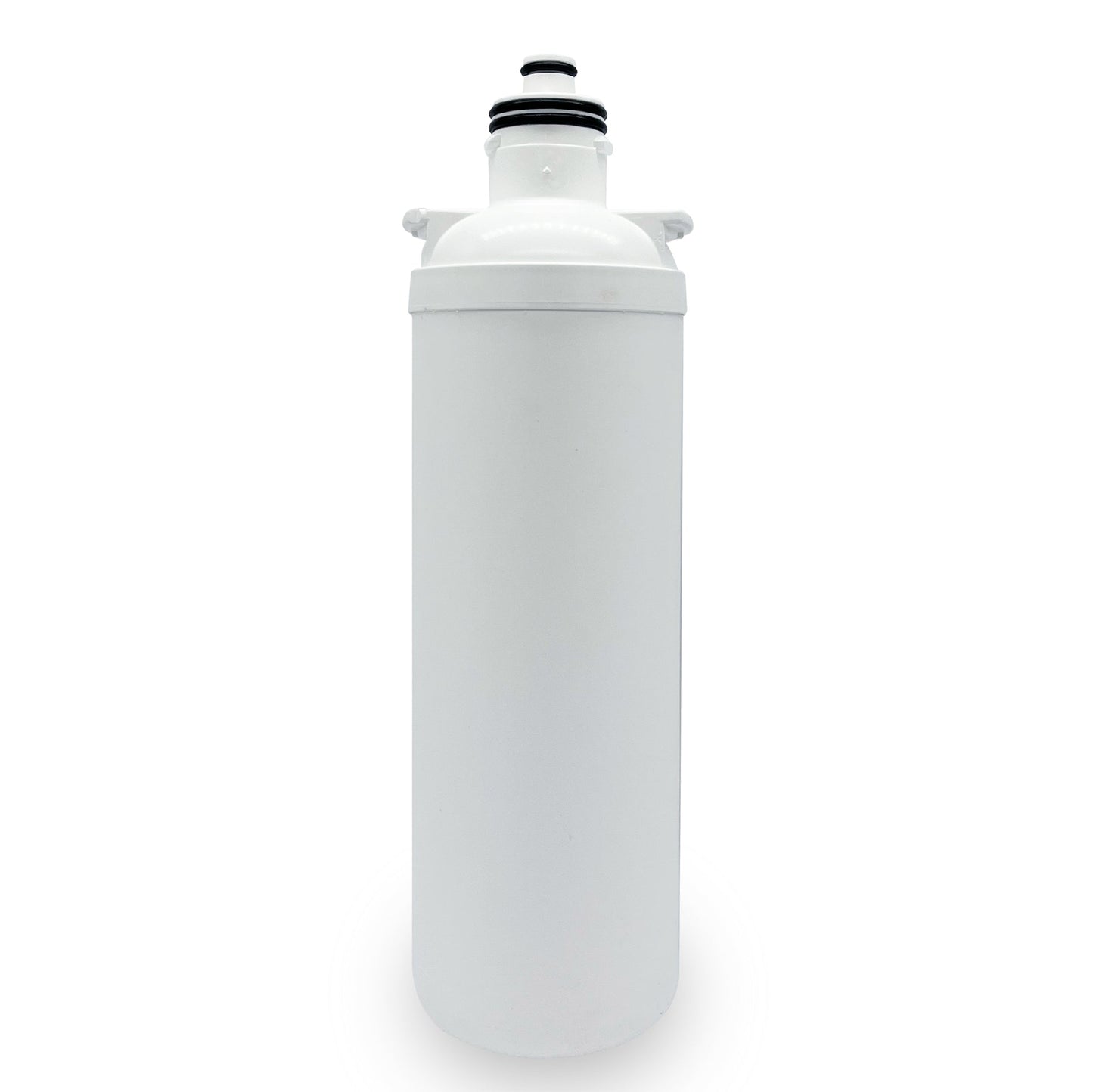

Replaces Everpure 2CB5-K EV9617-06 / EV961706 Replacement Filter Cartridge

The Lab Pua LPA-CS5-10  Everpure EV9617-06 / EV961706 Filter Cartridge is intended for food service, vending machine and coffee service applications, and is ideal for problem water areas

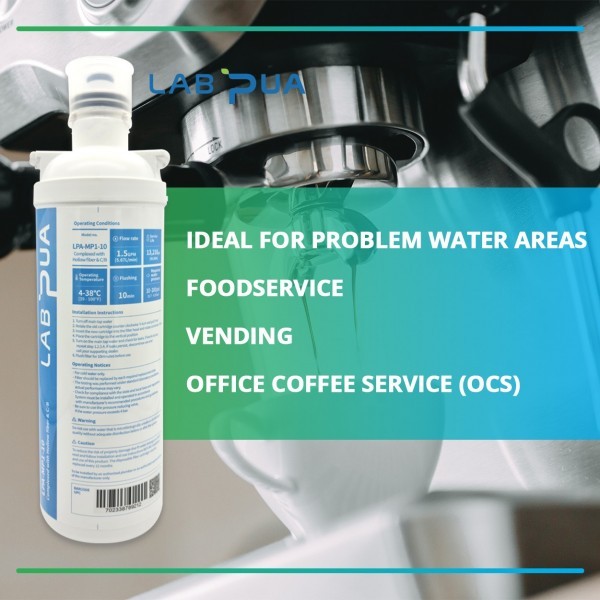

Applications
- Ideal for problem water areas
- Foodservice
- Vending
- Office coffee service (OCS)

Installation Tips
- Never use saddle valve for connection
- Use 3/8" water line
- Install vertically with cartridge hanging down
- Allow 2-1/2" (6.35 cm) clearance below the cartridge for easy cartridge replacement
- Flush The Lab Pua LPA-CS5-10  cartridge by running water through the filter for five (5) minutes at full flow

Operation Tips
- Change cartridges on a regular six (6) month preventative maintenance program
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
- Service flow rate must not exceed 1.0 gpm (5.4 Lpm)
- Always flush the filter cartridge at the time of installation and cartridge change

Sizing
Service Flow Rate: Maximum 1.0 gpm (5.4 Lpm)
Capacity: 50,000L

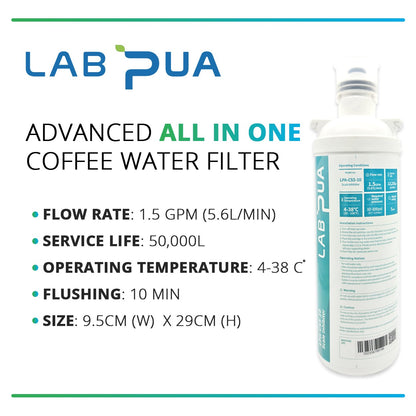

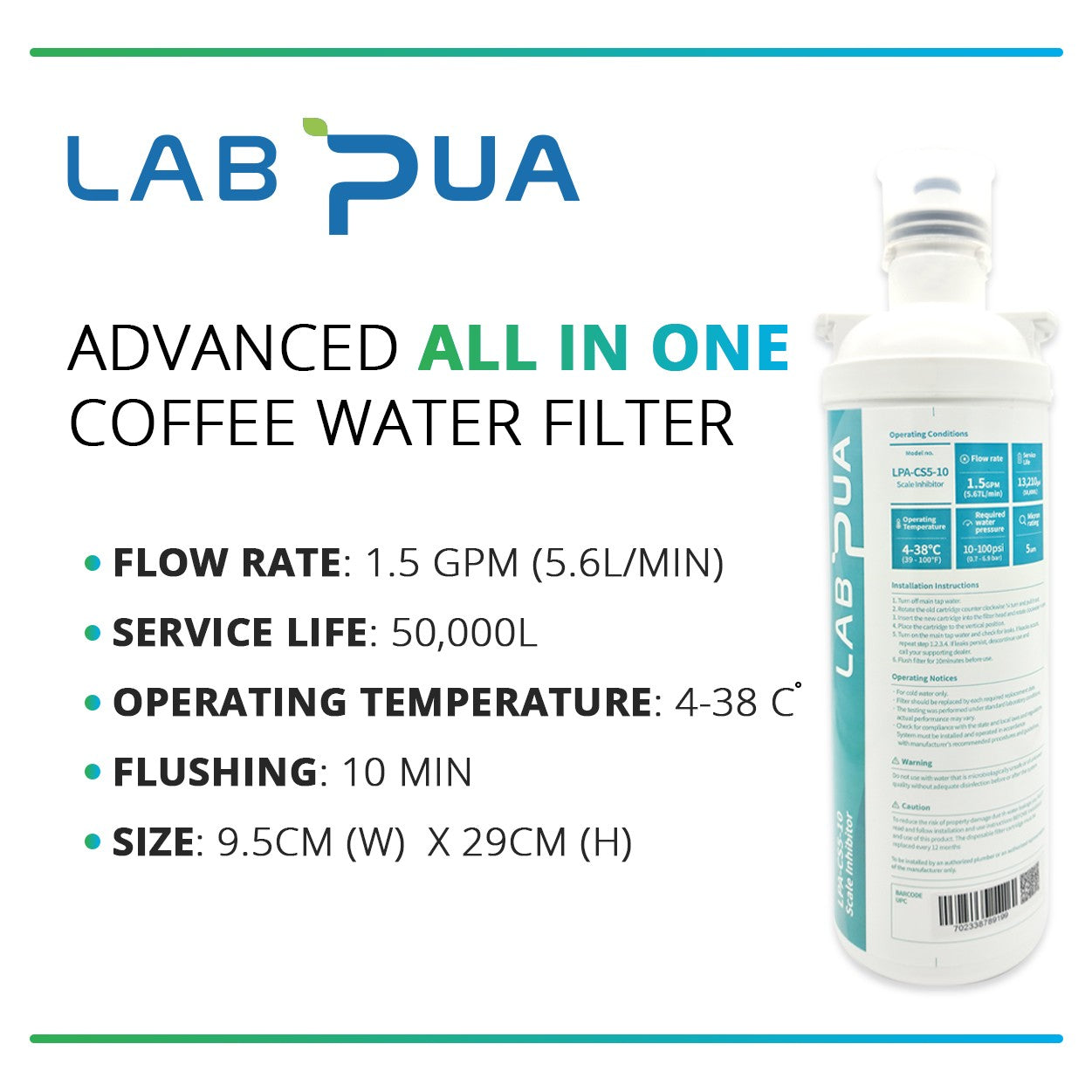

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)

• Rated Capacity: 13,210 Gallons (50,000 L)

• Operating Temperature: 4–38℃ (39–100℉)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

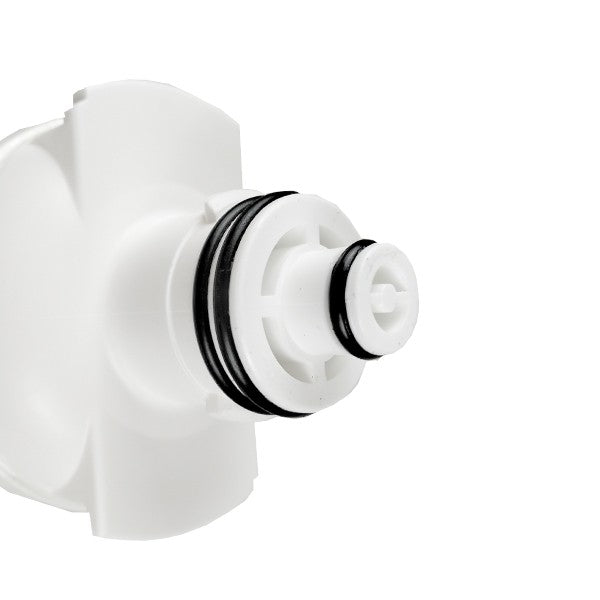

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: None required

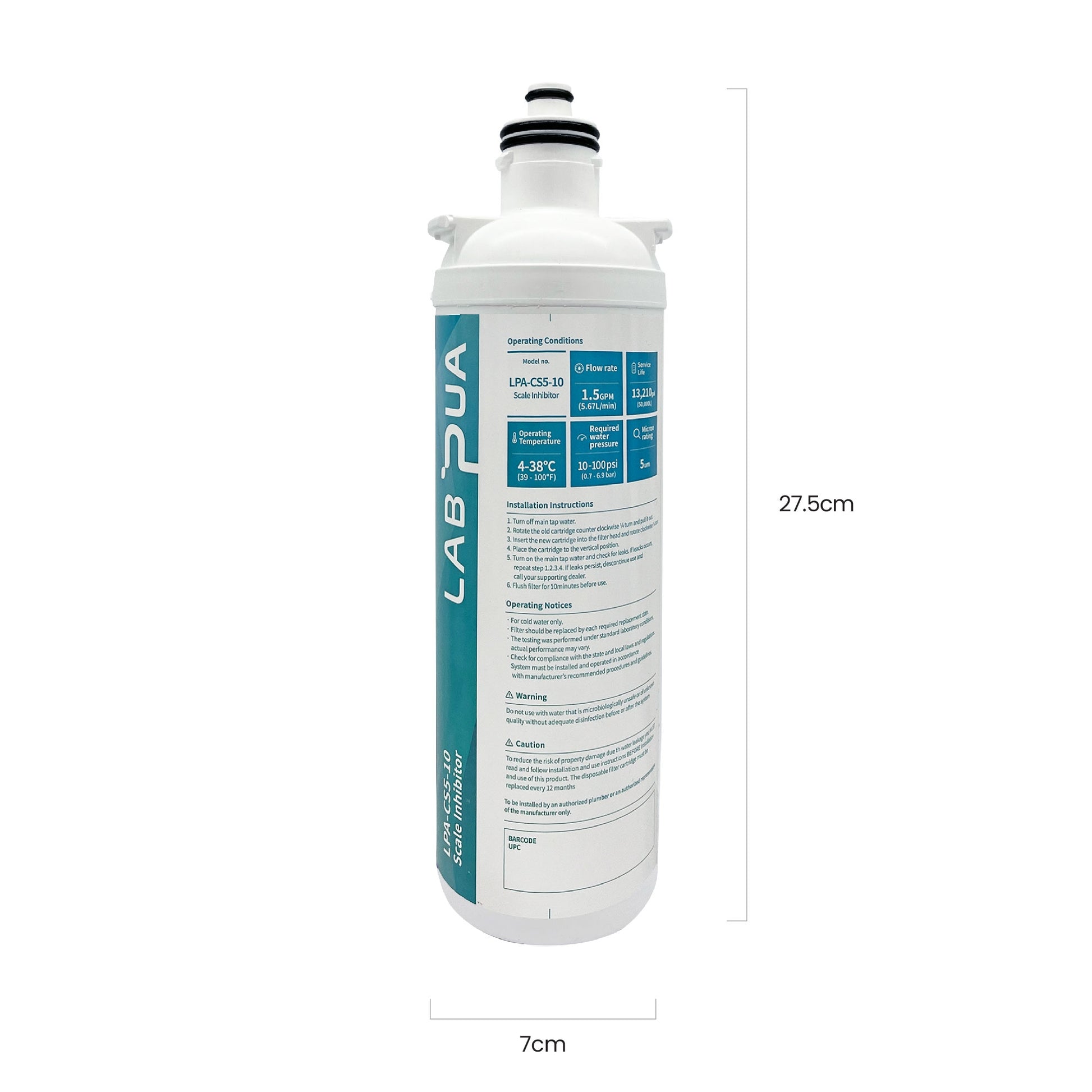

• Dimensions:

  • Overall: 3.7″ × 12.5″

  • Cartridge: Ø3.3″ × 10.7″

• Weight: 1.1 kg

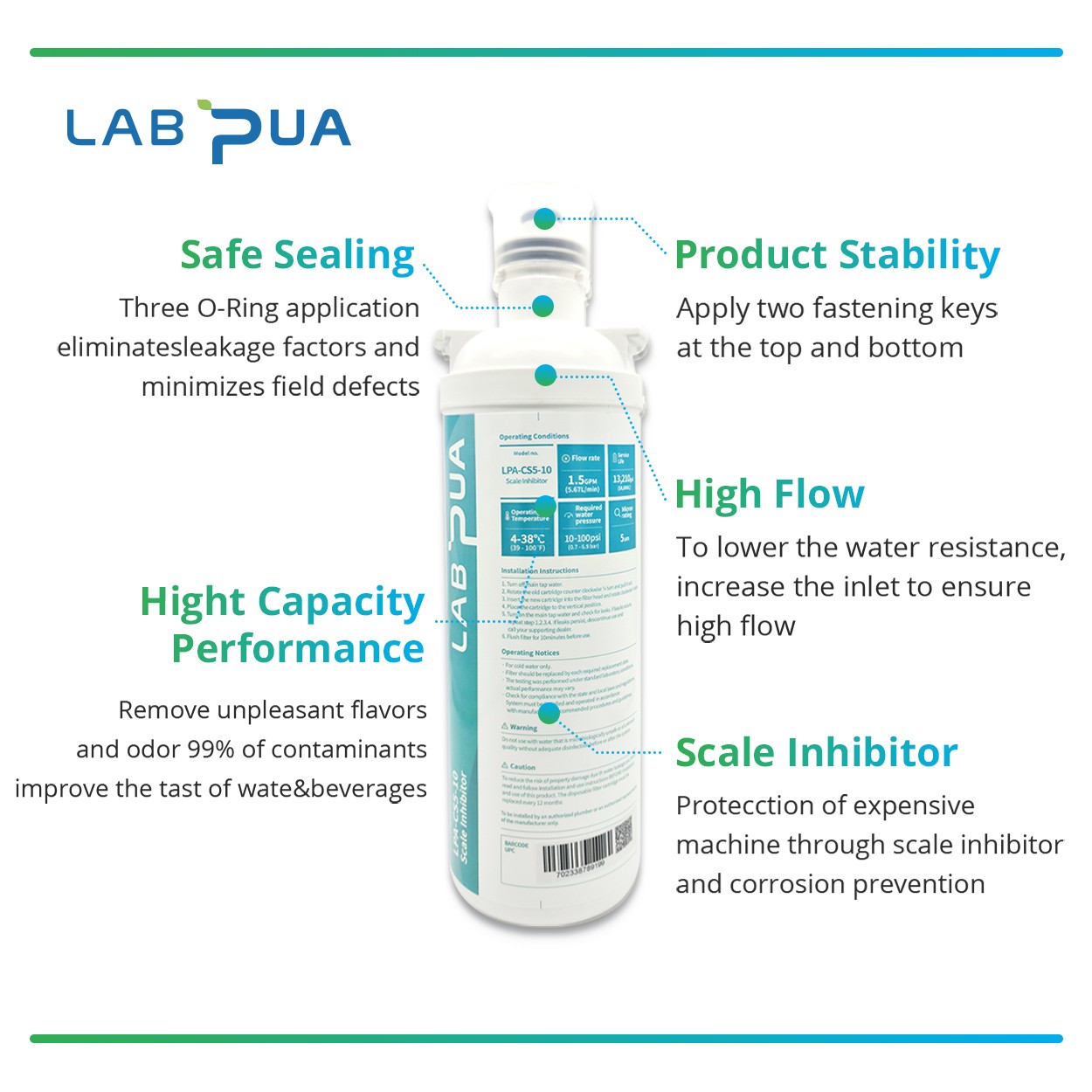

• Claims:

  • Reduces Chlorine, Taste and Odor

  • Removes Particulates

  • Includes Scale Inhibitor

This all-in-one cartridge inhibits lime scale and reduces unwelcome elements in your water such
as sediment, chlorine, bad tastes and odours, as

LABPUA Residential Water Filter Systems | Premium Water Filtration Australia

Discover unparalleled water quality with LABPUA Residential Water Filter Systems. Expertly designed for Australian water conditions, these advanced filtration systems deliver consistently clean, safe, and great-tasting water directly to your home.

Comprehensive Water Purification

LABPUA’s all-in-one high-flow cartridges effectively reduce and inhibit:

• Sediment
• Chlorine
• Unpleasant Tastes and Odours
• Scale Build-up
• Cysts and Bacteria (including E-Coli)

Key Benefits and Features

• High Capacity Filtration: Offers remarkable filtration capacities, ensuring long-lasting performance tailored to your household needs.
• Optimal Flow Rate: Maintains high-quality filtration at optimal flow rates, perfect for household use.
• Sanitary Quick Change (SQC) Cartridge: Enables clean, simple, and hygienic cartridge replacements, ensuring minimal maintenance effort.
• Advanced Scale Prevention: Integrated phosphate technology significantly reduces scale formation in boilers, heaters, and appliances, extending their lifespan and efficiency.
• Superior CTO Carbon Block: Featuring high-quality extruded carbon blocks for exceptional sediment filtration, chlorine reduction, and taste enhancement.
• Pre-Shield Technology: Prevents early clogging, maximizing cartridge lifespan and consistent filtration performance.

Specifications (Typical Range)

• Flow Rate: Suitable for household applications (typically around 7–8 litres per minute)
• Capacity: High-volume filtration capacities ideal for residential use
• Operating Temperature: 4–38°C (39–100°F)
• Pressure Range: 10–100 psi (0.7–6.9 bar)
• Connection Size: Standard household connection sizes (typically 3/8″)
• Electrical Requirements: None required (fully mechanical)
• Dimensions: Compact and convenient for under-sink installations
• Weight: Lightweight for easy installation

Ideal for Australian Homes

Whether you’re dealing with hard water, chlorine taste, sediment build-up, or bacterial contaminants, LABPUA Residential Water Filter Systems are perfectly engineered for diverse water quality issues commonly found across Australia.

Easy Installation & Maintenance

Each system includes:

• Premium LABPUA filter cartridge
• Sturdy mounting header
• High-quality braided hoses with non-return valves

Designed for straightforward installation under your sink or main water inlet, providing convenient access to purified water whenever you need it.

Invest in Pure, Healthy Water Today

Choose LABPUA for superior home water filtration, protecting your health, appliances, and enhancing everyday drinking water quality. Experience peace of mind with Australia's trusted water filtration solutions.

Order now and enjoy cleaner, healthier, and better-tasting water with LABPUA.
