Everpure 2CB5-K EV9617-06 undersink water system for home drinking water

 Everpure 2CB5-K EV9617-06 / EV961706 Undersink Water System for Home Drinking Water

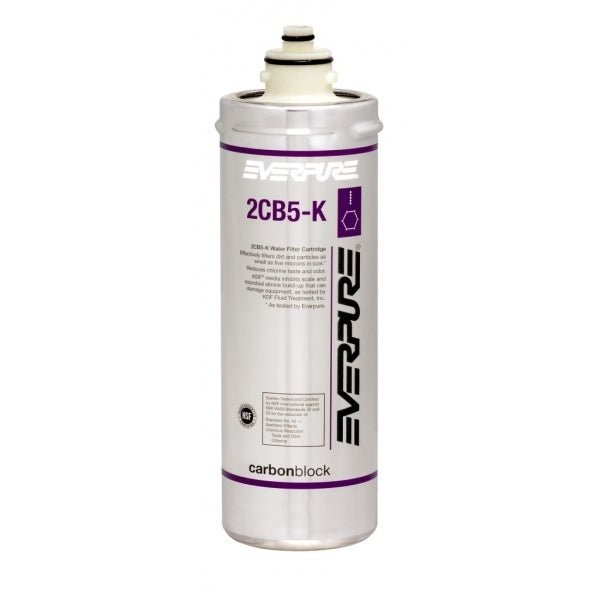

The Everpure EV9617-06 Filter Cartridge is intended for foodservice, vending machine and coffee service applications, and ideal for problem water areas

Features&Benefits
- Carbon block filter finely polishes water for high quality beverage and food applications
- Features KDF® Media which inhibits microbial buildup, as tested by KDF
- Sanitary cartridge replacment is simple, quick and clean. Internal filter parts are never exposed to handling or contamination
- NSF® Certified under NSF Standard 42 *As tested by Pentair® Everpure
- Reduces chlorine taste and odor and other offensive contaminants that can adversely affect the taste of water and beverages
- Reduces extra fine dirt and particles as small as 5-micron in size
- Does not remove fluoride
- Saves energy by reducing limescale build-up.* Scale can also cause excessive machine downtime and increased maintenance costs *As tested by Pentair® Everpure


Applications
- Ideal for problem water areas
- Foodservice
- Vending
- Office coffee service (OCS)

Installation Tips
- Never use saddle valve for connection
- Use 3/8" water line
- Install vertically with cartridge hanging down
- Allow 2-1/2" (6.35 cm) clearance below the cartridge for easy cartridge replacement
- Flush 2CB5-K cartridge by running water through filter for five (5) minutes at full flow

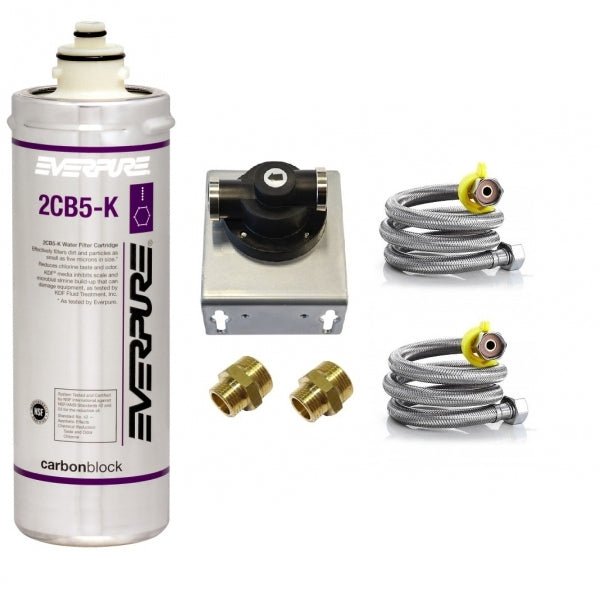

What's in the box?
- 1 x Everpure 2CB5-K Water Filter Cartridge (EV961706)
- 1 x QL1 filter head
- 2 x Water Hose Pipes Connect Undersink HIFLOW Tap Faucet 1/2"
- 2 x Brass Hex Reducing Nipple 20 x 15mm (3/4 x 1/2 Inch)

Operation Tips
- Change cartridges on a regular six (6) month preventative maintenance program
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
- Service flow rate must not exceed 1.0 gpm (3.8 Lpm)
- Always flush the filter cartridge at time of installation and cartridge change

Sizing
Service Flow Rate: Maximum 1.0 gpm (3.8 Lpm)
Capacity: 3,000 gallons (11,356 L)

Specifications

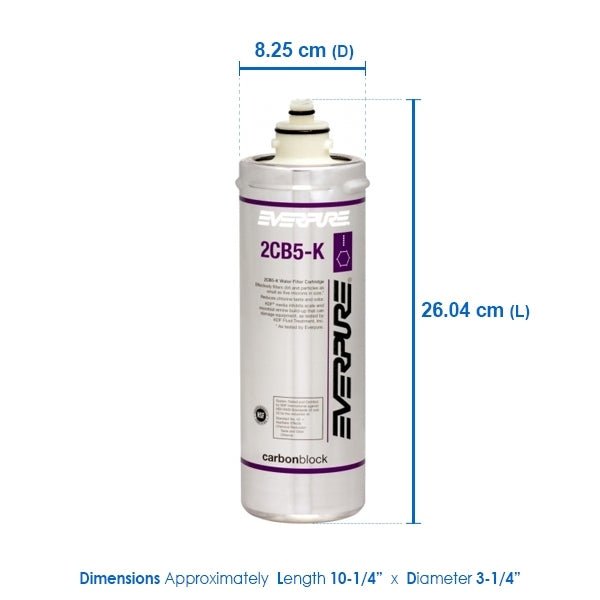

Overall Dimensions: 10.25" L x 3.25" dia. (26.0 x 8.2 cm)
Capacity: 3,000 gallons (11,356 L)
Service Flow Rate: Maximum 1.0 gpm (3.8 Lpm)
Pressure Requirements: 10 - 125 psi (0.7 - 8.6 bar), non-shock
Temperature: 35 - 100°F (2 - 38°C)
Electrical Connection: None required

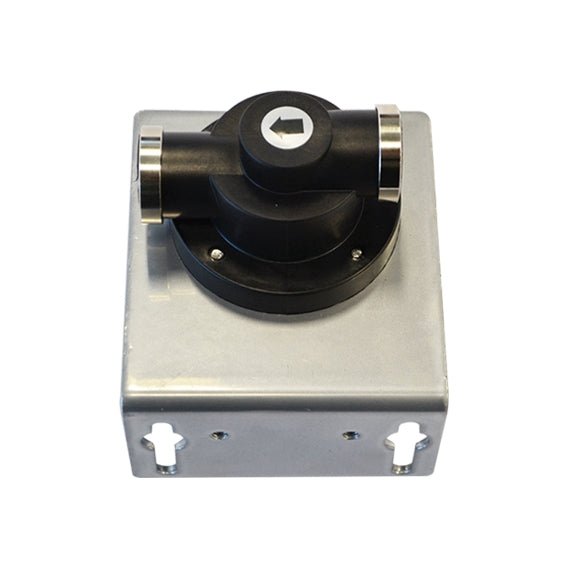

Everpure QL1 Water Filter Head

Everpure Part Number EV3098-53E suits a Range of Everpure Filters
The Everpure QL1 single filter head & bracket assembly.
The Everpure QL1 EV3098-53E filter head features a 3/8 inch female threaded inlet and outlet ports.
EV925618 will replace Everpure EV9259-24, QL3 EV9259-14, EV925924
Dimensions 112mm deep including bracket x 83mm wide
MADE IN USA

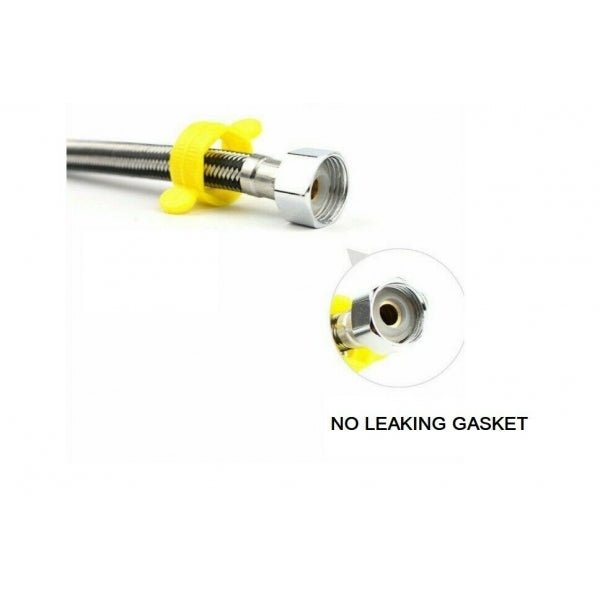

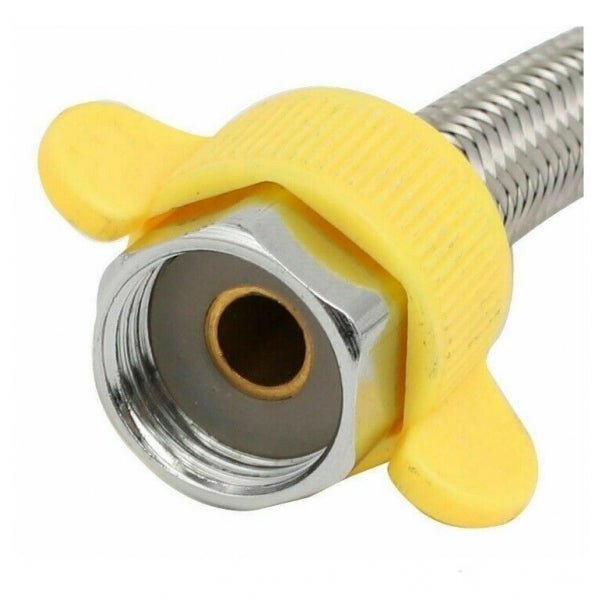

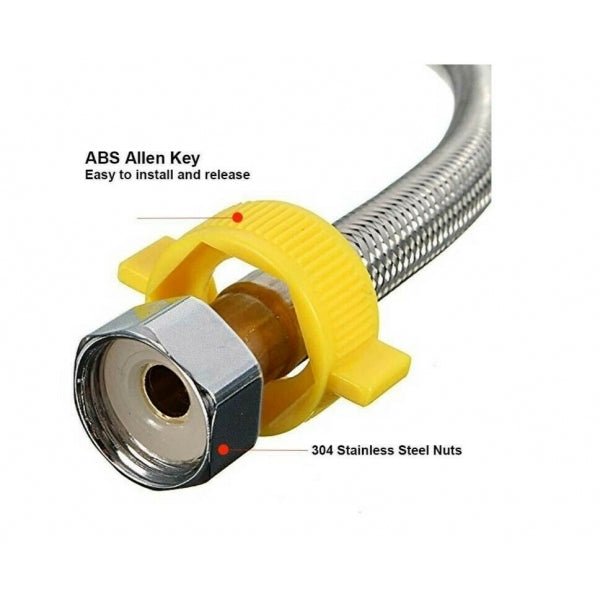

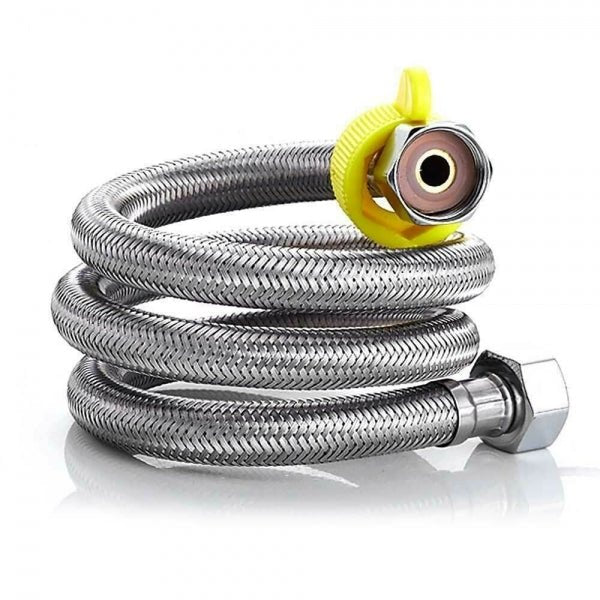

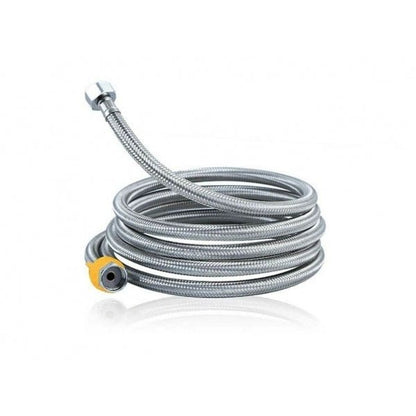

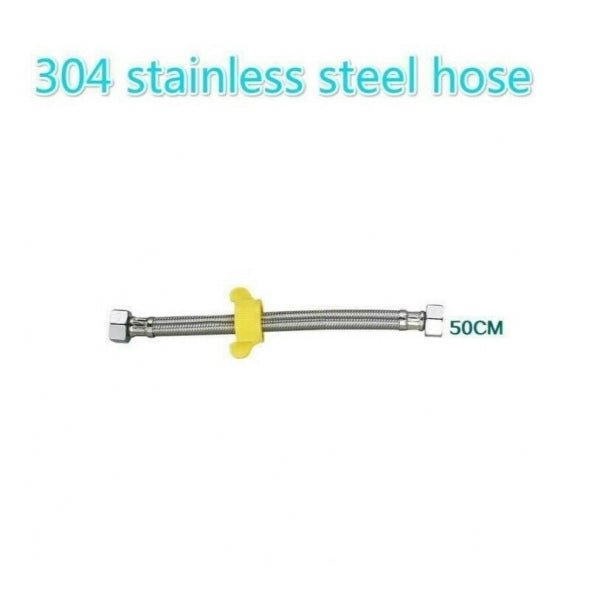

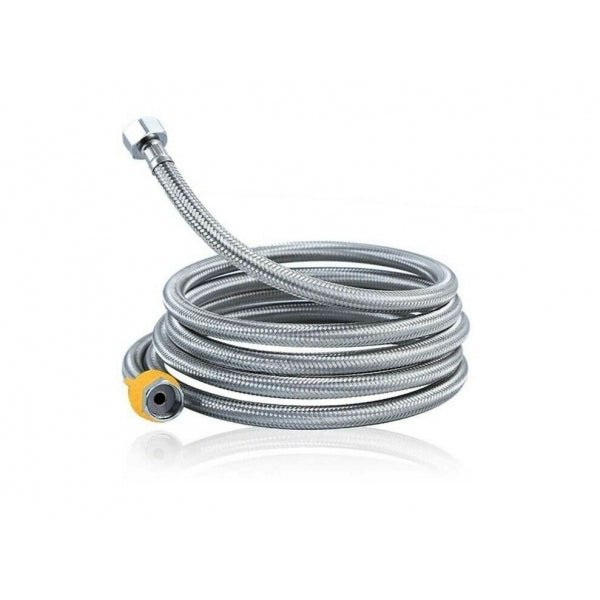

2 x Water Hose Pipes Connect Bathroom Heater Toilet Monobloc Tap Faucet 1/2"

Water Hose Pipes Tails Connect Bathroom Heater Toilet Monobloc Tap Faucet

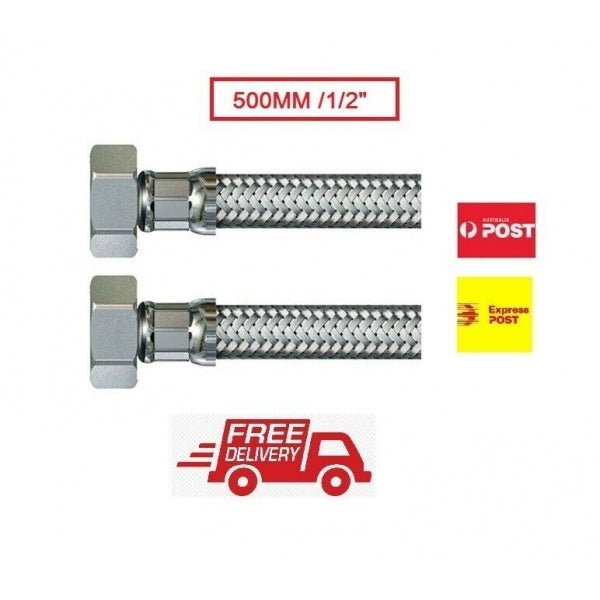

Package: 2 x Water Hose 50cm

About Items:
- Material: 304 stainless steel nuts and cover, EPDM Rubber inner pipe
- Applicable temperature: -15℃~90℃
- Nominal pressure:.0~1.6 Mpa
- G1/2 Standard Pipe
- Size(see picture details please)
- Mounting: Screw Type
​- Color: Silver
- Applies to: Water Heater,Washing Machine Connector ,Toilet Connector,Monobloc Tap etc

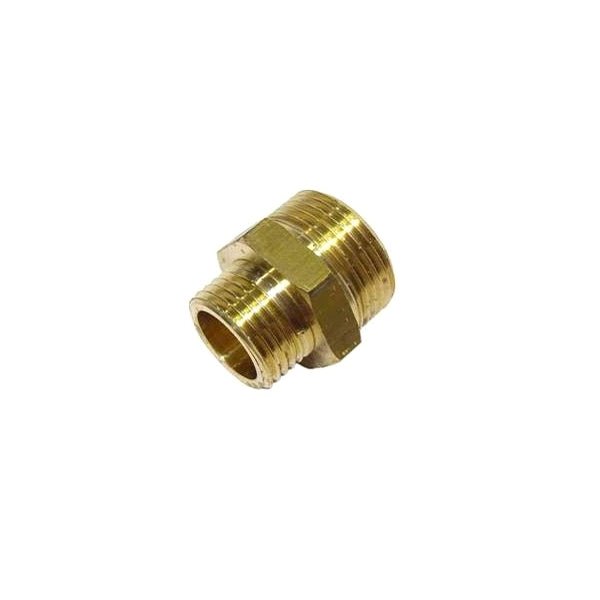

2 x Brass 3/4″ (20mm) x 1/2″ (15mm) Bsp Reducing Nipple

Measures 25mm & 20mm across threads
