AS1357.2 & AS/NZS2845.1
Lic.WMKA2596

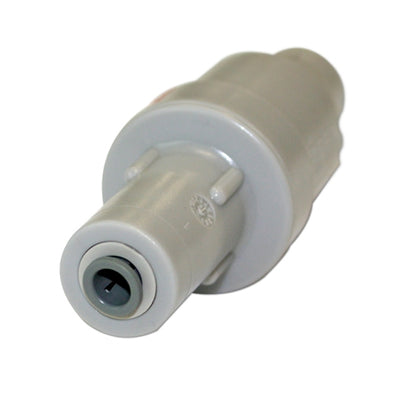

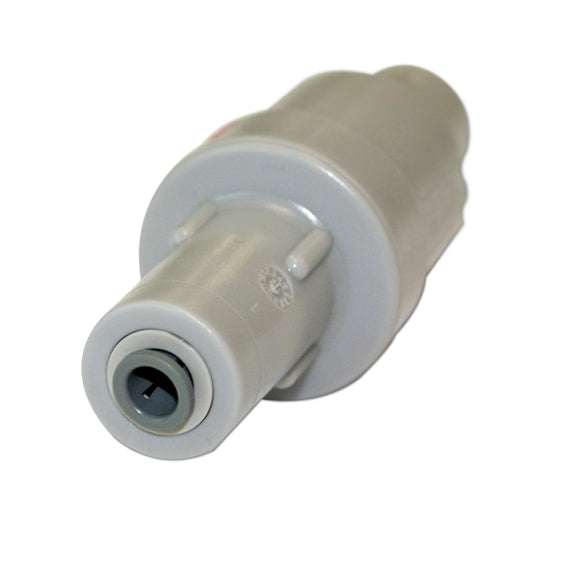

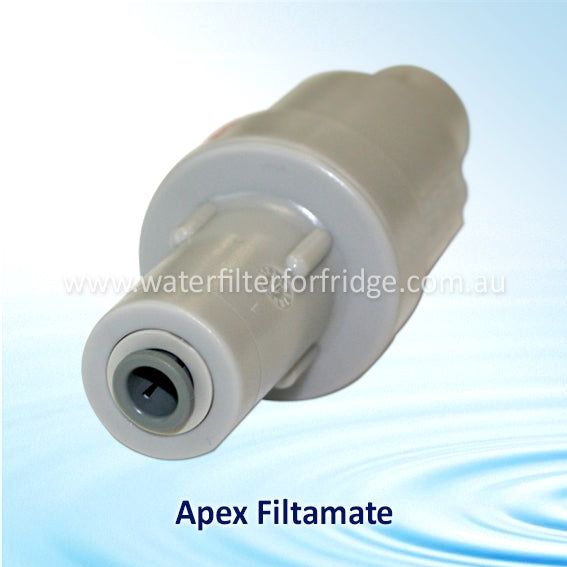

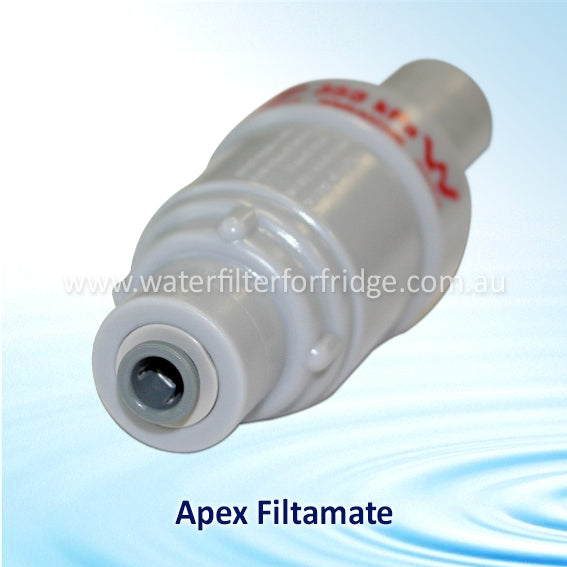

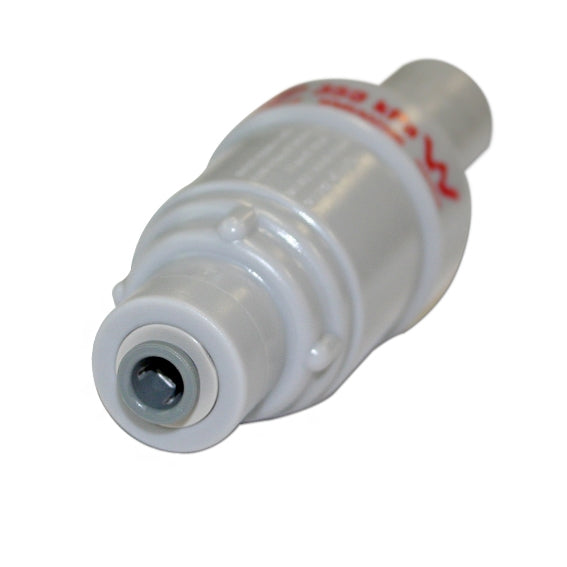

Apex Filtamate FMP 350 KPA
Pressure Limiting Valve (PLV)
Plastic with 1/4" tube ports
FMP350 AUSTRALIAN MADE
GENUINE PRESSURE LIMITING VALVE
Product Description
FMP350 /FMP 600

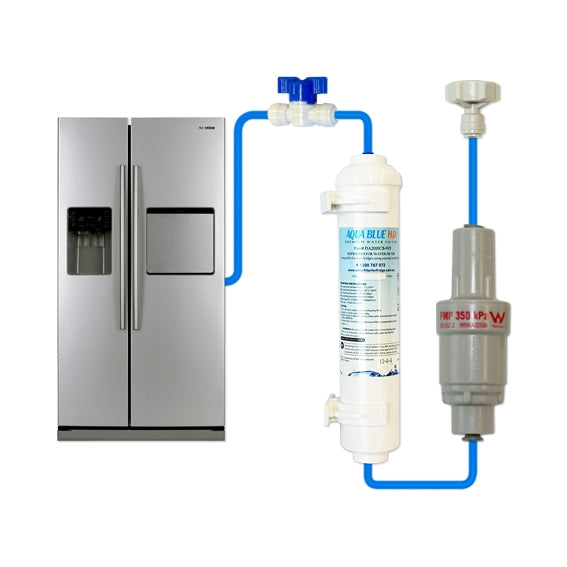

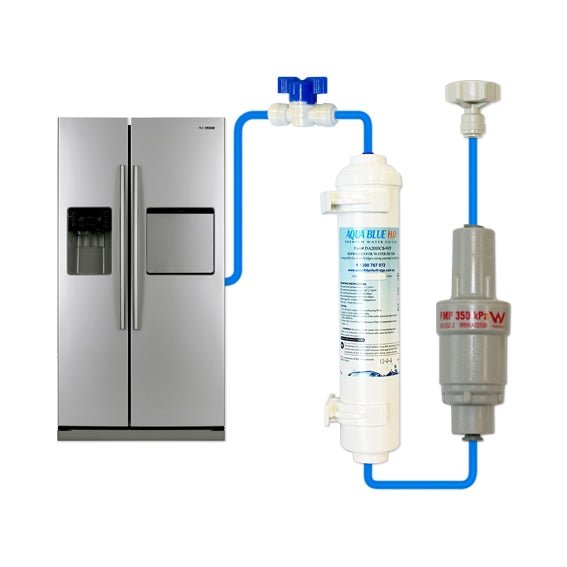

A Wells certified Apex Filtamate Pressure Limiting Valve (PLV) rated to 350KPA with 1/4" tube ports is a must for any under bench water filter system. Not having one installed could mean that if you ever did have to claim insurance on damage caused by a burst water filter system may be denied due to the lack of Certified pressure limiting protection installed.
All complete under bench water filtration systems sold by URWater include either a 350KPA or 600KPA pressure limiting valve to protect the water filter system from extreme water pressure events which could occur in the town water pipes. If your system does not already have a PLV then you should
- Integral dual check valves help prevent backflow
- FiltaMate resists water hammer and limits water pressure to filters thus avoiding costly water damage.

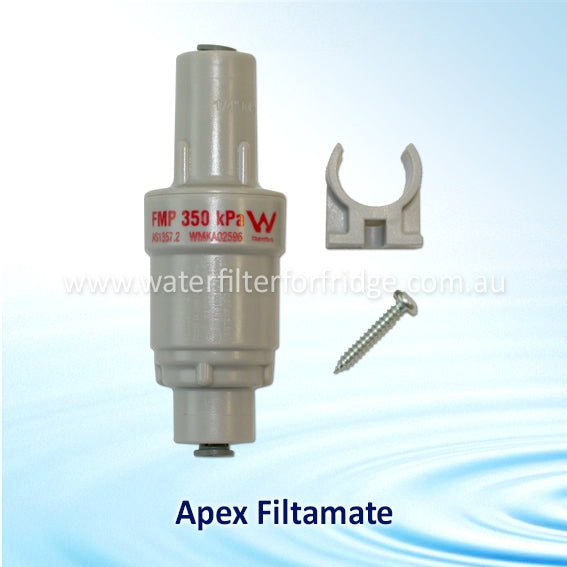

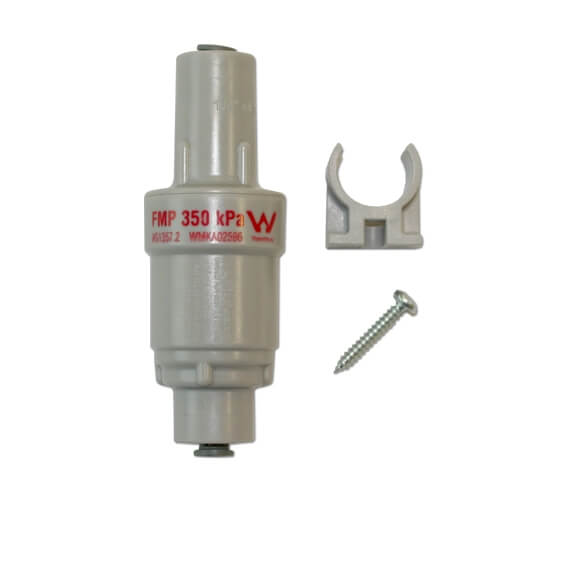

- FMP supplied with fixing clip and screw.
Standards
- Complies with NZS 4608:1992
- Australian Watermark Approval AS1357.2 Lic. 02596
- Inlet - ¼" John Guest connector
- Outlet - ¼" John Guest connector

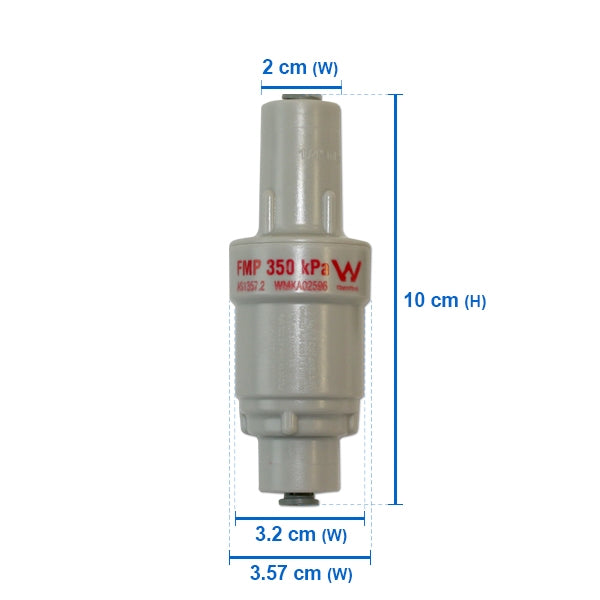

- Length 98mm
- Check Valve Dual
- Flow Rate - 14 L/min at 700 kPa [100psi] inlet pressure
- Pressure Ratio - 10:1 (for every 10 kPa [1.5psi] increase in inlet pressure above 1000 kPa [150psi], the outlet pressure will increase by 1 kPa [0.145psi]).
- Outlet Pressures - 350 and 600 kPa [50, 60 and 85psi] +/- 10% @ 1000 kPa
- [150psi] inlet pressure.
- Maximum inlet pressure - 1600 kPa [230psi]
- Maximum temperature - 40°C [105°F]
- Minimum temperature - 1°C
