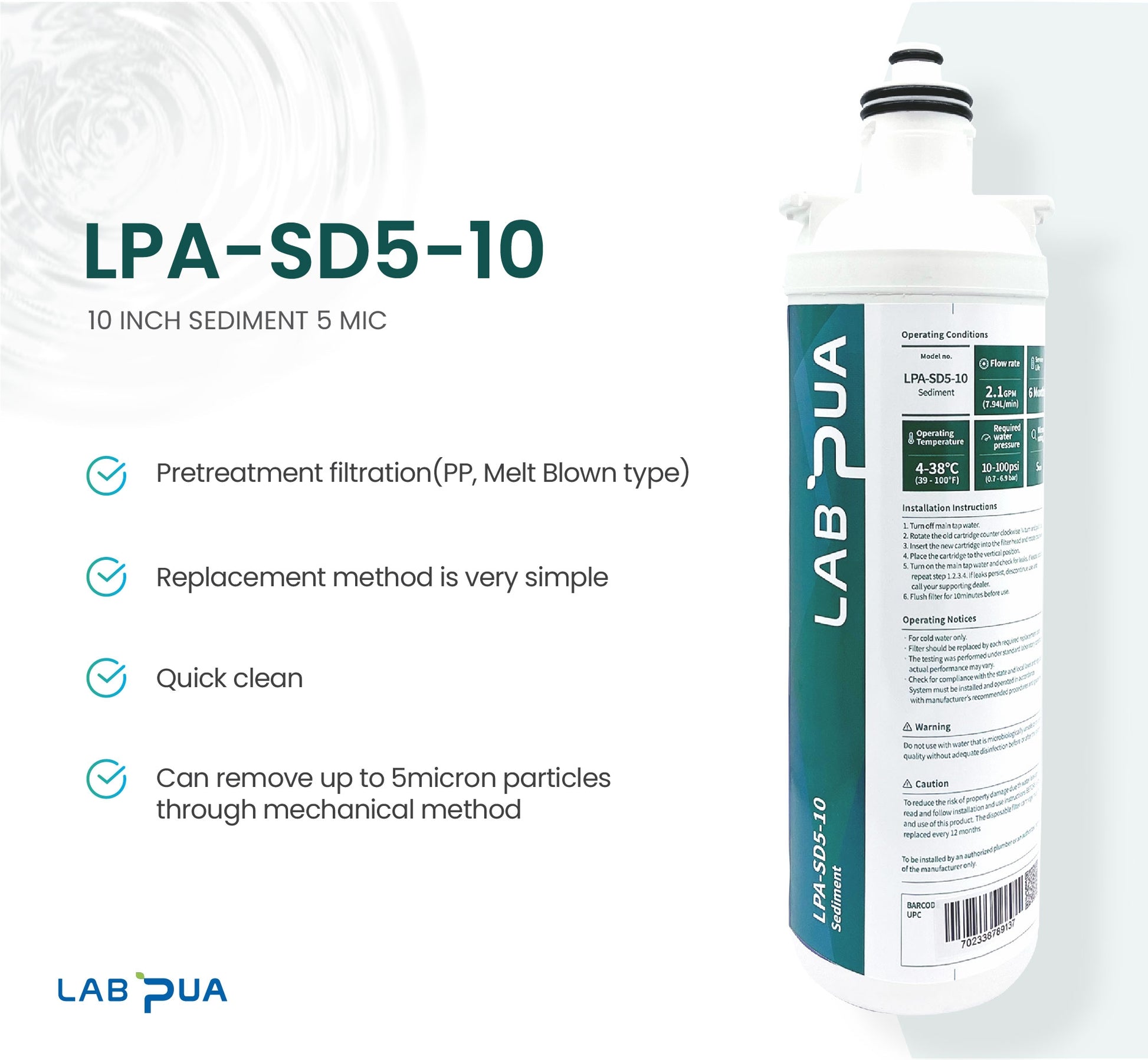

LPA SD5 10

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)

• Rated Capacity: 13,210 Gallons (50,000 L)

• Operating Temperature: 4–38℃ (39–100℉)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: None required

• Dimensions:

  • Overall: 3.7″ × 12.5″

  • Cartridge: Ø3.3″ × 10.7″

• Weight: 0.6 kg

• Claims:

  • Removes particles, dust, sand, and similar contaminants



FEATURES · BENEFITS

• Pretreatment filtration (PP, Melt Blown Type)

• Can remove up to 5micron particles through mechanical method.

• Replacement method is very simple, quick and clean.

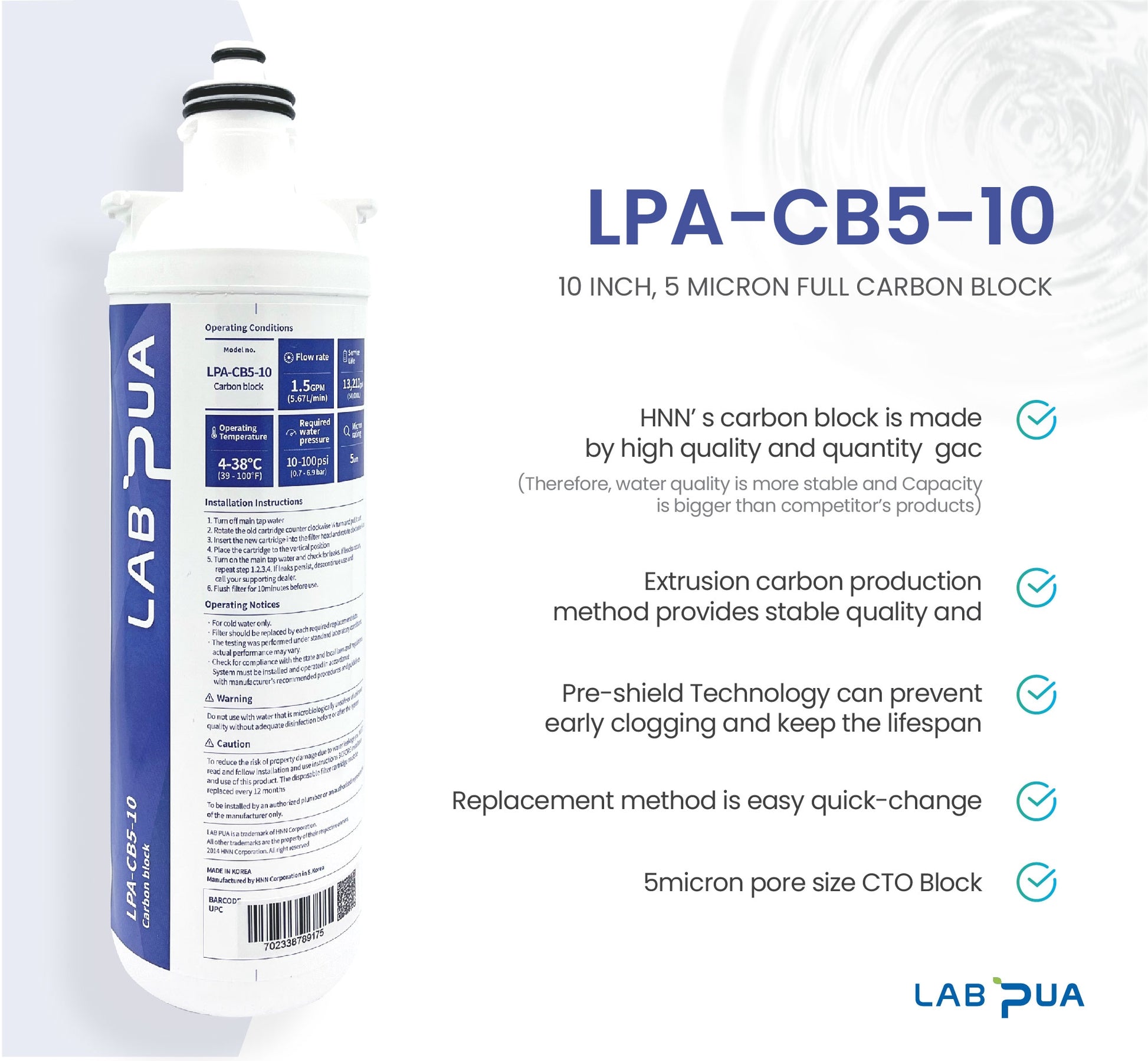

LPA CB5 10

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)

• Rated Capacity: 13,210 Gallons (50,000 L)

• Operating Temperature: 4–38℃ (39–100℉)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: None required

• Dimensions:

  • Overall: 3.7″ × 12.5″

  • Cartridge: Ø3.3″ × 10.7″

• Weight: 1.0 kg

• Claims:

  • Reduces chlorine, taste, and odor

  • Removes particulate matter (Class 3: 5–15 μm)



FEATURES · BENEFITS

• HNN’ s carbon block is made by high quality and quantity gac.

(Therefore, water quality is more stable and Capacity is bigger than competitor’s products)

• 5micron pore size CTO Block

• Extrusion carbon production method provides stable quality and

• Pre-shield Technology can prevent early clogging and keep the lifespan.

• Replacement method is easy quick-change.

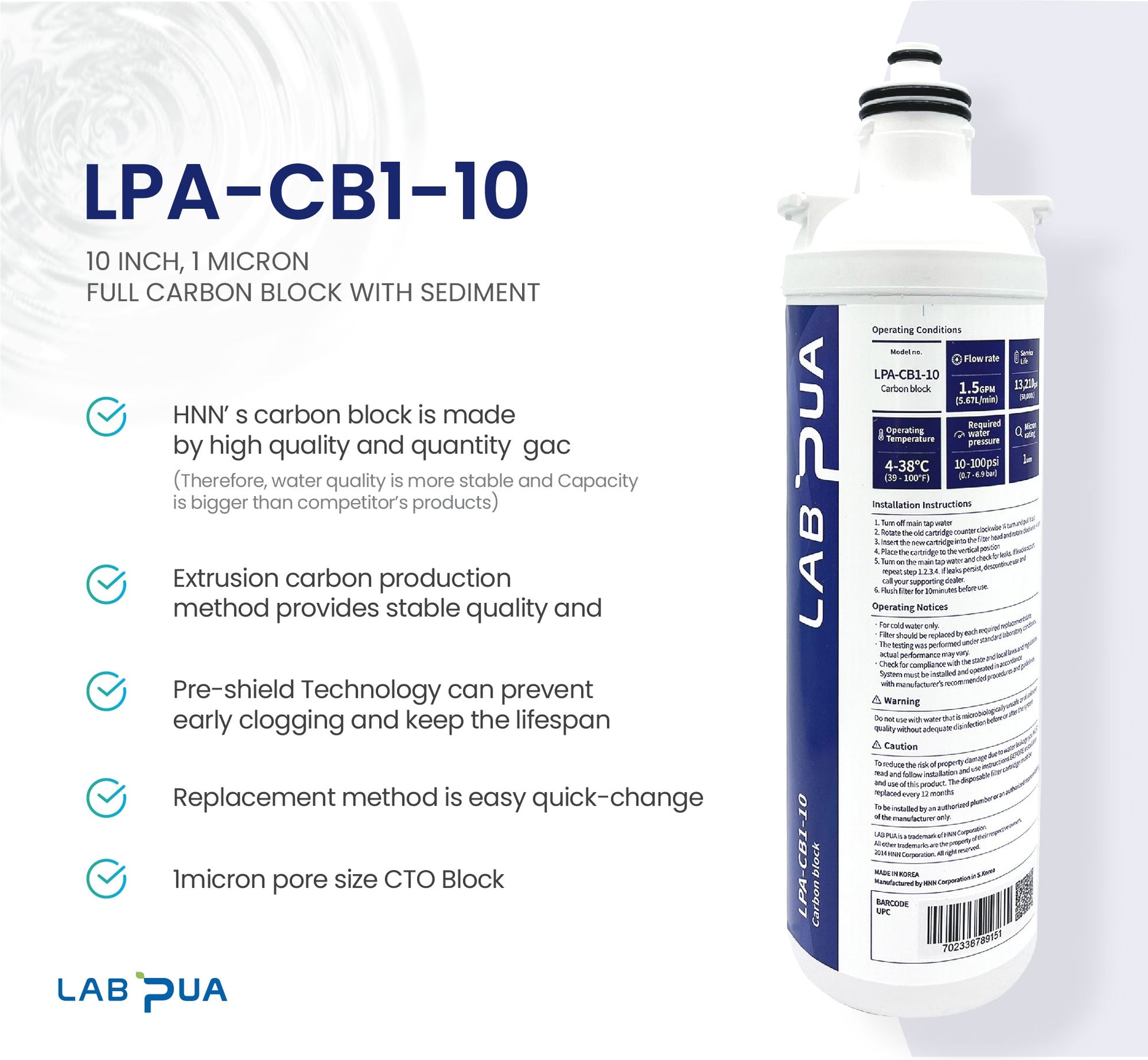

LPA CB1-10

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)

• Rated Capacity: 13,210 Gallons (50,000 L)

• Operating Temperature: 4–38℃ (39–100℉)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: None required

• Dimensions:

  • Overall: 3.7″ × 12.5″

  • Cartridge: Ø3.3″ × 10.7″

• Weight: 1.0 kg

• Claims:

  • Reduces chlorine, taste, and odor

  • Removes particulates (Class 1: 0.5–1.0 µm)



FEATURES · BENEFITS

• HNN’ s carbon block is made by high quality and quantity gac.

(Therefore, water quality is more stable and Capacity is bigger than competitor’s products)

• 1micron pore size CTO Block

• Extrusion carbon production method provides stable quality and

• Pre-shield Technology can prevent early clogging and keep the lifespan.

• Replacement method is easy quick-change.

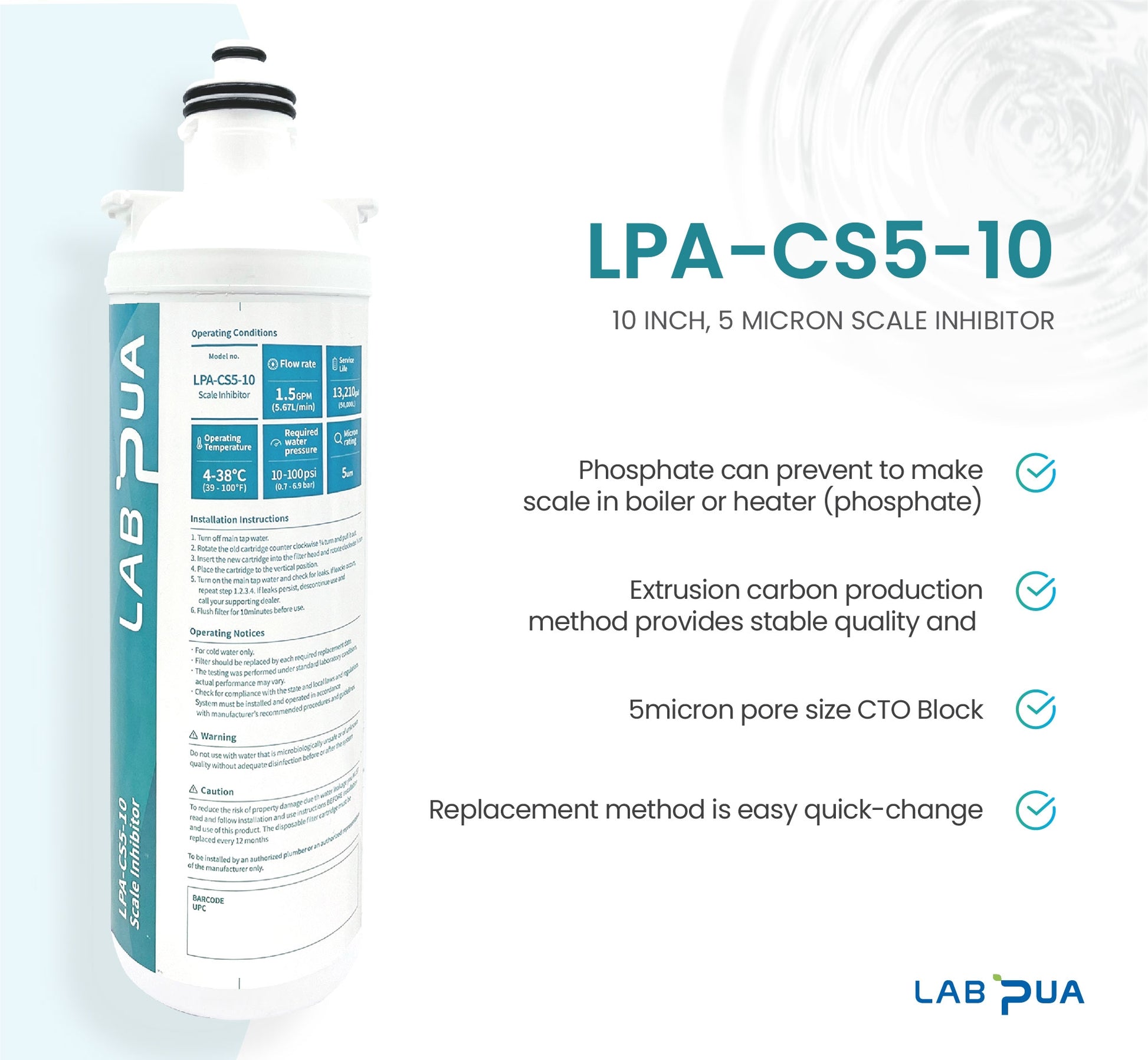

LPA CS5 10

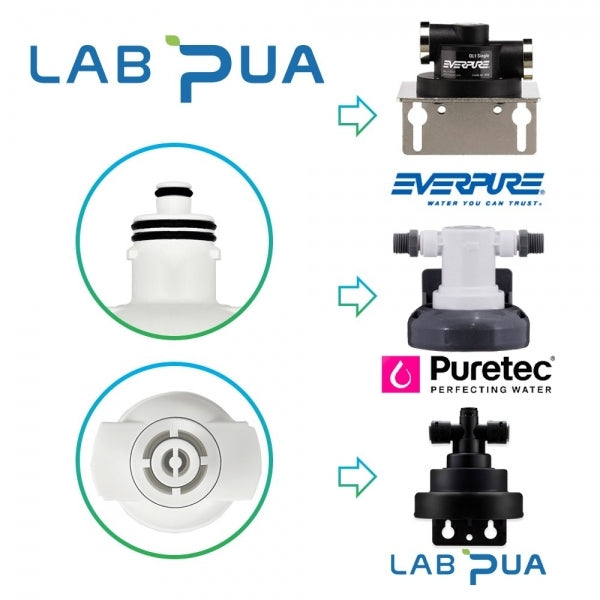

Replaces Everpure 2CB5-K EV9617-06 / EV961706 Replacement Filter Cartridge

The Lab Pua LPA-CS5-10  Everpure EV9617-06 / EV961706 Filter Cartridge is intended for food service, vending machine and coffee service applications, and is ideal for problem water areas

Applications
- Ideal for problem water areas
- Foodservice
- Vending
- Office coffee service (OCS)

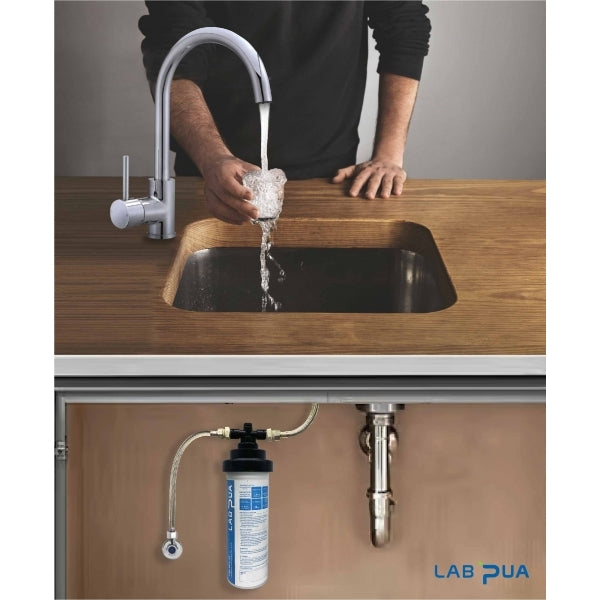

Installation Tips
- Never use saddle valve for connection
- Use 3/8" water line
- Install vertically with cartridge hanging down
- Allow 2-1/2" (6.35 cm) clearance below the cartridge for easy cartridge replacement
- Flush The Lab Pua LPA-CS5-10  cartridge by running water through the filter for five (5) minutes at full flow

Operation Tips
- Change cartridges on a regular six (6) month preventative maintenance program
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
- Service flow rate must not exceed 1.0 gpm (5.4 Lpm)
- Always flush the filter cartridge at the time of installation and cartridge change

Sizing
Service Flow Rate: Maximum 1.0 gpm (5.4 Lpm)
Capacity: 50,000L

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)

• Rated Capacity: 13,210 Gallons (50,000 L)

• Operating Temperature: 4–38℃ (39–100℉)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: None required

• Dimensions:

  • Overall: 3.7″ × 12.5″

  • Cartridge: Ø3.3″ × 10.7″

• Weight: 1.1 kg

• Claims:

  • Reduces chlorine, taste, and odor

  • Removes particulates

  • Includes scale inhibitor to prevent mineral buildup

This all-in-one cartridge inhibits lime scale and reduces unwelcome elements in your water such

as sediment, chlorine, bad tastes and odours, as well as providing protection against cysts and
bacteria such as E-coli.

FEATURES · BENEFITS

• Phosphate can prevent to make scale in boiler or heater (phosphate)

• 5micron pore size CTO Block

• Extrusion carbon production method provides stable quality and

• Pre-shield Technology can prevent early clogging and keep the lifespan.

• Replacement method is easy quick-change.

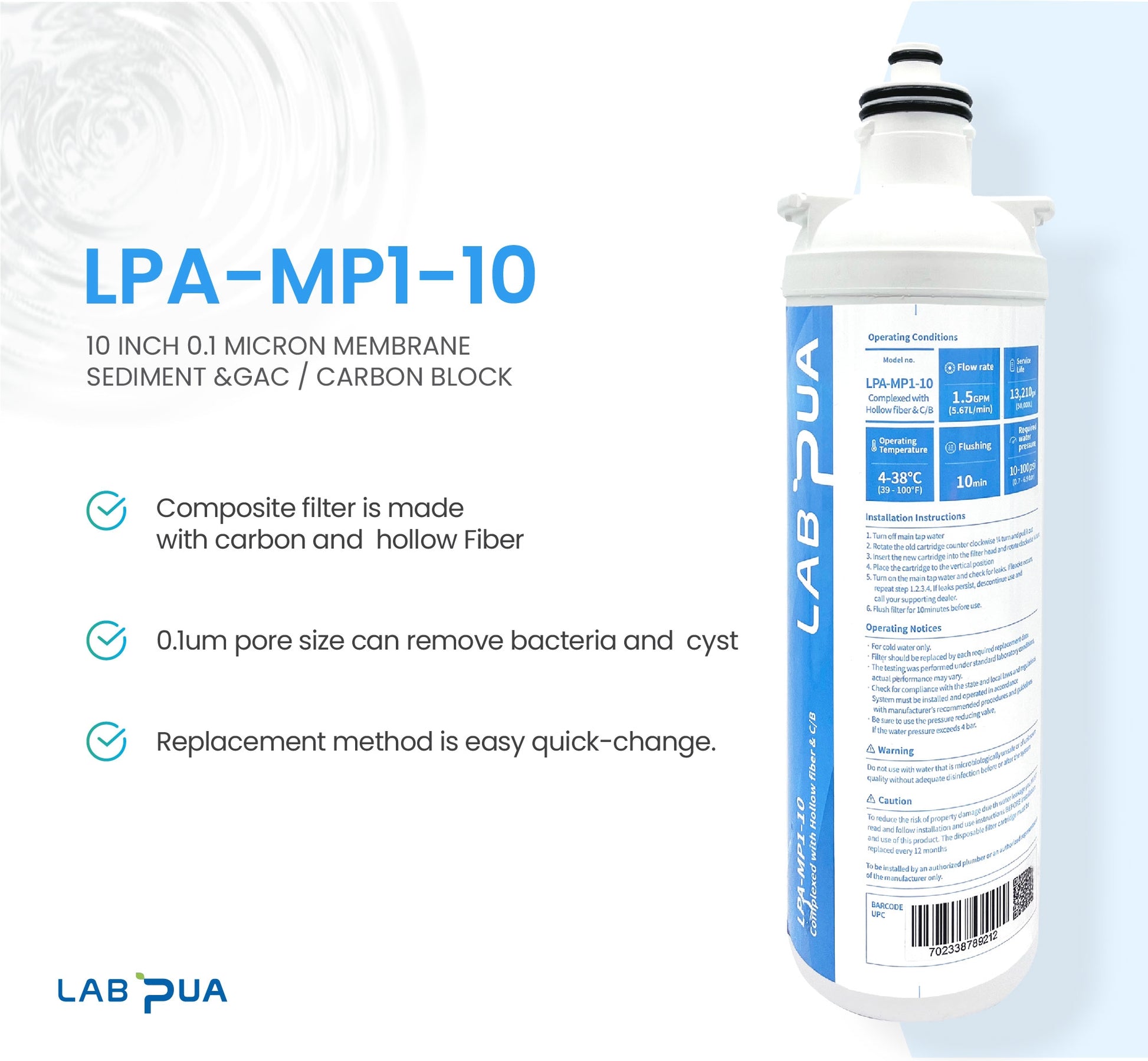

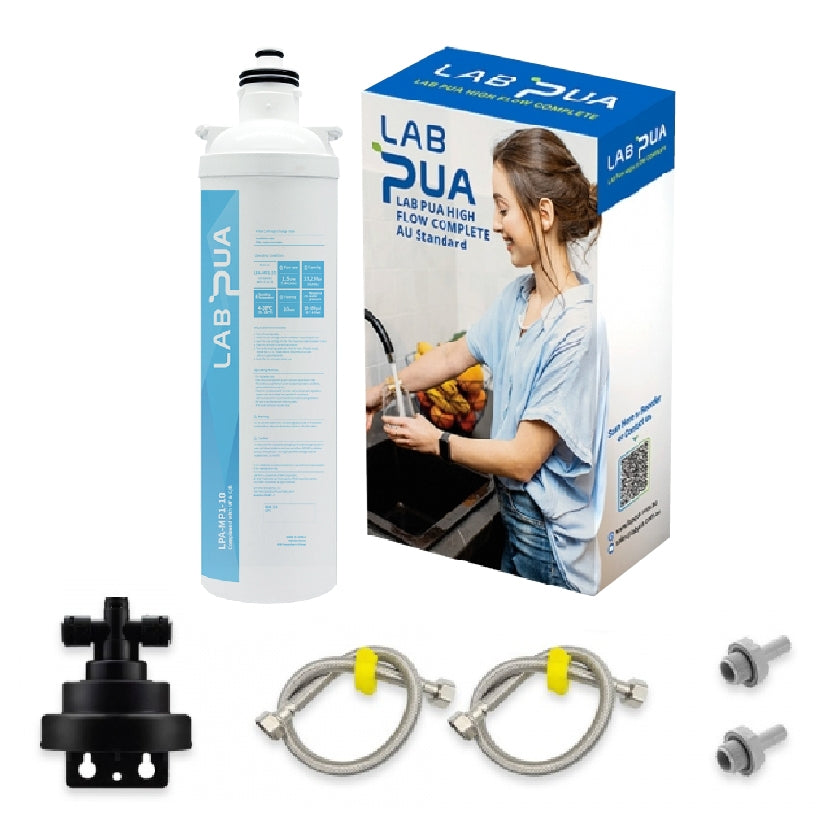

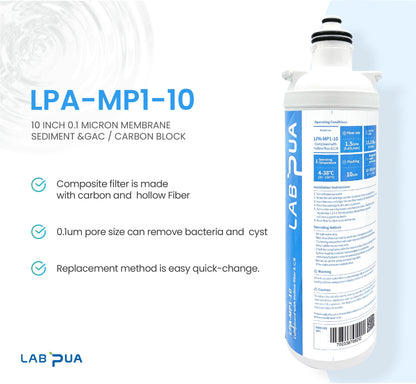

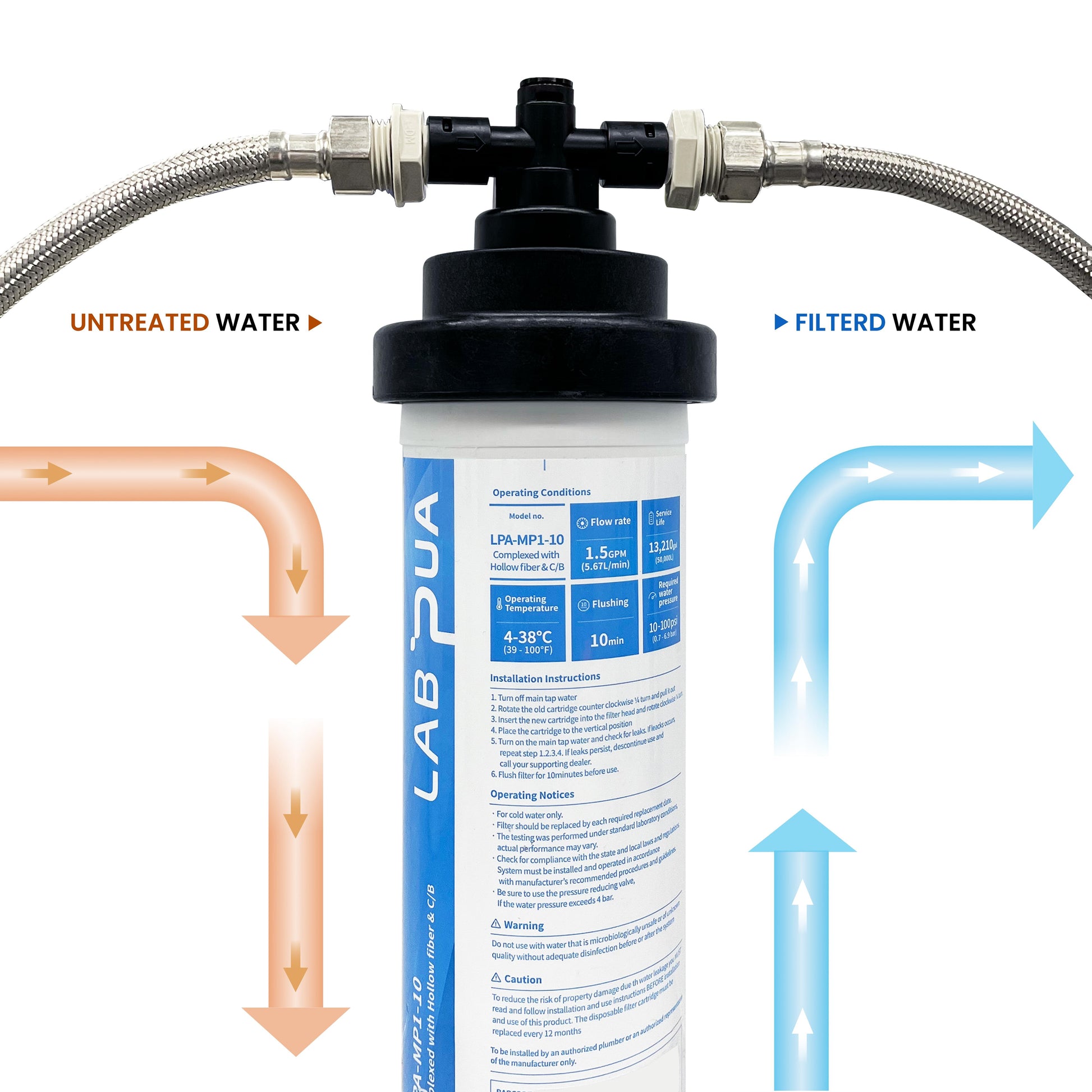

MP1-10

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)

• Rated Capacity: 13,210 Gallons (50,000 L)

• Operating Temperature: 4–38℃ (39–100℉)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: None required

• Dimensions:

  • Overall: 3.7″ × 12.5″

  • Cartridge: Ø3.3″ × 10.7″

• Weight: 0.6 kg

• Claims:

  • Reduces chlorine, taste, and odor

  • Removes particulates

  • Effective against bacteria and cysts

  • (Optional) Includes scale inhibitor for protection against mineral buildup



FEATURES · BENEFITS

• Composite filter is made with carbon and hollow Fiber
• 0.1um pore size can remove bacteria and cyst
• Replacement method is easy quick-change.

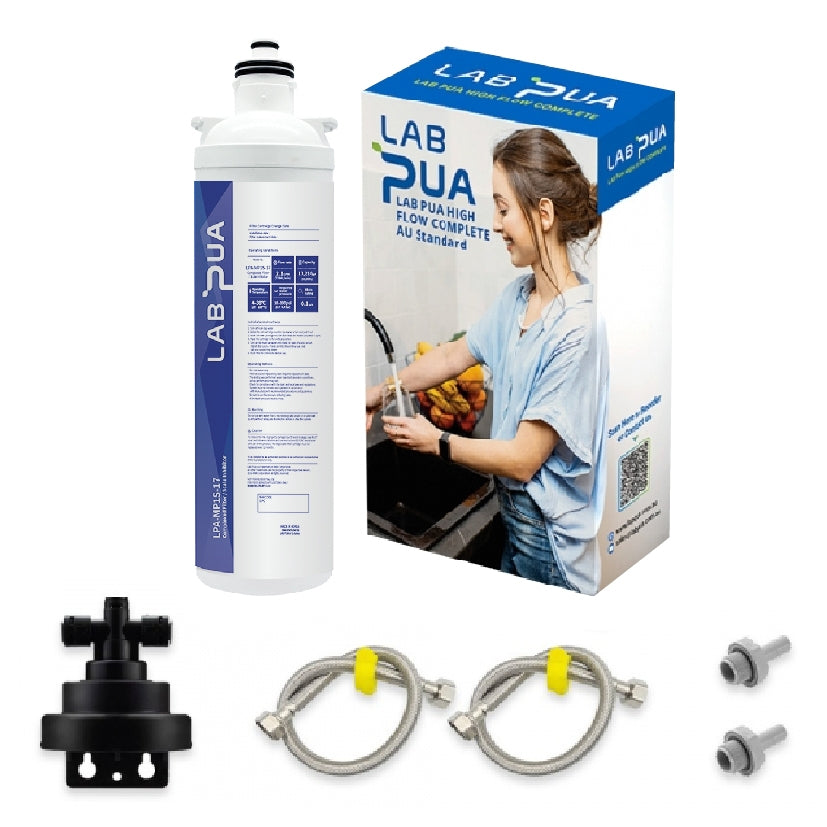

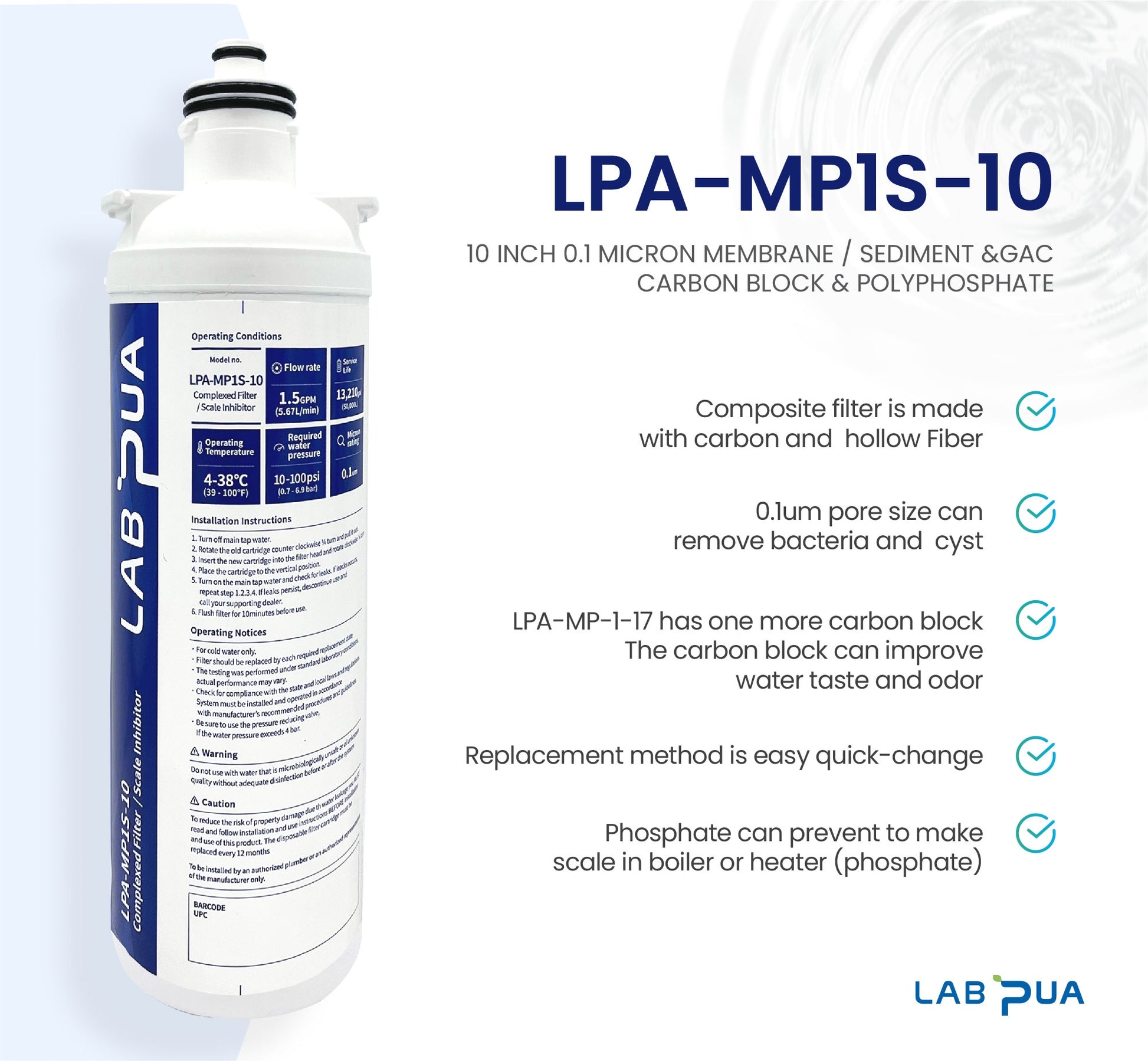

MP1S-10

SPECIFICATIONS

• Service Flow Rate: 2.1 GPM (7.94 L/min)

• Rated Capacity: 13,210 Gallons (50,000 L)

• Operating Temperature: 4–38℃ (39–100℉)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: None required

• Dimensions:

  • Overall: 3.7″ × 12.5″

  • Cartridge: Ø3.3″ × 10.7″

• Weight: 0.95 kg

• Claims:

  • Reduces chlorine, taste, and odor

  • Removes particulates

  • Effective against bacteria and cysts

  • Includes scale inhibitor to reduce mineral buildup

FEATURES · BENEFITS

• Composite filter is made with carbon and hollow Fiber

• 0.1um pore size can remove bacteria and cyst

• LPA-MP-1-17 has one more carbon block . The carbon block can improve

water taste and odor

• Replacement method is easy quick-change.

• Phosphate can prevent to make scale in boiler or heater (phosphate)

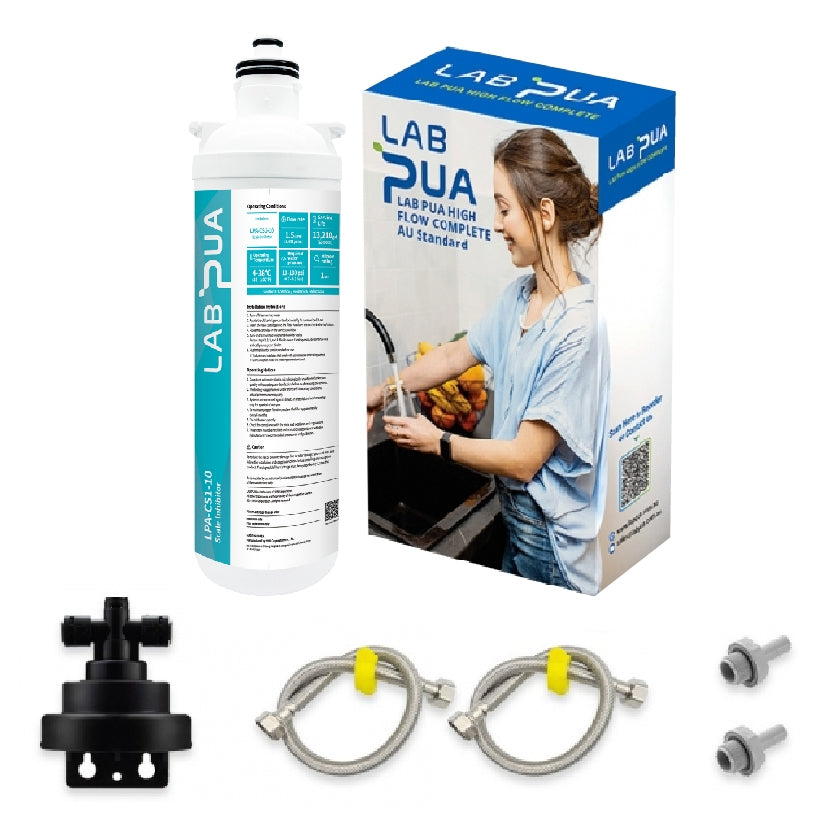

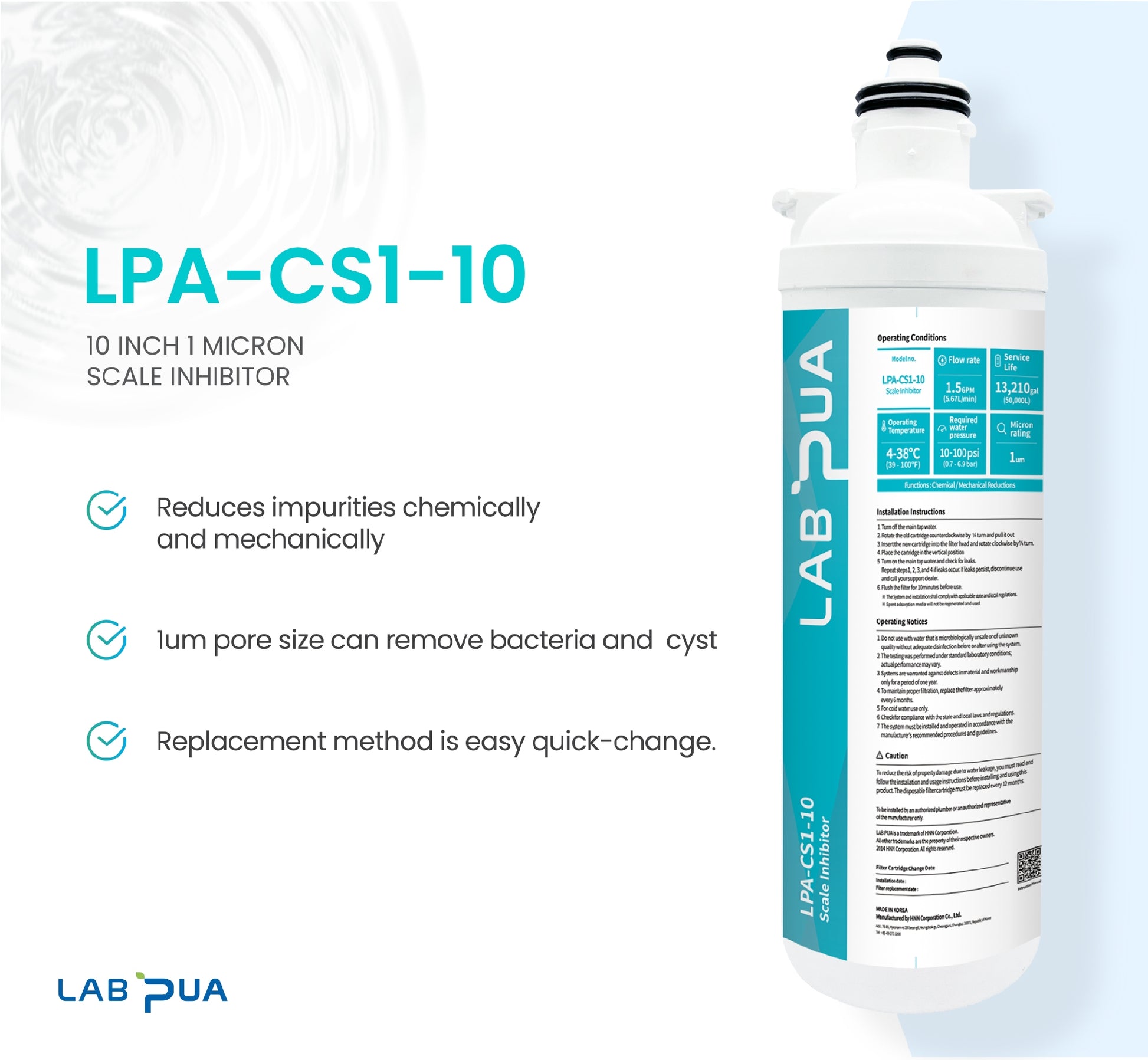

LPA-CS1-10

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)

• Rated Capacity: 13,210 Gallons (50,000 L)

• Operating Temperature: 4–38℃ (39–100℉)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: None required

• Dimensions:

  • Overall: 3.7″ × 12.5″

  • Cartridge: Ø3.3″ × 10.7″

• Weight: 0.6 kg

• Claims:

  • Reduces chlorine, taste, and odor

  • Removes particulate matter

  • Effective against bacteria & cysts

  • (Optional) Scale inhibitor

  • Chemical / mechanical contaminant reduction



FEATURES · BENEFITS

• Reduces impurities chemically and mechanically
• 1um pore size can remove bacteria and cyst
• Replacement method is easy quick-change.

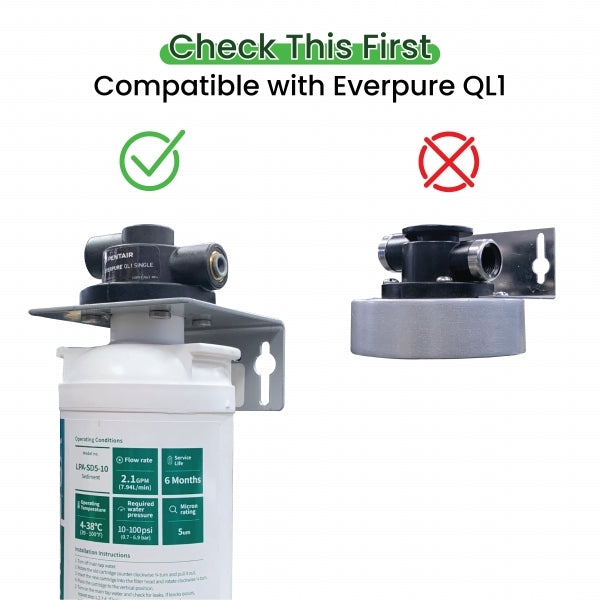

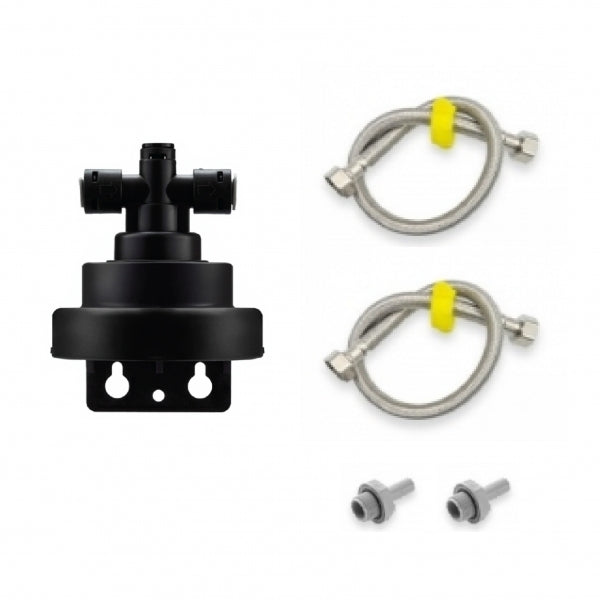

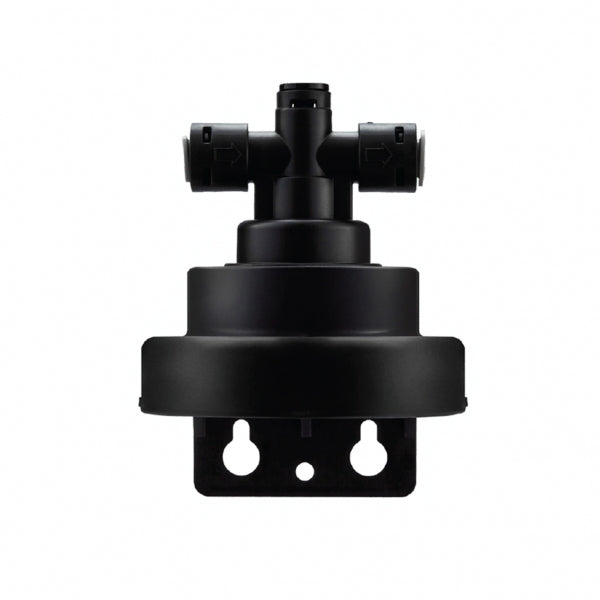

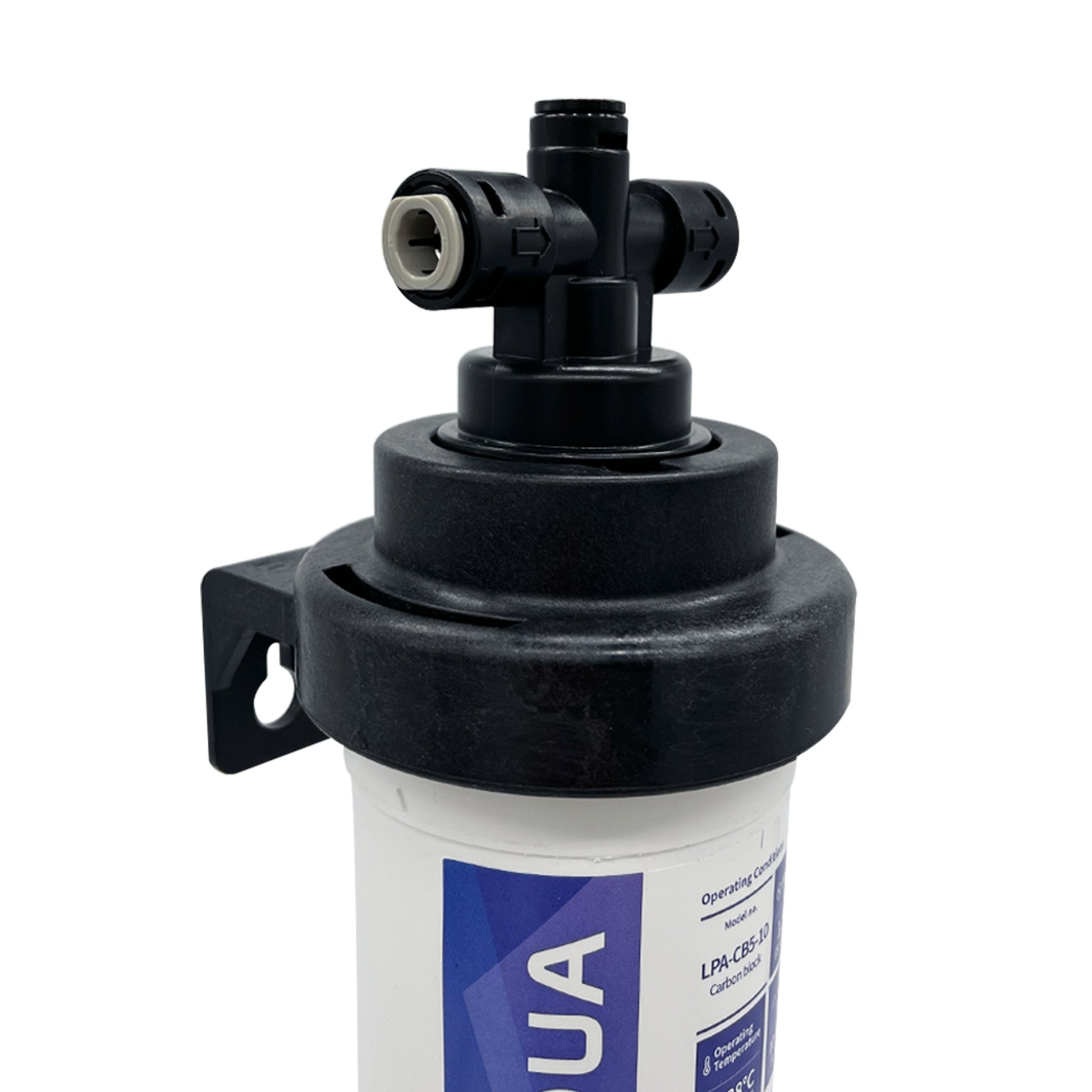

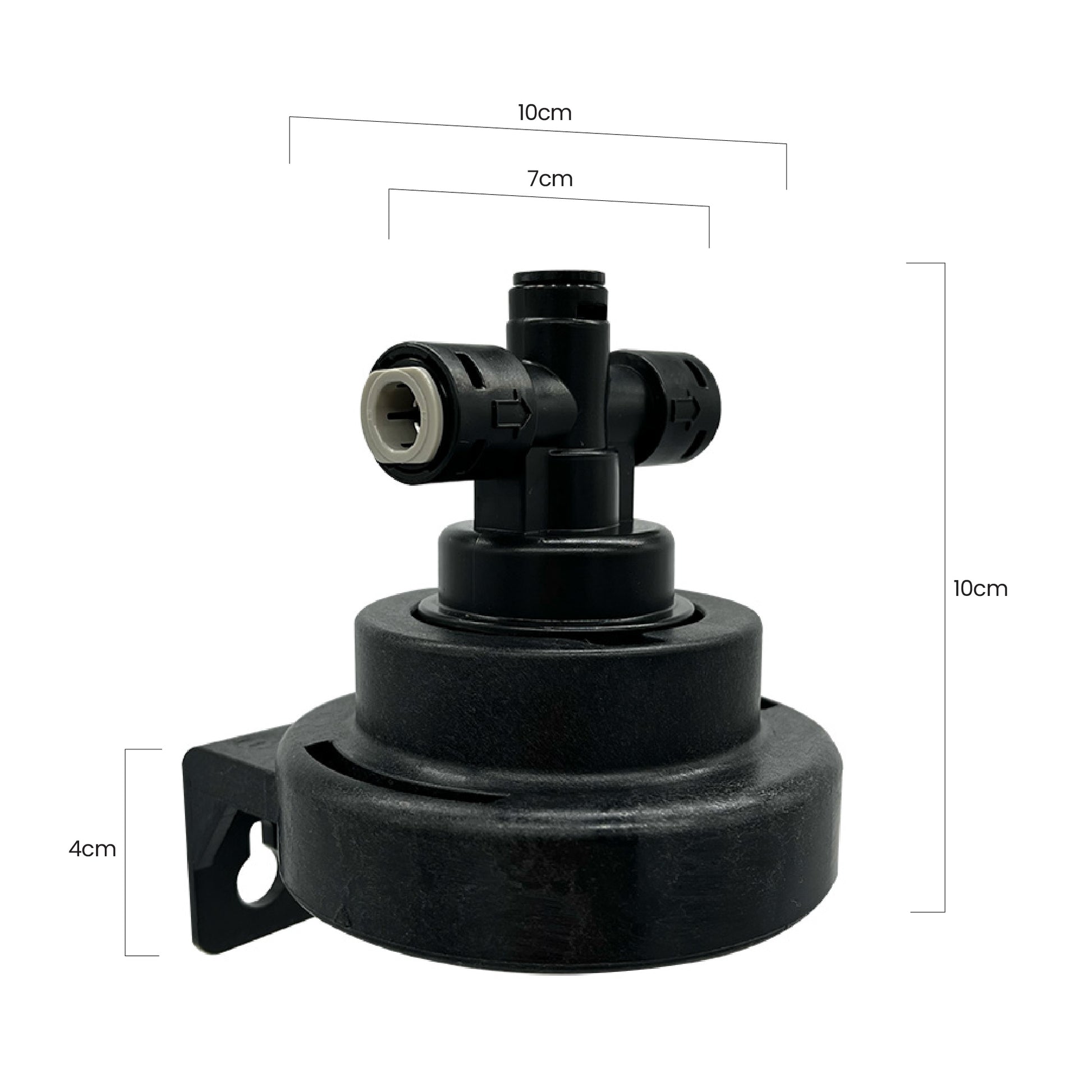

SINGLE HEADER

• Model : LPA138QC
• Dimension : 95.2x126.0x109.8(WxHxD)
• MOQ : 12pcs/box
• Features mounting bracket and 3/8” fittings
• Quick-Change Type Head(Manifold)
• Includes-built in water shut-off valve (Auto shut-off valve)
