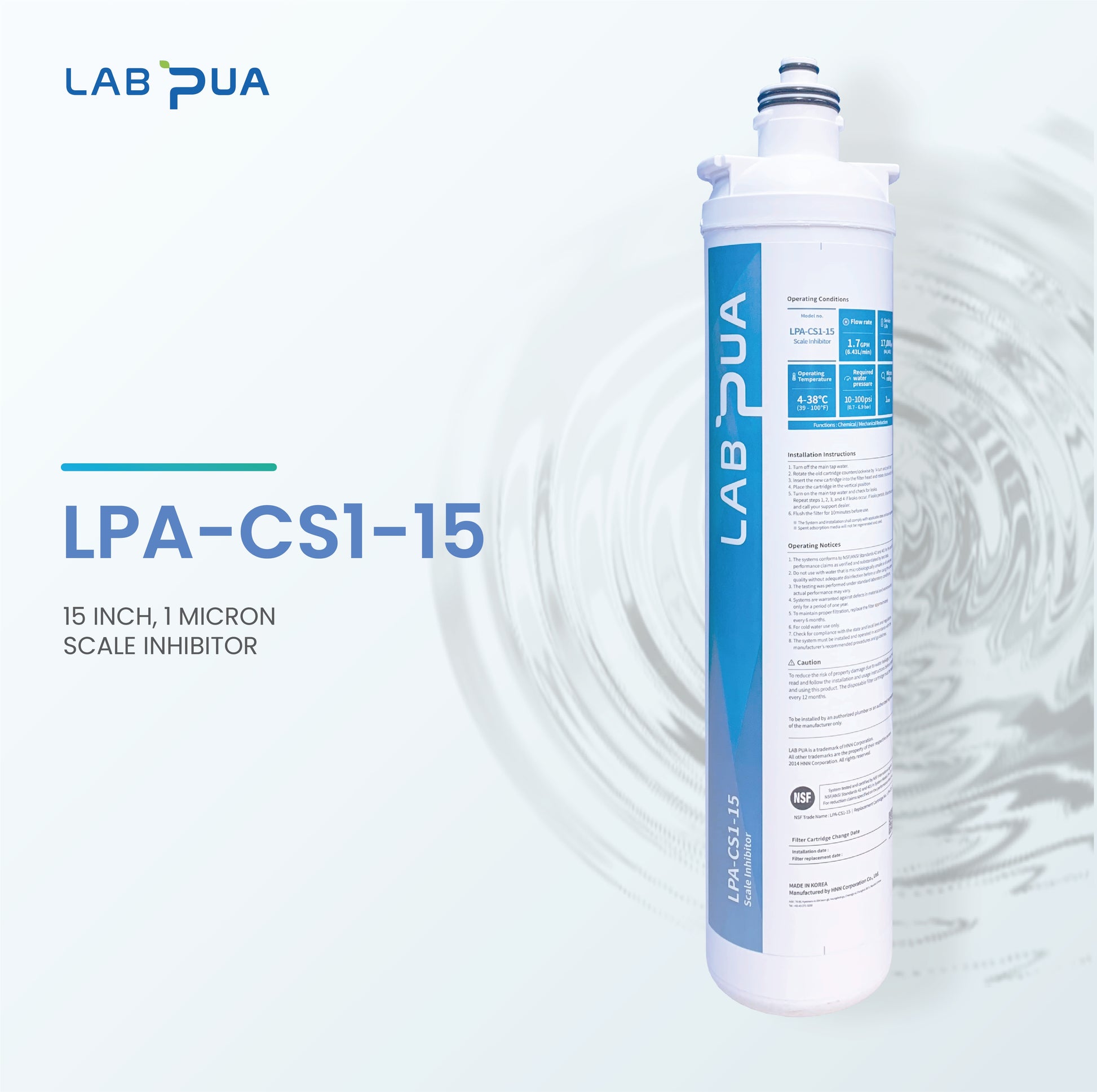

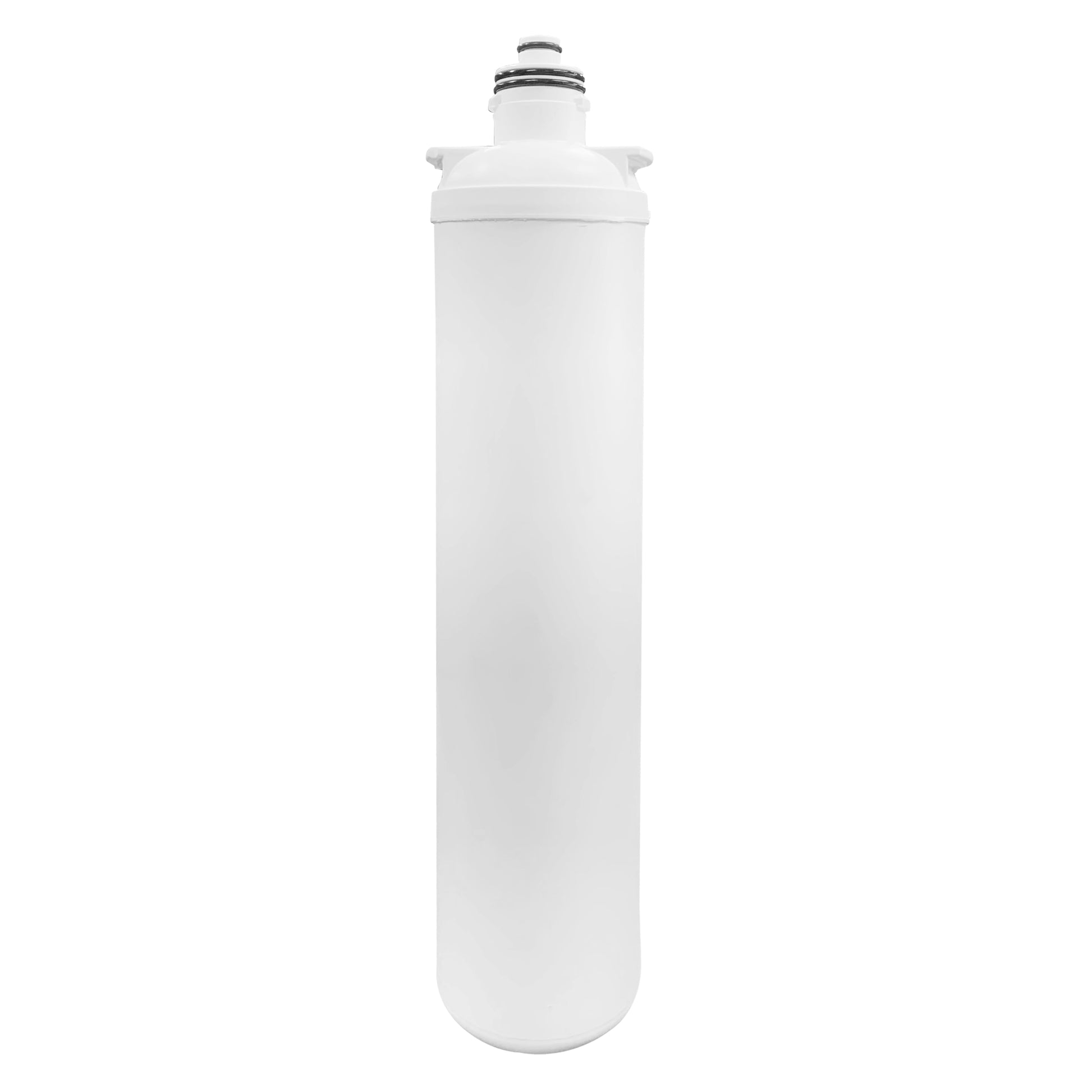

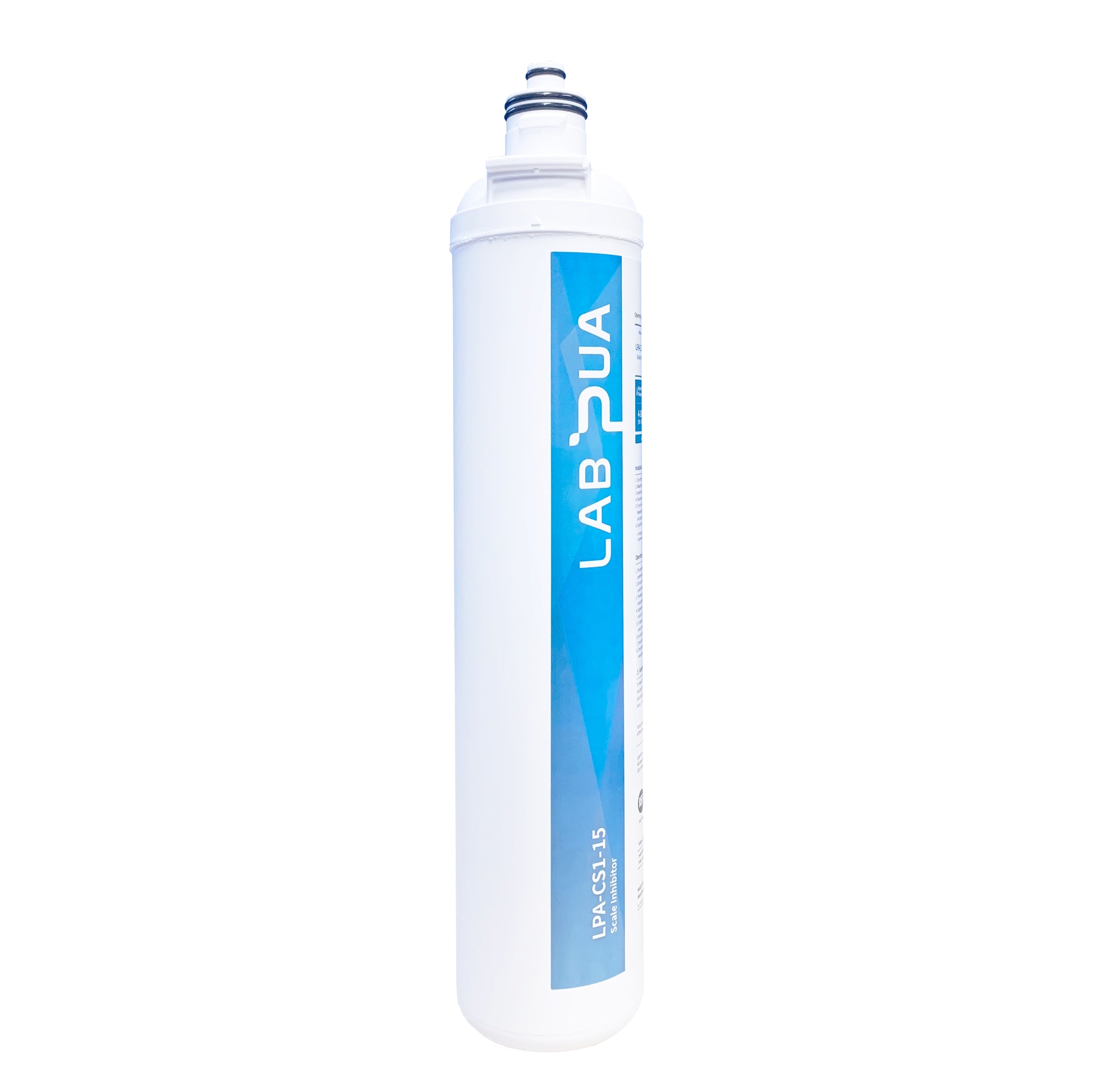

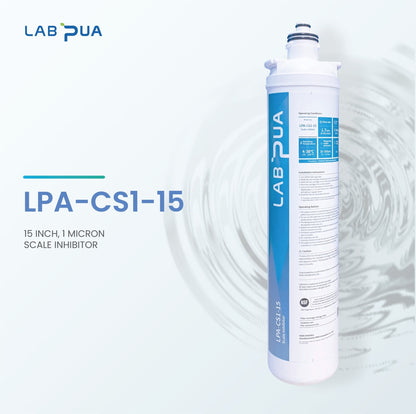

LPA CS1 15

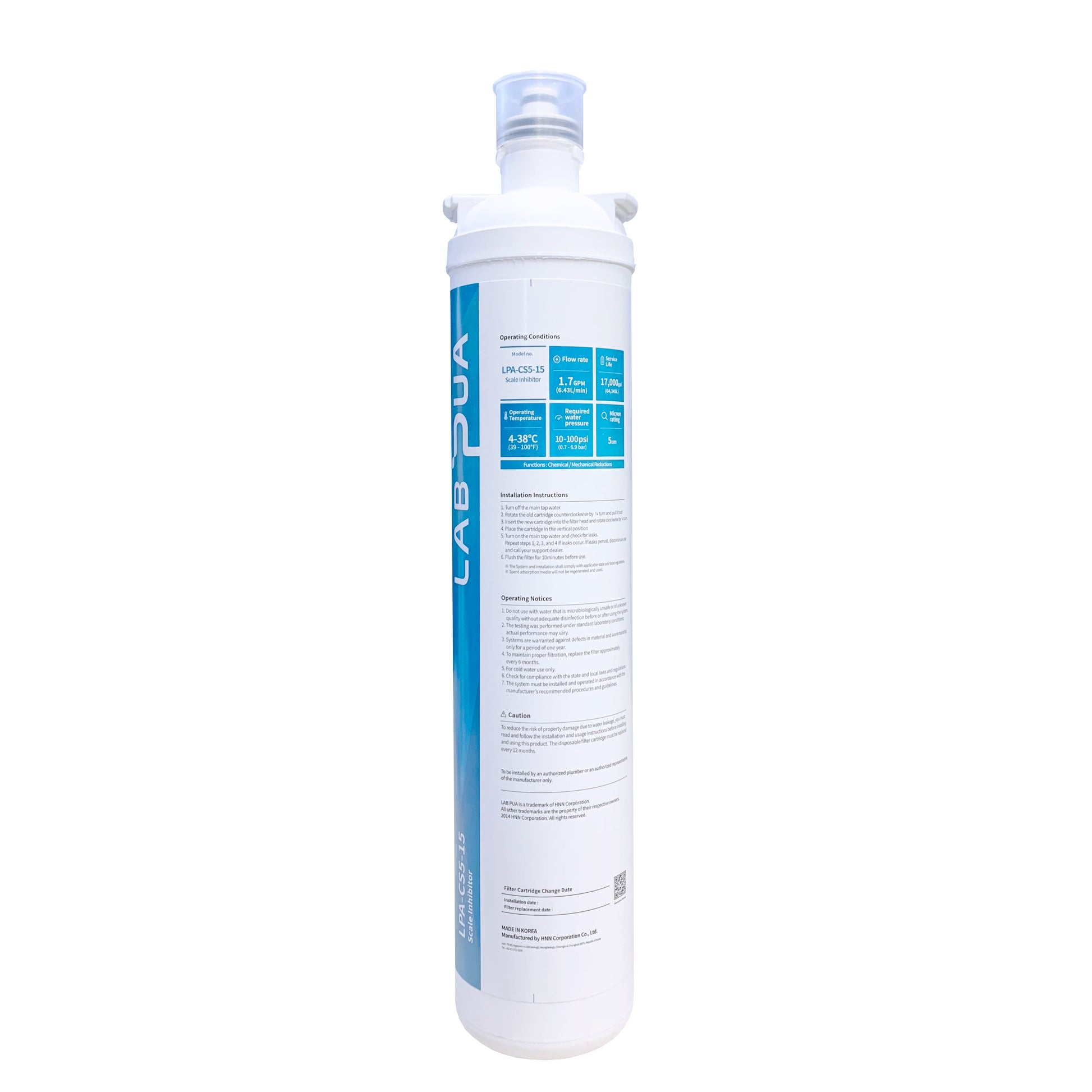

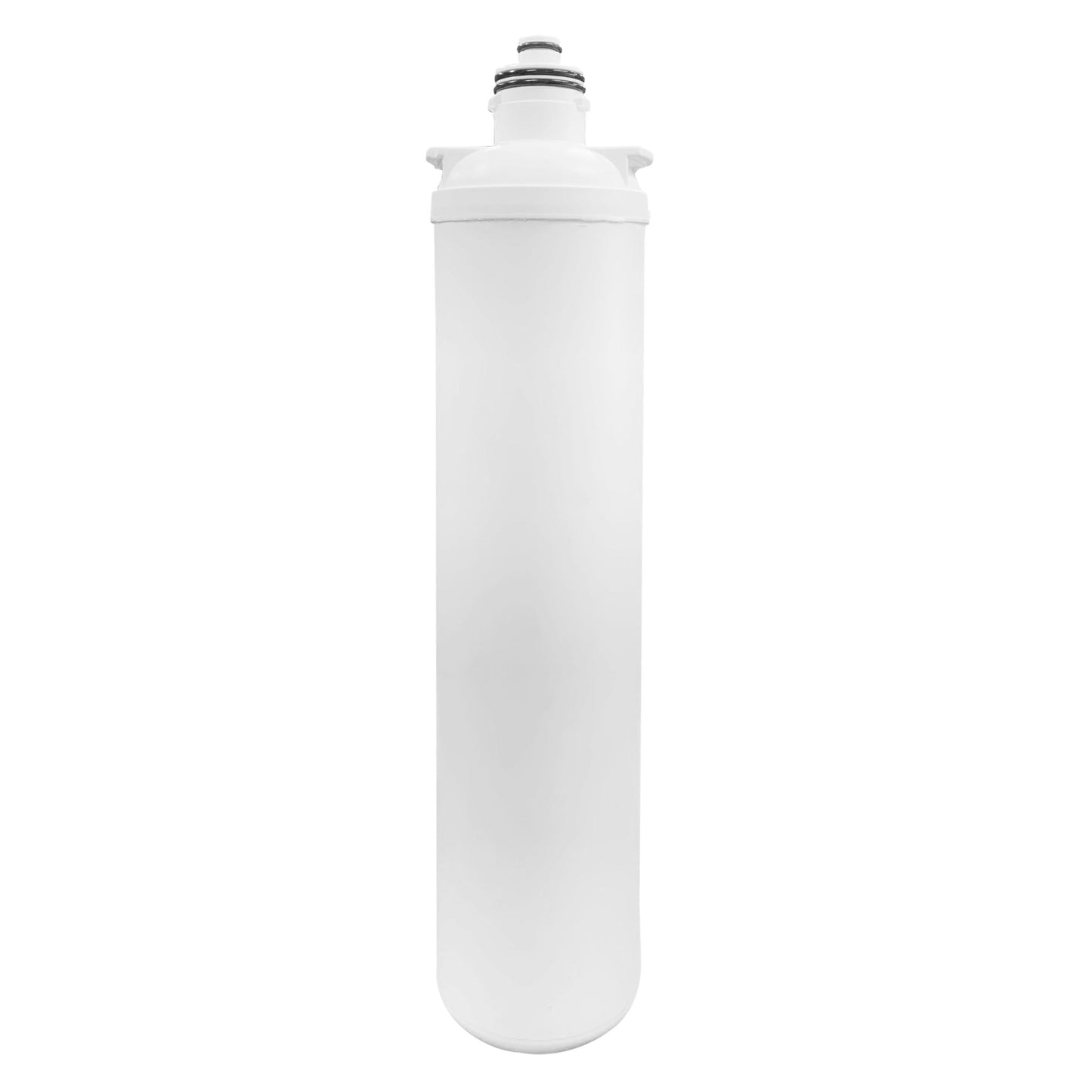

Replaces Everpure 2CB5-K EV9617-06 / EV961706 Replacement Filter Cartridge

The Lab Pua LPA-CS1-15  Everpure EV9617-06 / EV961706 Filter Cartridge is intended for food service,

vending machine and coffee service applications, and is ideal for problem water areas

Applications
- Ideal for problem water areas
- Foodservice
- Vending
- Office coffee service (OCS)

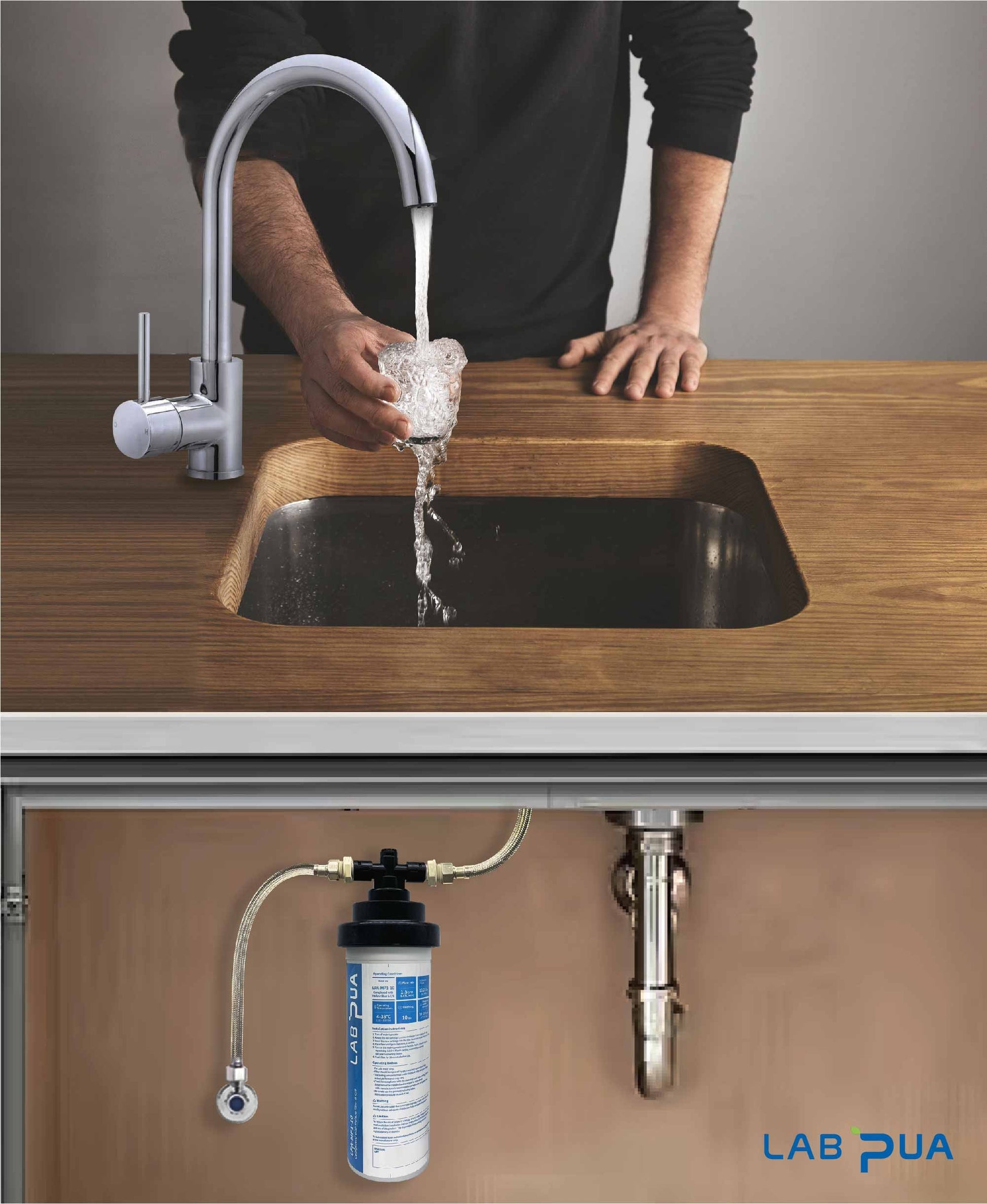

Installation Tips
- Never use saddle valve for connection
- Use 3/8" water line

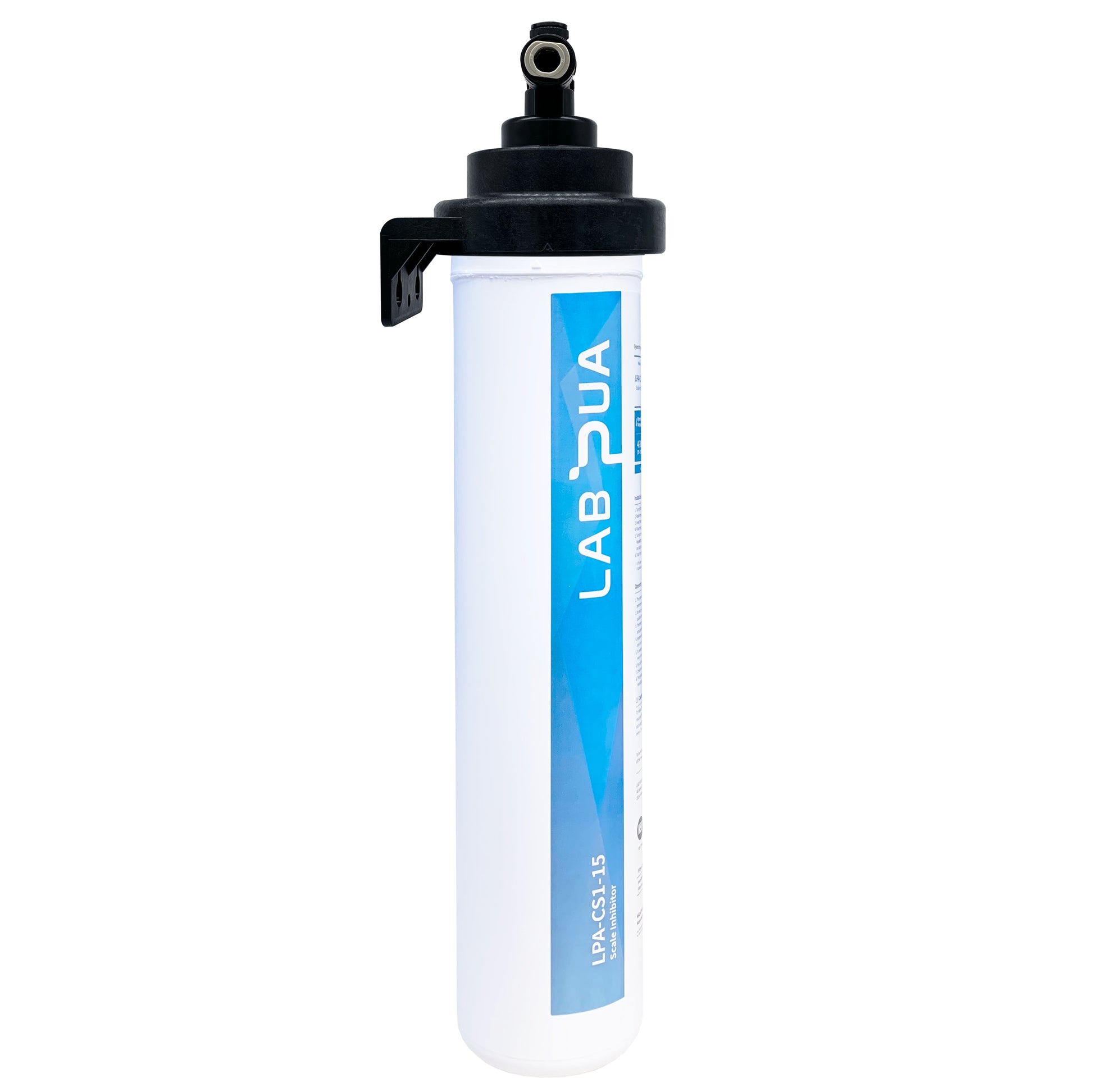

- Install vertically with cartridge hanging down
- Allow 2-1/2" (6.35 cm) clearance below the cartridge for easy cartridge replacement
- Flush The Lab Pua LPA-CS1-10  cartridge by running water through the filter for

five (5) minutes at full flow

Operation Tips
- Change cartridges on a regular six (6) month preventative maintenance program
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
- Service flow rate must not exceed 1.0 gpm (5.4 Lpm)
- Always flush the filter cartridge at the time of installation and cartridge change

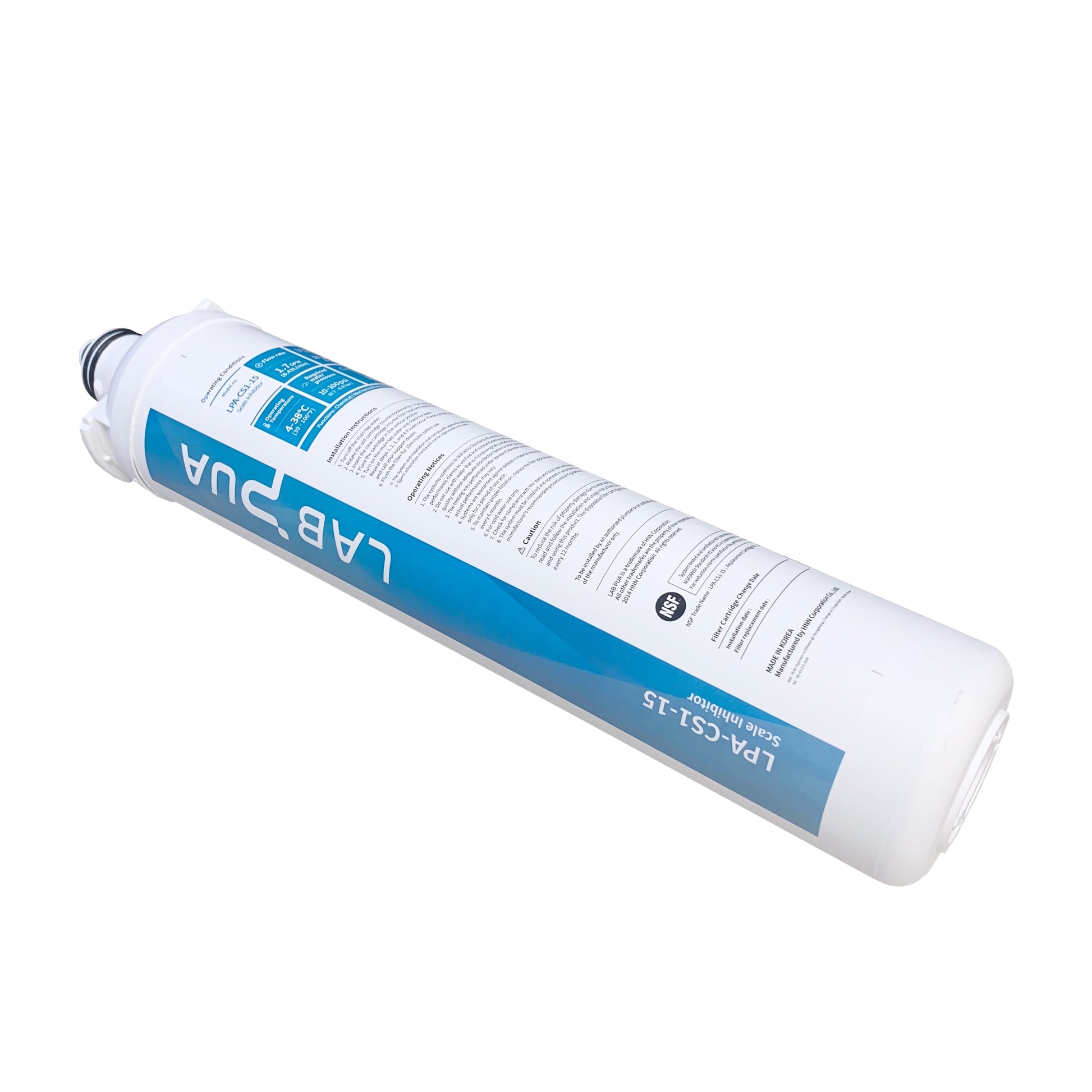

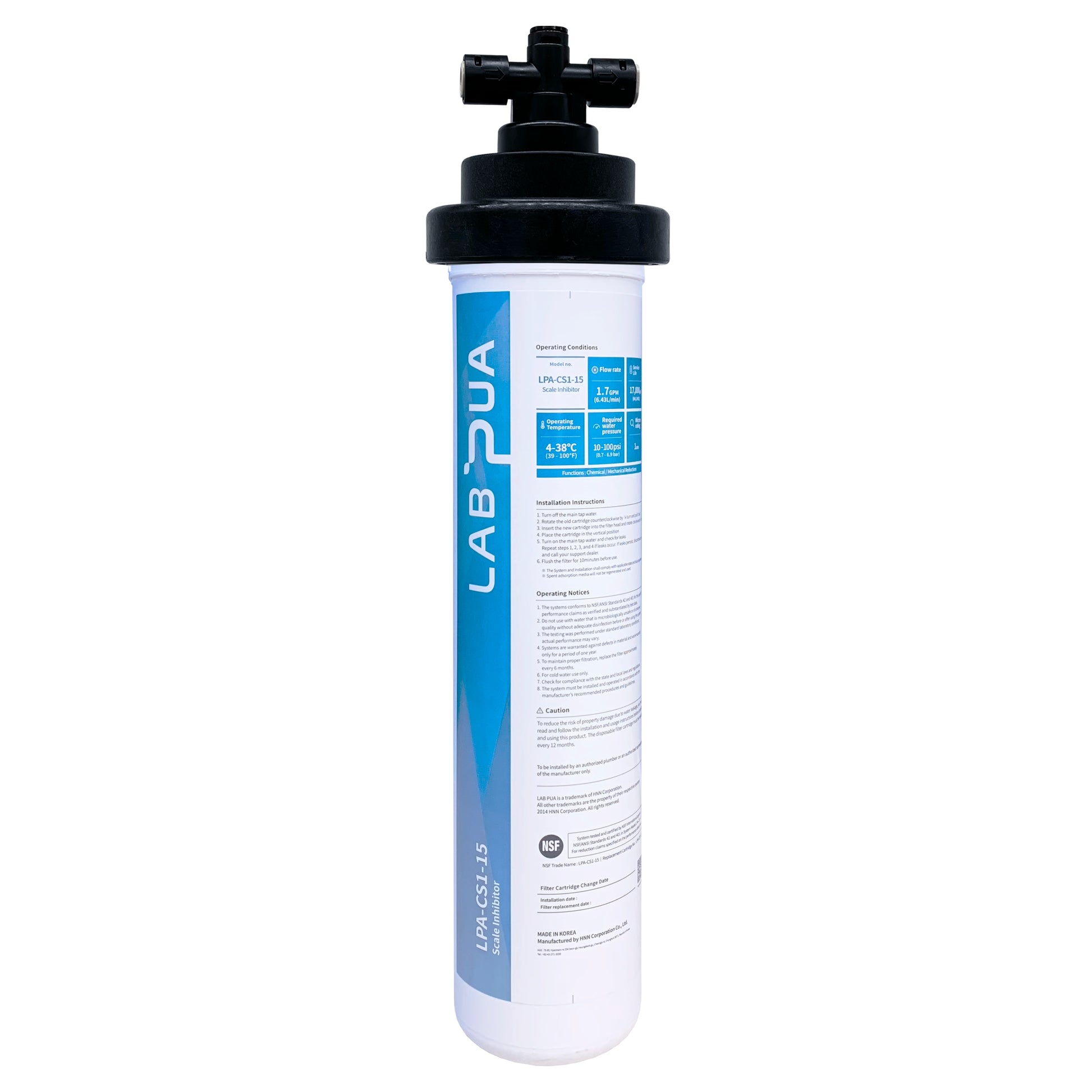

LPA-CS1-15

SPECIFICATIONS

• Service Flow Rate
  1.7 GPM (6.43 L/min)

• Rated Capacity
  17,000 Gallons (64,345 L)

• Operating Temperature
  4–38°C (39–100°F)

• Pressure Requirements
  10–100 psi (0.7–6.9 bar)

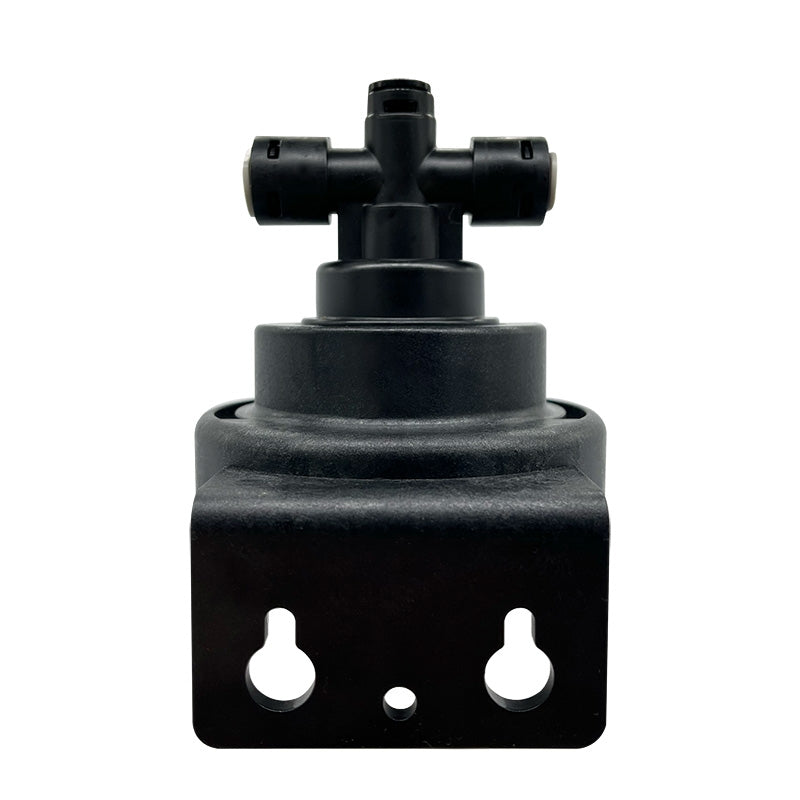

• Inlet / Outlet Connection
  3/8"

• Electrical Connection
  None required

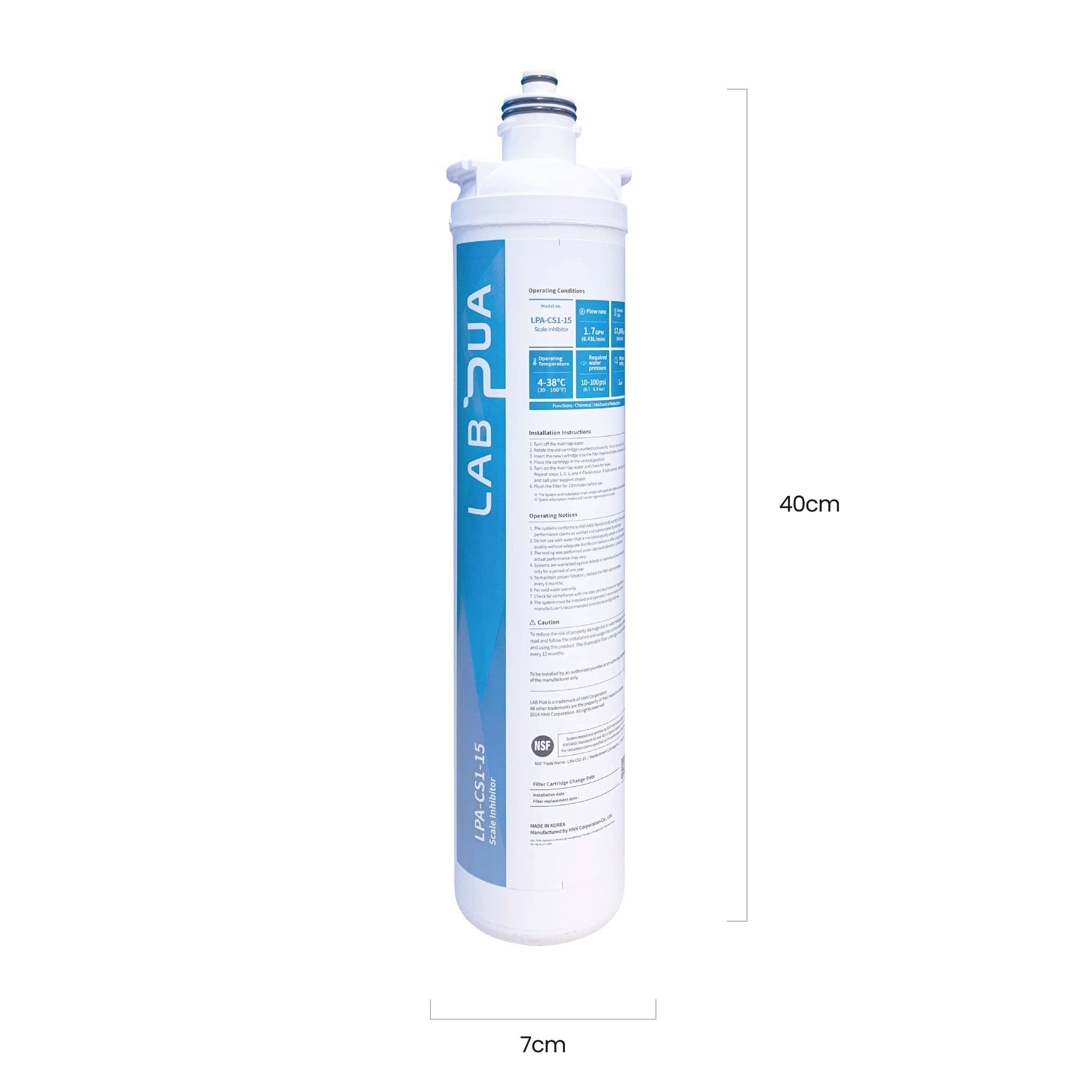

• Dimensions

  • Overall: 3.7" × 16.9"

  • Cartridge: Ø3.3" × 15.7"

• Weight
  0.8 kg

• Filtration Claims

  • Scale Inhibitor

  • Chlorine Reduction

  • Taste and Odor Improvement

  • Particulate Class 1 (0.5–1.0 µm)

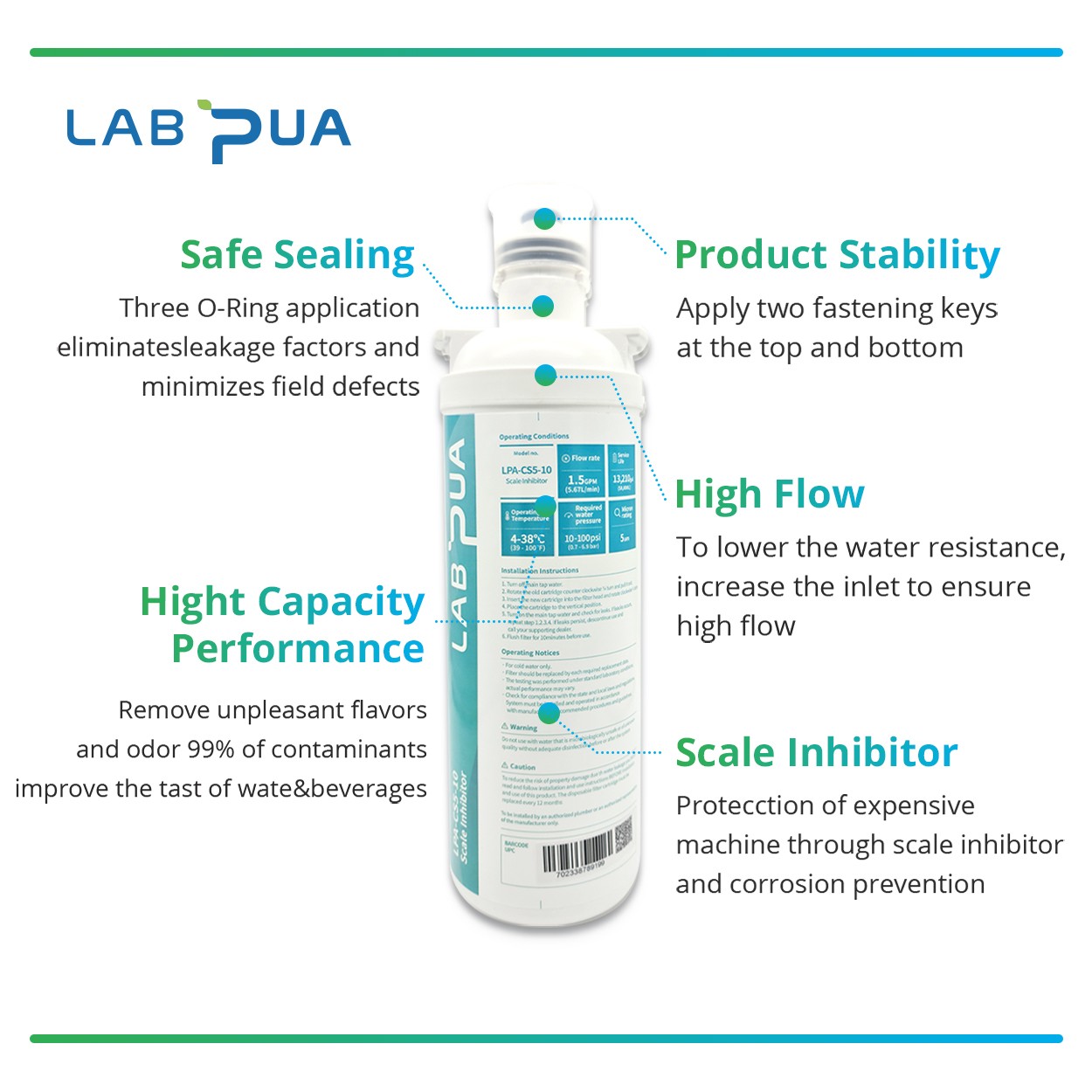

FEATURES · BENEFITS

• Reduces Chlorine, Taste and Odor.
• 1um pore size can remove bacteria and cyst.

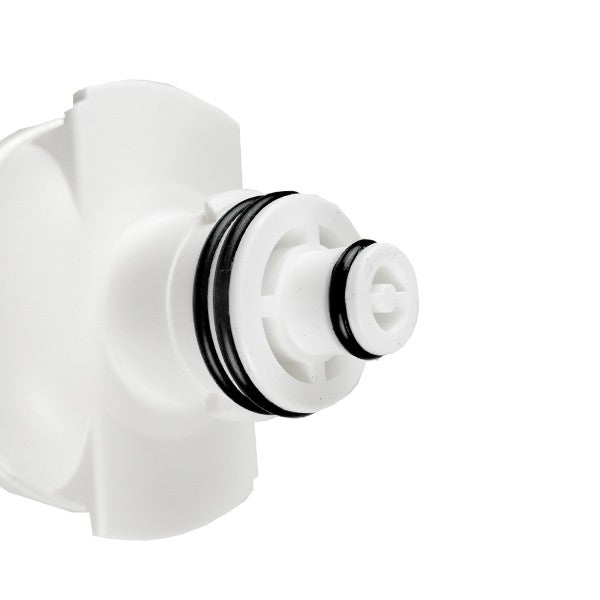

• Replacement method is easy quick-change.
