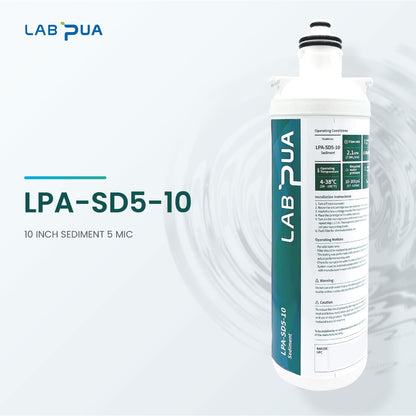

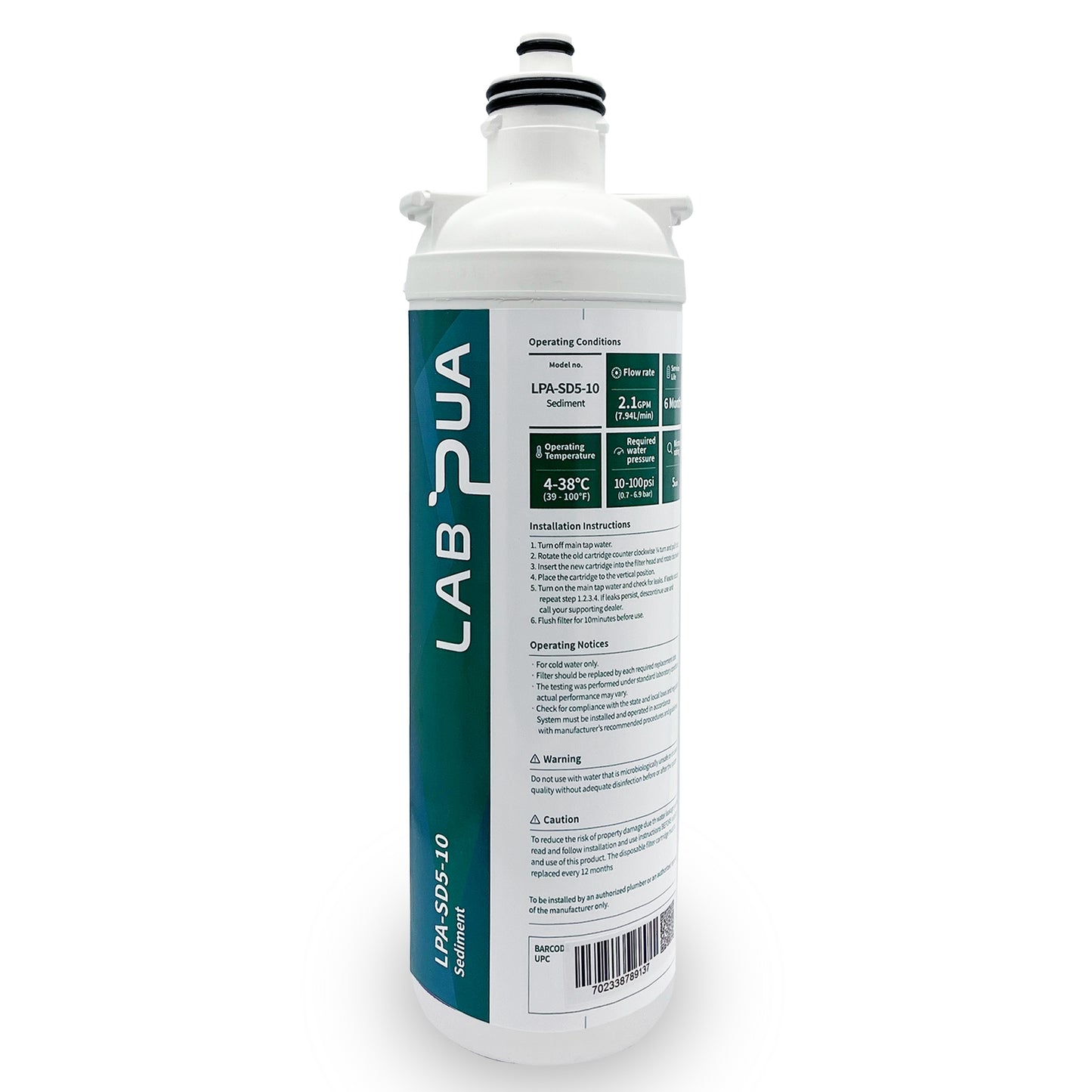

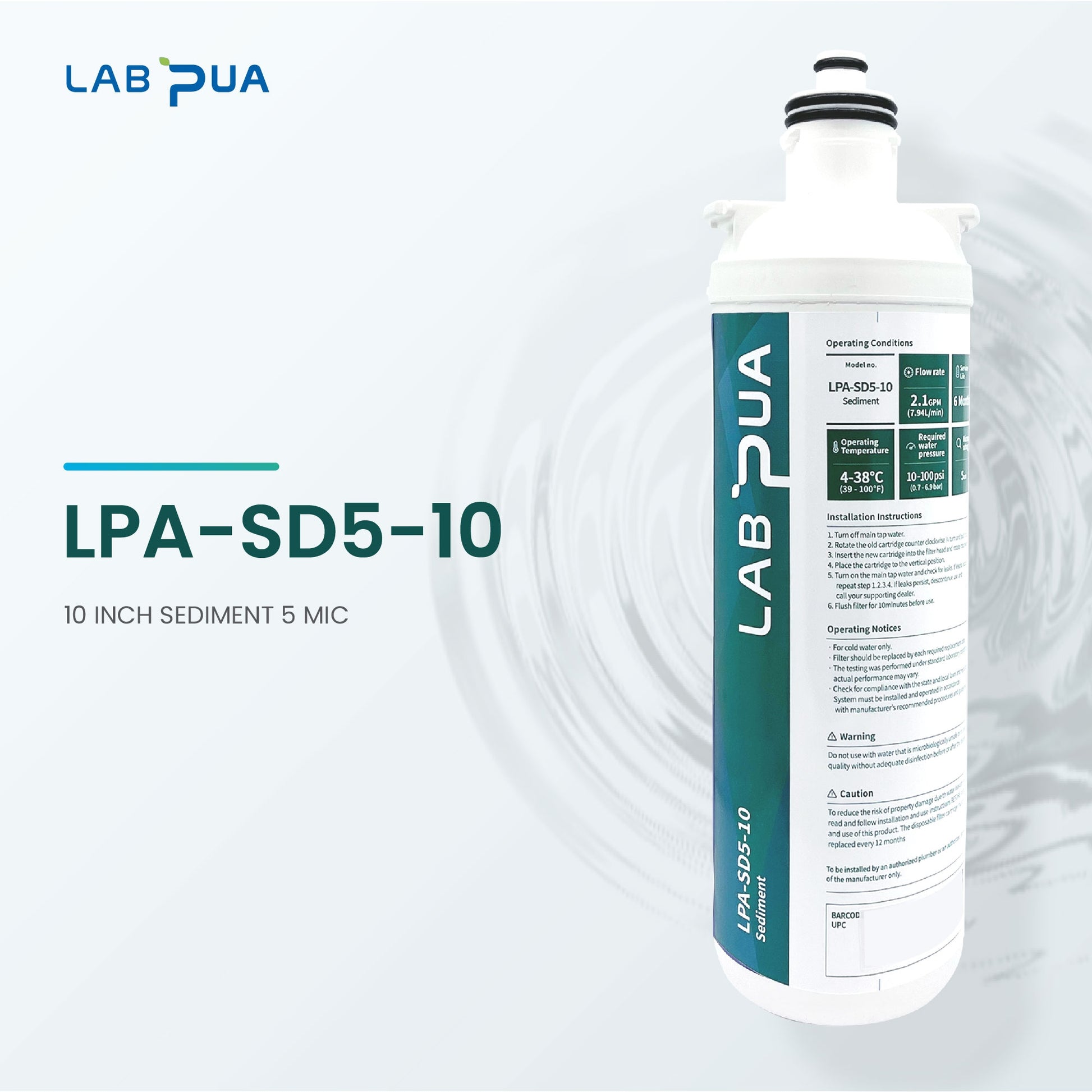

LPA SD5 10
SPECIFICATIONS
Service Flow Rate
1.5 GPM (5.67 L/min)
Rated Capacity
13,210 Gallons (50,000 L)
Operation Temperature
4 ~ 38℃ (39 ~ 100℉)
Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)
Inlet / Outlet Connection
3/8″
Electrical Connection
None required
Dimension
-
Overall: 3.7″ × 12.5″
-
Cartridge: Ø3.3″ × 10.7″
Weight
0.6 kg
Claim
Particle, Dust, Sand, etc.
FEATURES · BENEFITS
-
Pretreatment filtration (PP, Melt Blown Type)
-
Mechanically removes particles up to 5 microns
-
Simple, quick, and clean replacement process

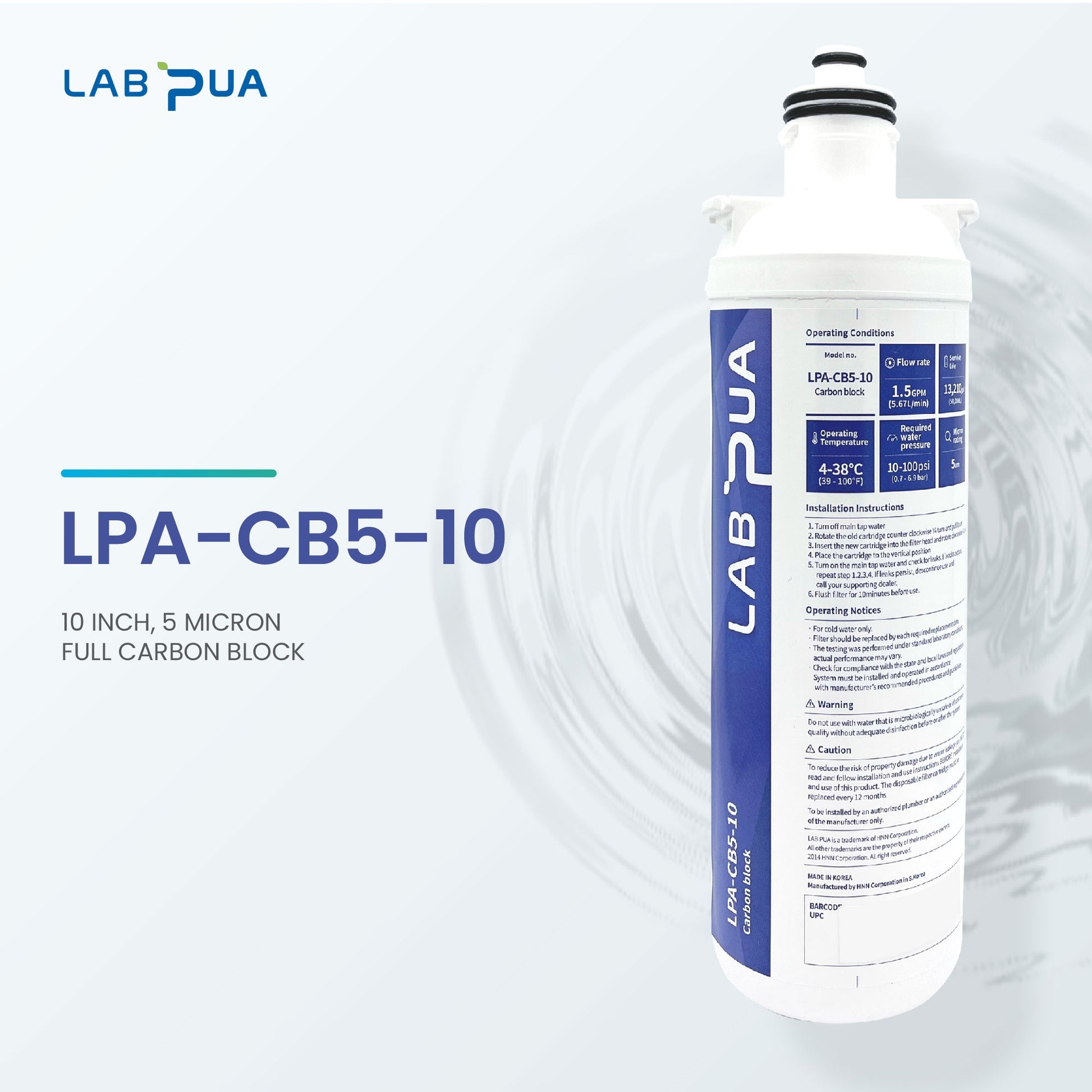

LPA CB5 10
SPECIFICATIONS
Service Flow Rate
1.5 GPM (5.67 L/min)
Rated Capacity
13,210 Gallons (50,000 L)
Operation Temperature
4 ~ 38℃ (39 ~ 100℉)
Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)
Inlet / Outlet Connection
3/8"
Electrical Connection
None required
Dimension
-
Overall: 3.7″ × 12.5″
-
Cartridge: Ø3.3″ × 10.7″
Weight
1.0 kg
Claim
-
Chlorine
-
Taste and Odor
-
Particulate Class 3 (5 ~ 15 µm)
FEATURES · BENEFITS
-
HNN’s carbon block is made with high-quality, high-quantity GAC, ensuring superior water quality and a higher capacity compared to competitors.
-
5-micron pore size CTO block
-
Extrusion carbon manufacturing ensures consistent and stable quality
-
Pre-shield technology helps prevent early clogging and extends cartridge life
-
Quick-change design makes filter replacement simple and clean

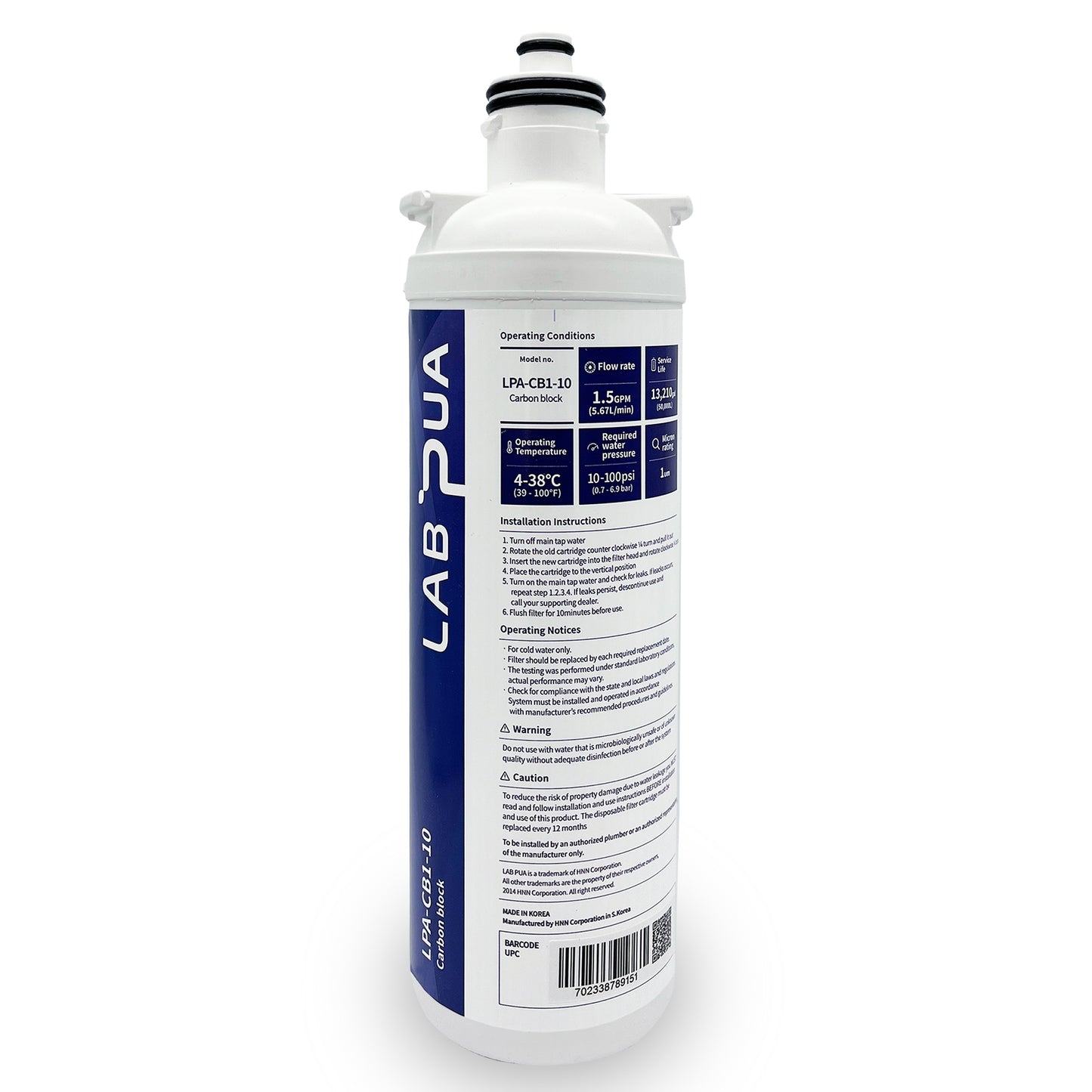

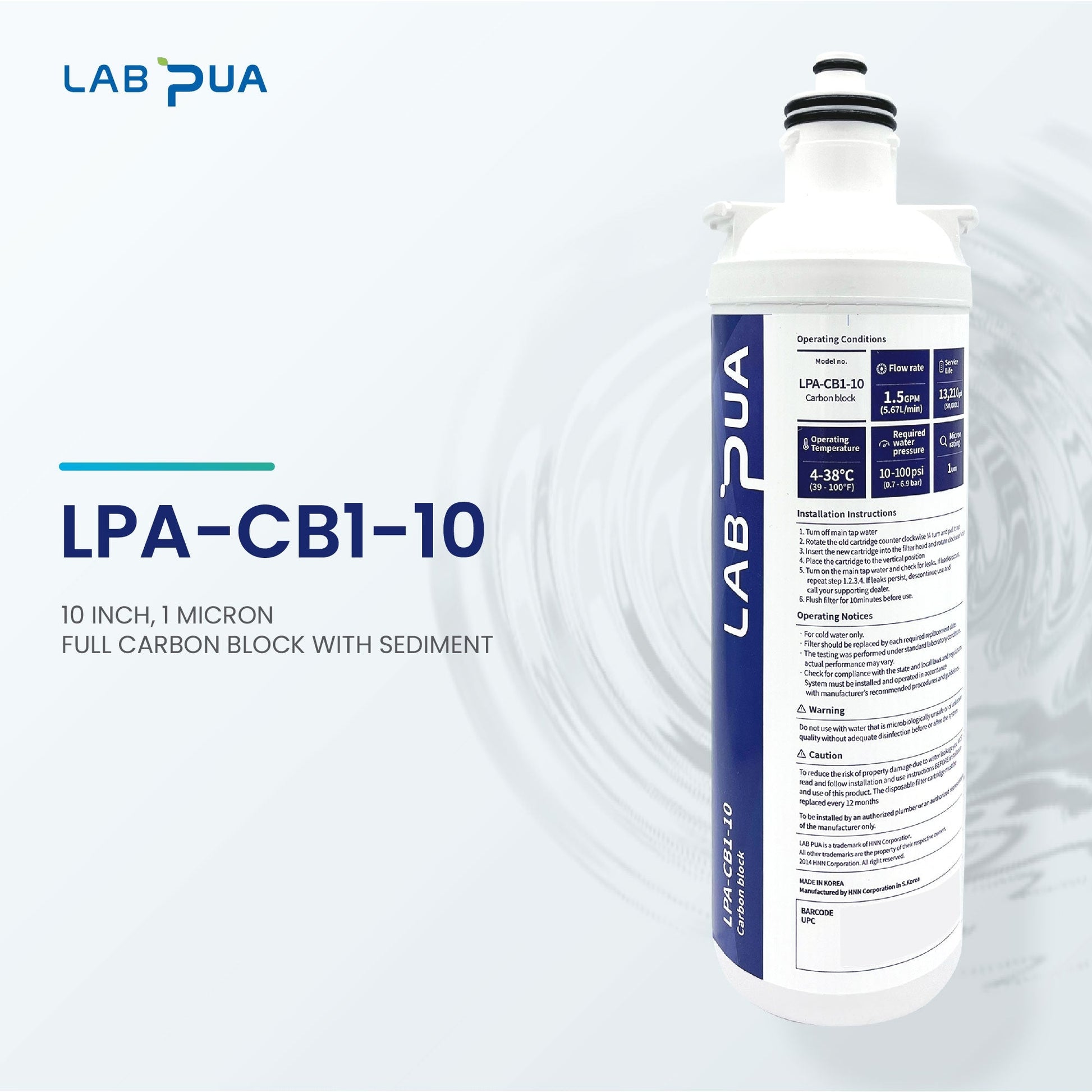

LPA CB1-10
SPECIFICATIONS
Service Flow Rate
1.5 GPM (5.67 L/min)
Rated Capacity
13,210 Gallons (50,000 L)
Operation Temperature
4 ~ 38℃ (39 ~ 100℉)
Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)
Inlet / Outlet Connection
3/8"
Electrical Connection
None required
Dimension
-
Overall: 3.7″ × 12.5″
-
Cartridge: Ø3.3″ × 10.7″
Weight
1.0 kg
Claim
-
Chlorine
-
Taste and Odor
-
Particulate Class 1 (0.5 ~ 1.0 µm)
FEATURES · BENEFITS
-
HNN’s carbon block is manufactured using high-quality and high-quantity GAC, delivering superior water quality and a higher capacity compared to competitors.
-
1-micron pore size CTO block
-
Extrusion carbon production method ensures consistent and stable performance
-
Pre-shield technology helps prevent premature clogging and extends cartridge lifespan
-
Quick-change design allows for easy and clean filter replacement
Compatible Models
Please refer to the product description above for compatible filter numbers, refrigerator models, and system model information.
If you cannot find your model number or are unsure whether this product is suitable for your system, please contact us before purchasing.
Contact Us for Compatibility SupportInstallation Guide
Please use the general guide below to help identify your filter type and follow the correct replacement process. Filter location and replacement steps may vary depending on your refrigerator or water filtration system model. Always refer to your appliance manual for the exact filter location and specific instructions.
Need Help Finding the Correct Filter?
Before ordering, compare your old filter, check the model number or filter code, and confirm the connector type. If you are unsure, please contact Water Filter Distributors for assistance.
Whole House System Installation Manual
For whole house filtration systems, please refer to the detailed installation manual below. Professional installation by a licensed plumber is recommended.
View Whole House Installation ManualTwin Cartridge Under Sink Installation Guide
For twin cartridge under sink systems, please refer to the installation guide below. This guide is suitable for systems supplied with a dedicated faucet, diverter valve, tubing and installation kit.
Important Notes
- Filter location and replacement steps may vary depending on your appliance or system model.
- Flush approximately 5–10 litres or 3–5 minutes of water after installation.
- Use with cold potable water only.
- Check for leaks after installation and reinstall if necessary.
- Always follow your appliance manufacturer's instructions.
