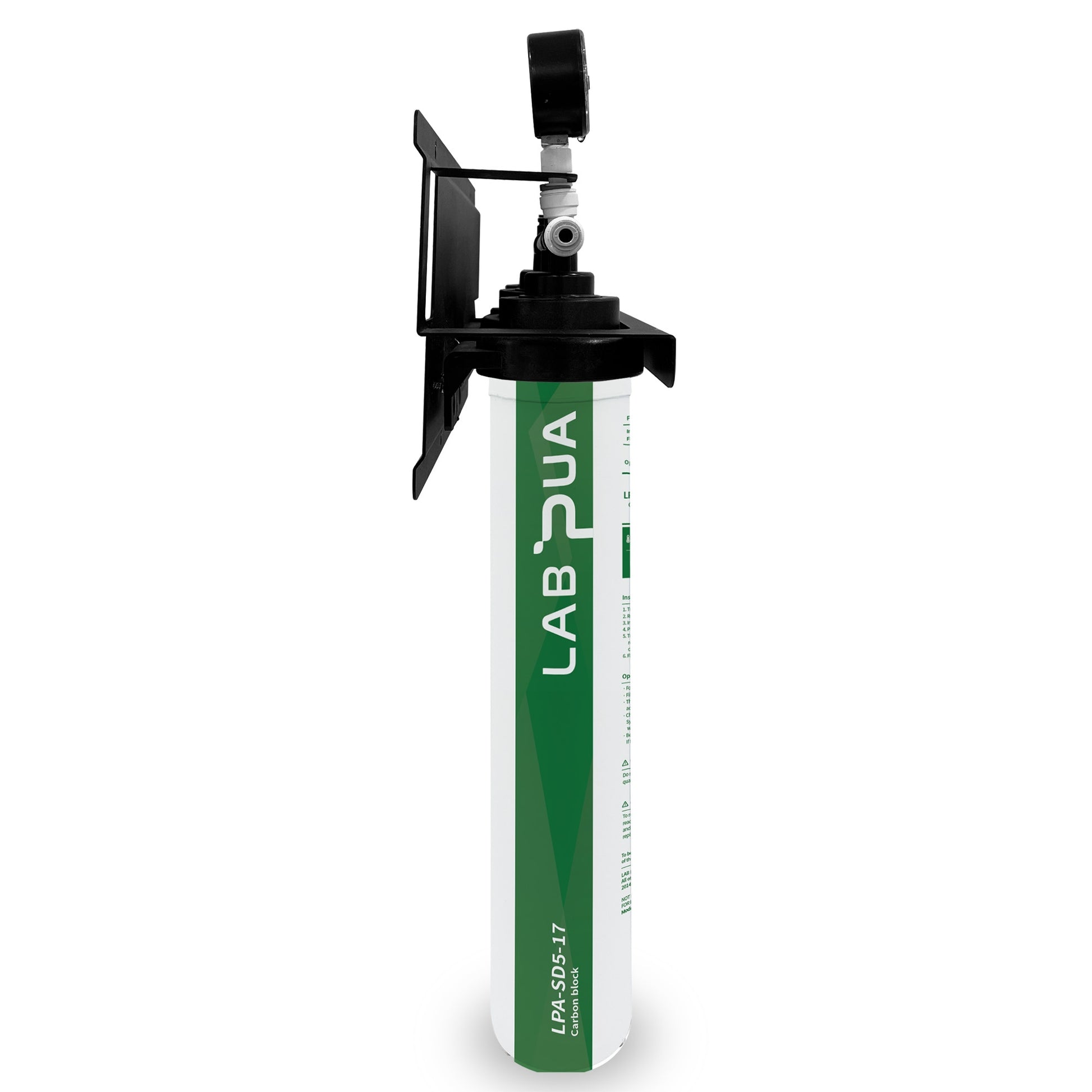

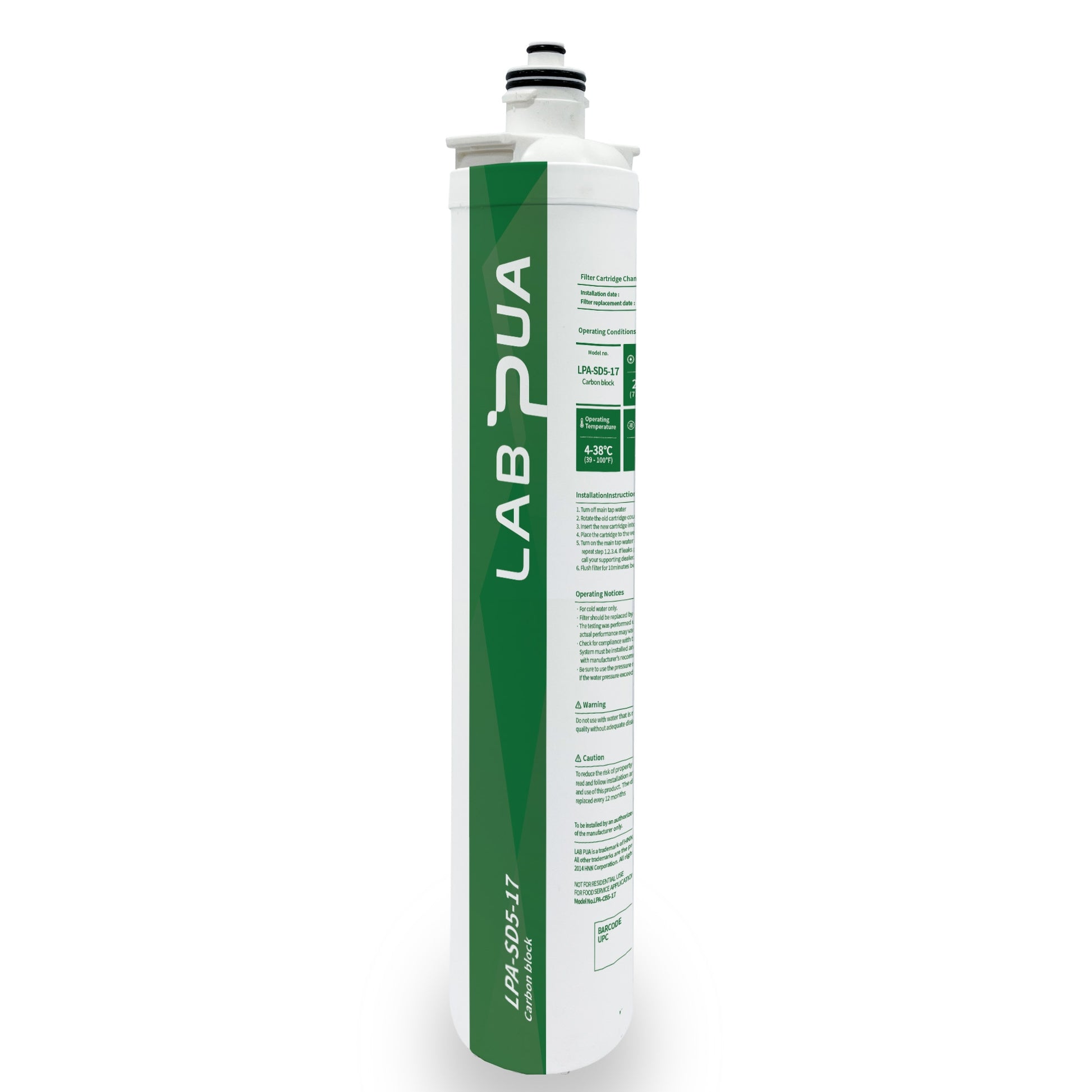

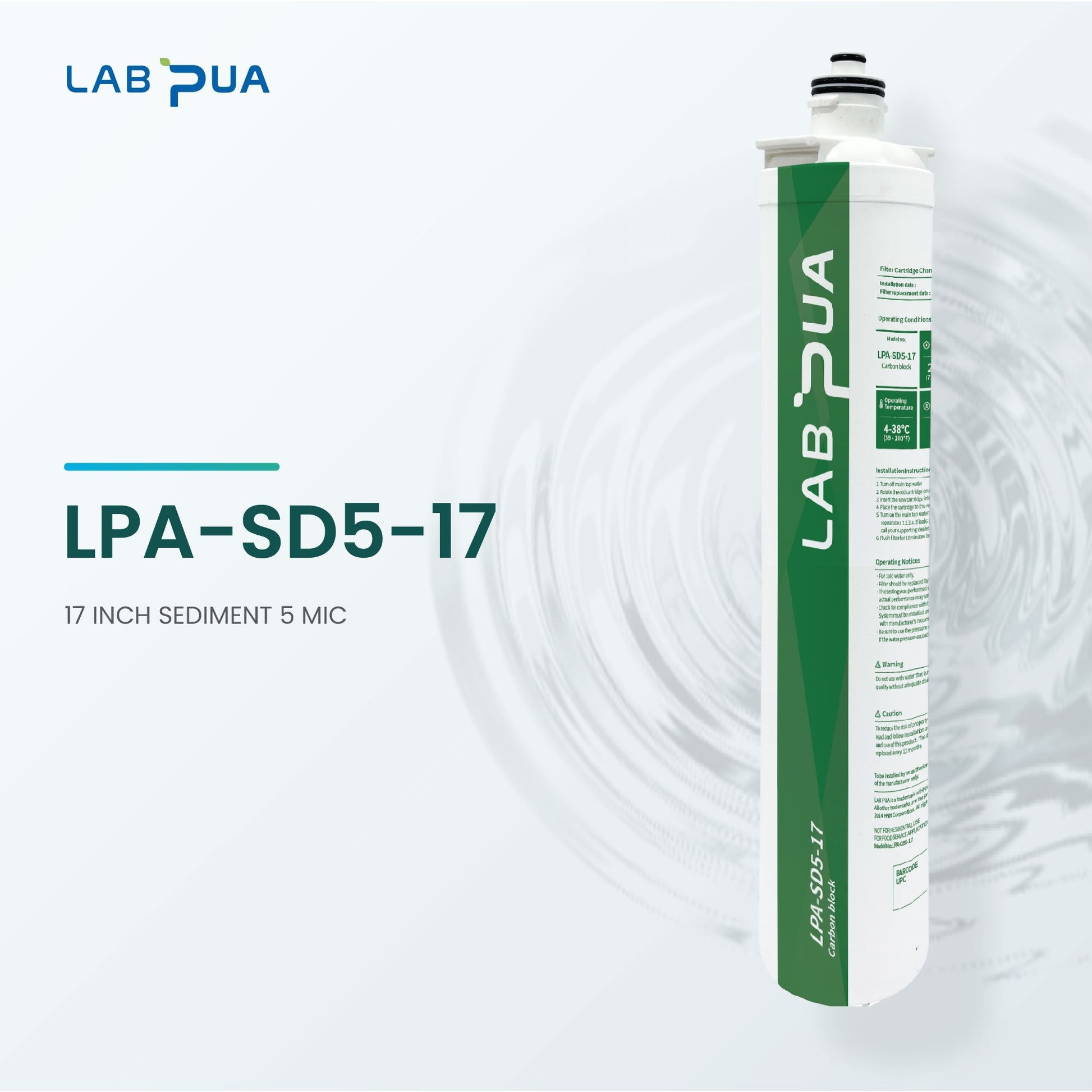

LPA SD5 17
SPECIFICATIONS
Service Flow Rate
2.5 GPM (7.94 L/min)
Rated Capacity
21,000 Gallons (79,484 L)
Operation Temperature
4 ~ 38℃ (39 ~ 100℉)
Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)
Inlet / Outlet Connection
3/8″
Electrical Connection
None required
Dimension
Overall : 3.7″ × 18.8″
Cartridge : Ø3.3″ × 17.4″
Weight
0.7 kg
Claim
Particle, Dust and Sand, etc
FEATURES · BENEFITS
• Pretreatment filtration (PP, Melt Blown Type)
• Can remove up to 5micron particles through mechanical method.
• Replacement method is very simple, quick and clean.

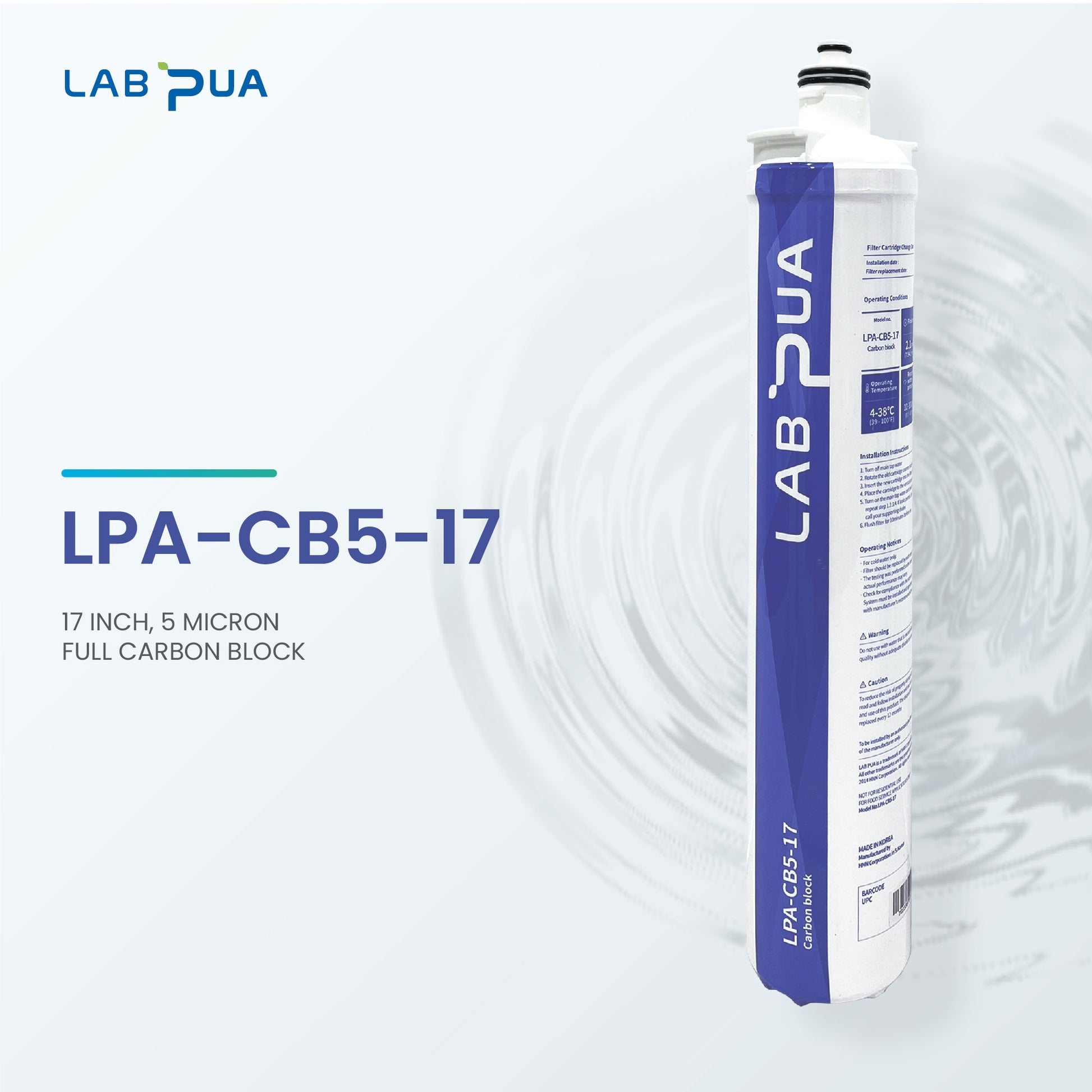

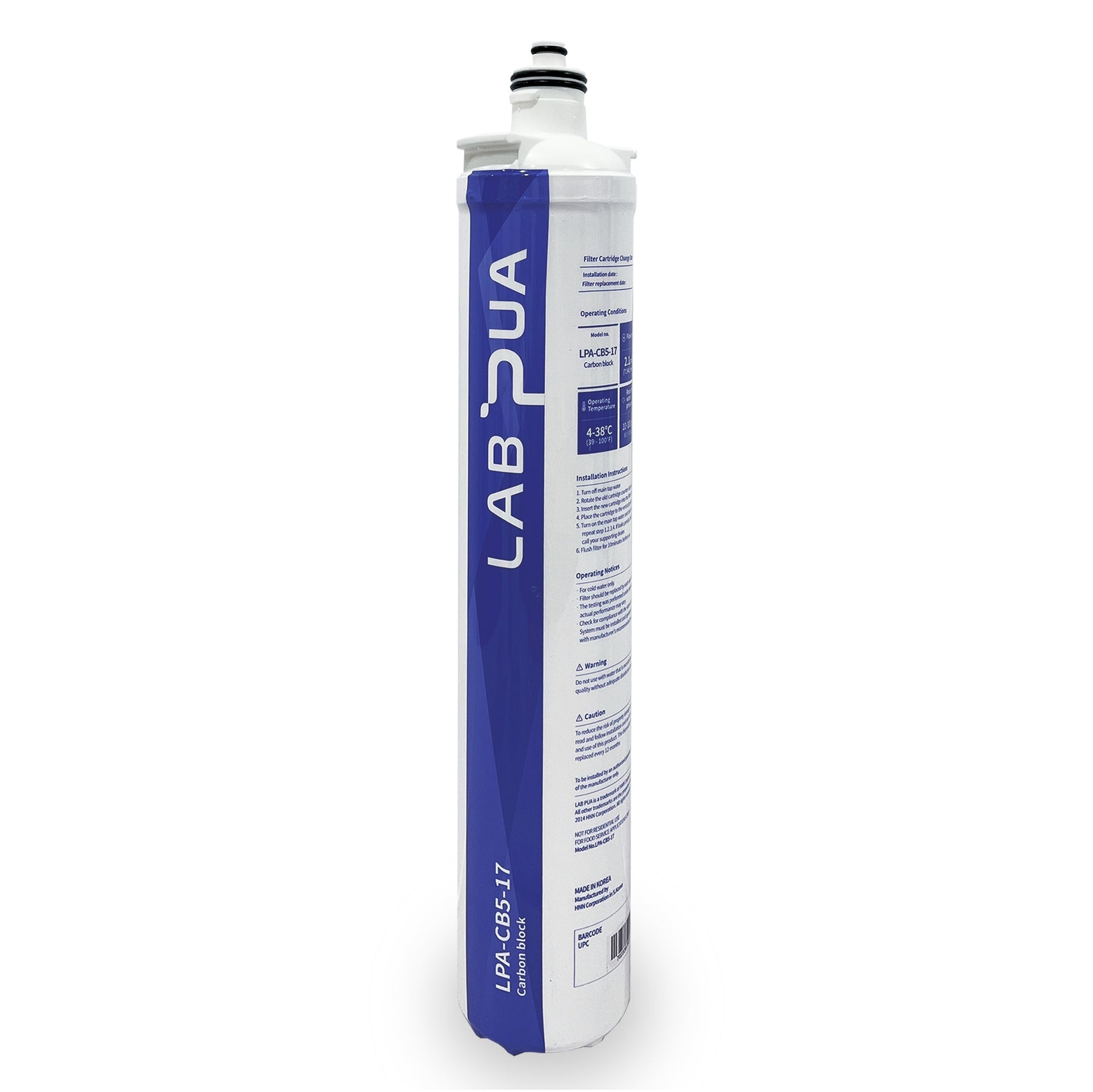

LPA-CB5-17
SPECIFICATIONS
Service Flow Rate: 2.1 GPM (7.94 L/min)
Rated Capacity: 21,000 Gallons (79,484 L)
Operating Temperature: 4–38°C (39–100°F)
Pressure Requirements: 10–100 psi (0.7–6.9 bar)
Inlet / Outlet Connection: 3/8″
Electrical Connection: Not required
Dimensions:
-
Overall: 3.7″ × 18.8″
-
Cartridge: Ø3.3″ × 17.4″
Weight: 1.0 kg
Claims
Effectively reduces:
-
Chlorine
-
Taste and Odor
-
Particulates (Class 1: 0.5–1.0 µm)
Features & Benefits
-
HNN's carbon block is made using high-quality and high-volume GAC, providing more stable water quality and greater capacity compared to competitors.
-
5-micron CTO carbon block offers effective filtration.
-
Extrusion carbon production method ensures consistent and reliable performance.
-
Pre-shield technology helps prevent early clogging and extends filter life.
-
Quick-change design enables easy and fast replacement.

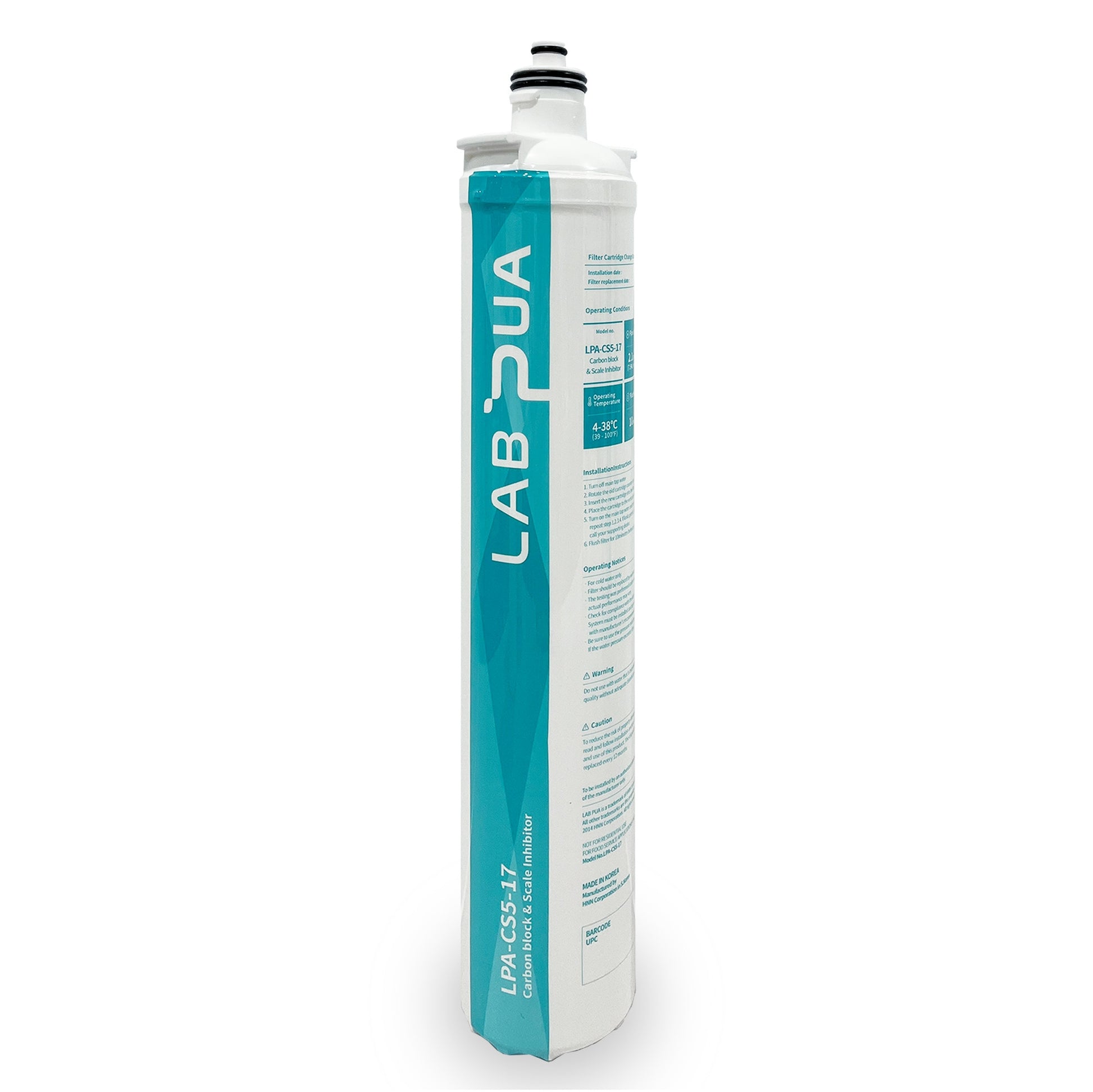

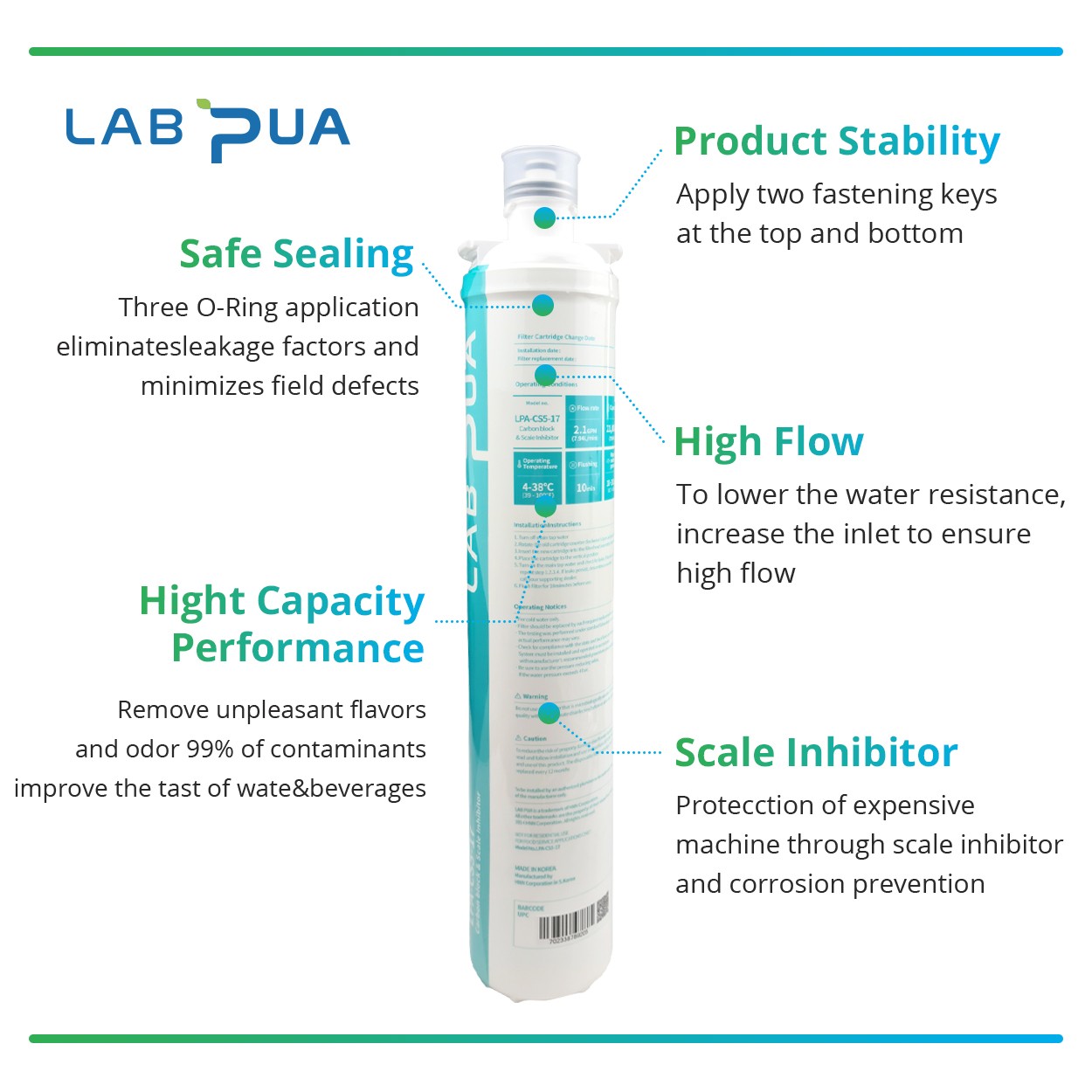

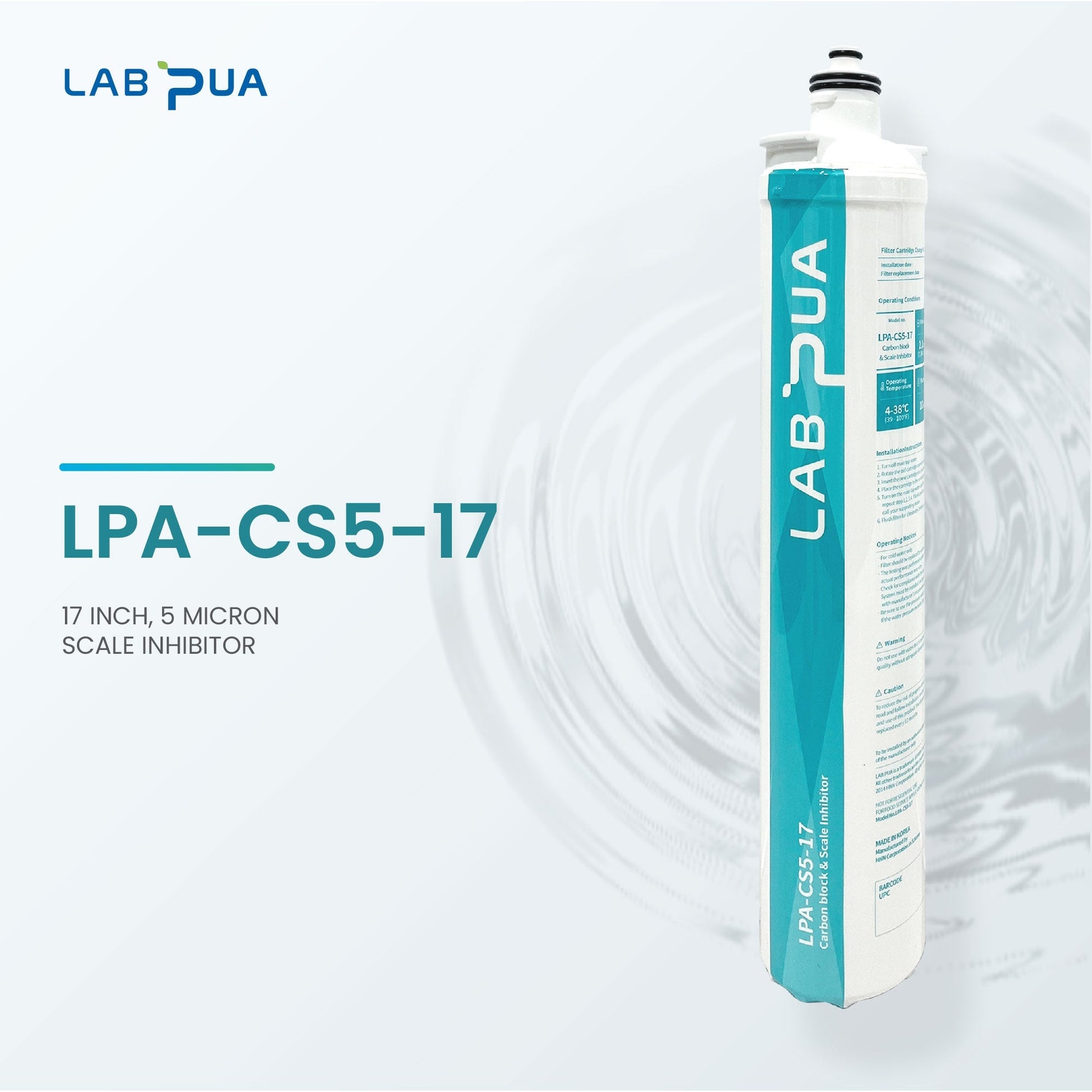

LPA CS5 17
SPECIFICATIONS
Service Flow Rate: 2.1 GPM (7.94 L/min)
Rated Capacity: 21,000 Gallons (79,484 L)
Operating Temperature: 4–38°C (39–100°F)
Pressure Requirements: 10–100 psi (0.7–6.9 bar)
Inlet / Outlet Connection: 3/8″
Electrical Connection: Not required
Dimensions:
-
Overall: 3.7″ × 18.8″
-
Cartridge: Ø3.3″ × 17.4″
Weight: 1.1 kg
Claims
Effectively reduces:
-
Chlorine
-
Taste and Odor
-
Particulates
-
Scale (via phosphate inhibitor)

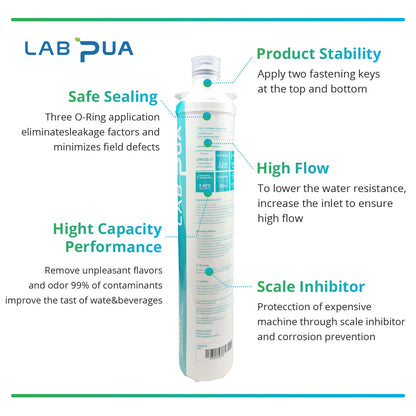

Features & Benefits
-
Contains phosphate to help prevent scale buildup in boilers or heaters.
-
5-micron CTO carbon block provides efficient contaminant filtration.
-
Extrusion carbon production ensures consistent and reliable quality.
-
Pre-shield technology prevents premature clogging, extending filter life.
-
Quick-change design enables easy and convenient replacement.

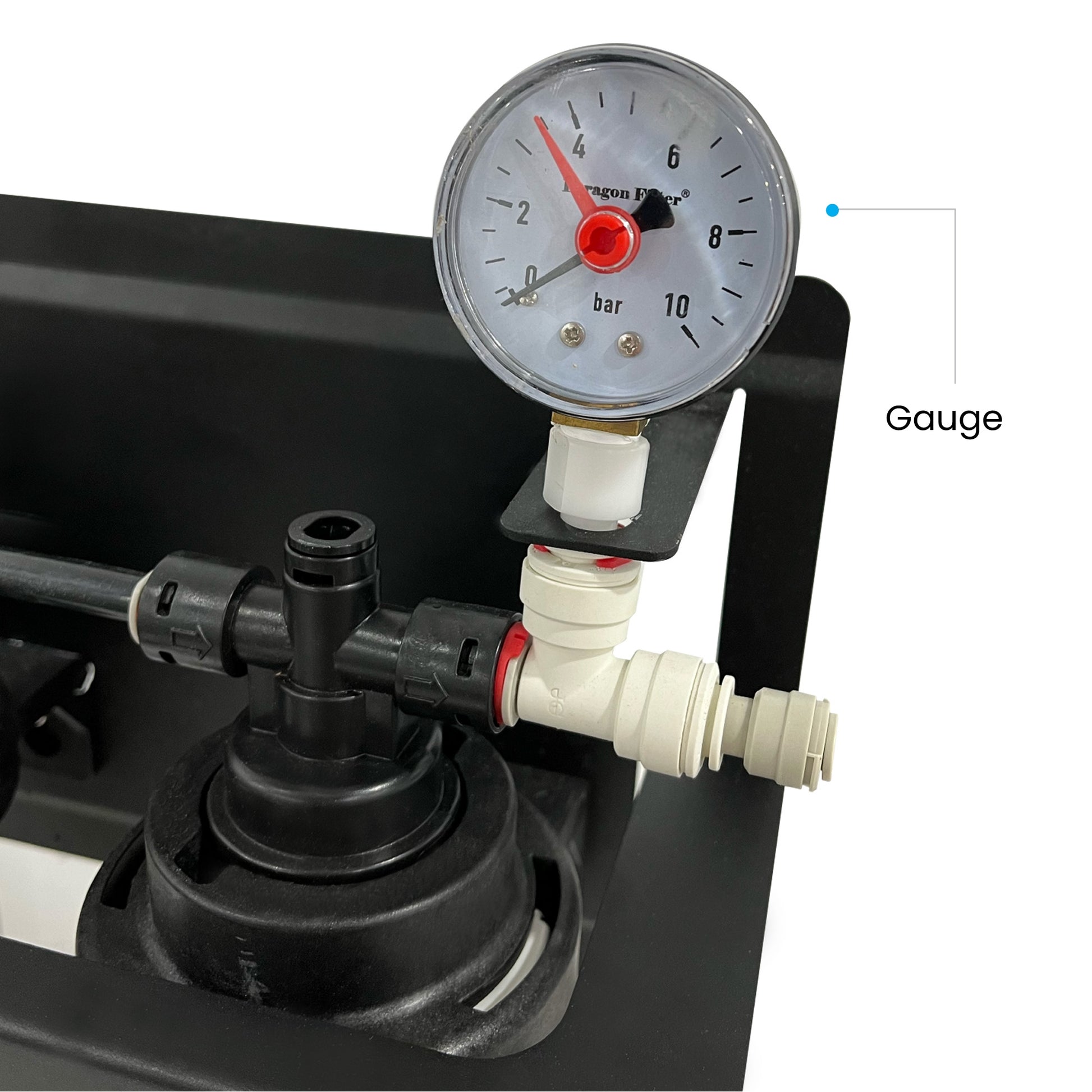

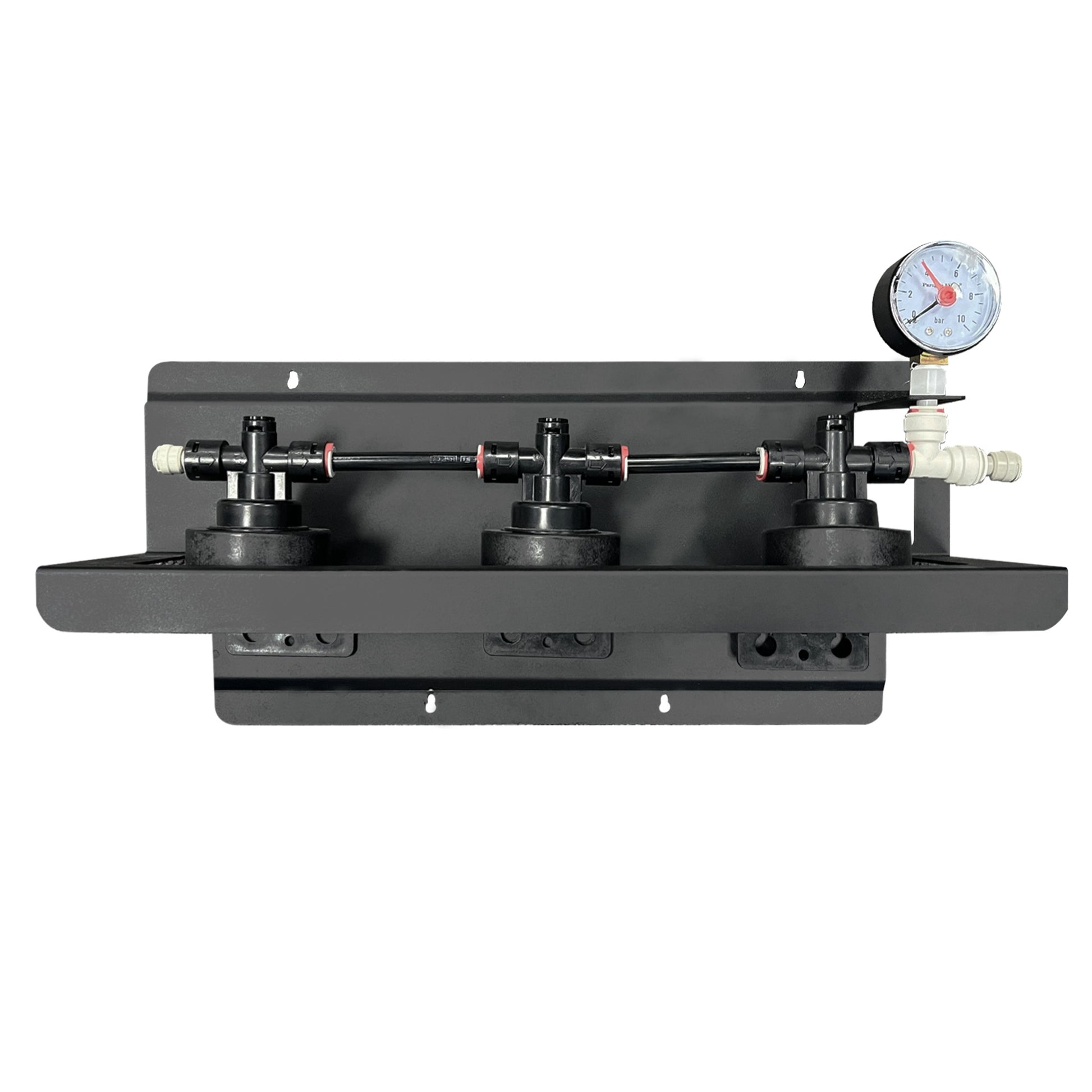

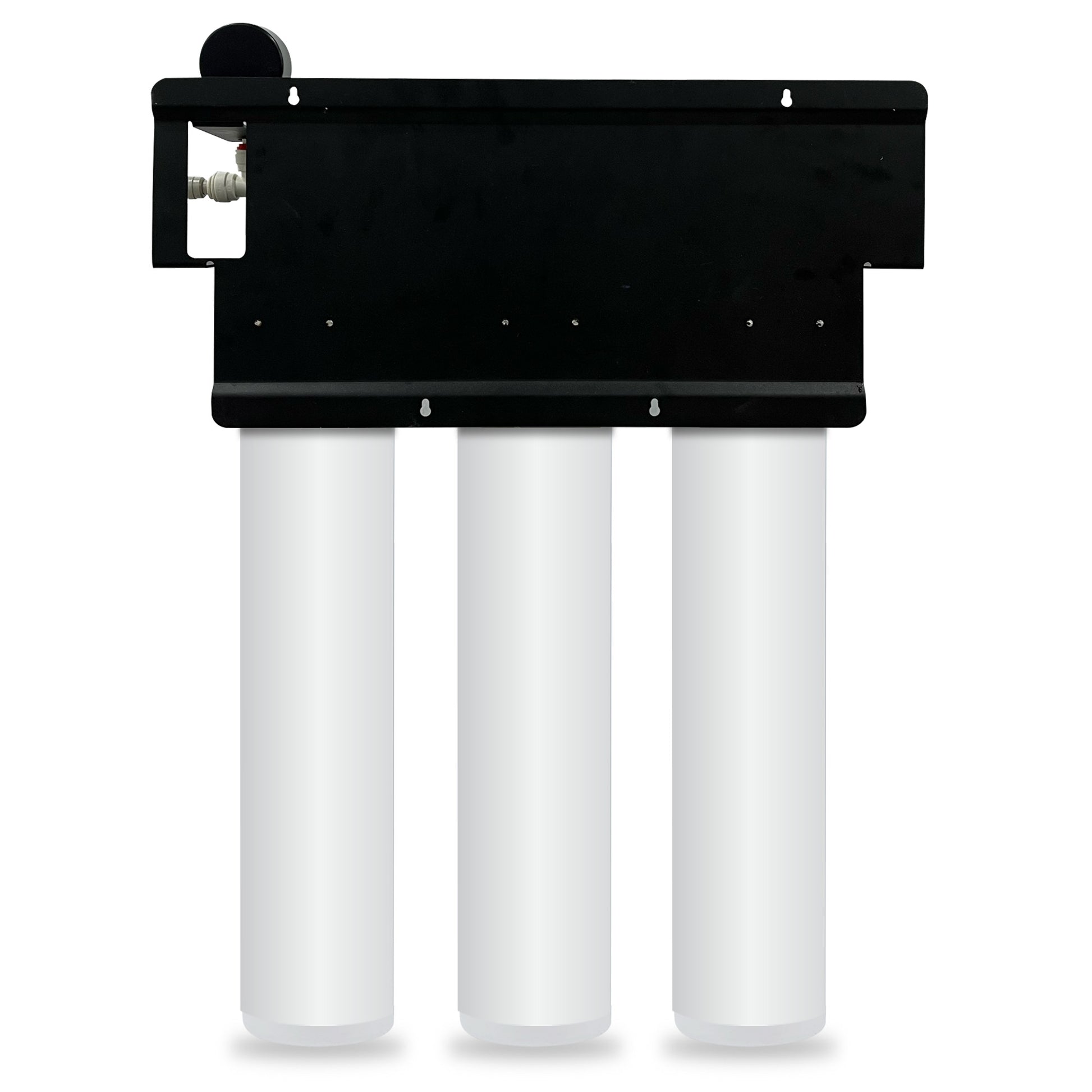

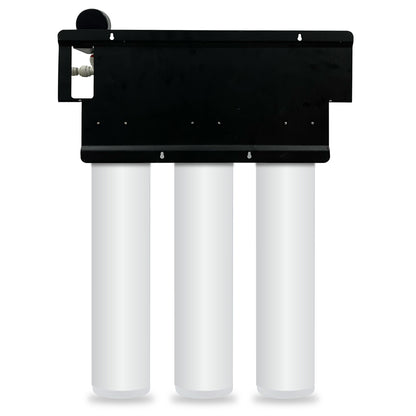

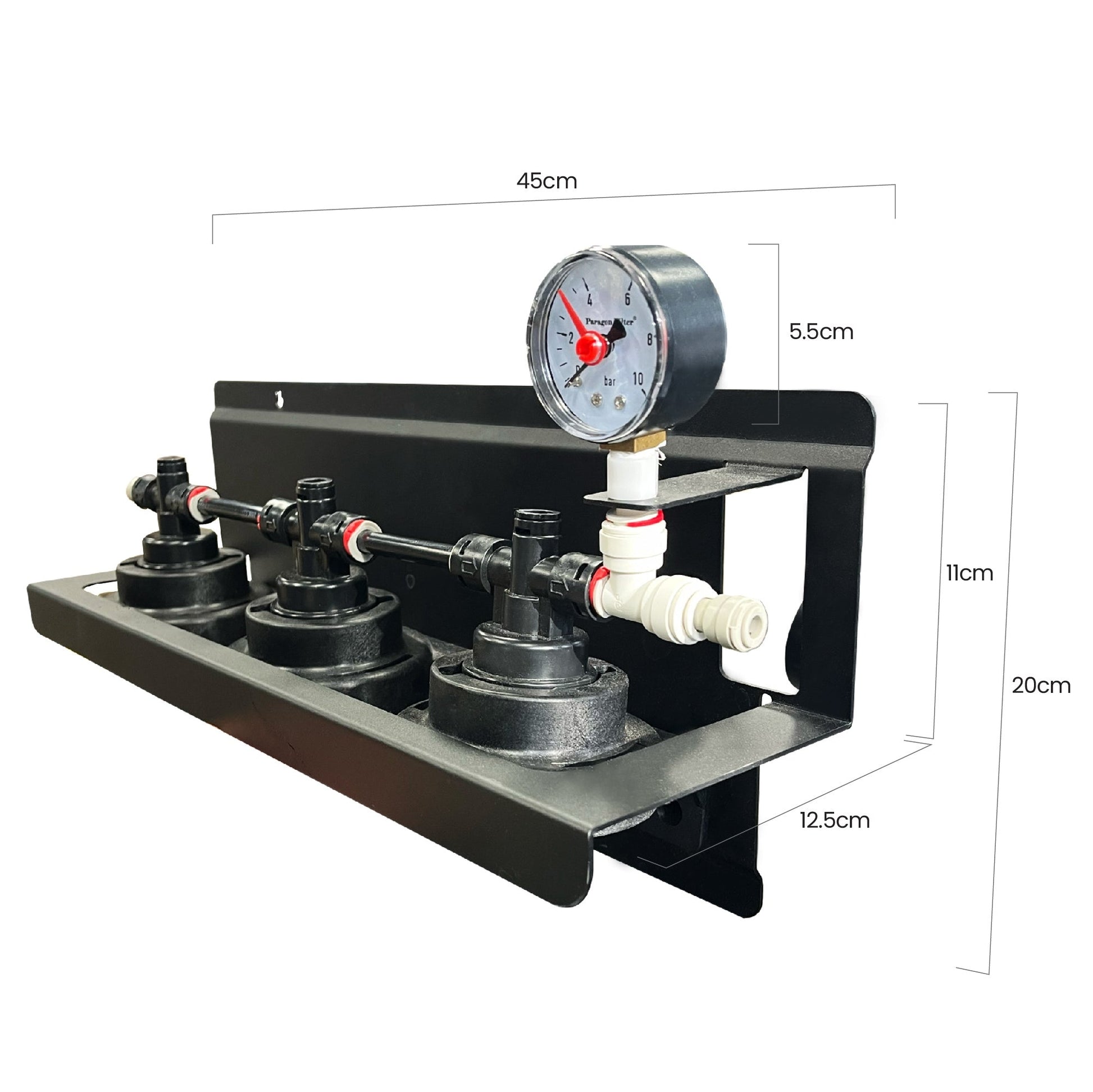

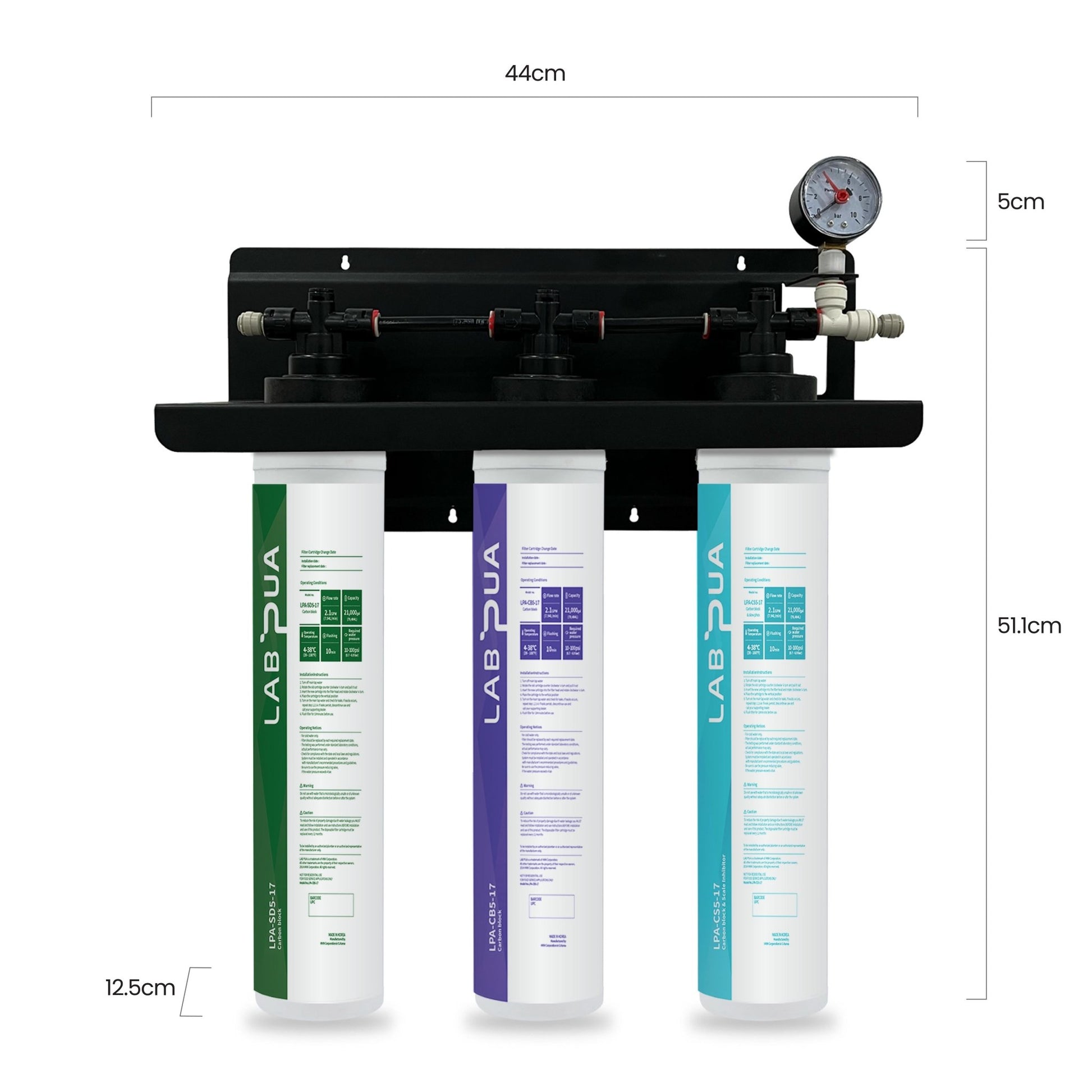

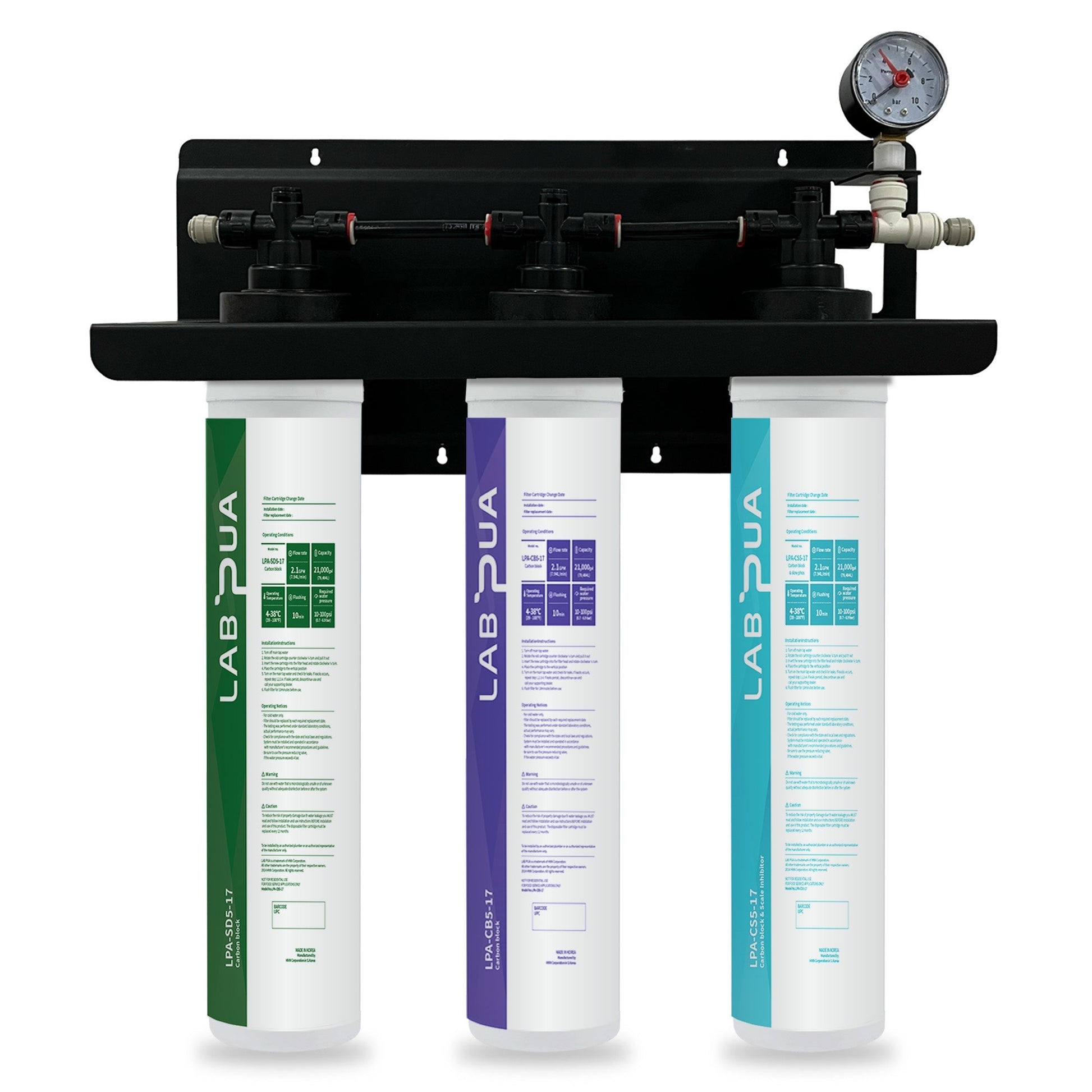

TRIPLE HEADER
Model : LPA338QC
Dimension : 450x255x125(WxHxD)
Compatible Models
Please refer to the product description above for compatible filter numbers, refrigerator models, and system model information.
If you cannot find your model number or are unsure whether this product is suitable for your system, please contact us before purchasing.
Contact Us for Compatibility SupportInstallation Guide
Please use the general guide below to help identify your filter type and follow the correct replacement process. Filter location and replacement steps may vary depending on your refrigerator or water filtration system model. Always refer to your appliance manual for the exact filter location and specific instructions.
Need Help Finding the Correct Filter?
Before ordering, compare your old filter, check the model number or filter code, and confirm the connector type. If you are unsure, please contact Water Filter Distributors for assistance.
Whole House System Installation Manual
For whole house filtration systems, please refer to the detailed installation manual below. Professional installation by a licensed plumber is recommended.
View Whole House Installation ManualTwin Cartridge Under Sink Installation Guide
For twin cartridge under sink systems, please refer to the installation guide below. This guide is suitable for systems supplied with a dedicated faucet, diverter valve, tubing and installation kit.
Important Notes
- Filter location and replacement steps may vary depending on your appliance or system model.
- Flush approximately 5–10 litres or 3–5 minutes of water after installation.
- Use with cold potable water only.
- Check for leaks after installation and reinstall if necessary.
- Always follow your appliance manufacturer's instructions.
