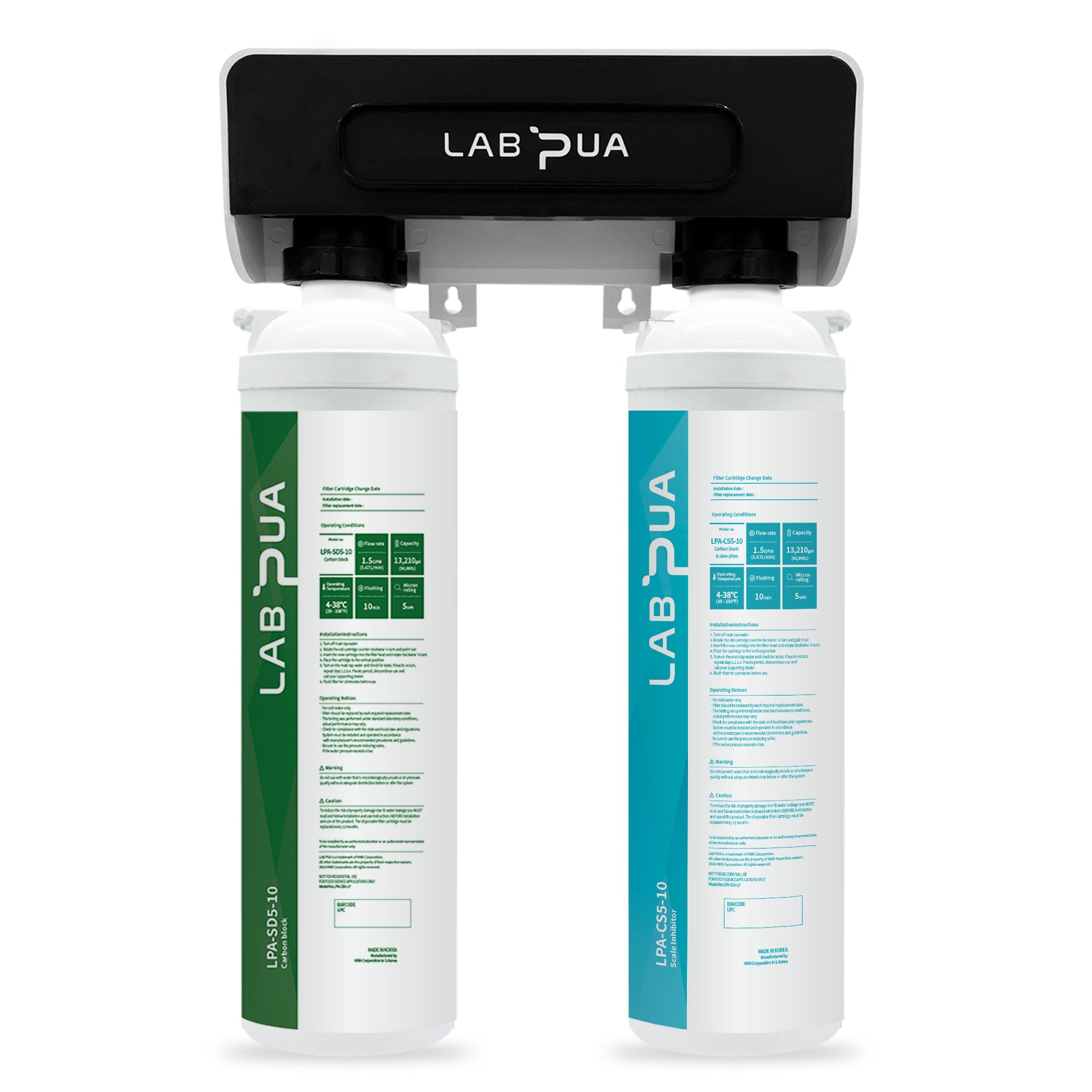

Lab Pua Twin Header Series Sediment with Scale Inhibitor

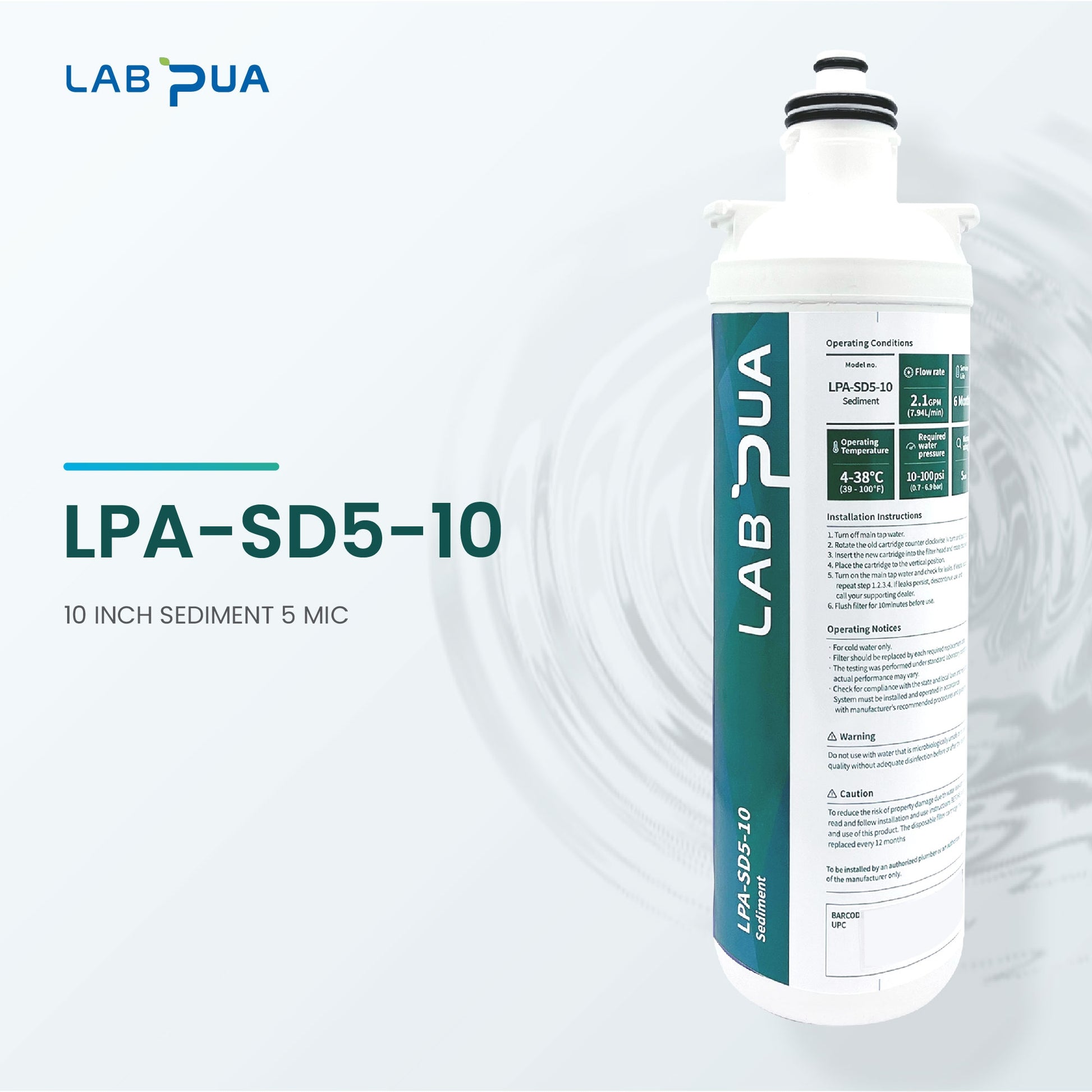

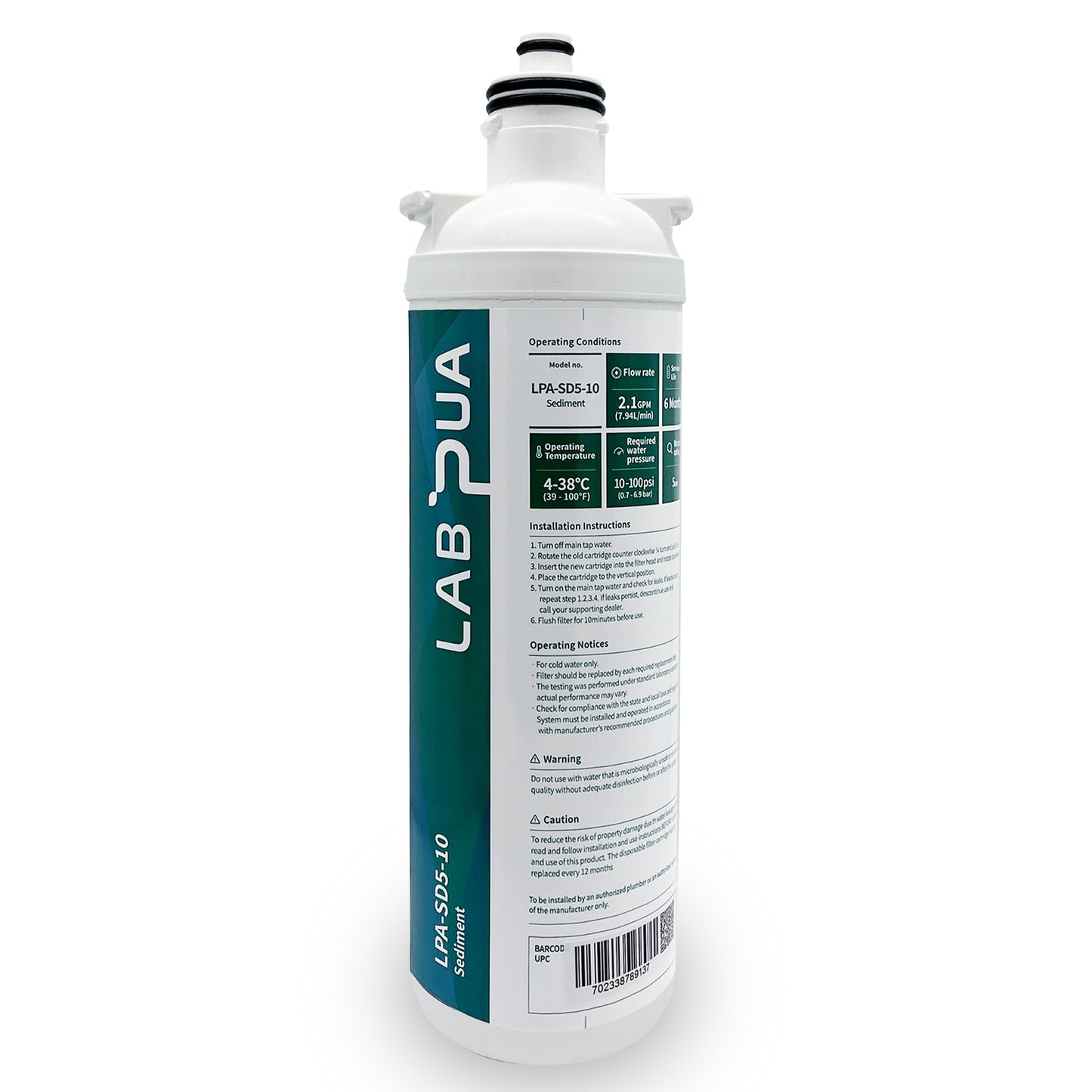

 LPA SD5 10, 5μm sediment filter for removing dirt, sand, and rust.

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity

13,210 Gallons (50,000 L)

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8″

Electrical Connection
None required

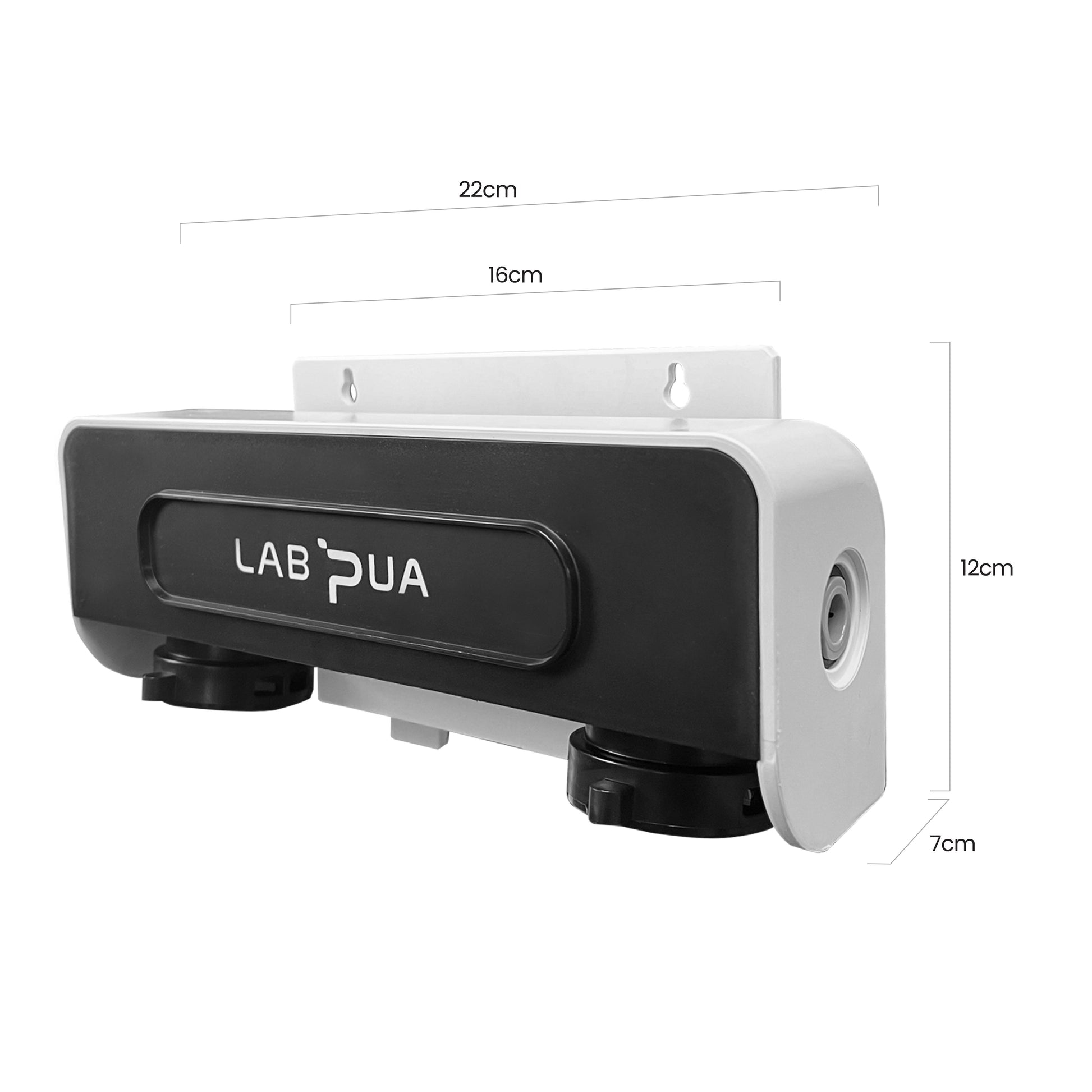

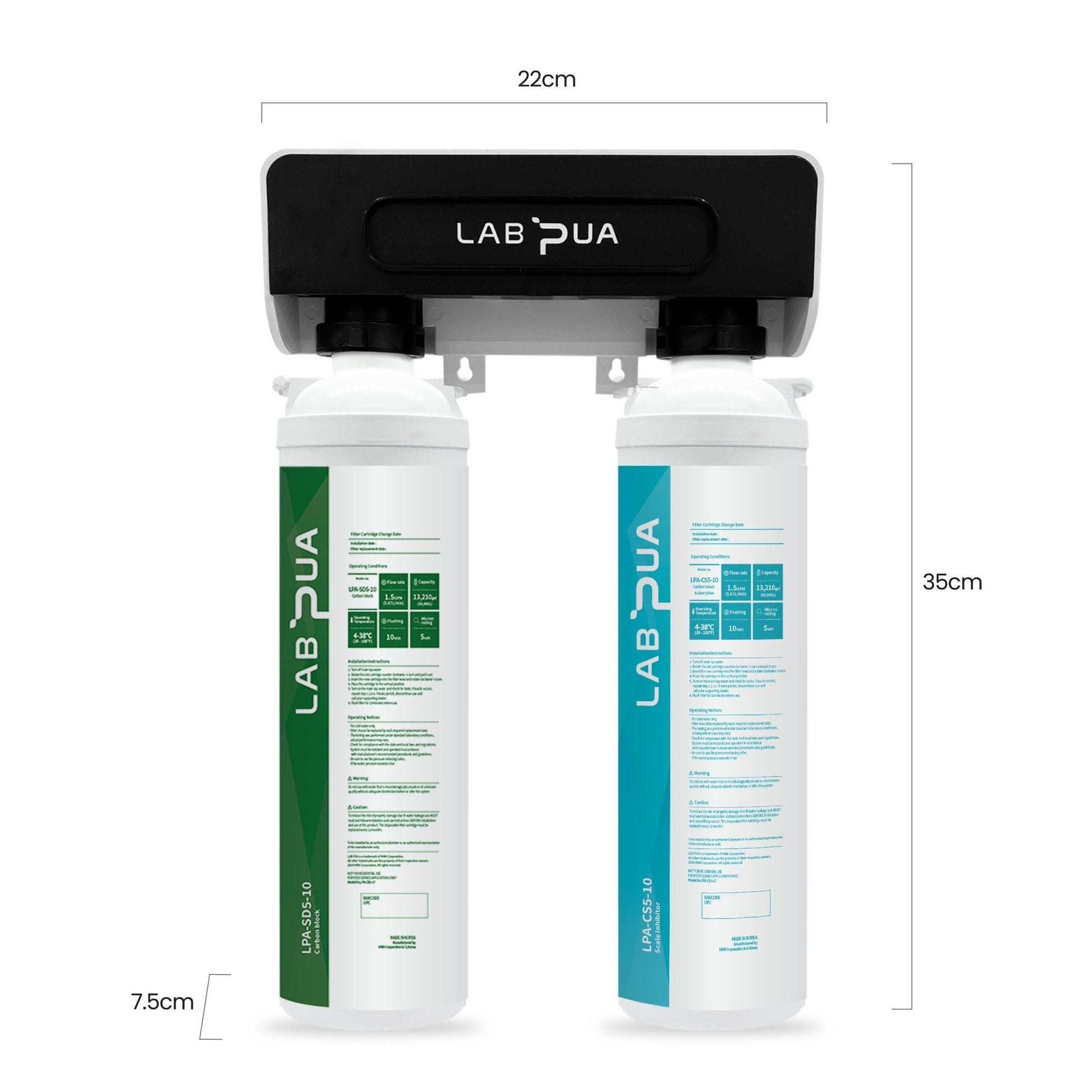

Dimension

• Overall: 3.7″ × 12.5″

• Cartridge: Ø3.3″ × 10.7″

Weight
0.6 kg

Claim

• Particle

• Dust

• Sand, etc.

• Pretreatment filtration (PP, Melt Blown Type)

• Can remove up to 5-micron particles through mechanical filtration

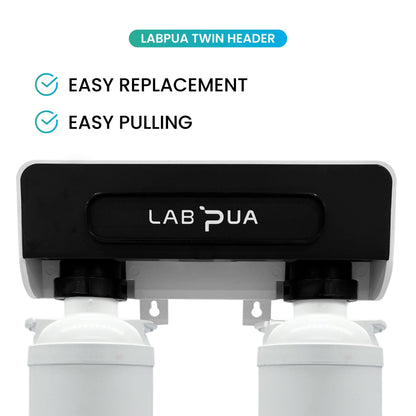

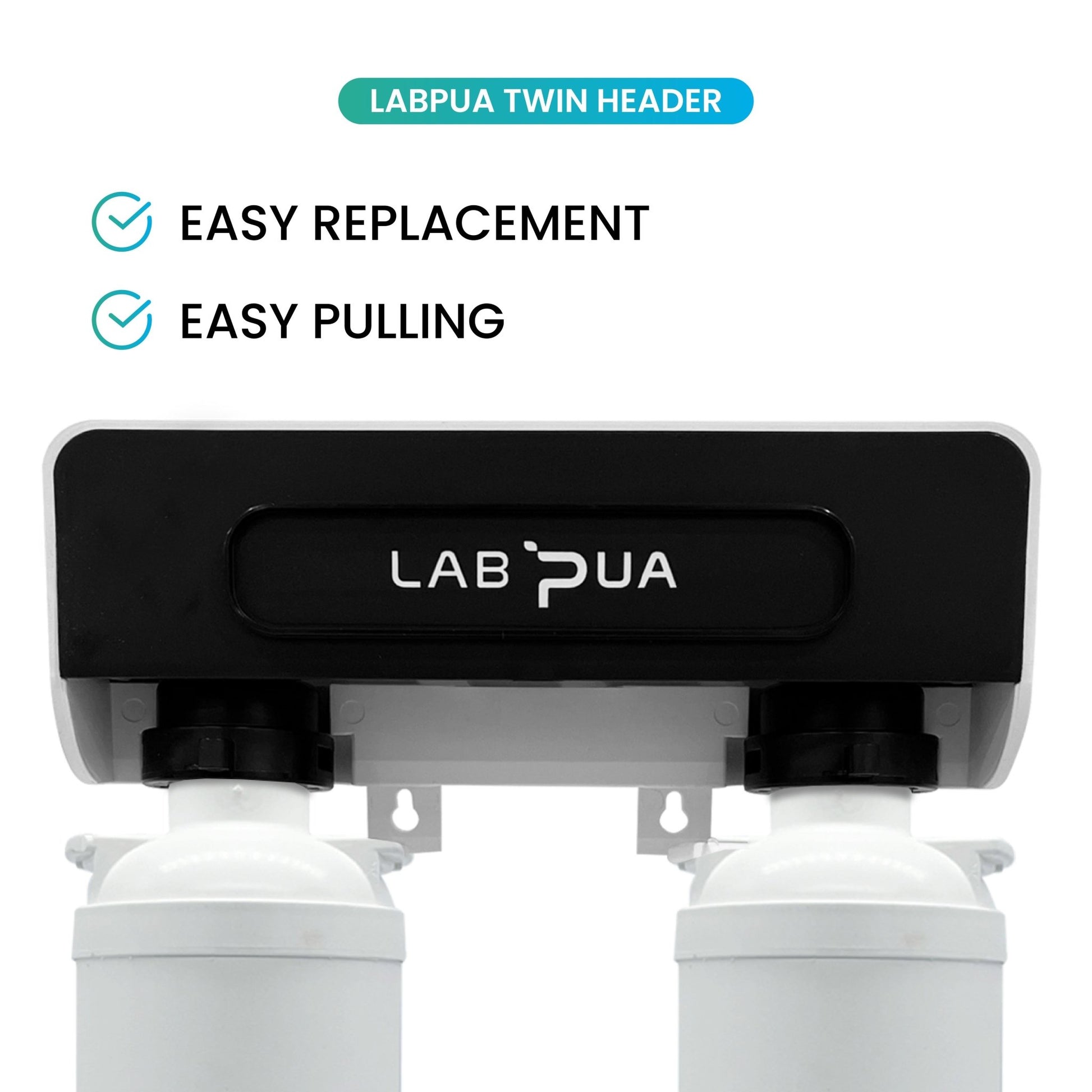

• Simple, quick, and clean cartridge replacement

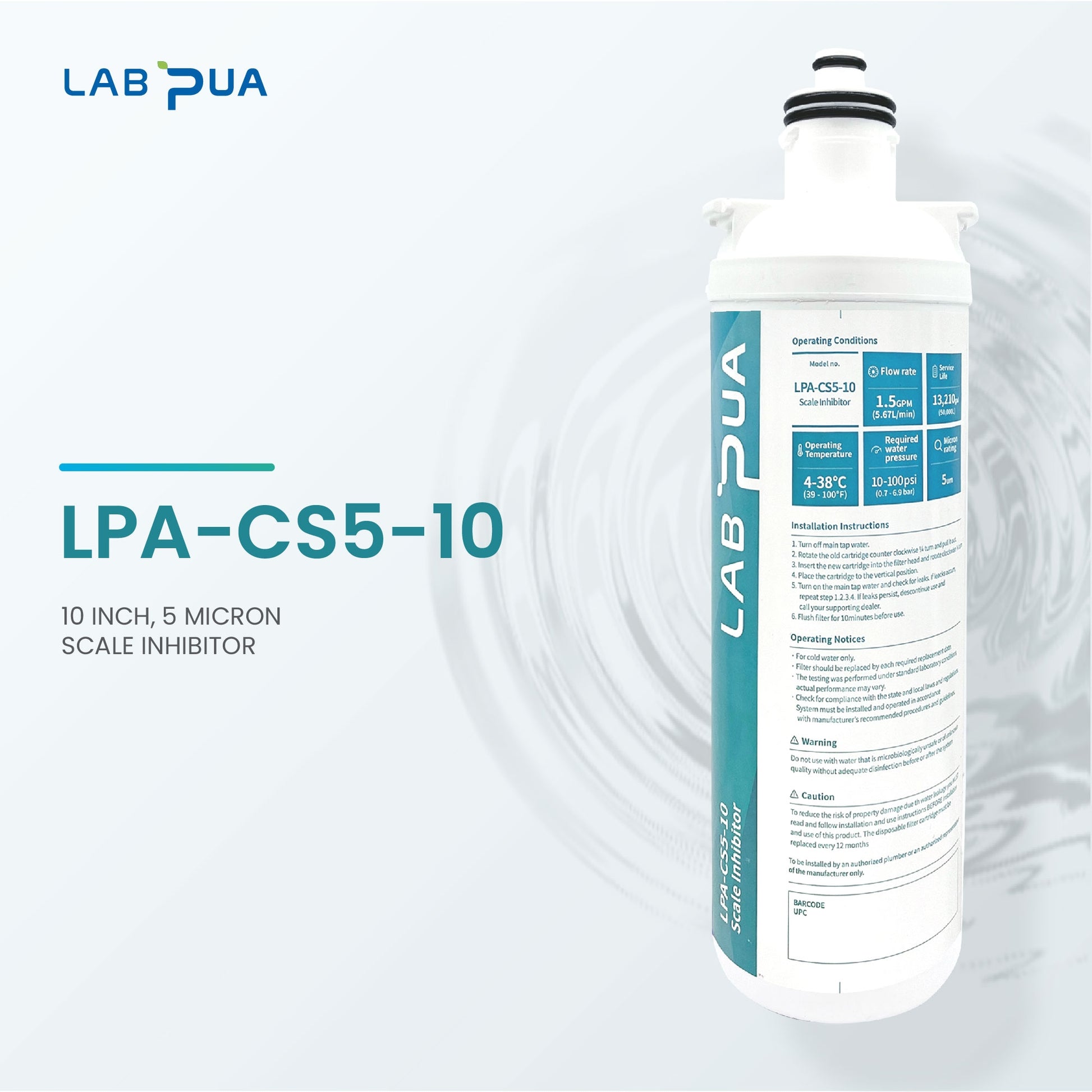

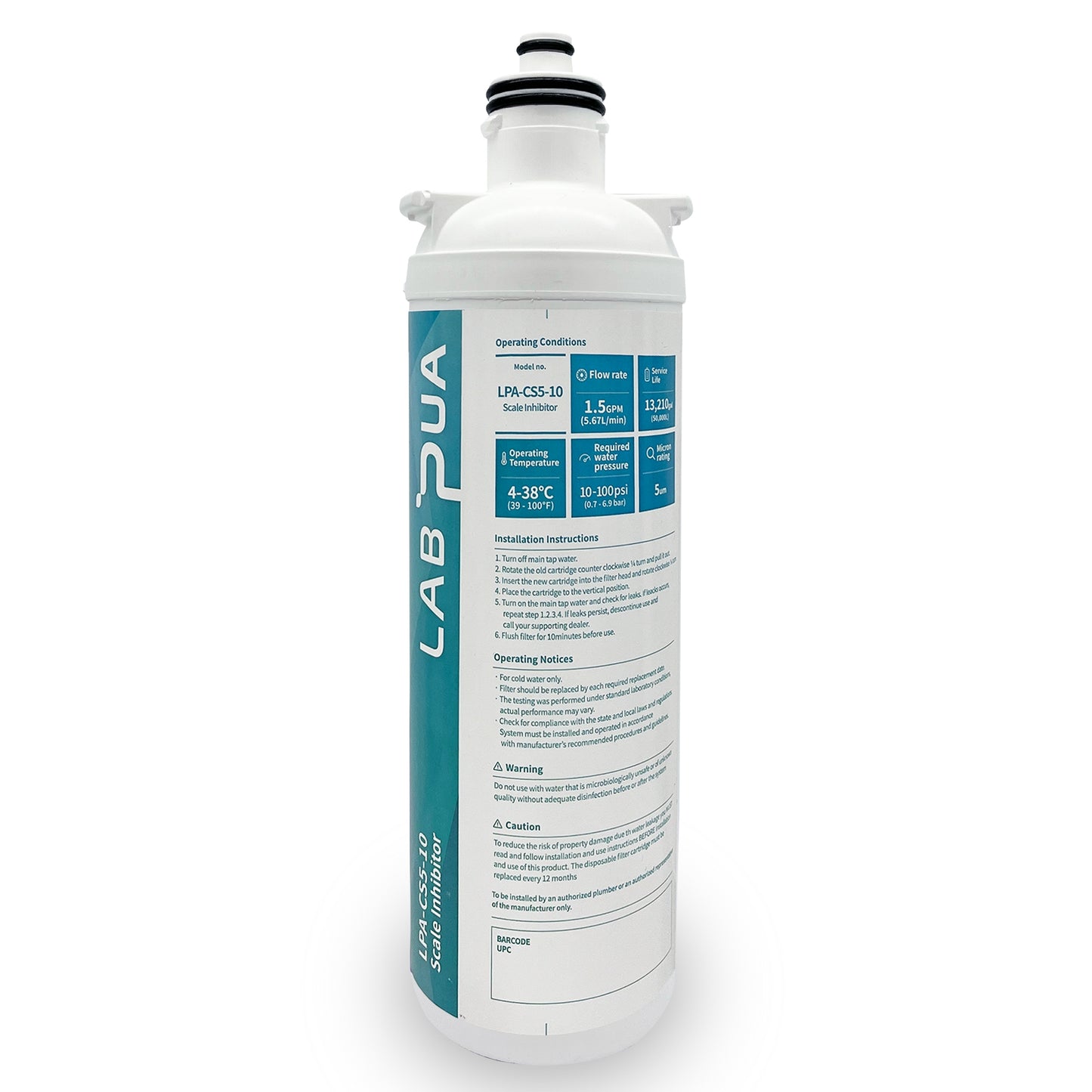

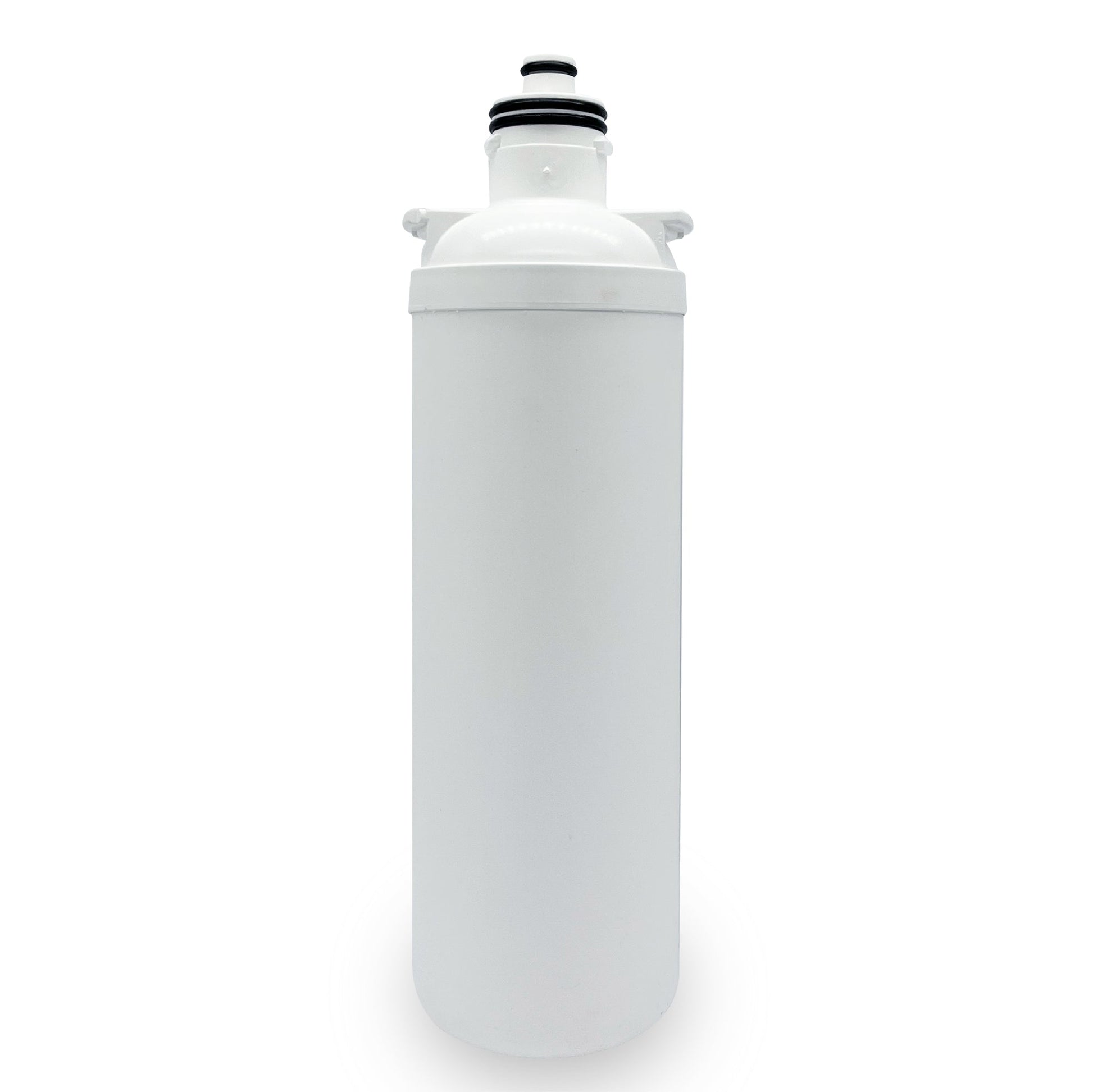

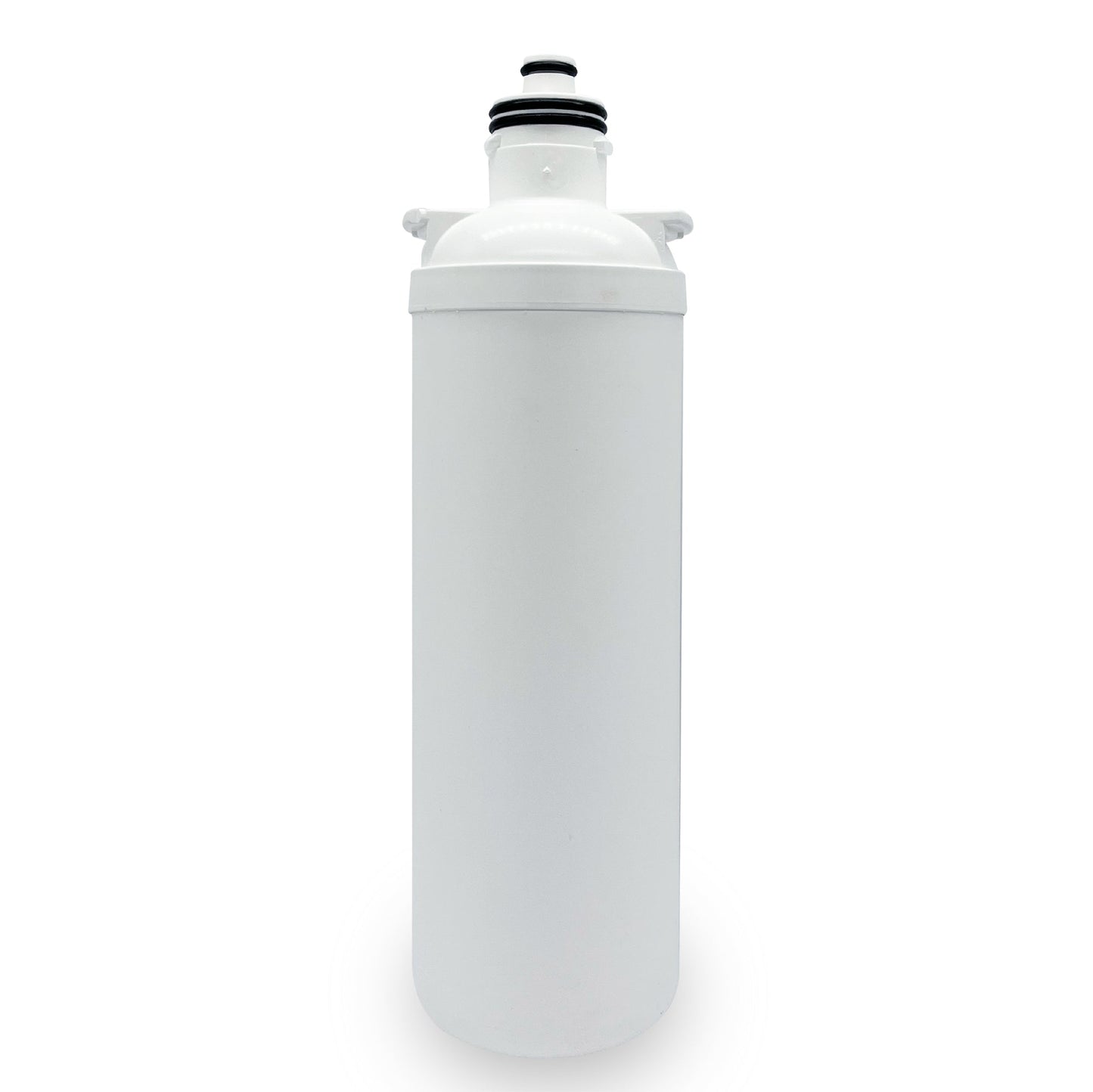

 LPA-CS5-10, 5μm carbon block filter with built-in scale inhibitor for added appliance protection.

• Phosphate can prevent to make scale in boiler or heater (phosphate)

• 5micron pore size CTO Block

• Extrusion carbon production method provides stable quality and

• Pre-shield Technology can prevent early clogging and keep the lifespan.

• Replacement method is easy quick-change.

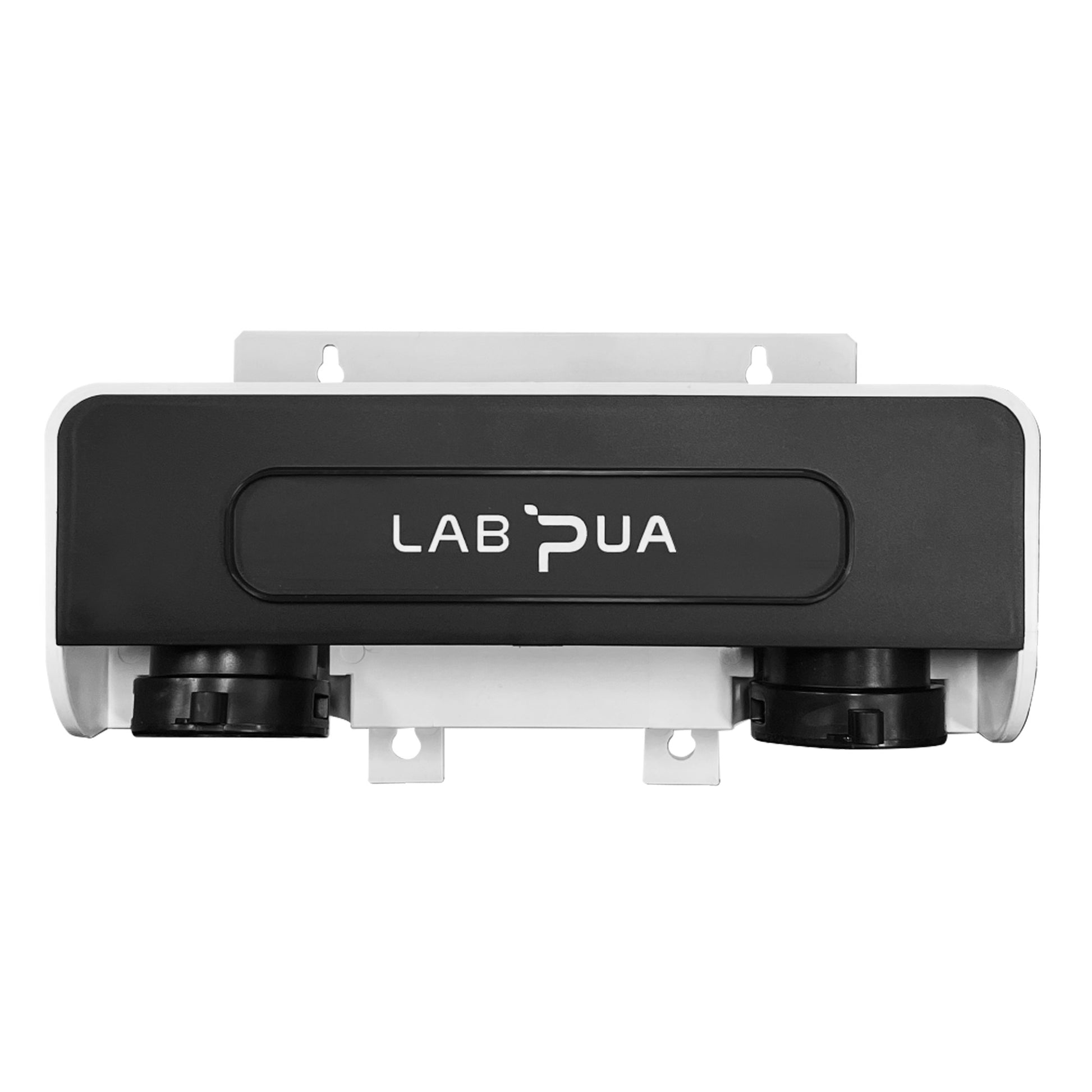

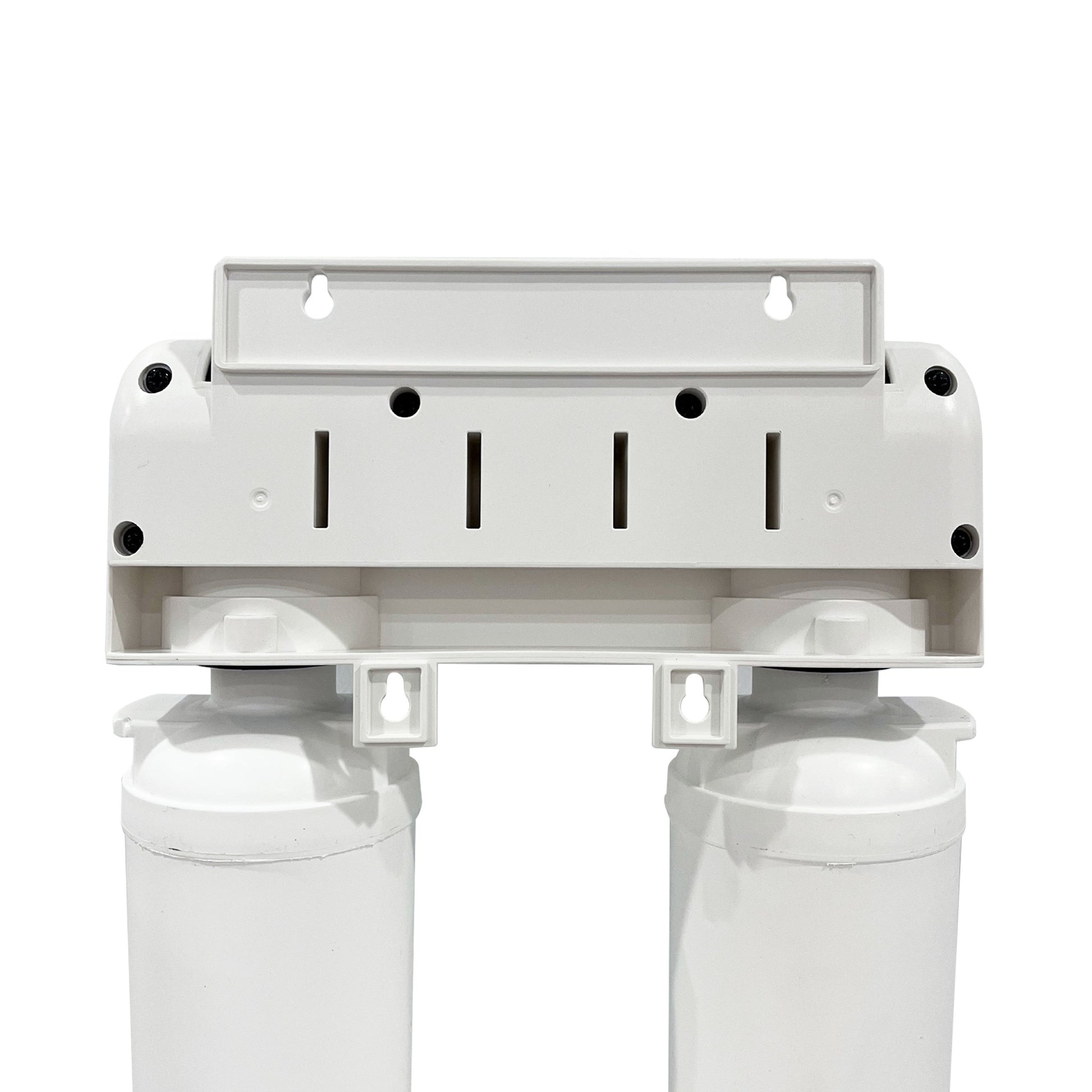

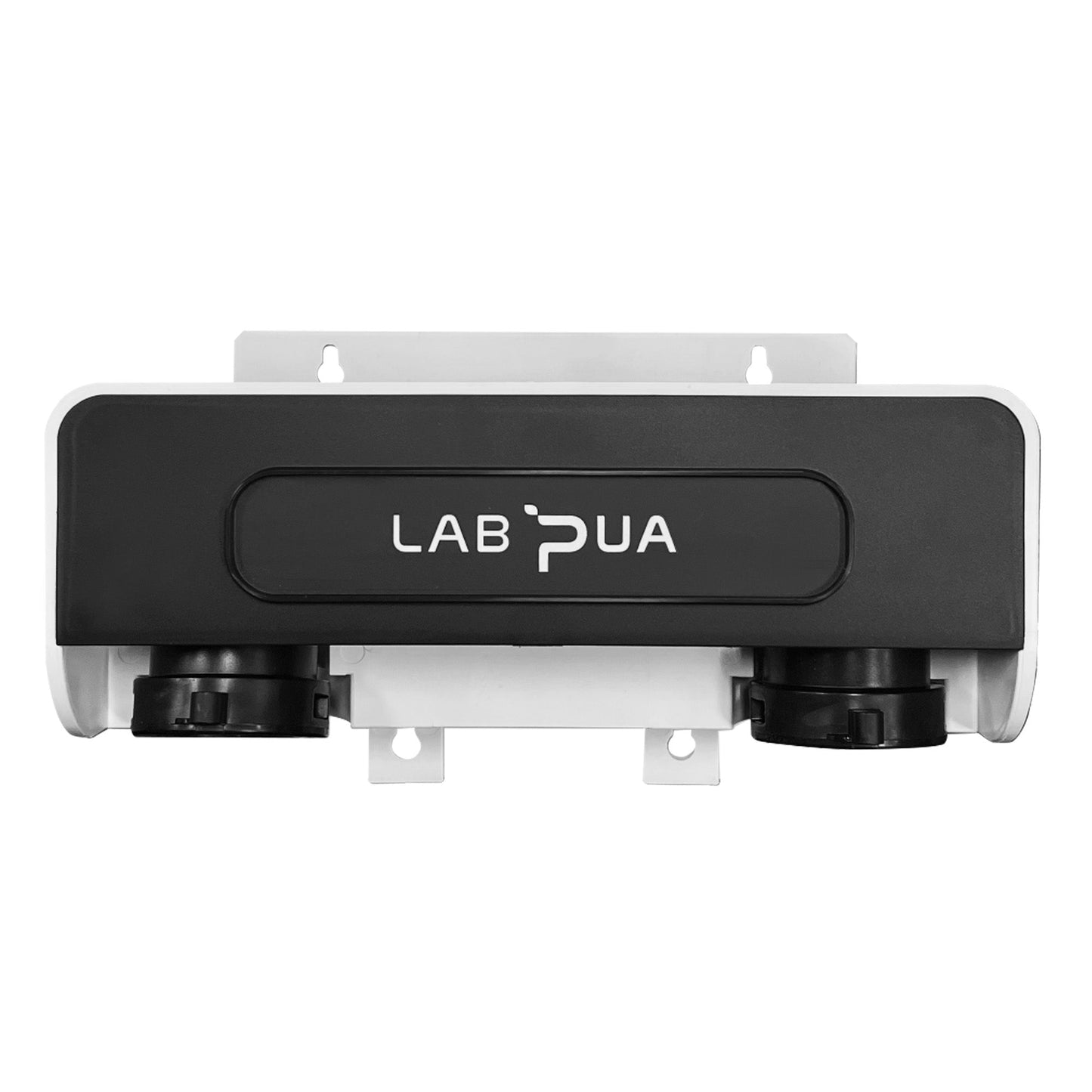

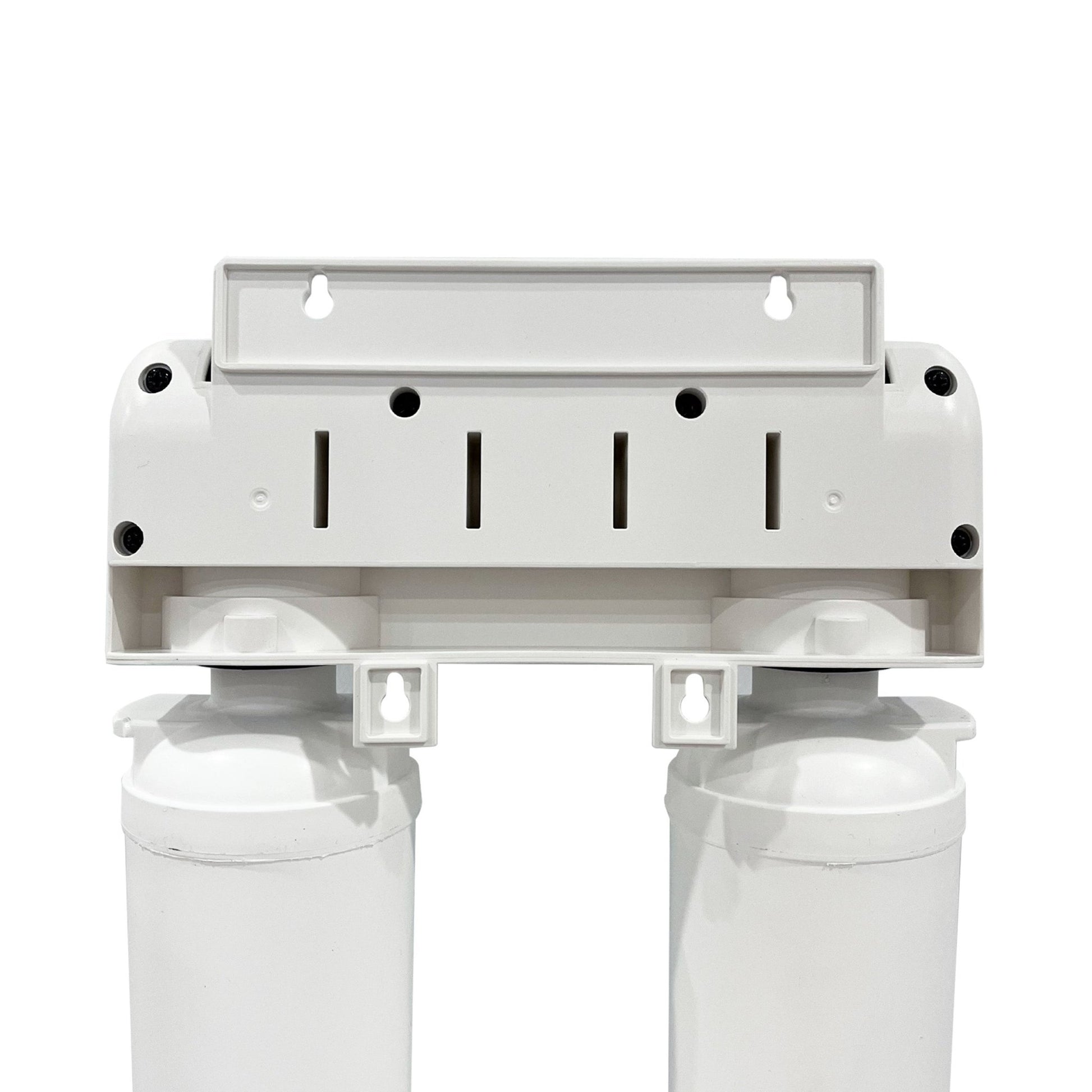

Lab pua Twin filter header that suit for Lab Pua filters.

Introducing the LPA238QC Lab Pua Twin header, a high-performance filtration solution tailored for Lab Pua filters. This versatile twin filter header is engineered to provide efficient sediment filtration with a 0.1 Micron combination, ensuring superior filtration for your specific laboratory needs. Its innovative design and precision filtration capabilities make it an ideal choice for maintaining the purity and quality of your laboratory processes. Trust the Lab Pua Twin header for reliable and effective sediment filtration, meeting the stringent standards required for laboratory-grade filtration systems.
