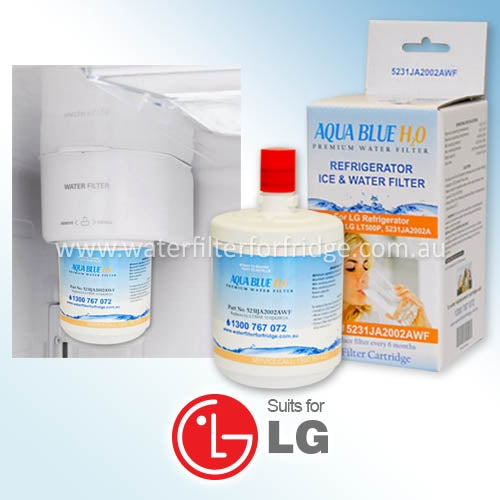

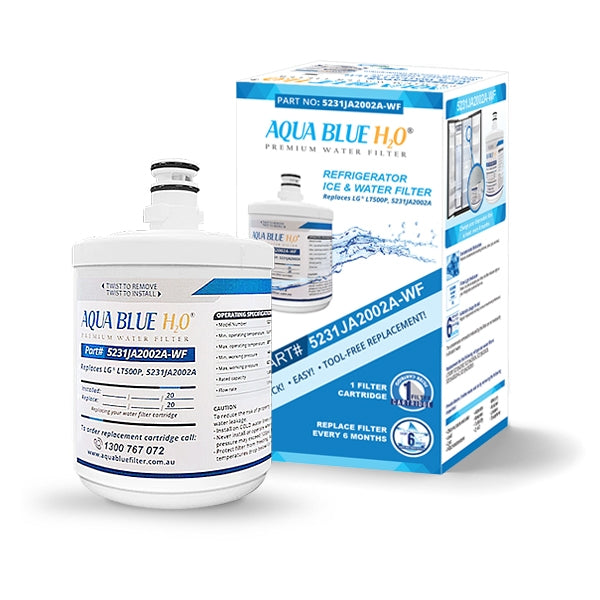

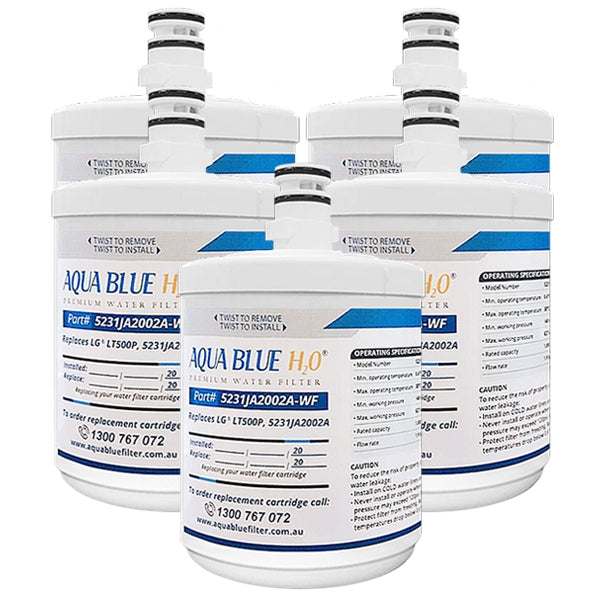

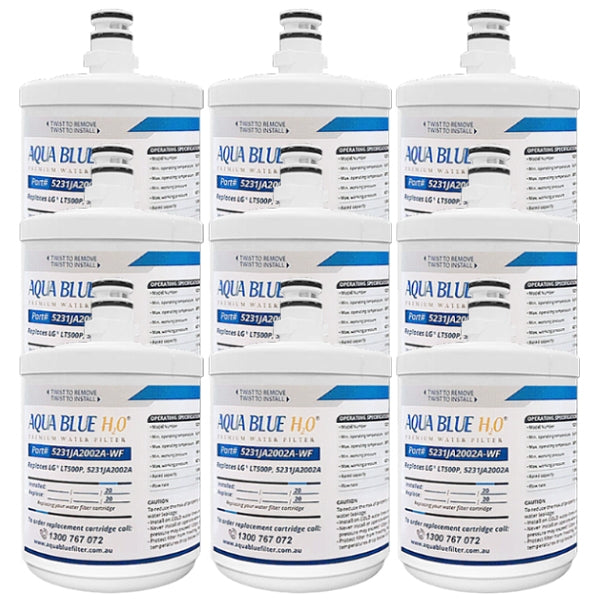

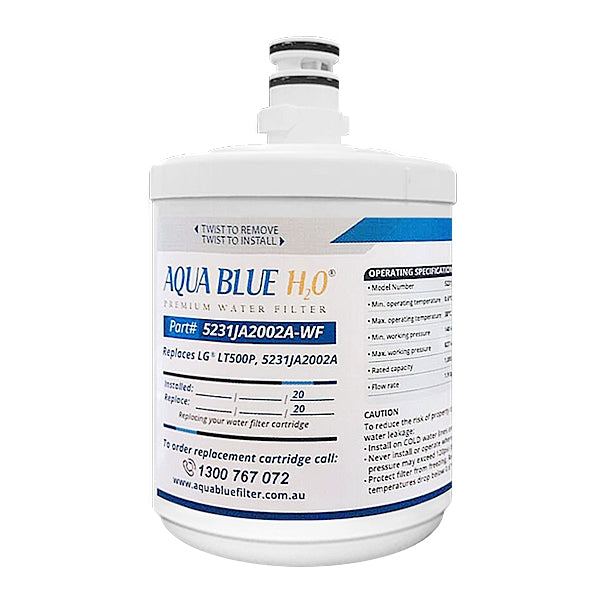

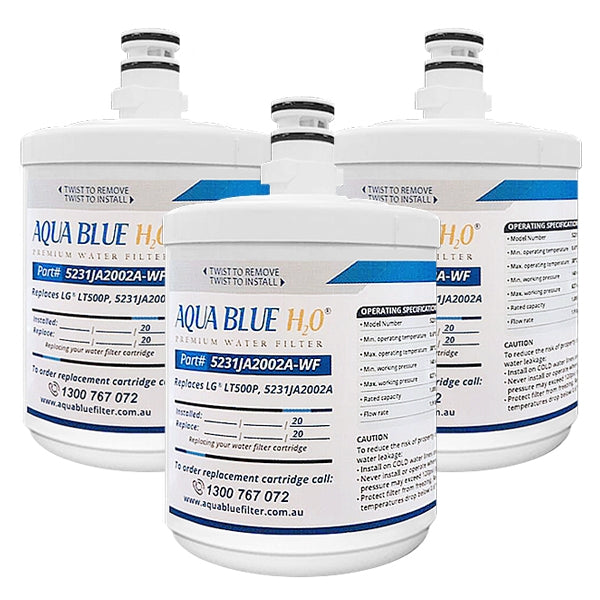

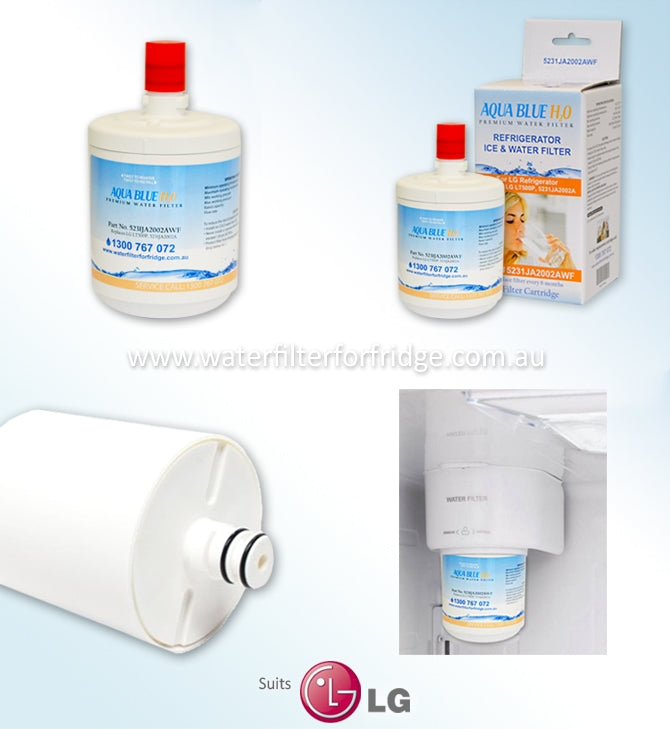

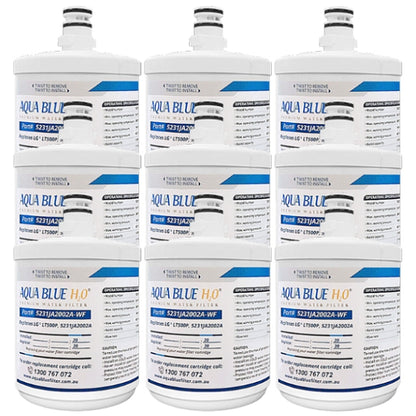

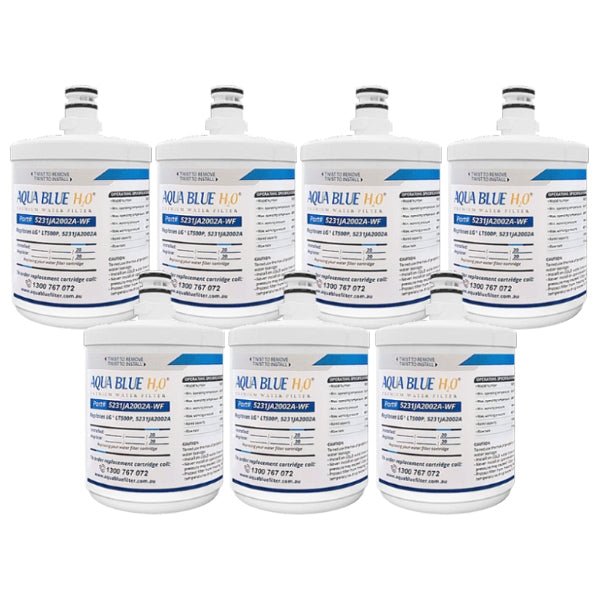

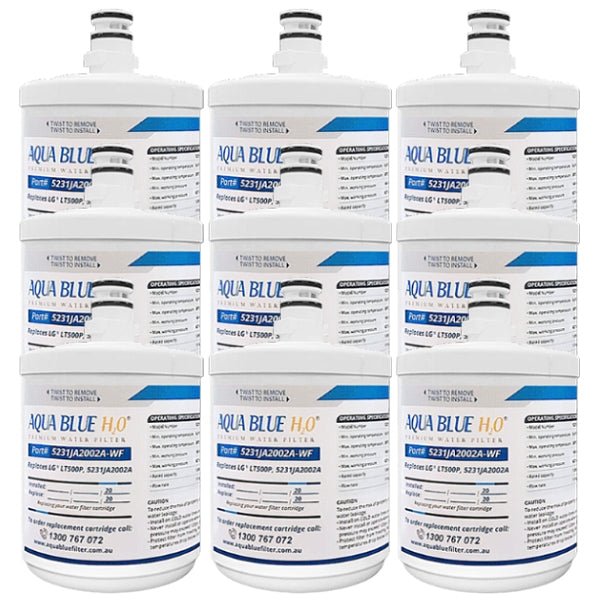

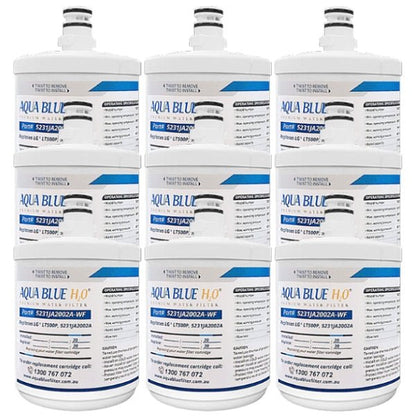

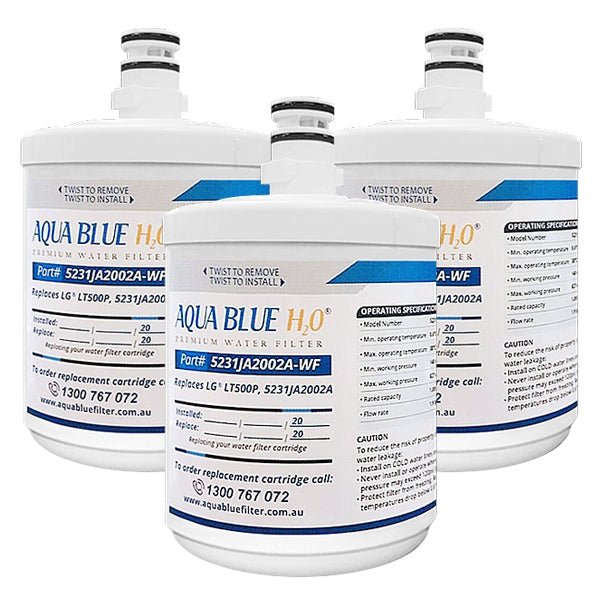

LG 5231JA2002A / LT500P Compatible Refrigerator Water and Ice Filter
The AQUA BLUE H20 5231JA2002AWF filter fits LG refrigerator models that use the LT500P
![]()


![]()

Installing your new water filter:
Twist the old filter a quarter-turn counterclockwis.
Pull the filter straight down and discard (don't worry, the water will shut off automatically).
Push the new filter up into the fridge until it stops.
Twist the filter a quarter-turn clockwise.
Reset your "change filter" light (if your fridge has one).
Resetting your "change filter" light:
Press and hold the reset button for 3 seconds.
To remove filter, turn off water supply and release the pressure in the lines by pressing the water dispenser, then remove the top shelf and light cover, turn the filter and pull down to remove.
Refrigerator manufacturers recommend that fridge filters be replaced every 6 months or when the "change filter" light comes on.
A handy hint is to put a small amount of cooking oil on the o-rings of the new filter this will make it easier to remove next time.
View Installation Guide : Please CLICK here
Click here : Check manufacture specification
Click here : What Contaminants Might be Lurking in Our Drinking Water?
![]()
The 5231JA2002A Fridge Filter for LG Fridges Replaces or is Compatible with the following Filter Part Numbers:
LT500P, 5231JA2002B, 5231JA2002A, AP250R, WF290
The 5231JA2002A / LT500P Filter Replaces these Oolder Filter Part Numbers:
5231JA2002, 5231JA2002A, 5231JA2002A-S,
5231JA2002B, 5231JA2002B-S
LT500P, PS2487038, WF-290
| Model | Description | Production Model |
| GR-D267DTU.ATIRGAP | REF-Side by Side, Internet | GR-D267DTU.ATIRGAP |
| GR-L207DTUA.ATIQRAN | REF-SIDE BY SIDE | GR-L207DTUA.ATIQRAN |
| GR-L207DVUA.ASWQRAN | REF-SIDE BY SIDE | GR-L207DVUA.ASWQRAN |
| GR-L207NIS.ATIRGAP | 594L, Titanium, Ice & water dispensor | GR-L207GTUA.ATIRGAP |
| GR-L207NSUA.ASTQRAN | REF-SIDE BY SIDE | GR-L207NSUA.ASTQRAN |
| GR-L207WVS.ASWRGAP | 594L, white, Ice&water dispensor | GR-L207GVUA.ASWRGAP |
| GR-L247ER.* | WATER & ICE DISP & FILTER/FUZZY LOGIC | GR-L247ER.SWRGAP |
| GR-L247NI.* | WATER & ICE DISP | GR-L247FTBA.ATIRGAP |
| GR-L247NIS.ATIRGAP | 691L, Titanium, Ice&water dispensor | GR-L247HTBA.ATIRGAP |
| GR-L247NSS.ATIRGAP | 24CU | GR-L247QTFA.ATIRGAP |
| GR-L247TS.* | WATER & ICE DISP | GR-L247NSBA.ASTRGAP |
| GR-L247TSS.ASTRGAP | 691L, Stainless Trimkit, Ice&water dispensor | GR-L247PSBA.ASTRGAP |
| GR-L247WH.ASWRGAP | REF-SIDE BY SIDE | GR-L247DVUA.ASWRGAP |
| GR-L247WSS.ASWRGAP | 24CU | GR-L247QVFA.ASWRGAP |
| GR-L247WV.* | WATER & ICE DISP | GR-L247FVBA.ASWRGAP |
| GR-L247WVS.ASWRGAP | 691L, white, ice&water dispensor | GR-L247HVBA.ASWRGAP |
| GR-L257NI.ATIPGAP | 720L, side by side, stainless, contour design | GR-L257BTBA.ATIRGAP |
| GR-L257STS.ASTRGAP | 25CU | GR-L257SSKA.ASTRGAP |
| GR-L258DS.APVRGAP | 3D French | GR-L258FLXA.APVRGAP |
| GR-P207DVUA.ASWQRAN | REF-SIDE BY SIDE | GR-P207DVUA.ASWQRAN |
| GR-P257SVB.ASWRGAP | 25CU | GR-P257SVBA.ASWRGAP |
| GW-L227STS.ASTRGAP | 22CU | GW-L227HSRA.ASTRGAP |
| GW-P227STS.ASTRGAP | 22CU | GW-P227HSRA.ASTRGAP |
This Filter is a direct-replacement for the following Refrigerator Filter Model Numbers:
04609890000, 09890, 46-9890, 4609890000, 469890, 5231JA2002, 5231JA2002A, 5231JA2002A-S, 5231JA2002B, 5231JA2002B-S, 9890, ADQ72910901, ADQ72910902, ADQ72910907, EFF-6005A, GEN11042F-08, GEN11042FR-08, LT500P, LT-500P, PS2487038, SGF-LA22, WF-290, WF290, WSL-1, L197WFS, 46-9890, EL-1, OPFL-RF300
Suits the following Fridge Models:
LSC26905TT, LSC21935SB, LSC21935SW, LSC21935TT, GR-P257STB, GC-P197WFS, GR-L247NS, GR-L247N, GR-L247NI, GC-L197STF, GC-L197NFS, GR-L207NI, GC-B197NFS, GC-B197WFS, GR-B247WVS, GR-D267DTU, GR-G227TVS, GR-L207EQ, GR-L207NIS, GR-L207WV, GR-L247ER, GR-L247NSS, GR-L247TS, GR-L247TSS, GR-L247WSS, GR-L247WV, GR-L247WVS, GR-L257NI, GR-L257STS, GR-P257STS, GR-P257SVB, GR-L207WVS, GC-L197WFS, GWL227STS, GR-L258DS, GC-P197NFS
*Fits LG refrigerators with a short round filter.
*Fits any refrigerator that uses the LT500P filter
*Simple quarter turn cartridge change is quick and easy
![]()
5231JA2002WF Operating Specification:
Flow Rate: 1.9 lpm
Operating Temperature: min 0.6°C / max 37.8°C
Operating Pressure: min 138 kPa (20 psi) / max 862 kPa (125 psi)
Technology: High quality Carbon Block
Function: Chemical and Mechanical Reduction
Capacity: 1,892 litres
Service Life: 6 months

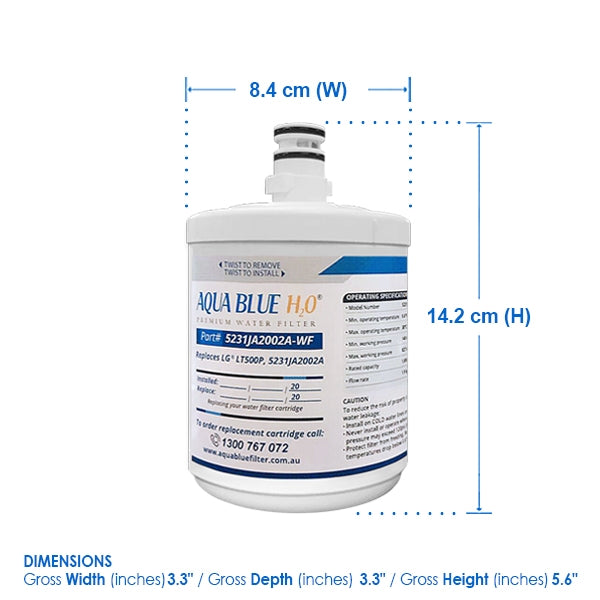

Dimensions: 14.2cm (length) x 8.4cm (diameter)
This is a Replacement LG 5231JA2002A, LT500P ice maker water filter with twist fitting will fit select models of Samsung refrigerator. Please check Models This Part Fits to make sure this filter will easily slot into your fridge water dispenser.
Designed to improve the taste and quality of the drinking water and ice cubes
Filter cartridge should be replaced at least every 6 months.
Water Filter Reduces the Following Health Related Contaminants:
97.60% of Chlorine Taste and Odour
98.40% of Particulates (Class I)
96.60% of Mercury at pH 6.5
88.90% of Mercury at pH 8.5
99.30% of Lead at pH 6.5
99.40% of Lead at pH 8.5
99.99% of Cysts
98.70% of Carbofuran
99.80% of p-Dichlorobenzene
99.00% of Asbestos
96.40% of Benzene
98.60% of Turbidity
