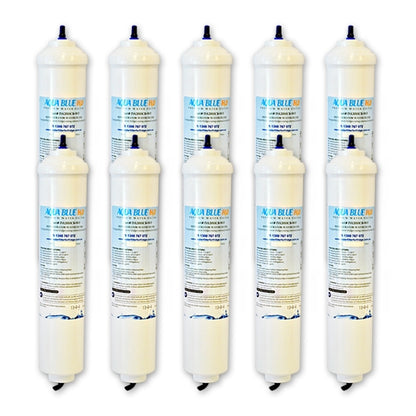

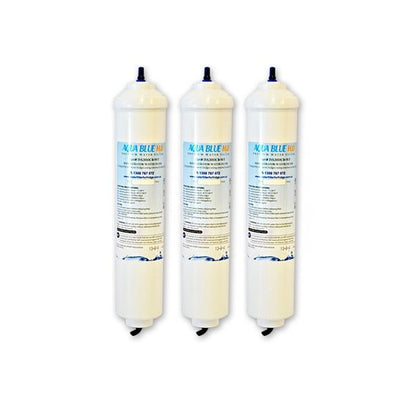

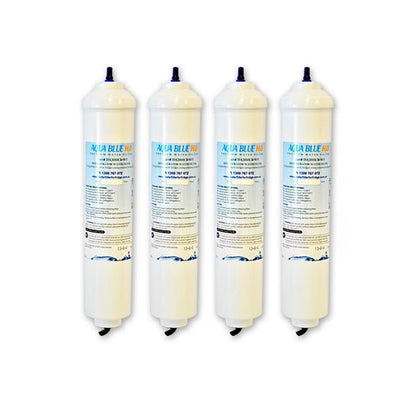

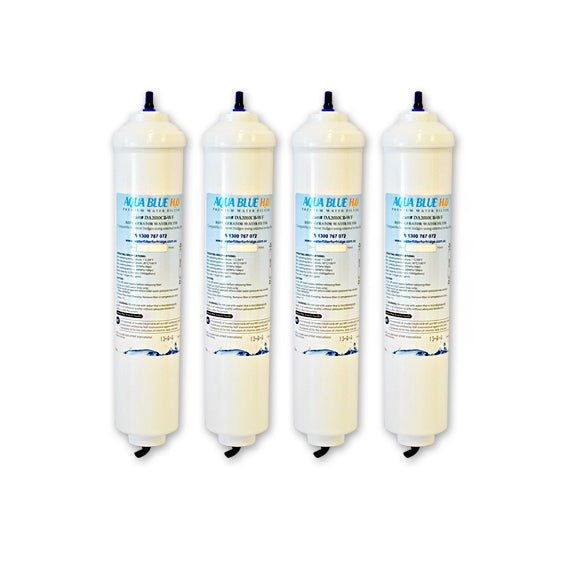

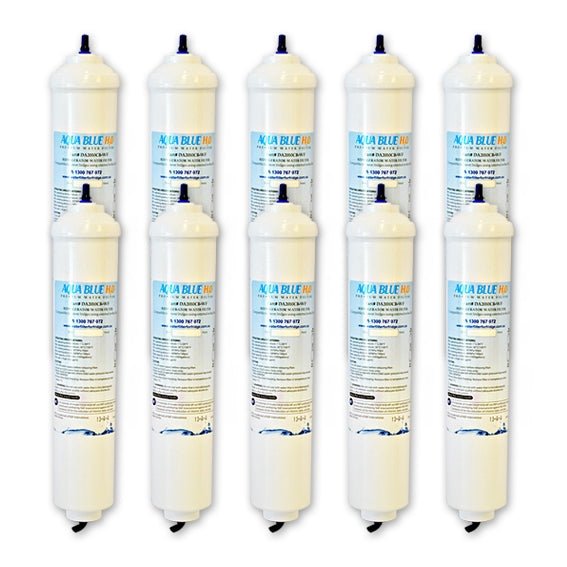

LG External Fridge Filter Push Fit Replaces BL9808, 3890JC2990A

AQUA BLUE H2O COMPATIBLE

LG EXTERNAL INLINE FRIDGE WATER FILTERS DA2010CB

SUITS LG BL9808, 3890JC2990A, 5231JA2012A WITH PUSH FIT CONNECTIONS/composition filter 3890JC2990A

THIS FILTER IS MANUFACTURED BY MICROFILTER, KOREA- THE VERY SAME COMPANY THAT MADE GENUINE LG FRIDGE FILTERS!!!

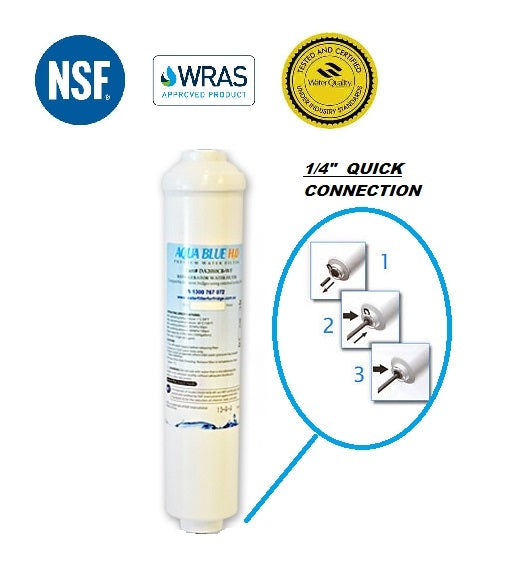

This is for external compatible water filters with 1/4" pushfit connections

You are buying Superior Quality compatible filters with push-fit connections.

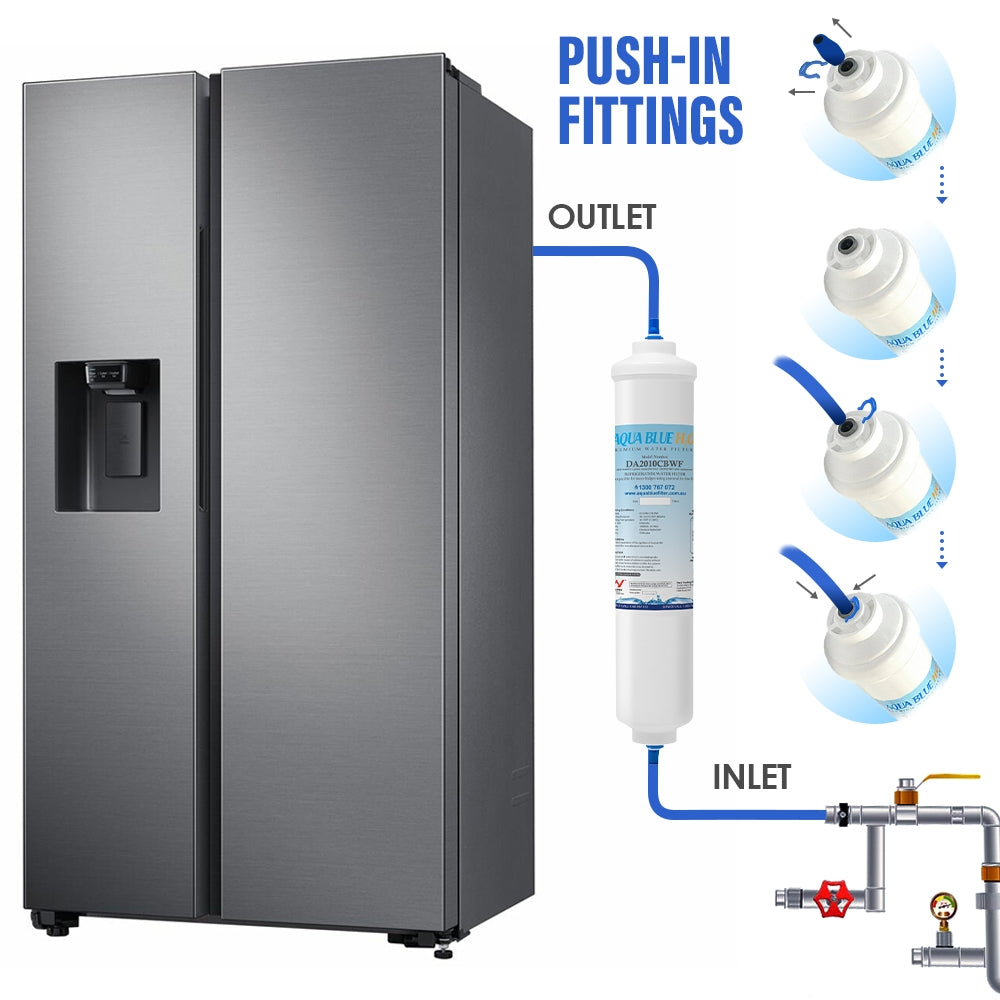

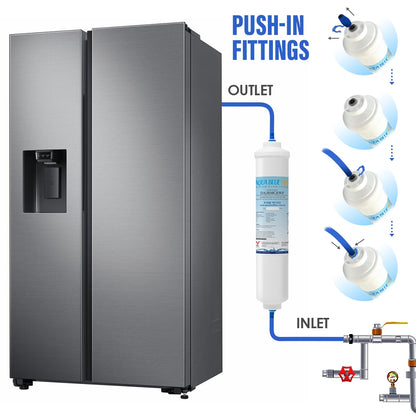

Installation and replacement procedure for the Compatible External fridge water filter :

1. Find isolation valve which will be located somewhere on the water supply line to the fridge. Turn it off and to depressurise the system draw a large glass of water from the water outlet at the fridge.

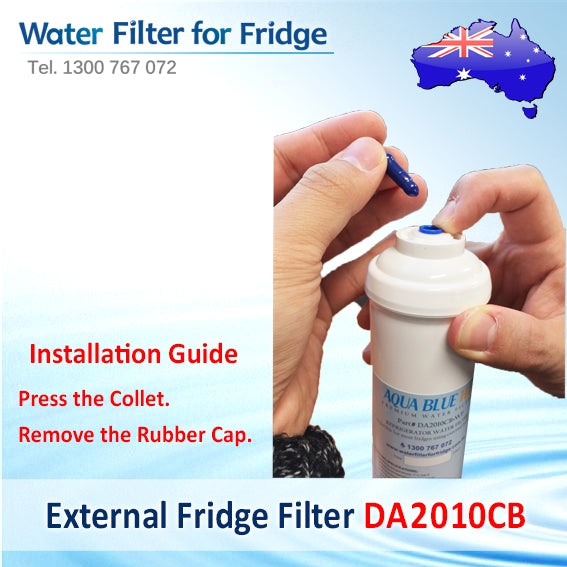

2. Have a bucket and towel ready as there will be a small spillage of water during this process. Remove the old filter by depressing the locking collar at each end of the filter with your thumb nail (or similar) and at the same time pull out the water supply line. Discard the old filter.

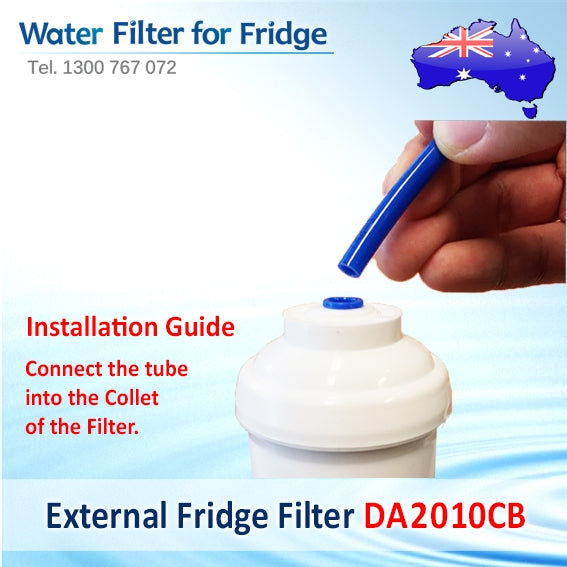

3. Take the new filter, making sure the flow direction is correct and insert the inlet side only, the line will go in approx 5 – 10mm and you will feel it hit home.

4. IMPORTANT - Placing the filter in the bucket, turn on the water supply and allow about 5 litres of water to flow through the filter and into the bucket. This will remov e any loose carbon fines. Turn off the water supply and connect the line that feeds into the fridge. Turn on the water supply and run approx 2 litres through the system.

5. Complete the Replacement Due sticker and place in a visible area inside the fridge door.

NOTE: The green light changes to orange after five months to indicate that you should soon change the water filter. It changes to red after an additional one month (6 months after the water filter was changed or installed) to indicate that you must change the water filter. If the water filter indicator lights up red, press the ICE TIMER and ICE MODE buttons at the same time for about three seconds to reset the water filter indication light from red to green.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

As with all built-in refrigerator water filters, the compatible external fridge water filter does not remove Fluoride.

Note: The filter provides cleaner, fresher water ice.

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water

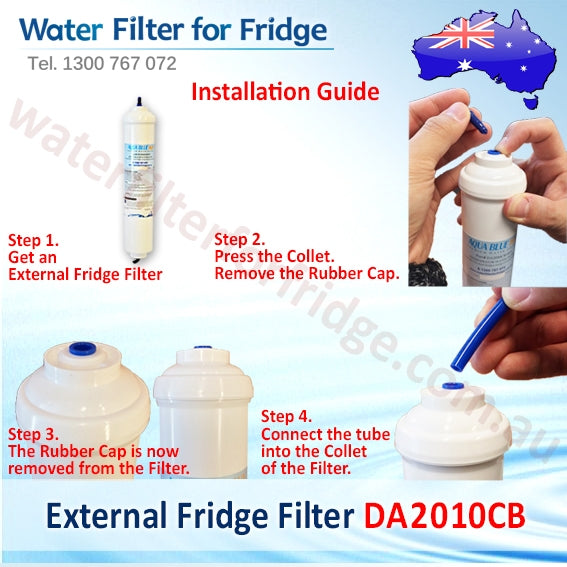

  View Installation Guide : Please CLICK here

External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges replaces : LG (BL9808, 3890JC2990A, 5231JA2012A, 3650JD8050A, 5231JA2003A, 3219JA3001P, 3890JC2990A)

This filter replaces:  This LG fridge water filter is a suitable replacement for the BL9808, BL-9808 5231JA2012A, microfilter, 3650JD8050A, 5231JA2003A, 3219JA3001P, 3890JC2990A and also other LG external models.

The Compatible External Fridge Water Filter Replaces: 5231JA2010B, 5231JA2010A, 5231JA2003B, 3650JD8050A, 3890JC2990A, BL9303, BL9808, AJR73482513, External Fridge Filters.


Also replaces LG part numbers 3650JD8050A, 5231JA2003A, 3219JA3001P, 3890JC2990A.

Suitable for:
External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges.

Suits the following fridge models:

Fits the following refrigerators models:


Fagor
FQ550, FQ550X, FQ890X, FQ890XM, FQ8925X

The Aqua Blue H2O LG Compatible External Water Filters Operating Specifications are as Follows:

Flow Rate	1.9 lpm
Operating Temperature	min 4.4°C / max 38°C
Operating Pressure	min 172 kPa (25 psi) / max 862 kPa (125 psi)
Technology	High quality Carbon Block
Function	Chemical and Mechanical Reduction
Capacity	2,464 litres
Service Life	6 months
Dimensions approximately	7.5 cm x 15 cm

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Filter cartridge should be replaced at least every 6 months

Water Filter Reduces the Following Health Related Contaminants:
97.60% of Chlorine Taste and Odour
98.40% of Particulates (Class I)
96.60% of Mercury at pH 6.5
88.90% of Mercury at pH 8.5
99.30% of Lead at pH 6.5
99.40% of Lead at pH 8.5
99.99% of Cysts
98.70% of Carbofuran
99.80% of p-Dichlorobenzene
99.00% of Asbestos
96.40% of Benzene
98.60% of Turbidity
