• Removes Fluoride from water
• 1.9 lpm flow rate
• Omnipure USA

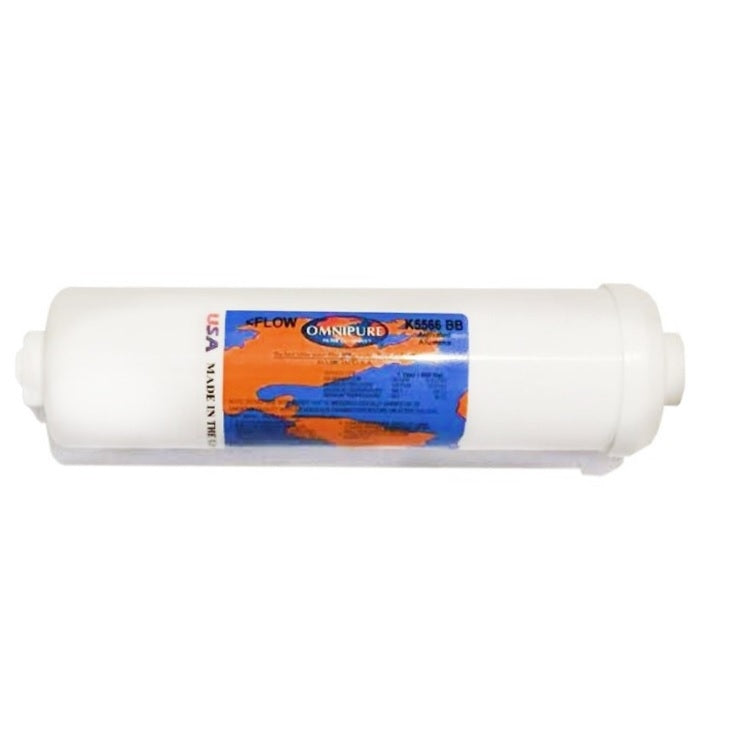

Omnipure K5566 Fluoride Removal Filter. Includes 2x AMC0404 push-in fittings (originally 1/4" screw fit)

Omnipure K5566 Fluoride Reduction Water Filter

Dimensions 10" x 2.5"

Thread Size: 1/4"

Service Life 1 Year or 600 Gal or 2700 Litres

Max Flow Rate: 1.9 lpm

Max Pressure: 125 PSI 8.6Bar

Max Temperature: 38 deg

Min Temperature: 2 deg

Omnipure K5566 activated alumina Fluoride removal inline water filter.

The K5566 fluoride filter can be added inline before any existing filtration system.

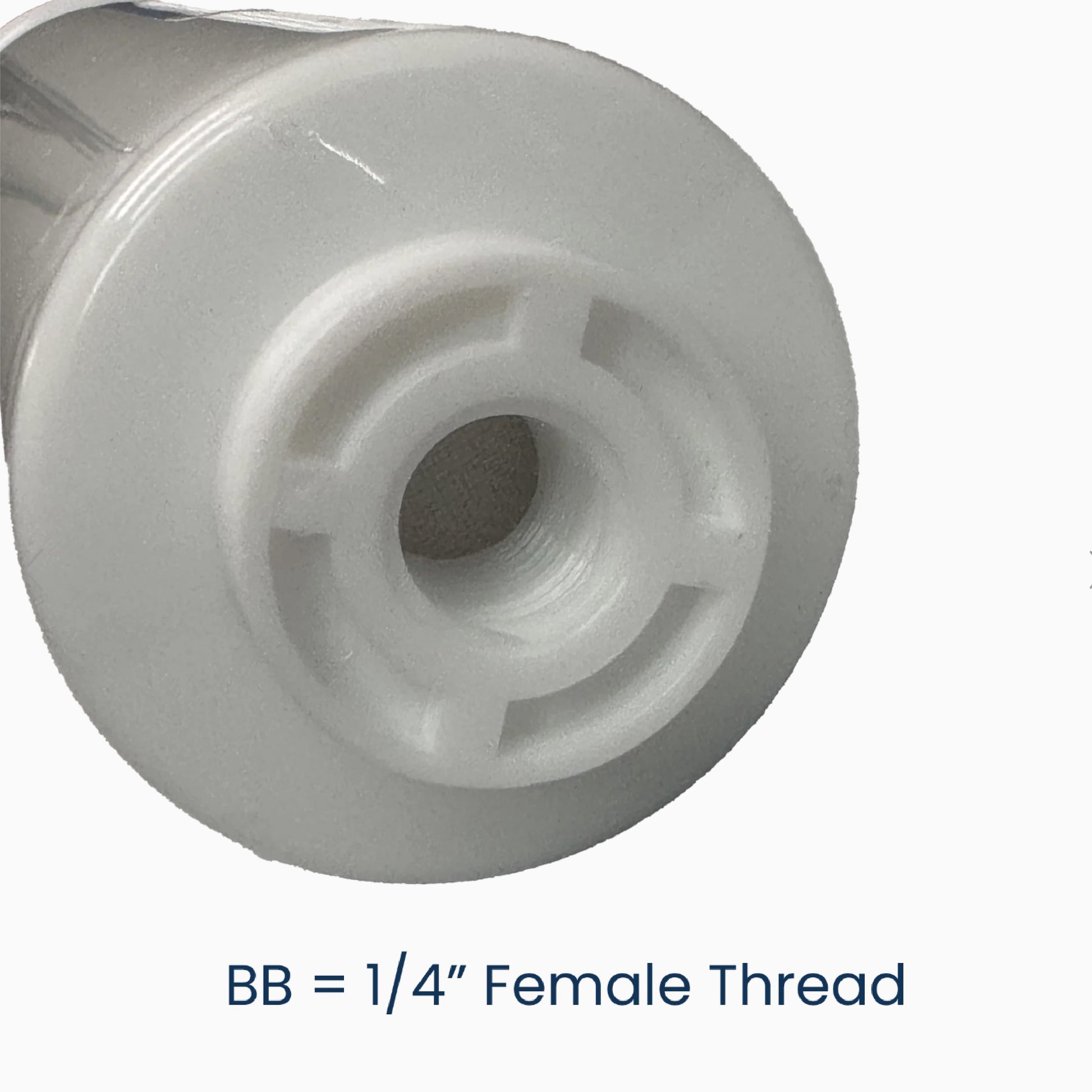

The filters have 1/4″ female threads which allows for a wide range of fittings options, in the fitting options simply choose between Female Threads or 1/4″ and 3/8″ push in quick connect John Guest tube fittings.

If you require different fittings please contact us.

Reduces Fluoride at very high levels when new and as a guide in most situations will remove over 90% of fluoride for the life of the filter, depending on local water conditions.

Maximum pressure 125 psi

Flow rate of 2 Lpm

Capacity of 600 Gal or 1 year maximum life, depending on the water quality and usage.

Dimensions are 260mm x 62mm without fittings

IMPORTANT NOTICE
Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs. It is recommended that, before purchasing a water filter unit, you have your water supply tested to determine your actual water treatment needs.

¹Tested using flow rate = 0.5 gpm; pressure = 60 psig; pH = 7.5 ± 0.5; temp. = 200 ± 2.50 C

Operating Specifications

Capacity: Approx. 735 Gal. Fluoride Reduction
Flow Rate: 0.5 GPM
Maximum Pressure: 125 PSIG
Temperature: 35-100 F (2-38 C)

General Installation/Operation/Maintenance Requirements

• Note flow direction of filter.
• Flush new cartridge with 5 gallons of water prior to use and check for leaks. If leaks occur, check tightness of tubing and fittings. If leaks persist, discontinue use and call your supporting dealer.
• Replace cartridge when rated capacity (350 gallons) is reached, or when flow becomes too slow.
• Install in compliance with state and local laws and regulations.

Special Notices

• The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.
• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Warranty Information: Omnipure Filter Company (Omnipure) warrants that the products delivered will be free from defects in workmanship or materials. Further, the warranty provided herein applies, only when used within the products specifications and service life, which is one year from the date of installation or 5 years from the date of manufacture whichever occurs first, (at which time the filter must be removed and replaced with a new one), beyond which Omnipure is absolved of any and all liability for any use of the product. In the event of a defect or non-conformity, buyer shall promptly notify Omnipure in writing, supplying proof-of-purchase dates, installation dates, and will protect and retain the products for investigation, or Omnipure is absolved of any and all liability from any use of the product. There are no other warranties, either of merchantability or fitness, either expressed or implied. EFFECTIVE AS OF 31 MAR 2015

* Omnipure K5566 Made in USA. The K5566 inline filter is designed for the reduction of fluoride using Activated Alumina filter media.

* Tested and Certified to NSF Standard 42 for Aesthetic Effects

* This filter is available with ¼" FPT (female threads) 1/4" as below
