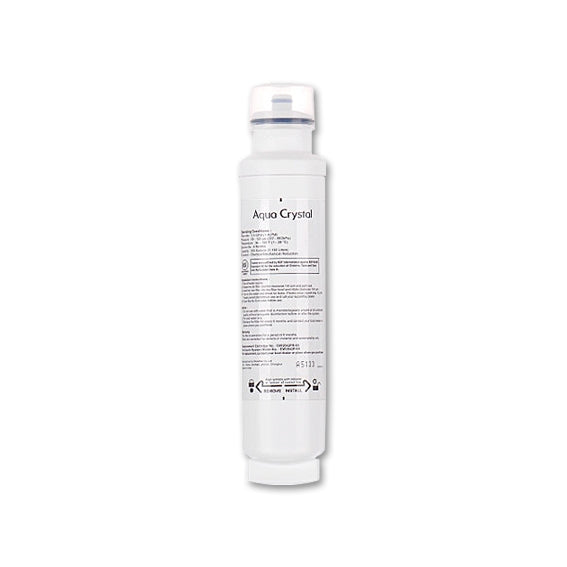

RFS26D1T Water filter DW2042FR-09 Replacement Fridge Filter Cartridge

Daewoo Electronics - Aqua Crystal Filters

 DW2042FR-09

RFS26D1T

Replaces the following part numbers -  DW2042F-09, DW2042FR-09, DW2042F09, DW2042FR09, ACC140, FRNY22D2V, FRNY22D2W, FRNY22F2VI, DW2042FB, SR610X, SR620X, Titan4, Titan 4, 3019986700,SF-640S SUIT

- FRN-Y22F2VI

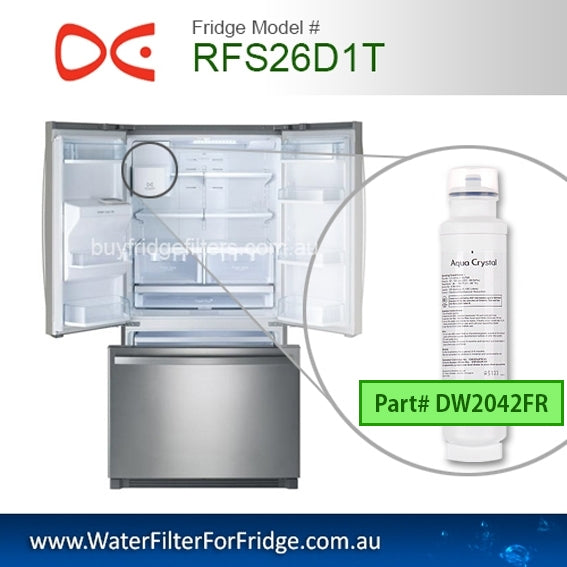

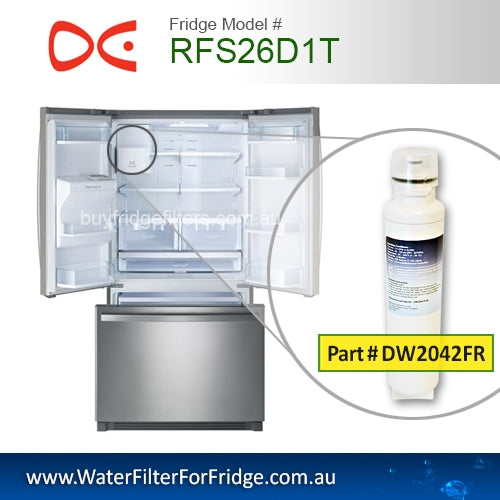

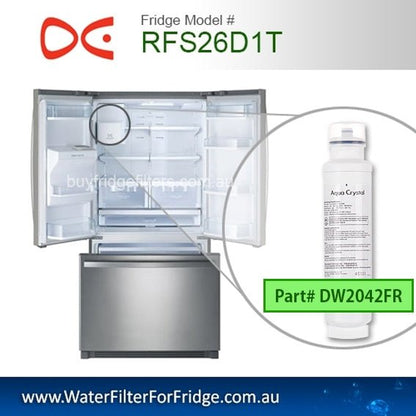

The filter is mounted on the ceiling inside the fridge.

To remove old filter rotate counterclockwise until the filter comes out slightly and you hear a snap.

Service life of 6 months Capacity 1136 litres Dimensions are 245 mm overall length and 50mm across.

42 and 53 Listed.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty.

- FRN-Y22D2V
- FRN-Y22D2W

Suitable for: some models of Daewoo, LG, Smeg, Miele and Westinghouse refrigerators.

The DW2042FR-09 water filter replaces: DW2042F-09, DW2042FR-09, DW2042FR09, FRNY225D2V, FRNY22D2W, FRNY22F2VI, DW2042FB, SR620X, Titan4, Titan 4, 3019986700.  The filter also suits the Westinghouse WHE7670sa.

About the Aqua Crystal DW2042FR-09 fridge filter: The filter is mounted on the ceiling inside the fridge.  This fridge water filter is the original water filter for Daewoo refrigerators and is designed to improve the taste of your water. Kept in optimal working order, it yields bottled water quality on tap at just a fraction of the cost.
The DW2042FR-09 Daewoo water filter reduces the following health related contaminants:
97.60% of Chlorine Taste and Odour
99.90% of Particulate (Class III)
Tested and Certified by NSF International against NSF/ANSI Standards 42 for the reduction of Chlorine Taste and Odour. As with all built-in refrigerator water filters, the Daewoo DW2042FR-09 Aqua Crystal does not remove Fluoride.
Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water.

Filter life: Refrigerator manufacturers typically recommend that fridge filters be replaced every 6 months or when the "change filter" light comes on.  However, keep in mind that unused fridge filters have an endless shelf life, so buying in bulk to save money makes cents!

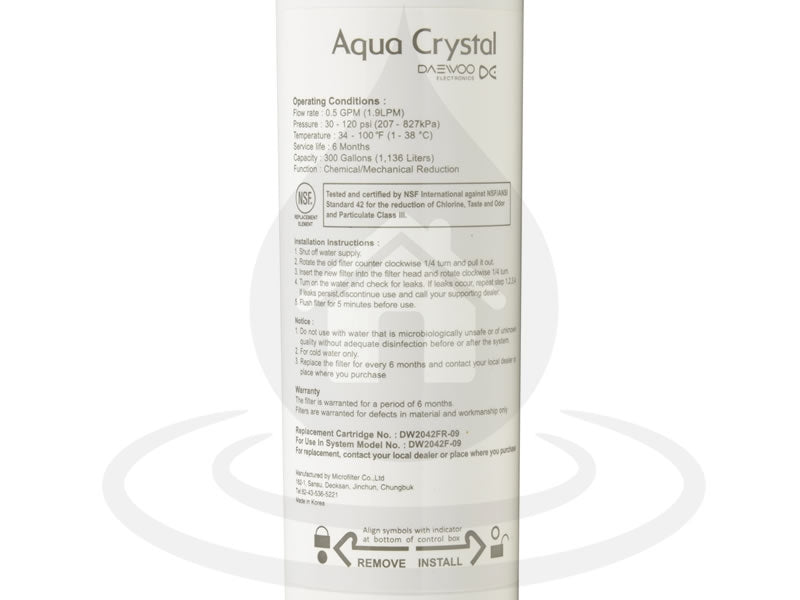

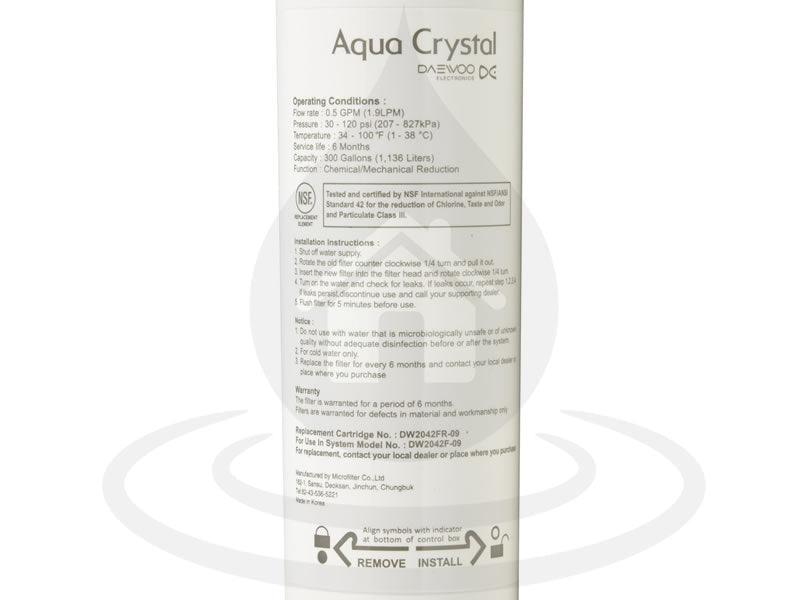

Technical specifications:

Flow Rate: 1.9 lpm
Operating Temperature: min 1°C / max 38°C
Operating Pressure: min 207 kPa (30 psi) / max 827 kPa (120 psi)
Function: Chemical and Mechanical Reduction
Capacity: 1,136 litres
Dimensions: approximately 2.5 cm x 12 cm

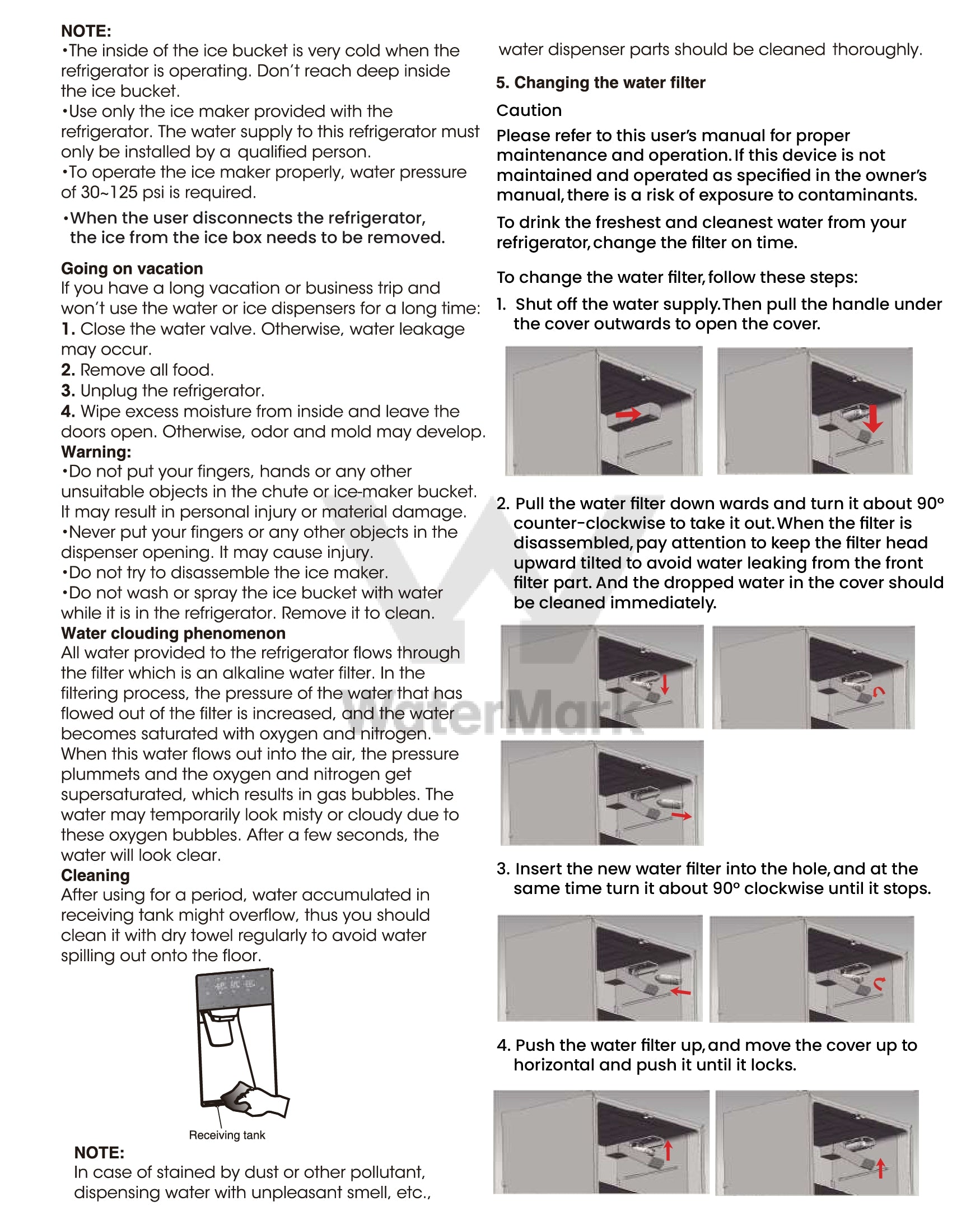

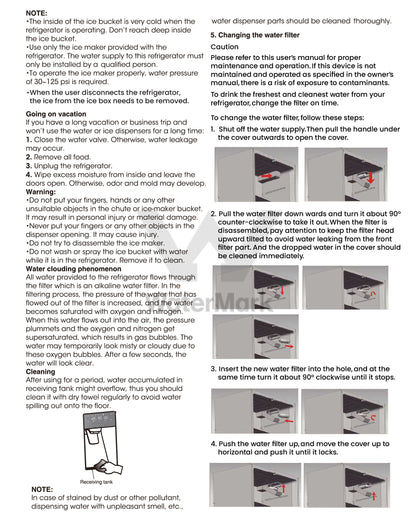

Installation instructions:

Shut off water supply.

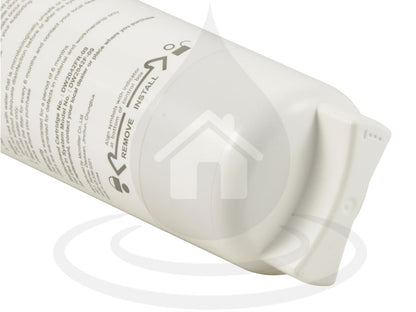

Rotate the old cartridge counter clockwise 1/4 turn and pull it out.
Remove white cap from the new water filter.
Insert the new filter into the filter head and twist the filter clockwise 1/4 turn.
Turn on the water supply and check for leaks.
Flush filter for 5 minutes before use to purge the system.

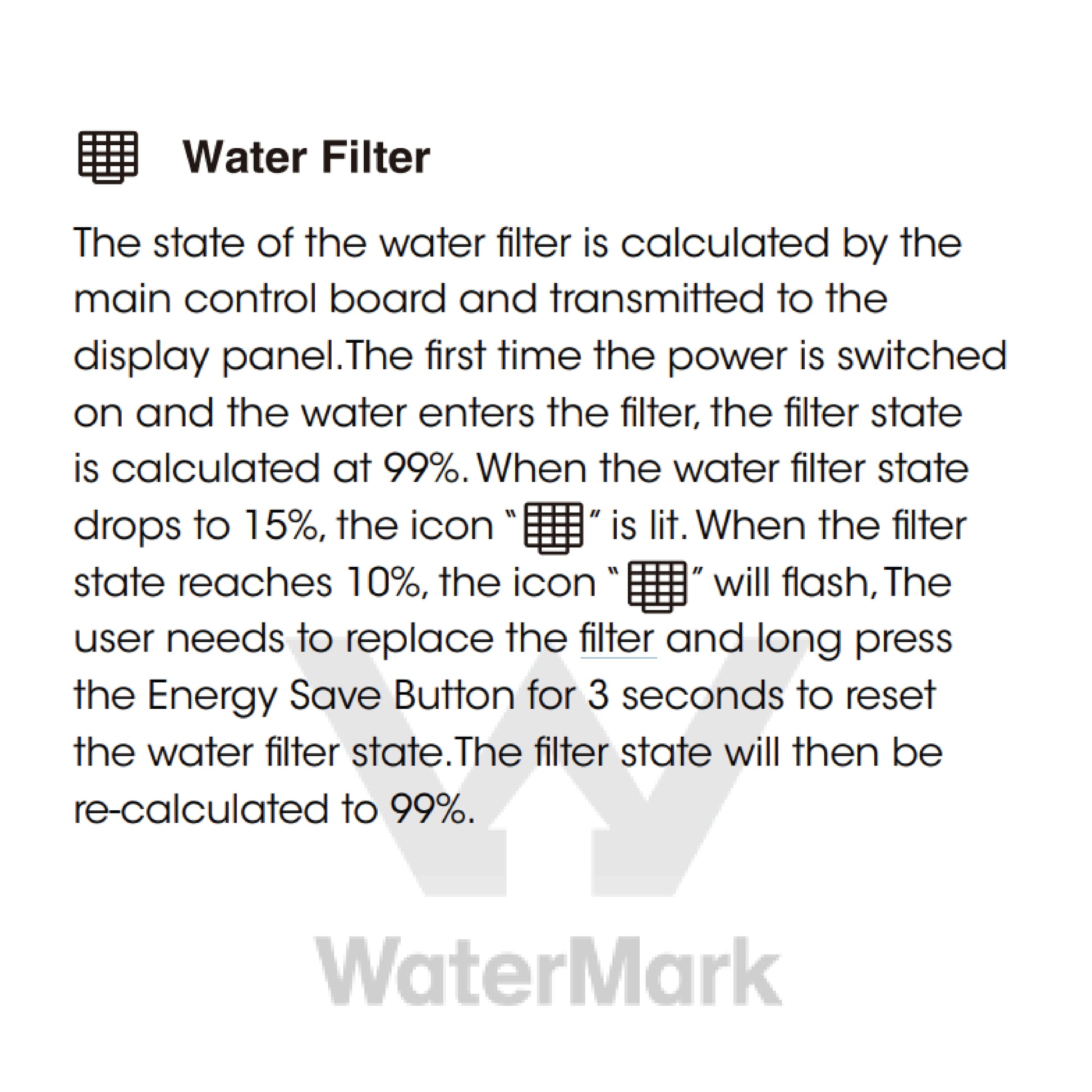

Reset the "Filter Indicator" light by pressing the Ice Maker Lock button for 3 seconds or more. While holding the lock button, the light will change to green.

View Installation Guide : Please CLICK here
