Twin Caravan & RV Water Filter System with Sediment & Silver Carbon Block Filter

Twin Caravan & RV Water Filter System
with Sediment & Silver Carbon Block Filter

Model Number: AB-TWCARAVAN(ABSILVER1025-5)

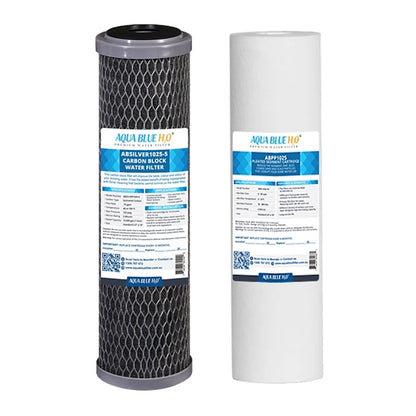

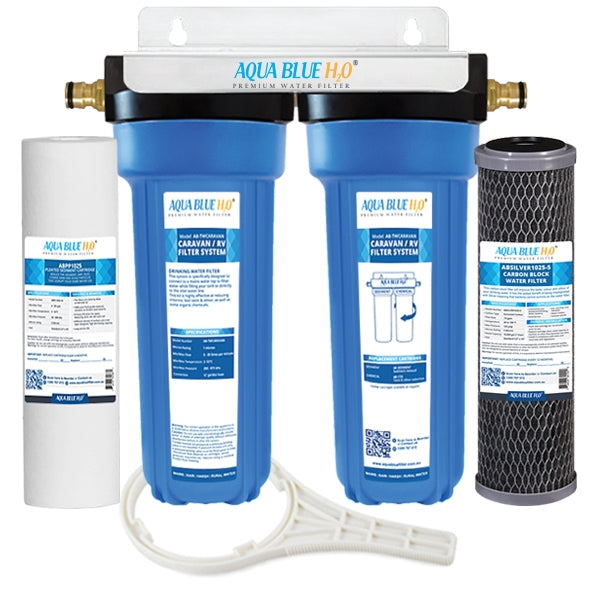

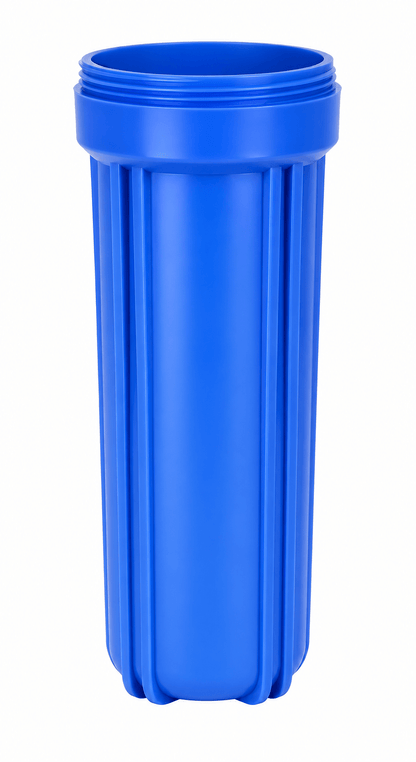

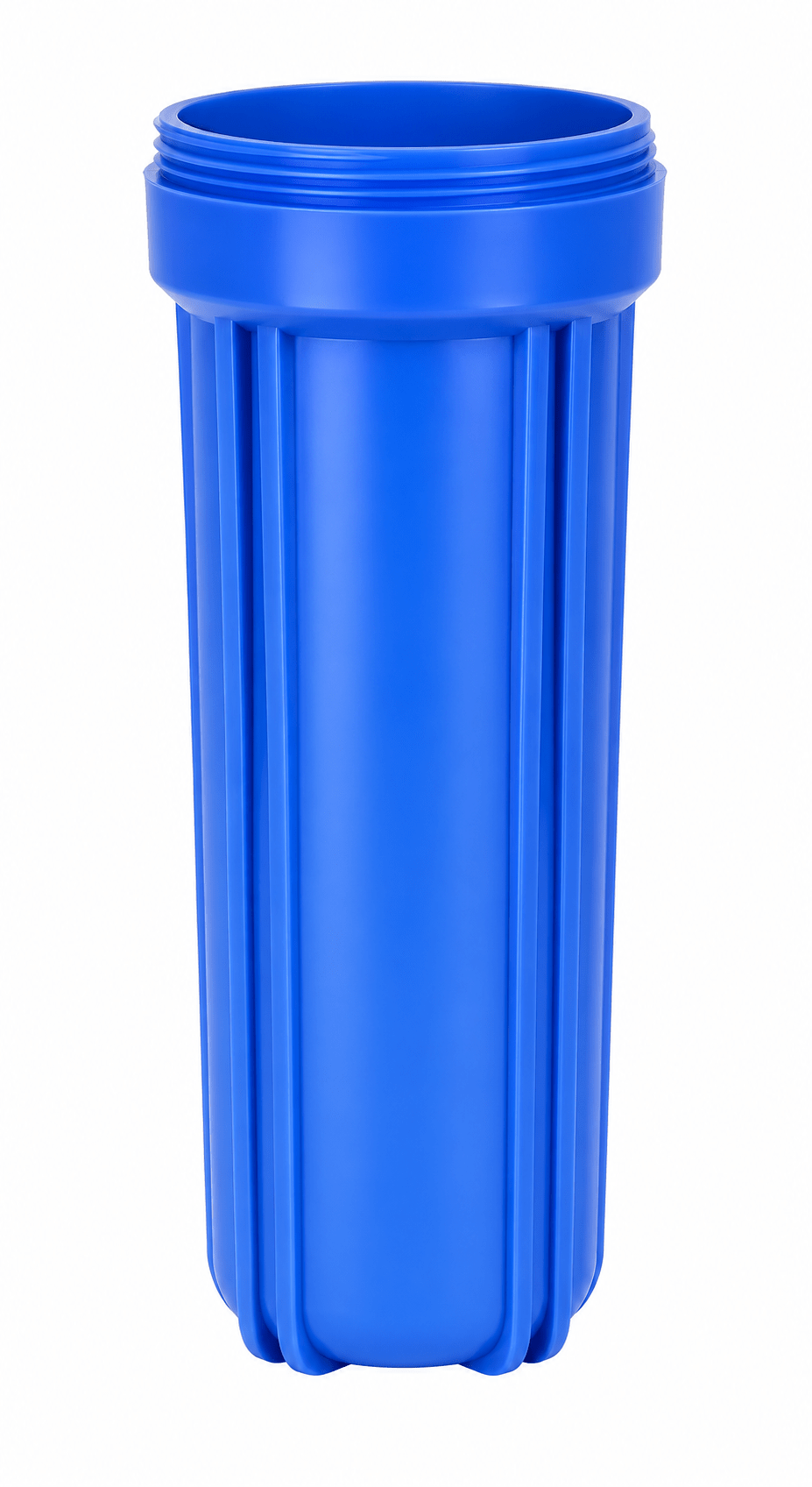

This Kit Includes: Twin housing assembly with stainless steel bracket,
Sediment & Silver Carbon Block Filters, Connection to suit standard garden hose fittings,
Spanner wrench

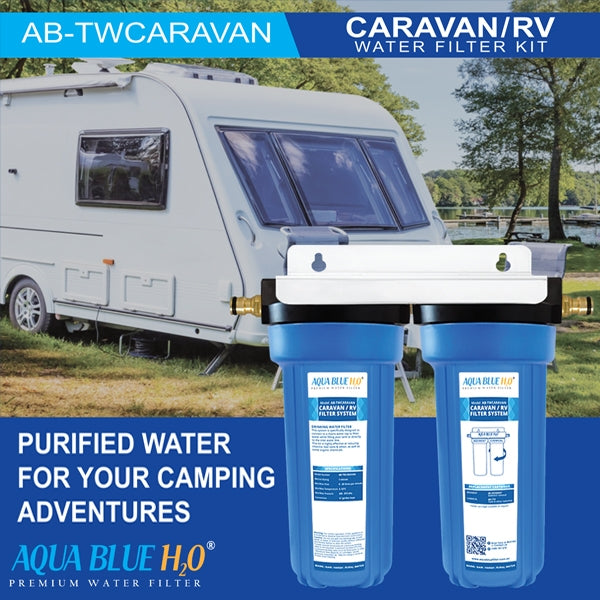

Purified Water For Your Camping Adventures

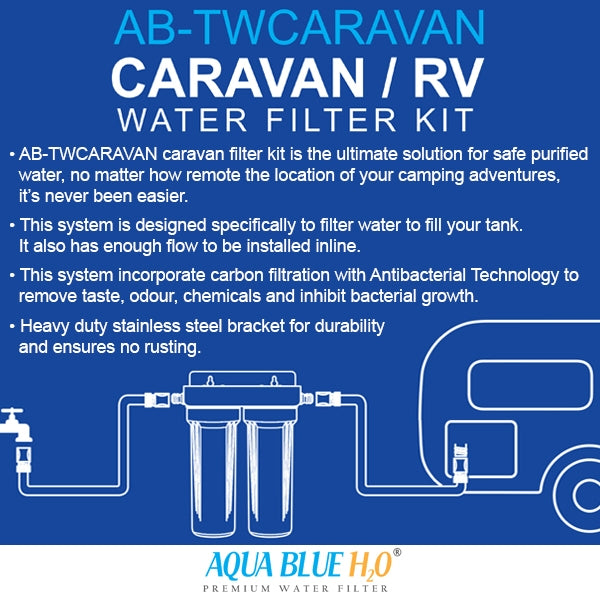

• AB-TWCARAVAN caravan filter kit is the ultimate solution for safe purified water, no matter how remote the location of your camping adventures, it’s never been easier.
• This system is designed specifically to filter water to fill your tank. It also has enough flow to be installed inline.
• This system incorporate carbon filtration with Antibacterial Technology to remove taste, odour, chemicals and inhibit bacterial growth.
• Heavy duty stainless steel bracket for durability and ensures no rusting.

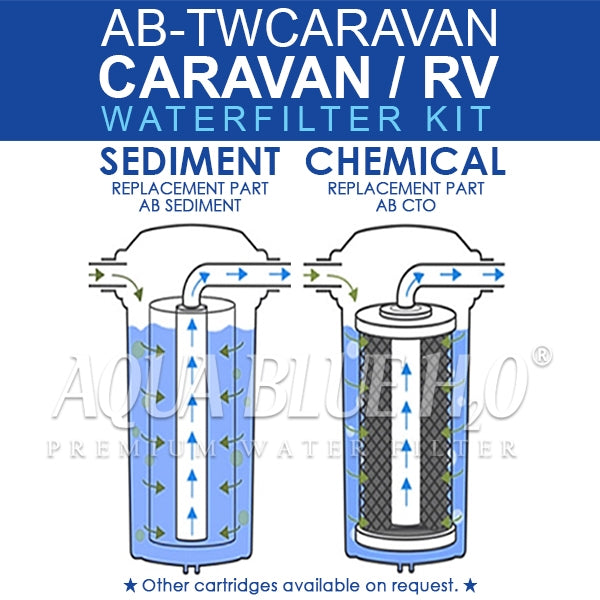

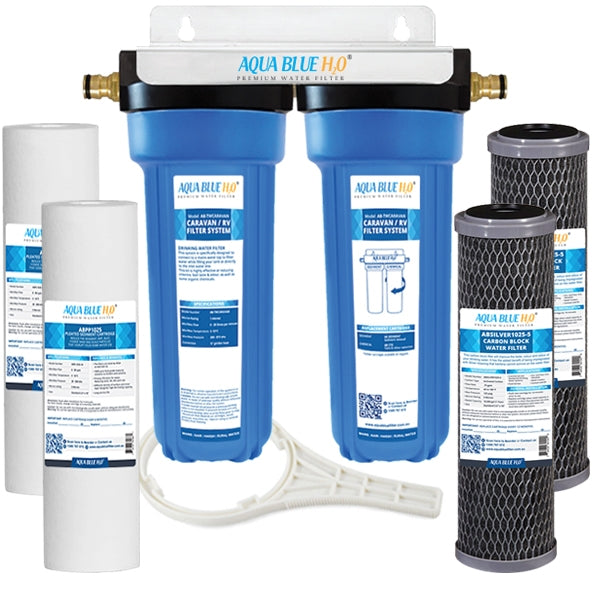

This Kit Includes

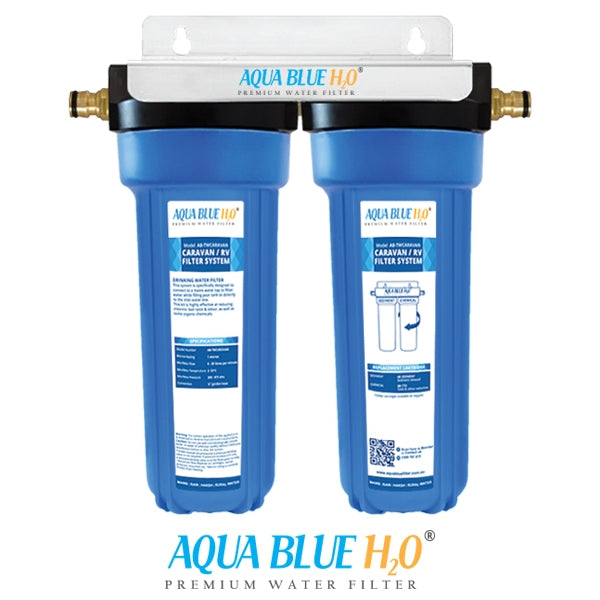

• Twin housing assembly with stainless steel bracket

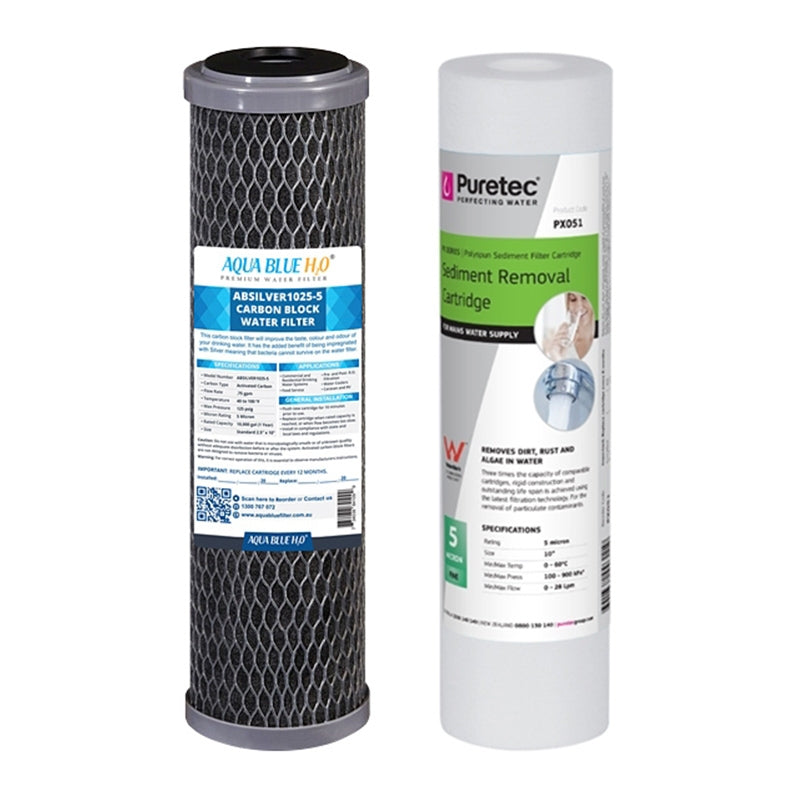

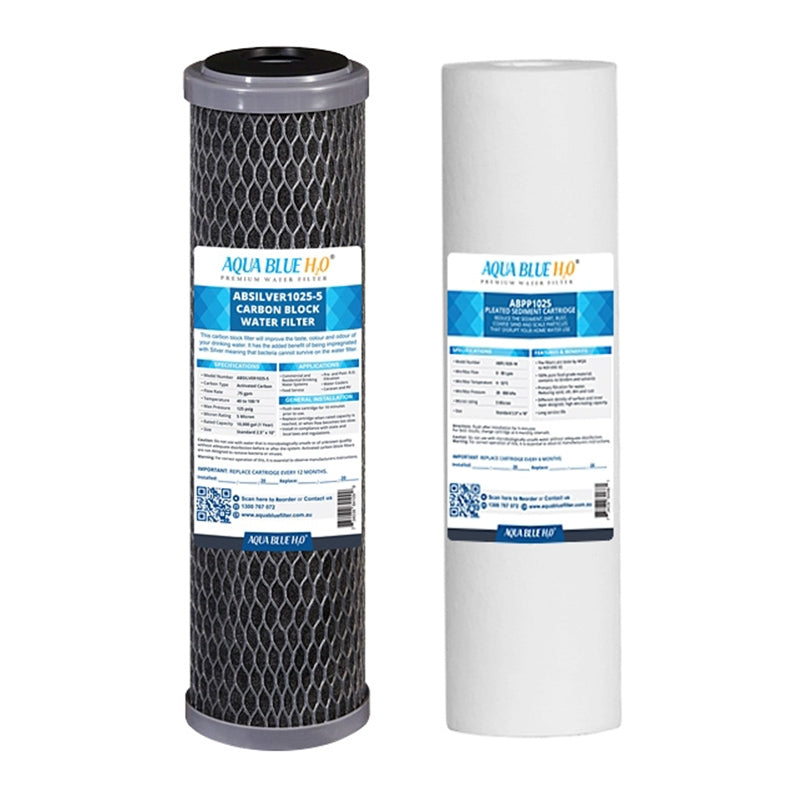

• Sediment & Carbon Filters
• Connection to suit standard garden hose fittings

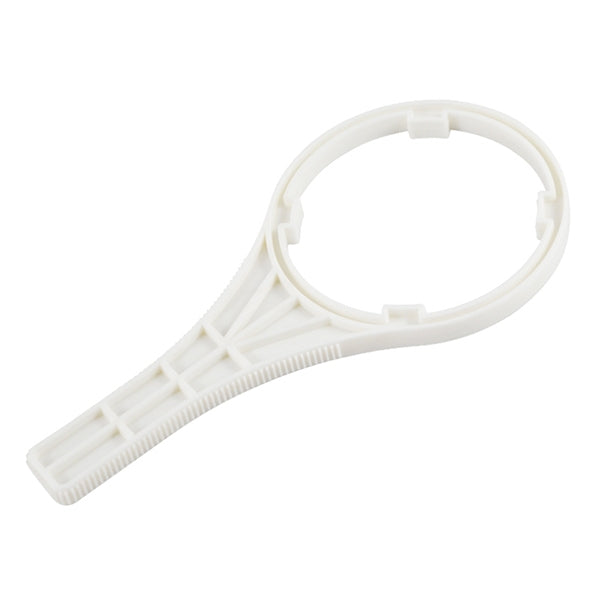

• Spanner wrench

Specifications
• Model Number: AB-TWCARAVAN
• Replacement Cartridge
- Sediment removal: AB SEDIMENT
- Taste & odour reduction: ABSILVER1025-5
• Min/max flow: 0 - 20 litres per minute
• Min/max temperature: 2 - 52°C
• Min/max pressure: 200 - 875 kPa
• Nominal micron rating: 1 micron
• Connection: garden hose

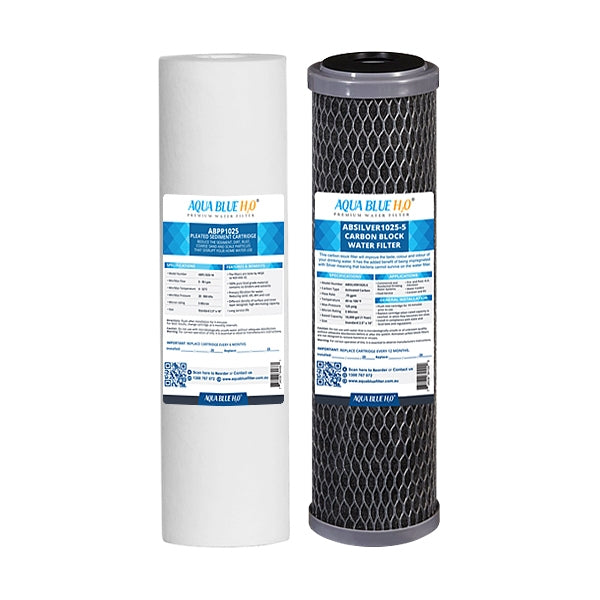

About Replacement Cartridges

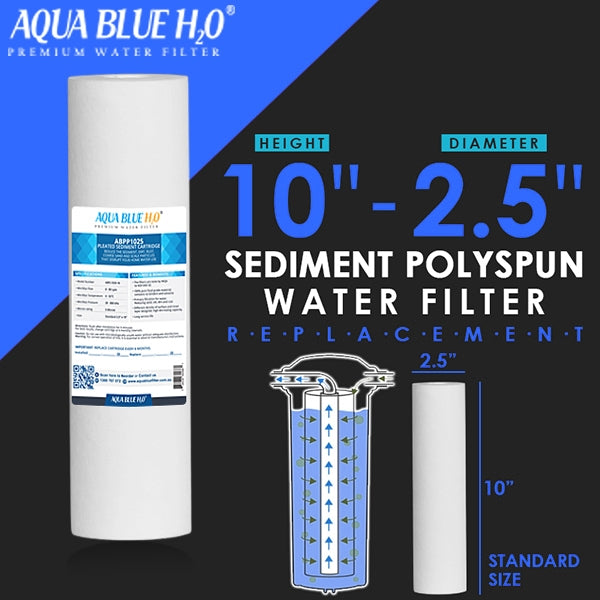

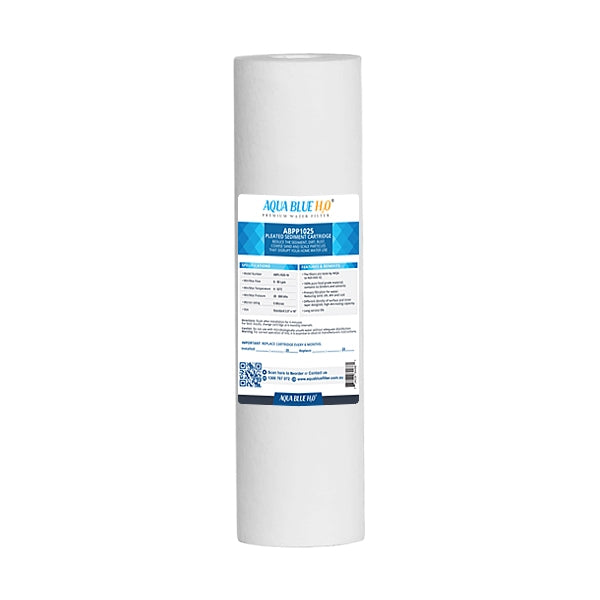

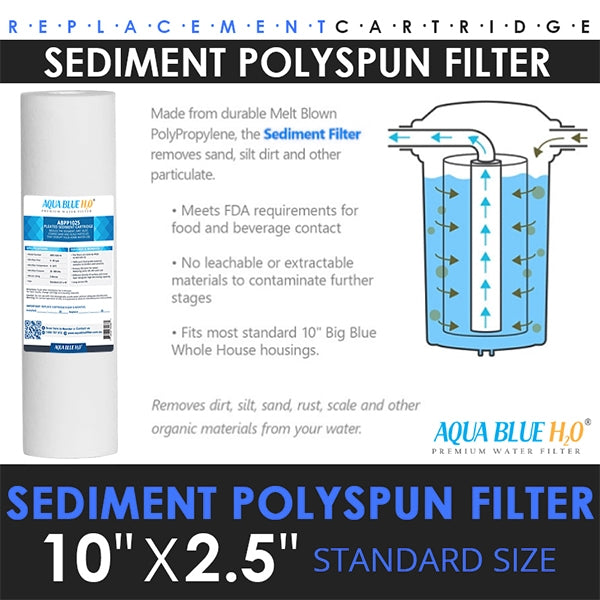

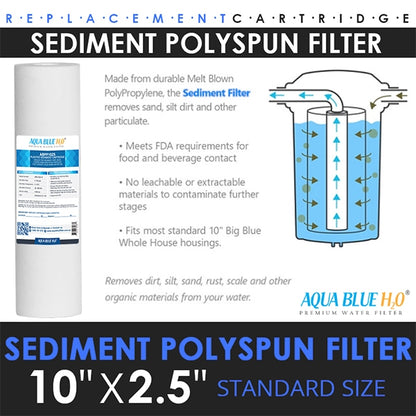

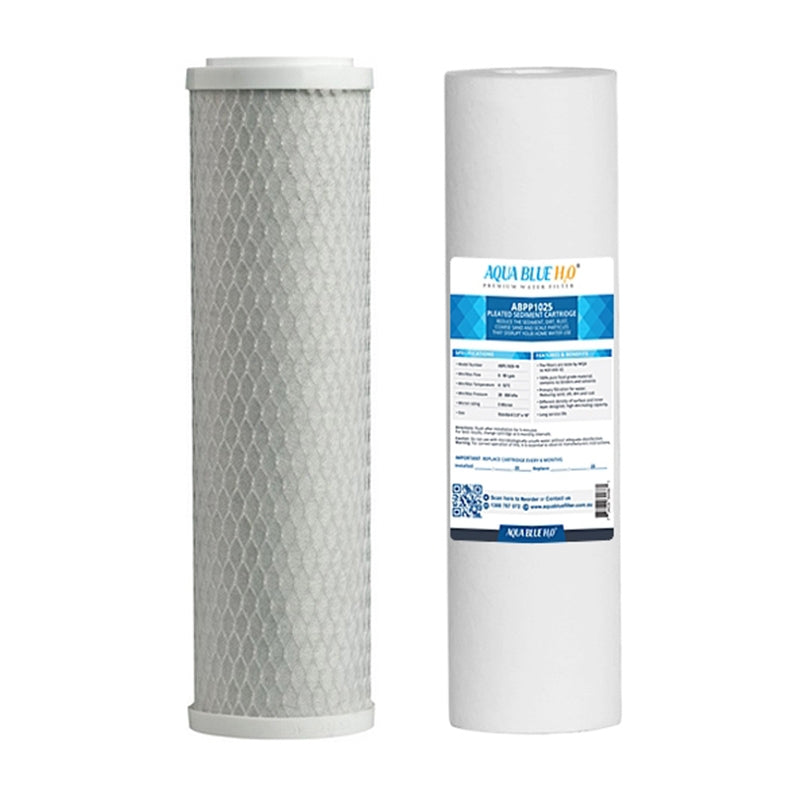

Polyspun Sediment Water Filter Cartridge

Model Number: ABPP1025
Fits in most standard 10" drop-in filter housing systems.
Used in residential, commercial, and food-service applications as a sediment filter or pre-filter.
10 x 2.5 Sediment replacement filter 5 micron x1
Suits all standard 10 inch housings
Premium filtration poly spun
Suitable for countertop or undersink water filter models

Features & Benefits
• Manufactured from 100% pure polypropylene fibers
• Filters out larger dirt and rust particles
• High dirt-holding capacity and superior sediment filtration
• Excellent bacteria and chemical resistance
• Extends the life of primary filter cartridges
• 100% Polypropylene material for wide chemical compact
• True multi-layered depth filtration
*Pressure drop will be determined based on feed water pressure, filter cartridge selection and port sizes, fluid viscosity, filter life and conditions

10" Polyspun Sediment Water Filter Cartridge 5 Mic

ABPP1025 Specification
• Operating Flow: 0 - 90 Lpm
• Operating Temperature: 4 - 52°C
• Operating Pressure: 20 - 800 kPa
• Micron Rating: 5 Micron
• Size: Standard 2.5” x 10”

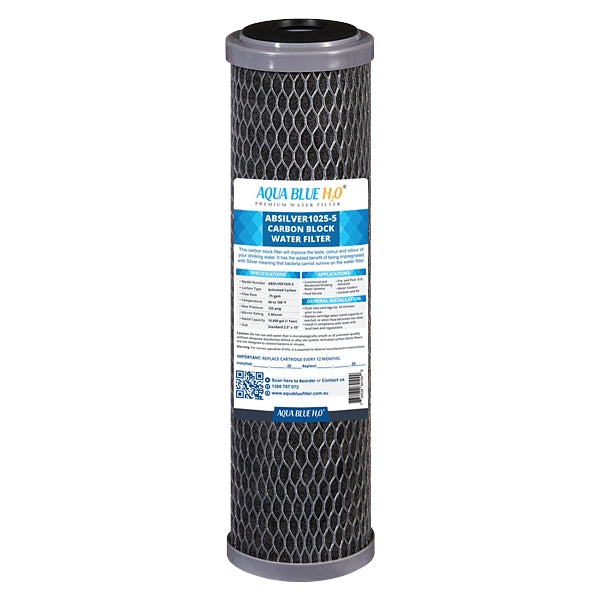

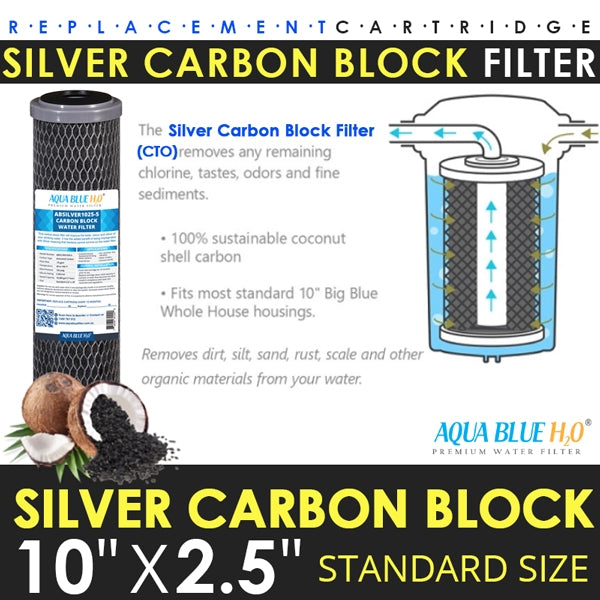

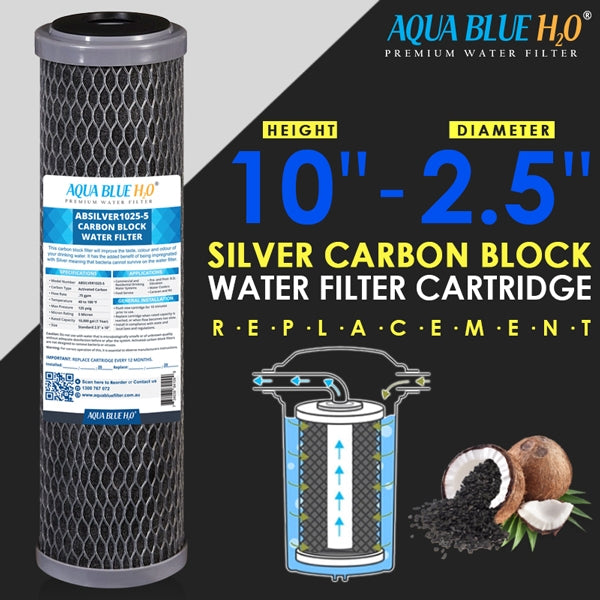

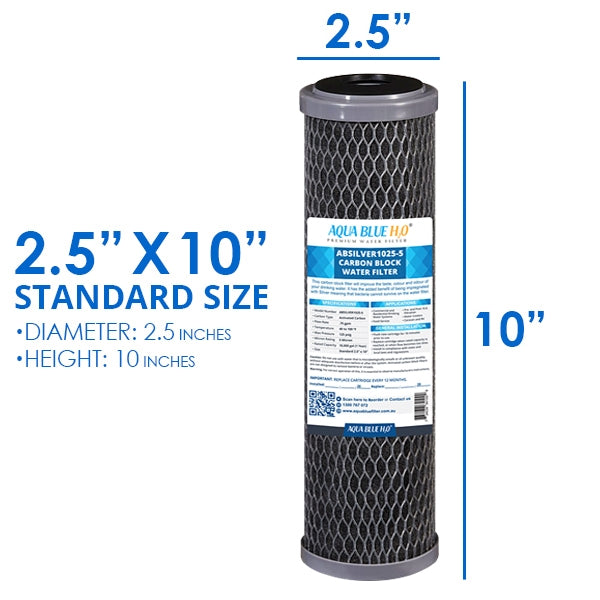

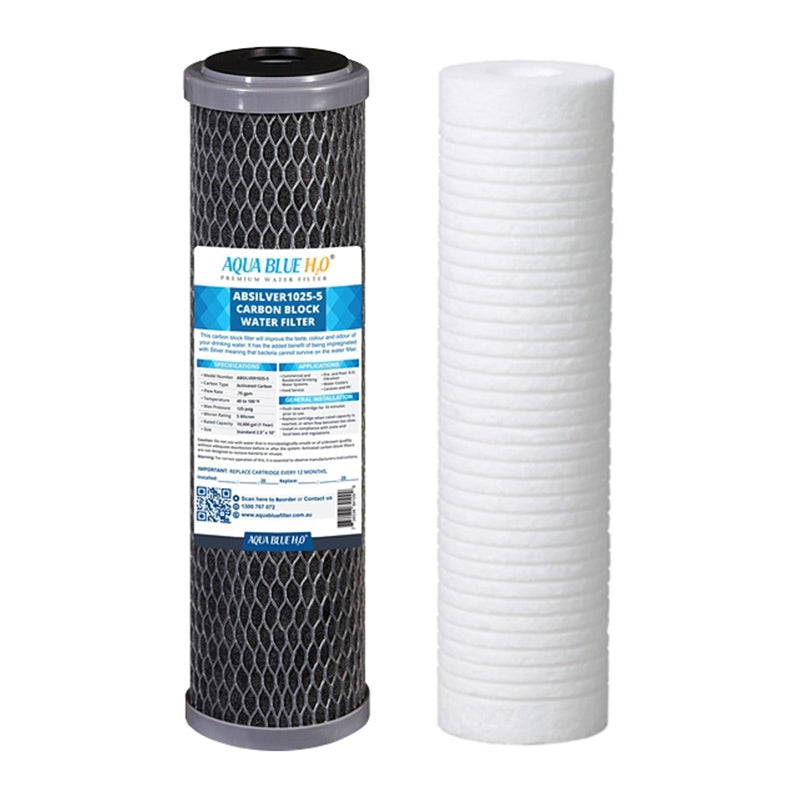

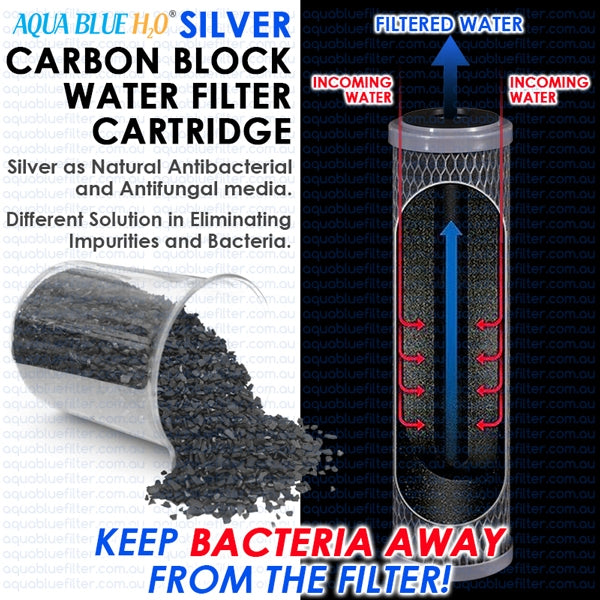

Silver Carbon Block Filter Cartridge
Standard 2.5” x 10”, 5 Micron

Features & Benefits
Silver as natural antibacterial and antifungal media.
Different solution in eliminating impurities and bacteria.
Keep bacteria away from the filter.
100% Factory checked ready for quick and reliable installation.

General Installation
1. Flush new cartridge for 10 minutes prior to use.
2. Replace cartridge when rated capacity is reached, or when flow becomes too slow.
3. Install in compliance with state and local laws and regulations.

Filter Cartridge Can Be Used For The Following Purposes
Bath, Kitchen, Drinking Water Systems, Laundry, Aquariums, Home Brewing

Specifications
- Model Number: ABSILVER1025-5
- Carbon Type: Activated Carbon
- Flow Rate: .75 gpm
- Operating Temperature: 40 - 100 ºF
- Max. Pressure: 125 psig
- Micron Rating: 5 Micron
- Size: Standard 2.5” x 10”

Directions: Flush after installation for 5 minutes. For best results, change cartridge at 6 monthly intervals.
Caution: Do not use with microbiologically unsafe water without adequate disinfection.
Warning: For correct operation of this, it is essential to observe manufacturers instructions.
