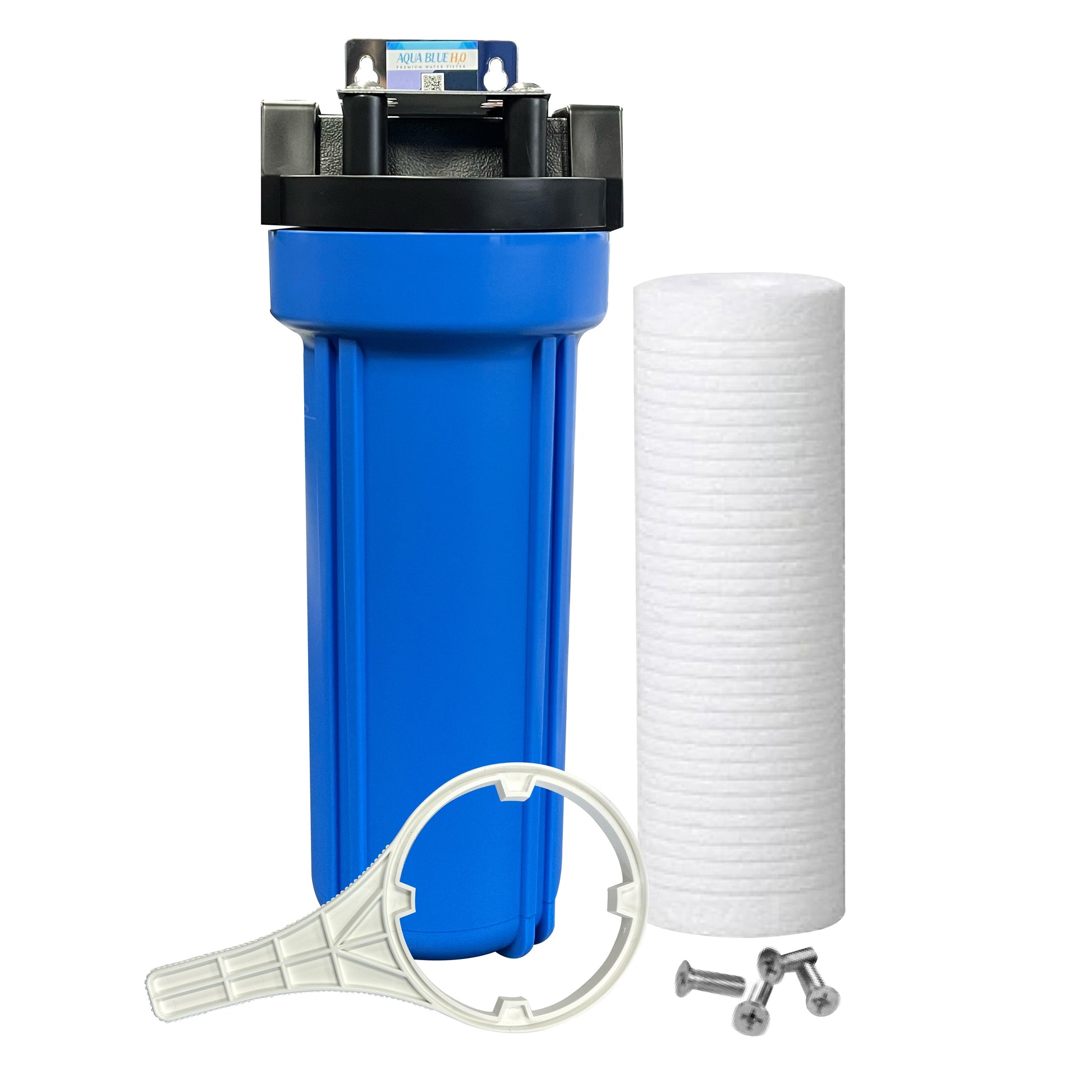

Installation and replacement procedure for the Aqua Pure AP110 water filter

1. Turn shut-off valve clockwise to "Off: position.

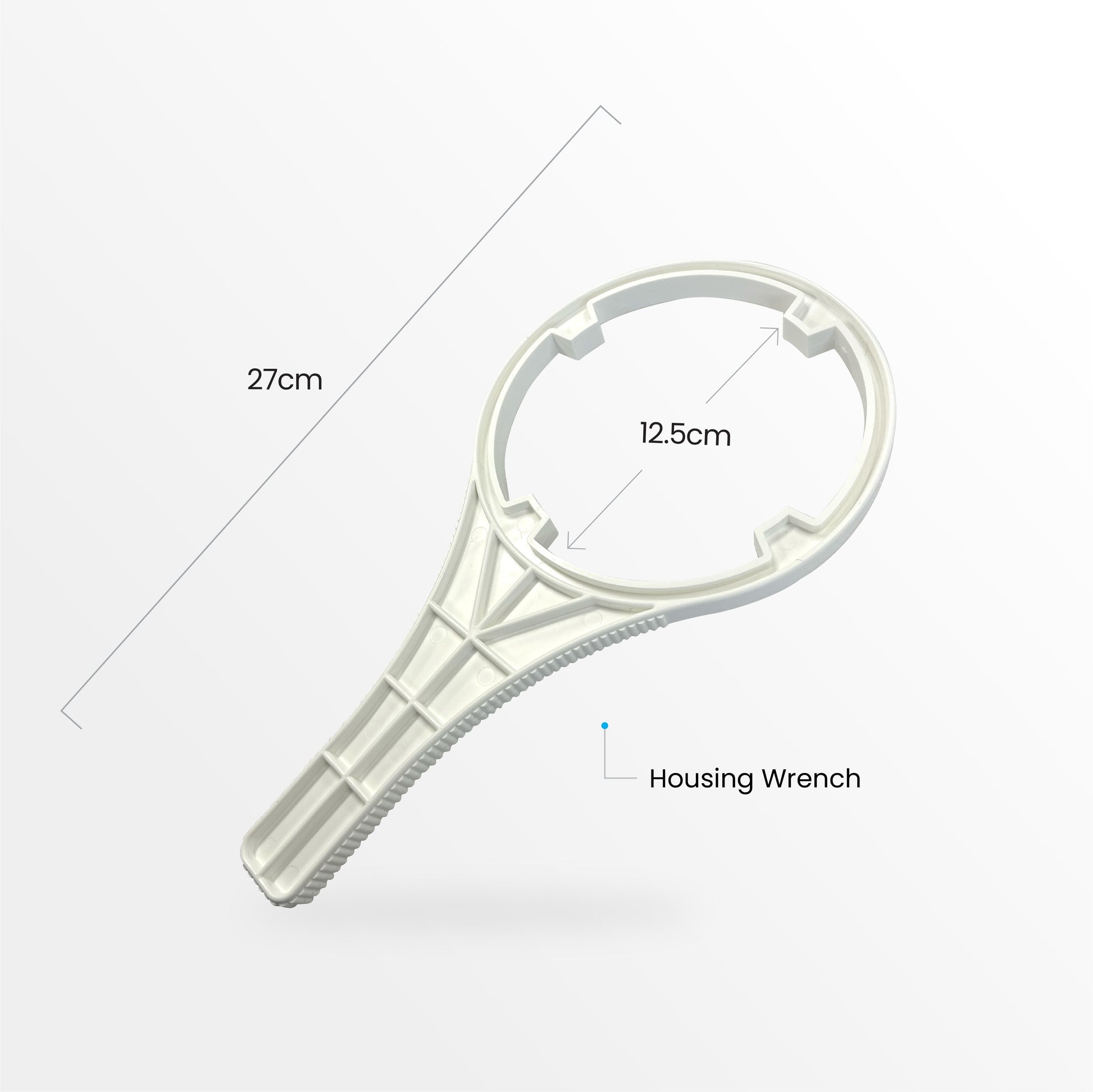

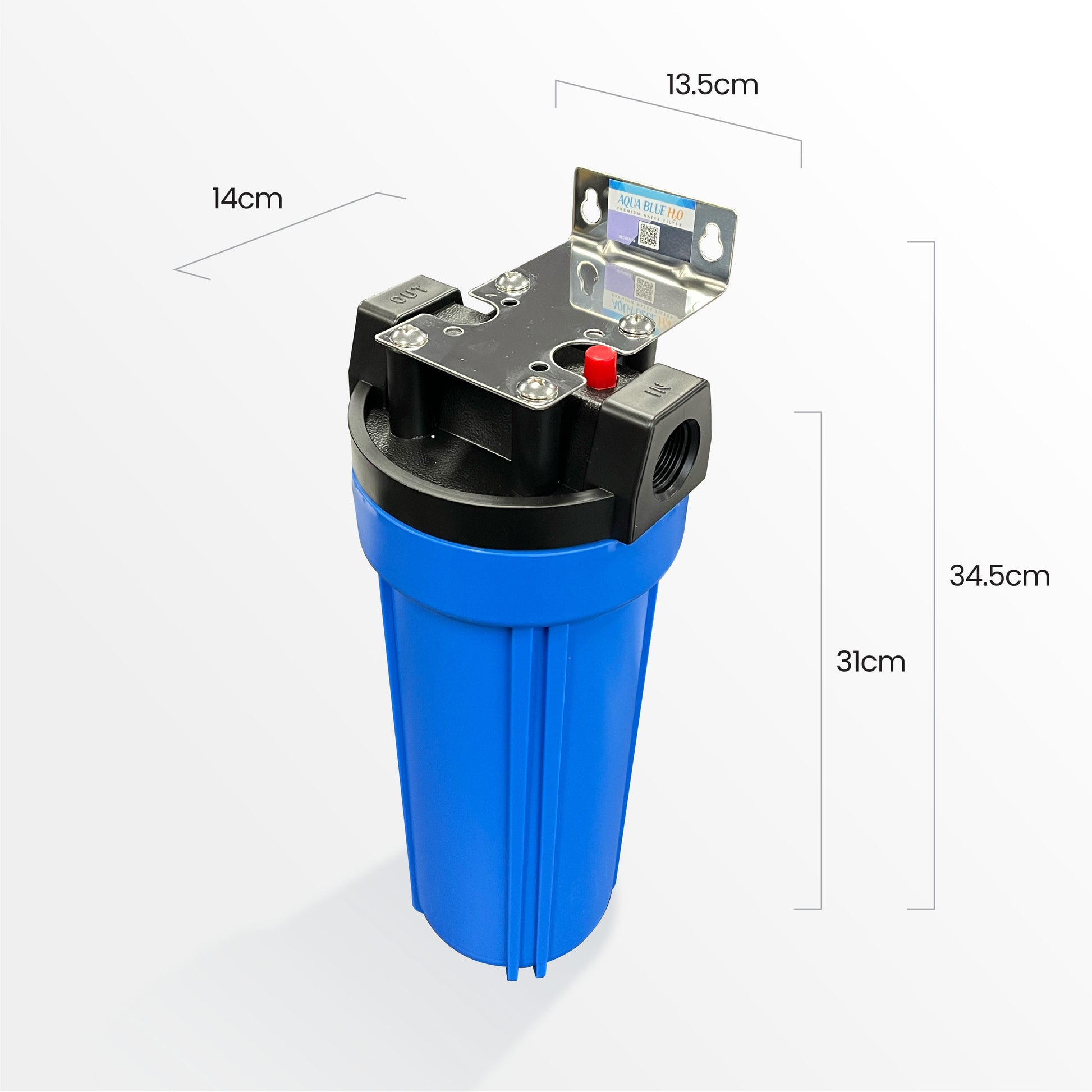

2. Remove housing by sliding wrench up toward head then turn to the left.

3. Wipe housing clean and insert new cartridge.

4. Lubricate O-ring and screw housing into head.

5. Turn shut-off valve back to "On" position.

Important: There is a replacement indicator light for the water filter cartridge on the dispenser. The filter cartridge should be replaced when the filter light comes on, or every 6 months, or if you notice a decrease in flow of water.

The Aqua Pure AP110 Compatible with

AP11T, AP11S, AP12T, AP12S, AP101T, AP101S, AP102T, AP102S, AP1610, AP2610, SST1, SST2, FHT-34-S, FHO-34-S-S, FHT-34SS-S, FHO-34-SS-S, USOM-38-S,UST-38, USO-14-S

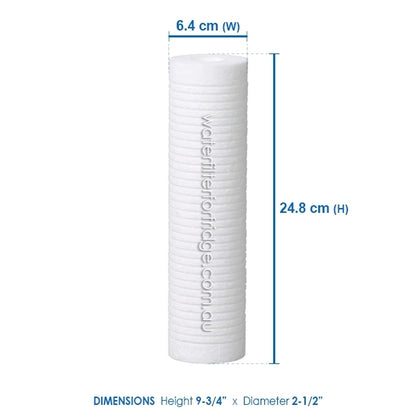

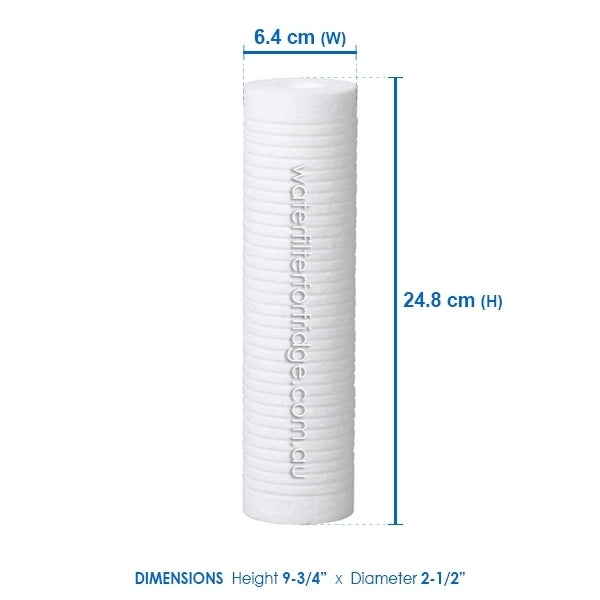

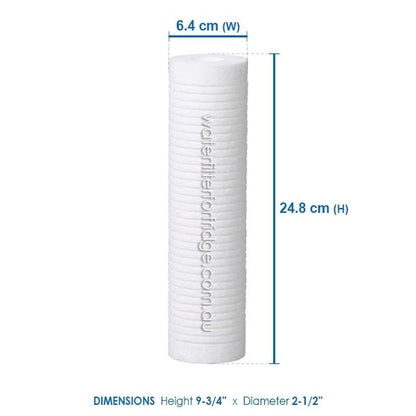

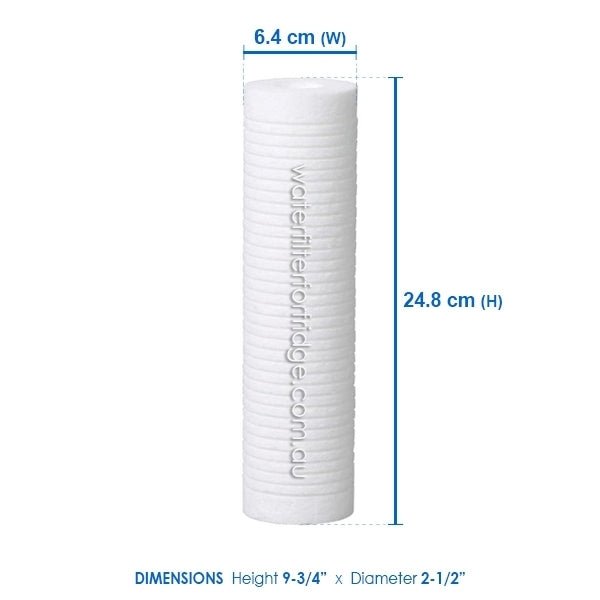

most competitors systems that require 2.5" x 9.75" cartridges

Cuno part # 56204-04

Alternative Part #: AP110

Grainger Part #: 1P753

Aqua Pure AP110 Product Benefits

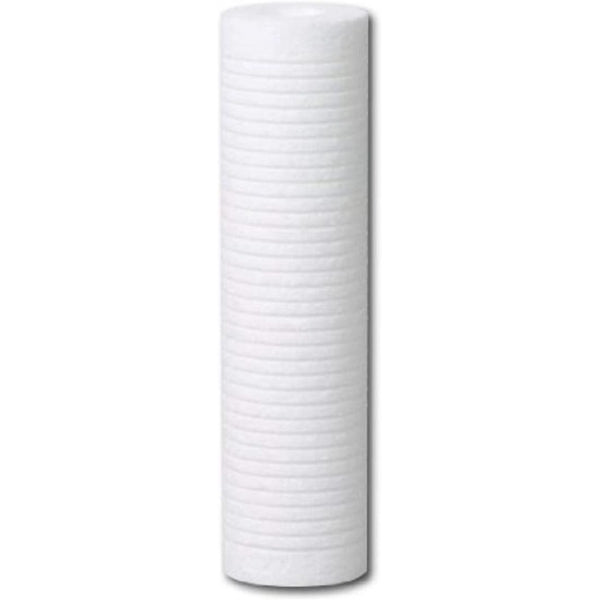

Patent pending technology provides fi ne sediment fi ltration down to 5 micronGrooved cartridge increases surface area for longer cartridge life, by 132% over non-grooved and 47% over the previous designRigid construction helps to eliminate sediment “unloading” due to variances in water pressure

This water filter is recommended by the manufacturer to be replaced every 6 months, or when the "change filter" light comes on.

Specifications

Flow Rate 0 - 30.28 Lpm

Operating Temperature min 0.6°C / max 38°C

Operating Pressure min 207 kPa (30 psi) / max 827 kPa (120 psi)
Function Chemical and Mechanical Reduction
Capacity 1,575 litres
Service Life 6 months
Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Filter life: Most refrigerator manufacturers recommend that fridge water filters be replaced every 6 months or when the "change filter" light comes on. This ensures your water and ice taste clean, and that your fridge's ice & water dispenser stays in optimal working order.

NSF APPROVED
LOOK AFTER YOUR HEALTH ALWAYS BUY A FILTER THAT HAS BEEN APPROVED BY A WELL KNOWN STANDARDS FEDERATION OR WATER AUTHORITY NSF OR WRAS.
