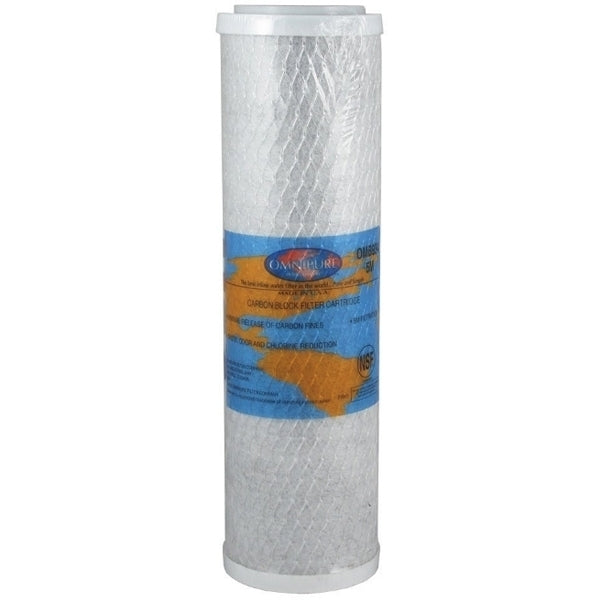

The OMB-Series carbon block replacement cartridge by Omnipure feature the new Omnipure Block media. This high quality carbon block media is manufactured from raw materials to precise specifications. The OMB-Series is designed to fit in standard 10" filter housings.

Omnipure OMB934 10M Cartridge Features

•Omnipure OMB934 10M filter elements have been designed to fit most standard household and commercial housings.

Your Omnipure representative can verify filter-housing compatibility.

•All information provided is based on data believed to be reliable. It should be used for evaluation and verification but not as a warranty.

•Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Activated carbon block filters are not designed to remove bacteria or viruses.

•Actual performance results may vary based on the level of organic contaminants in the influent water, changes in pH and upon other conditions that may be encountered during actual use.

General Installation/Operation/Maintenance Requirements

•Flush new cartridge for 10 minutes prior to use.

•Replace cartridge when rated capacity is reached, or when flow becomes too slow.

•Install in compliance with state and local laws and regulations.

Omnipure OMB934 10M Cartridge Applications

•Commercial and Residential Drinking Water Systems

•Pre- and Post- R.O. Filtration

•Coffee Machines

•Ice Machines

•Water Coolers

•Food Service

•6 Months Scale Inhibitor

Specifications

Omnipure-OMB934 10M

Micron Rating : >98% @ 10 _m

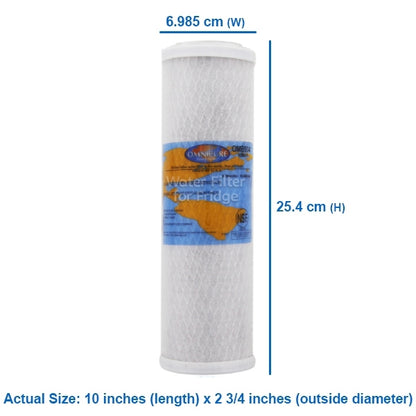

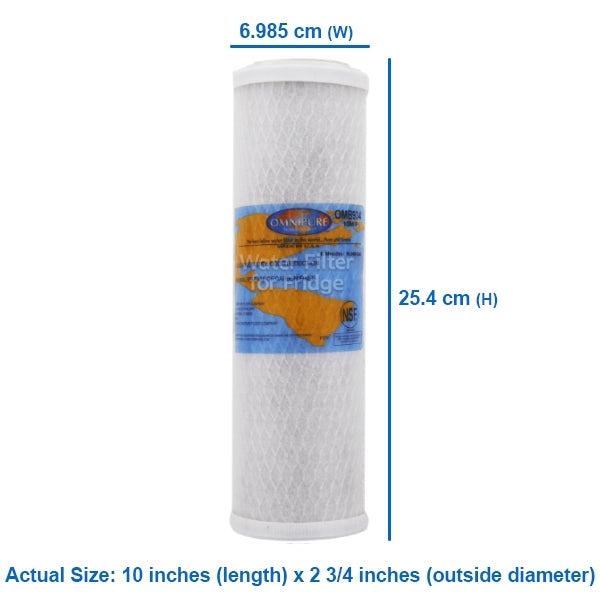

Filter Dimensions : 2.50" O.D. x 1.25" I.D. x 9.80" L

Chlorine Reduction : >95%10,000 gallons @ 0.75 GPM

Initial _P : <2.0 psid @ 0.75 GPM

Carbon Weight : 0.75 lbs.

Carbon Type : Activated Carbon

Operating Temperature: 40 -125 F

Maximum Operating Pressure: 250 psig

Maximum Differential Pressure: 100 psid

Collapse Pressure: 200 psid

Notes: Chlorine reduction capacity based on laboratory testing conducted using test protocol contained in NSF Standard 42.
