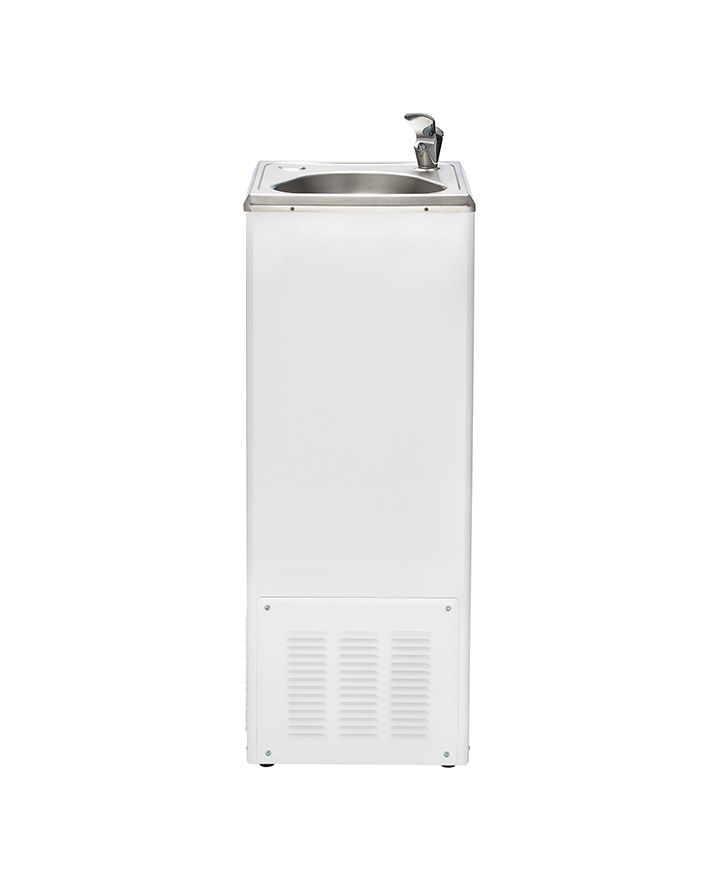

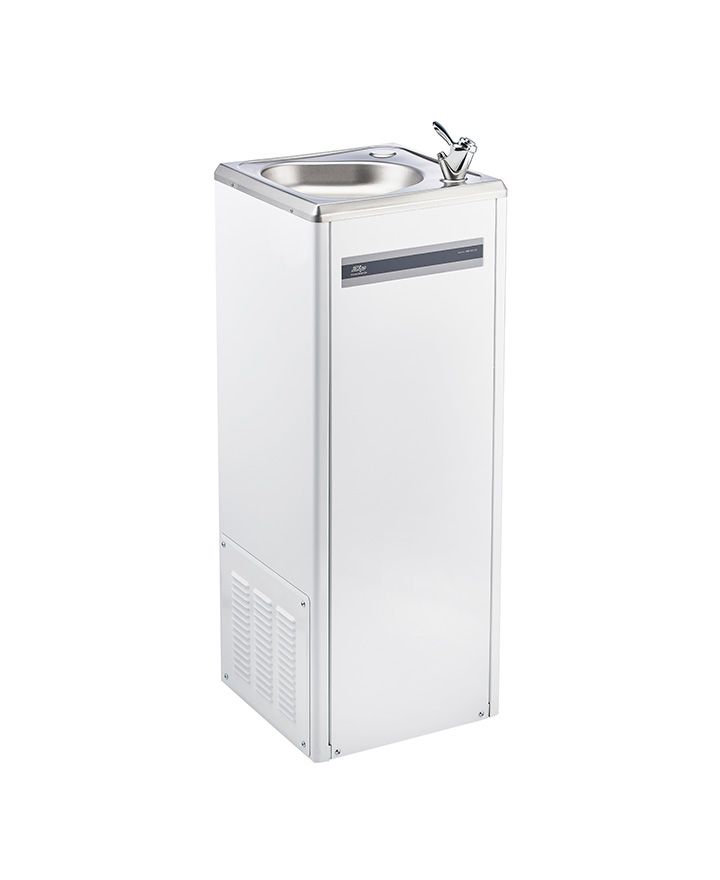

Zip SiteMaster 140 Chilled Water Bubbler 19 (SM1500-1)

Product Description

The Zip SiteMaster 140 B 19 (SM1500-1) is a heavy-duty, freestanding chilled drinking water appliance designed for commercial and high-use environments.

Featuring an IP23-rated design with durable, anti-vandal and easy-to-clean tapware, the SiteMaster provides reliable access to chilled drinking water for workplaces, factories, warehouses, schools and other commercial facilities.

This model is equipped with a bubbler tap only and is available with optional LAB PUA commercial water filtration in either 1 Micron or 5 Micron configurations.

• Brand: Zip Water

• Product Name: SiteMaster 140 B 19

• Product Code: SM1500-1

• Application: Commercial / Heavy-Duty

• Installation: Freestanding

• Water Type: Chilled Drinking Water

• Tap Configuration: Bubbler Only

Specifications

• Product Name: SiteMaster 140 B 19

• Product Code: SM1500-1

• Warranty: 12 Months

• Dimensions (H × W × D): 915 × 354 × 359 mm

• Water Connection: 12.7 mm BSP

• Water Pressure: 150–700 kPa

• Power Supply: 220–240V, 50Hz

• IP Rating: IP23

• Tap: Bubbler Only

Optional LAB PUA Water Filtration

Upgrade your Zip SiteMaster SM1500-1 with a LAB PUA commercial water filter to improve drinking water quality while helping protect the water system from sediment and scale accumulation.

Choose between 1 Micron and 5 Micron filtration depending on your application and water conditions.

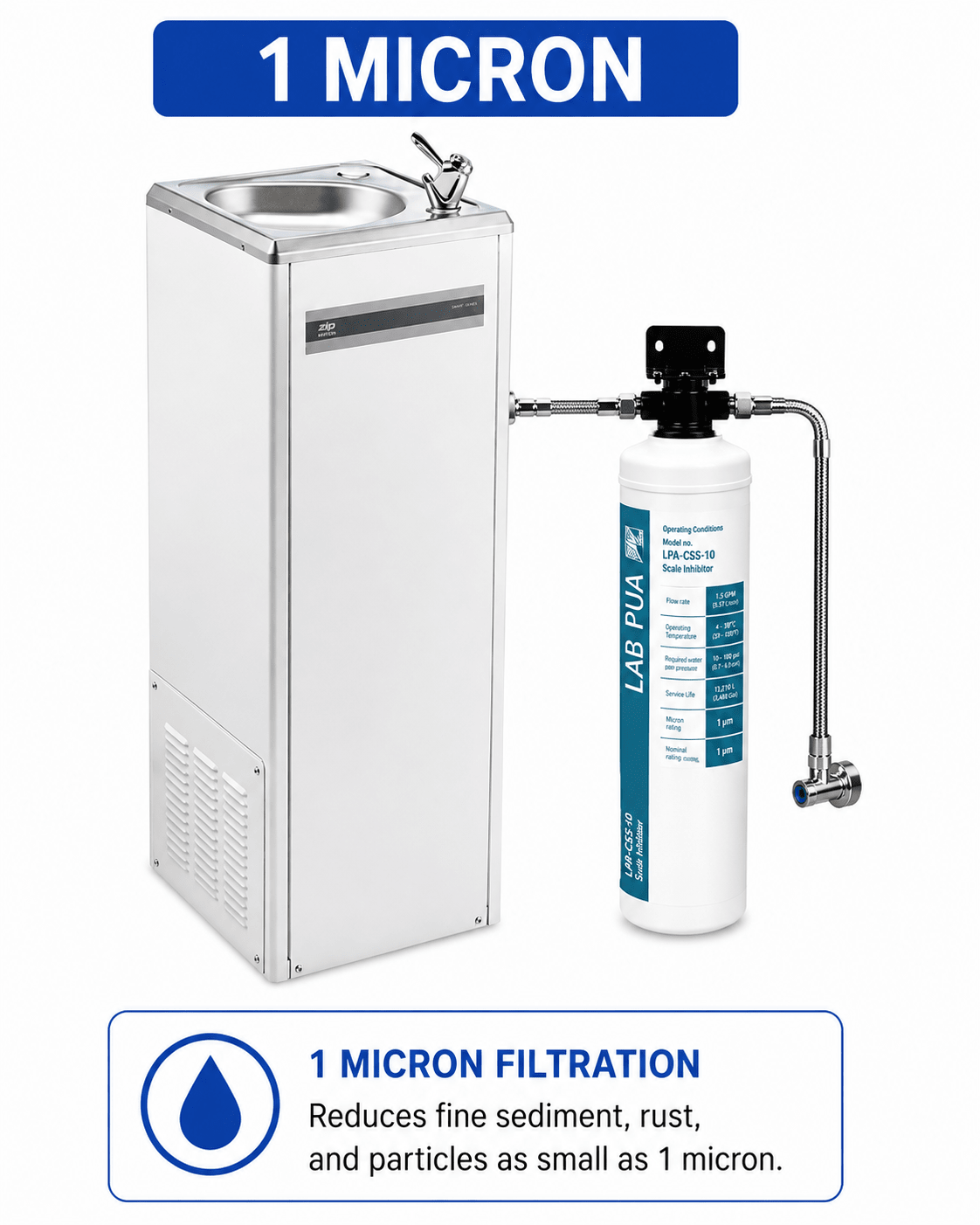

LAB PUA LPA-CS1-10 – 1 Micron

Fine Filtration + Chlorine Reduction + Scale Protection

• 1 Micron filtration

• Reduces fine sediment and particulates

• Reduces chlorine, unpleasant taste and odour

• Scale inhibitor helps reduce limescale build-up

• Helps protect internal water components

• Suitable where finer filtration is preferred

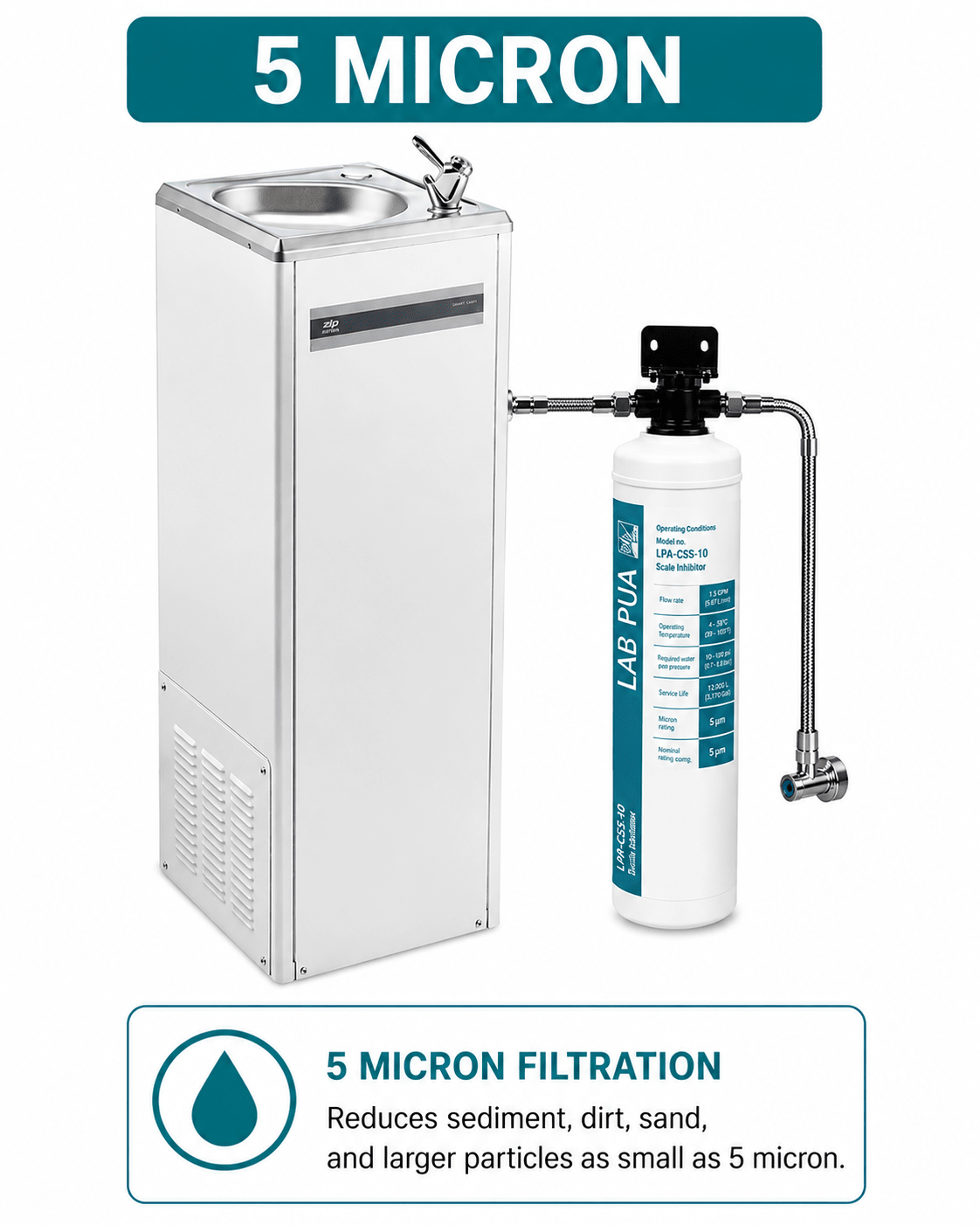

LAB PUA LPA-CS5-10 – 5 Micron

Commercial Filtration + Chlorine Reduction + Scale Protection

• 5 Micron filtration

• Reduces sediment and particulates

• Reduces chlorine, unpleasant taste and odour

• Scale inhibitor helps reduce limescale build-up

• Helps protect internal water components

• Ideal for commercial applications where good water flow and effective filtration are required

Choose Your Confi

Zip SM1500-1 Sitemaster 140 B 19 Freestanding Chilled Drinking Water With Bubbler

guration

Select the option that best suits your installation:

• Zip SiteMaster SM1500-1 – Bubbler Only
Standard SiteMaster configuration without the optional LAB PUA filtration kit.

• Zip SiteMaster SM1500-1 + LAB PUA LPA-CS1-10 – 1 Micron
Fine filtration for the reduction of chlorine, sediment, taste and odour, with added scale protection.

• Zip SiteMaster SM1500-1 + LAB PUA LPA-CS5-10 – 5 Micron
Commercial filtration with excellent flow, reducing chlorine, sediment, taste and odour while providing scale protection.

Why Add LAB PUA Filtration?

Adding LAB PUA filtration helps provide cleaner, better-tasting chilled drinking water while also helping protect the SiteMaster's internal water system.

The filtration system targets:

• Chlorine taste and odour

• Sediment and particulates

• Limescale build-up

• Unpleasant taste and odour

For commercial installations, scale protection can also help reduce mineral accumulation within water-contact components and support long-term equipment performance.

Certifications

• ARC (AU02691)

• WaterMark (Lead Free)

• CE

• Environmental Management – ISO 14001

• Occupational Health & Safety – ISO 45001

• Quality Management – ISO 9001

Important: LAB PUA filtration is an optional configuration and is not manufactured by Zip Water. Select your preferred filtration option from the product variations when ordering.

Lead time  1 week
