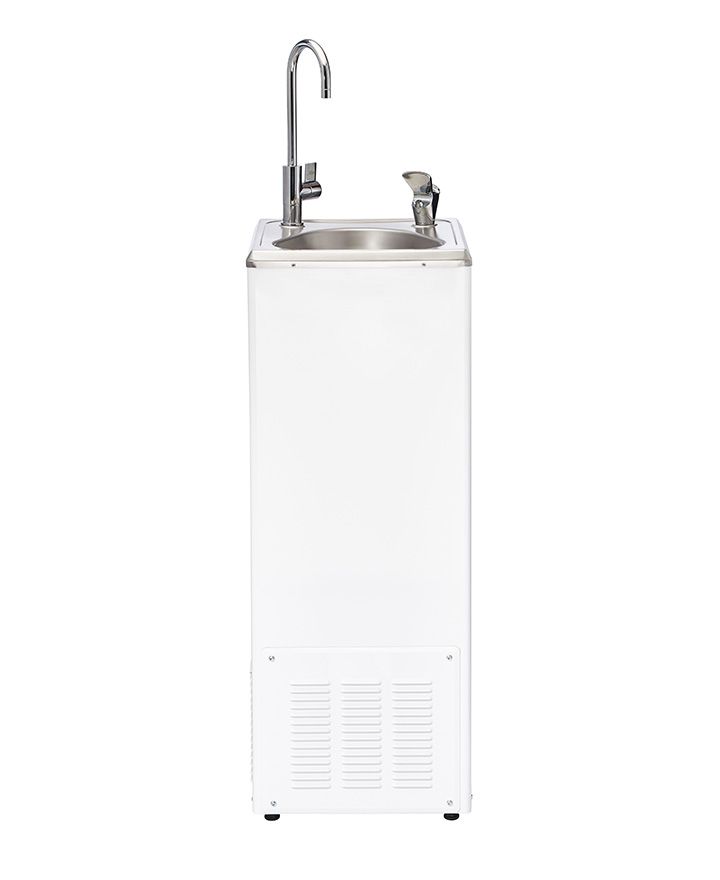

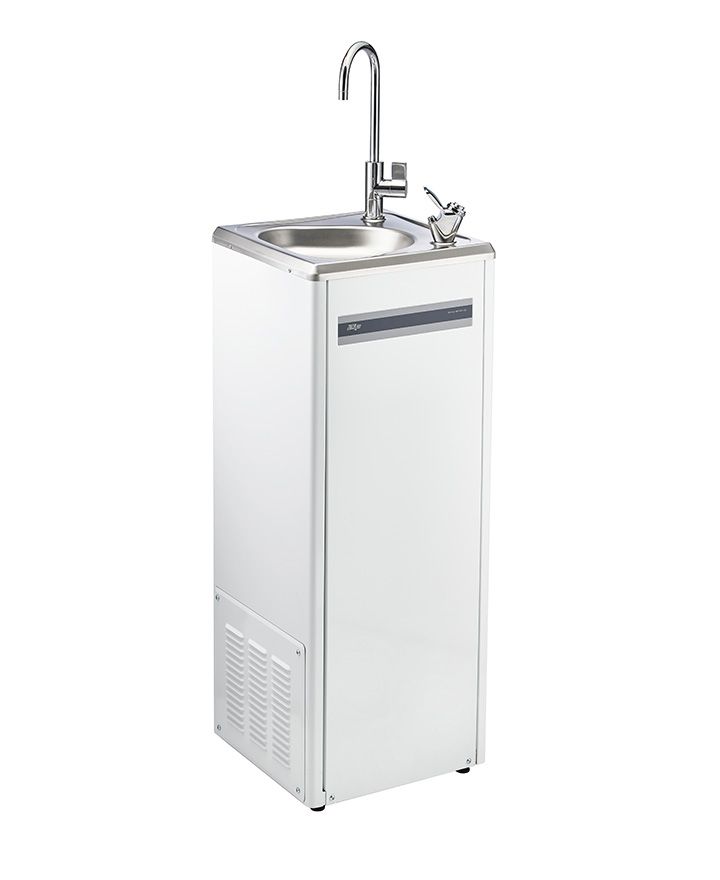

Zip SiteMaster 140 Bubbler/Carafe 19 model SM1501-1

Product Description

• Brand: Zip Water

• Product Name: Sitemaster 140 BCF 19

• Product Code: SM1501-1

• Capacity: Commercial

• Overview: Zip SiteMaster IP23 rated freestanding chilled drinking water appliance. With Anti-vandal, easy to clean tapware.

Specifications

• Product Name: Sitemaster 140 BCF 19

• Product Code: SM1501-1

• Product Approvals: WaterMark, CE, ARC

• Warranty: 12 months

• Dimensions: 915mm x 354mm x 359mm

• Water Connection: 12.7mm BSP

• Water Pressure: 150kPa-700kPa

• Power Rating: 220-240V 50Hz IP23

• Tap: Bubbler and Heavy duty Carafe tap

Certifications

• ARC (AU02691)

• WaterMark (Lead Free)

• CE

• Environment ISO 14001

• OHS ISO 45001

• Quality ISO 9001

Recommended Overview

The Zip SiteMaster 140 BCF 19 (SM1501-1) is a heavy-duty, freestanding chilled drinking water appliance designed for commercial and high-use environments. Featuring an IP23-rated construction, anti-vandal design and durable, easy-to-clean tapware, the SiteMaster provides reliable access to chilled drinking water in workplaces, factories, schools and other commercial facilities.

Equipped with both a bubbler and heavy-duty carafe tap, it provides convenient drinking and bottle-filling options from a single unit.

Optional LAB PUA Water Filtration

The Zip SiteMaster 140 BCF 19 (SM1501-1) is available with optional LAB PUA commercial-grade water filtration, providing improved drinking water quality while helping protect the appliance from sediment and limescale build-up.

Choose from two filtration options depending on your water conditions and application:

LAB PUA LPA-CS1-10 – 1 Micron

Fine Filtration + Chlorine Reduction + Scale Protection

• 1 micron filtration

• Reduces sediment and fine particulates

• Reduces chlorine, unpleasant taste and odour

• Built-in scale inhibitor helps reduce limescale build-up

• Helps protect internal water components

• Rated capacity: up to 50,000 litres

• Flow rate: up to 5.67 L/min

• Recommended where finer filtration is preferred

LAB PUA LPA-CS5-10 – 5 Micron

High-Flow Filtration + Chlorine Reduction + Scale Protection

• 5 micron carbon block filtration

• Reduces sediment and particulates

• Reduces chlorine, unpleasant taste and odour

• Built-in scale inhibitor helps reduce limescale build-up

• Helps protect internal water components

• Rated capacity: up to 50,000 litres

• Flow rate: up to 5.67 L/min

• Recommended for higher-use commercial applications and where good flow performance is important

Choose Your Configuration

Select the filtration option that best suits your installation:

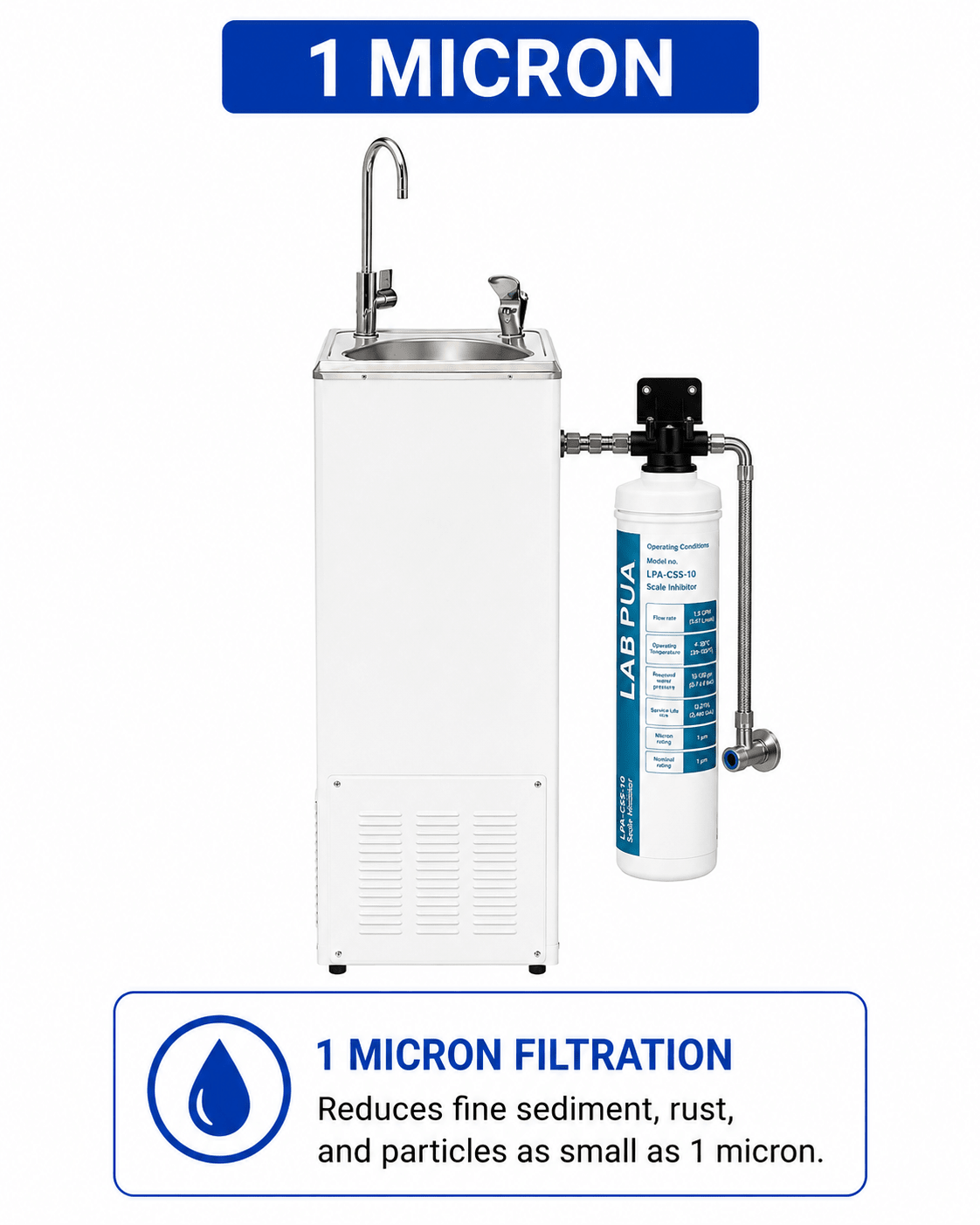

• SiteMaster SM1501-1 + LAB PUA LPA-CS1-10 – 1 Micron
For finer filtration with chlorine, sediment and limescale reduction.

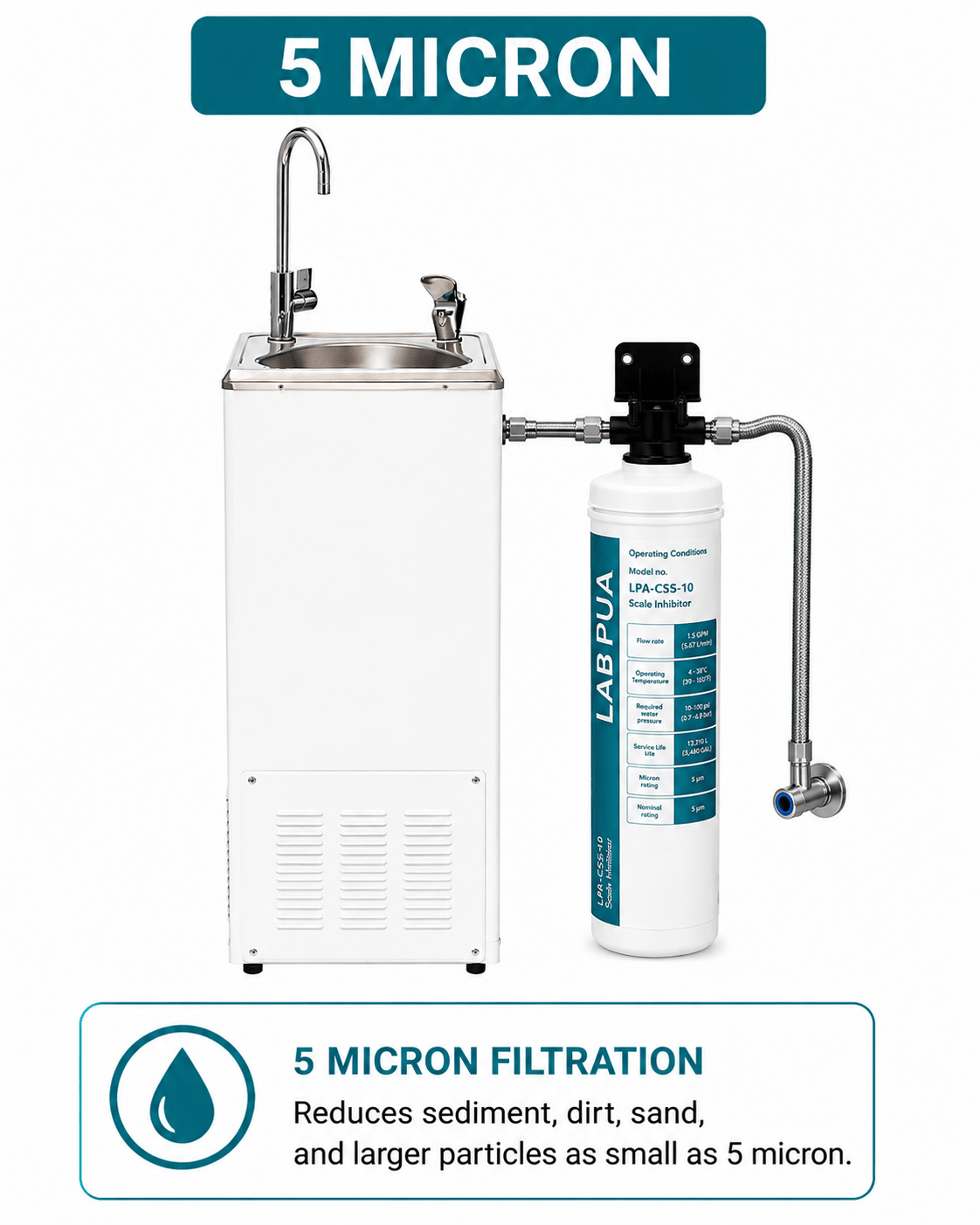

• SiteMaster SM1501-1 + LAB PUA LPA-CS5-10 – 5 Micron
For commercial filtration with excellent flow, chlorine, sediment and limescale reduction.

Both LAB PUA options are designed to improve drinking water quality while helping reduce scale accumulation and protect the SiteMaster water system.
