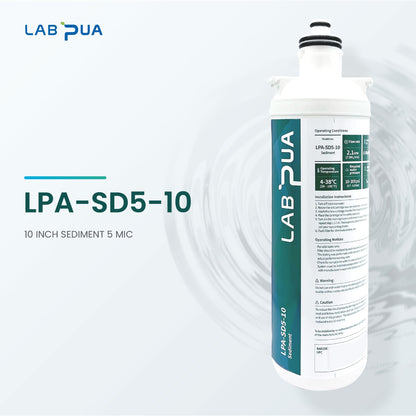

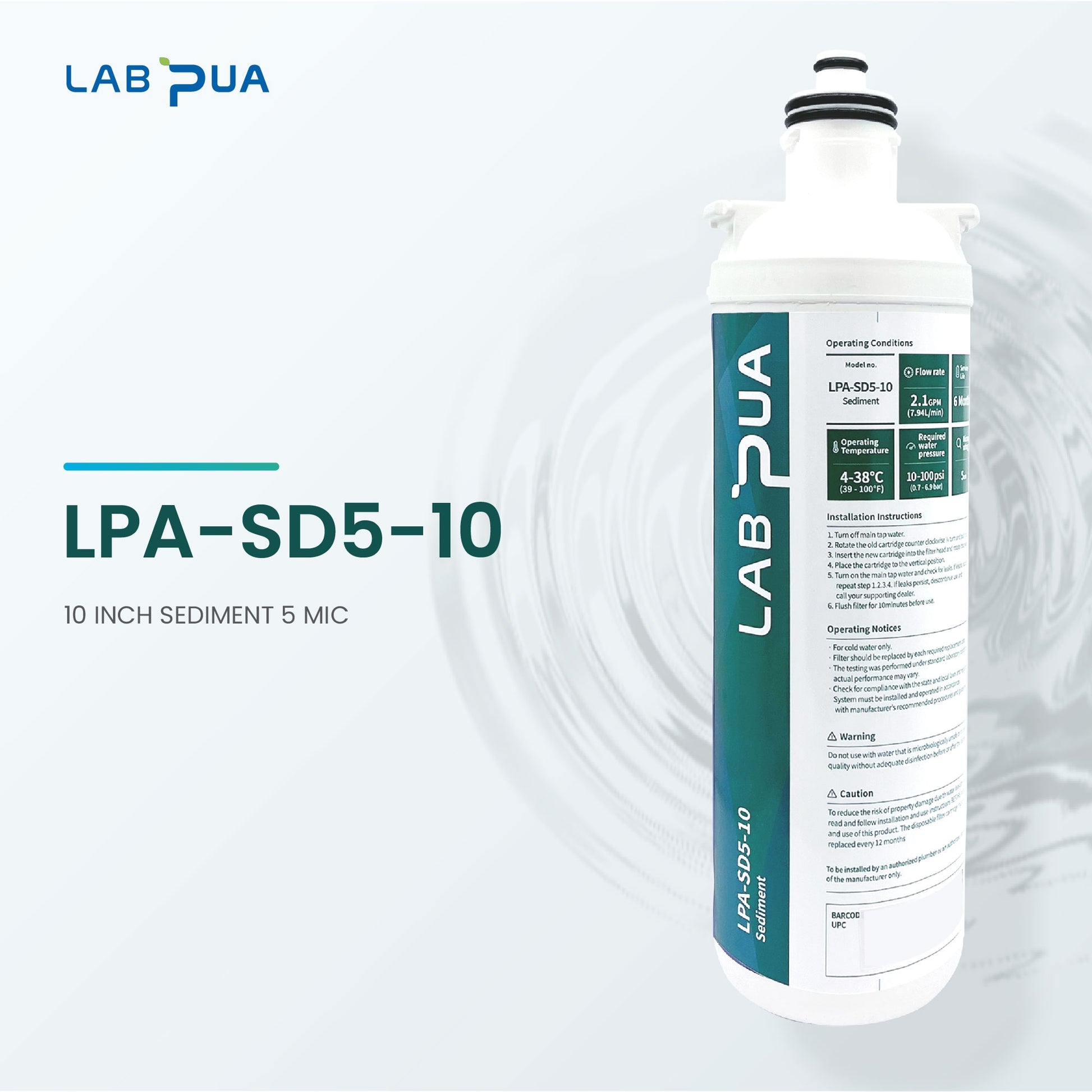

LPA SD5 10, 5μm sediment filter for removing dirt, sand, and rust.

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity

13,210 Gallons (50,000 L)

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8″

Electrical Connection
None required

Dimension

• Overall: 3.7″ × 12.5″

• Cartridge: Ø3.3″ × 10.7″

Weight
0.6 kg

Claim
Particle, Dust, Sand, etc.

FEATURES · BENEFITS

• Pretreatment filtration (PP, Melt Blown Type)

• Mechanically removes particles up to 5 microns

• Simple, quick, and clean replacement process

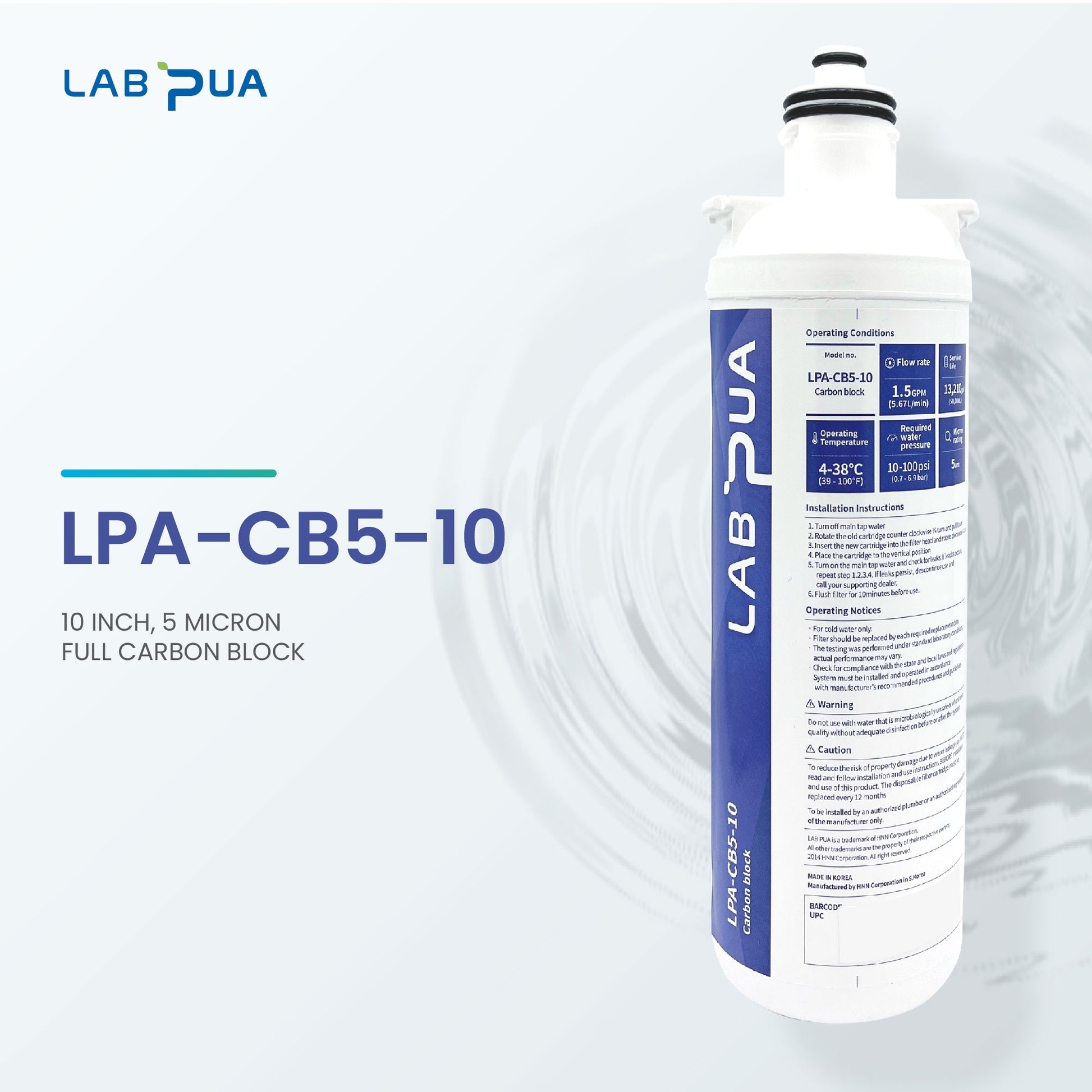

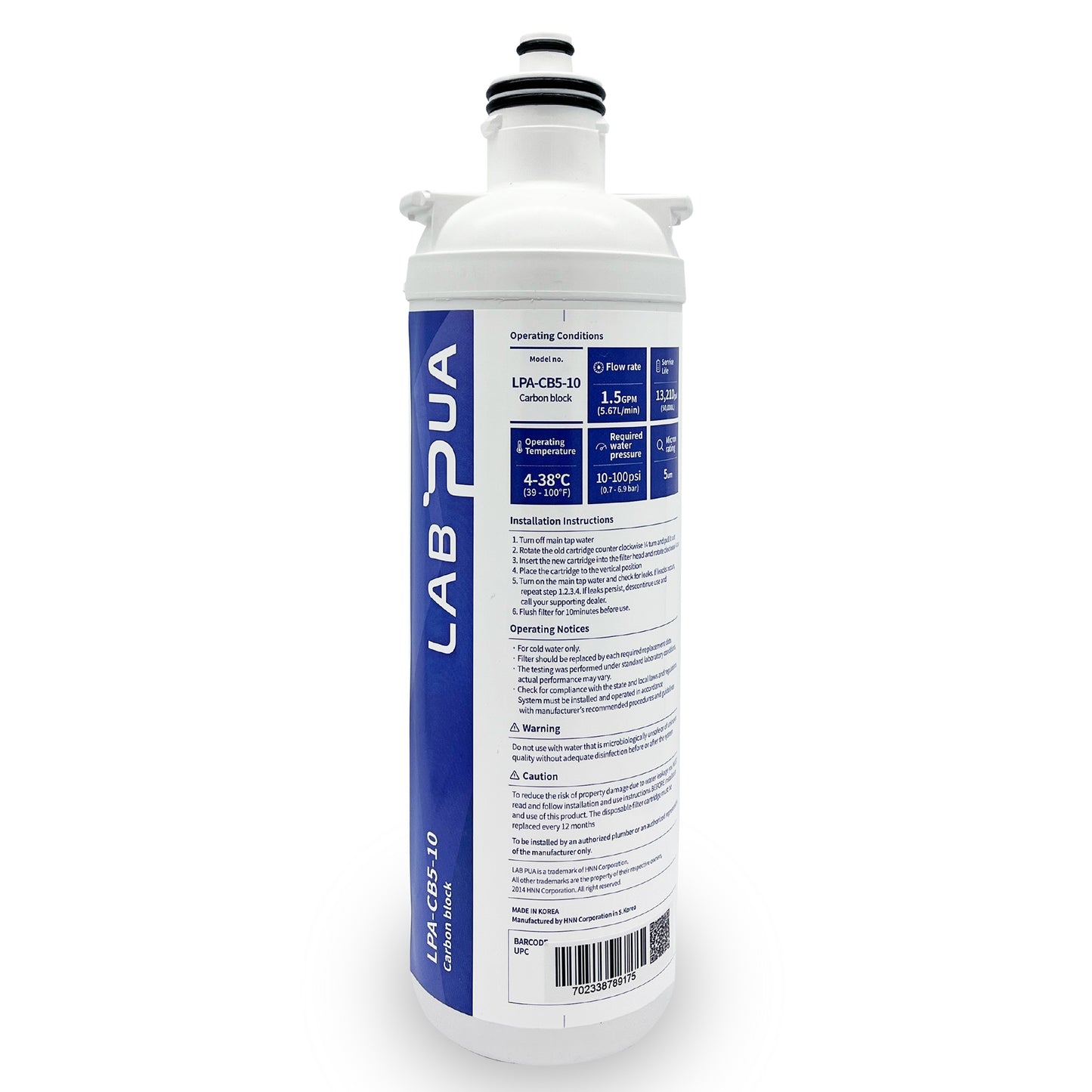

 LPA CB5 10, 5μm carbon block filter for chlorine, taste, and odor reduction.

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity
13,210 Gallons (50,000 L)

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8"

Electrical Connection
None required

Dimension

• Overall: 3.7″ × 12.5″

• Cartridge: Ø3.3″ × 10.7″

Weight
1.0 kg

Claim

• Chlorine

• Taste and Odor

• Particulate Class 3 (5 ~ 15 µm)

FEATURES · BENEFITS

• HNN’s carbon block is made with high-quality, high-quantity GAC, ensuring superior water quality and a higher capacity compared to competitors.

• 5-micron pore size CTO block

• Extrusion carbon manufacturing ensures consistent and stable quality

• Pre-shield technology helps prevent early clogging and extends cartridge life

• Quick-change design makes filter replacement simple and clean

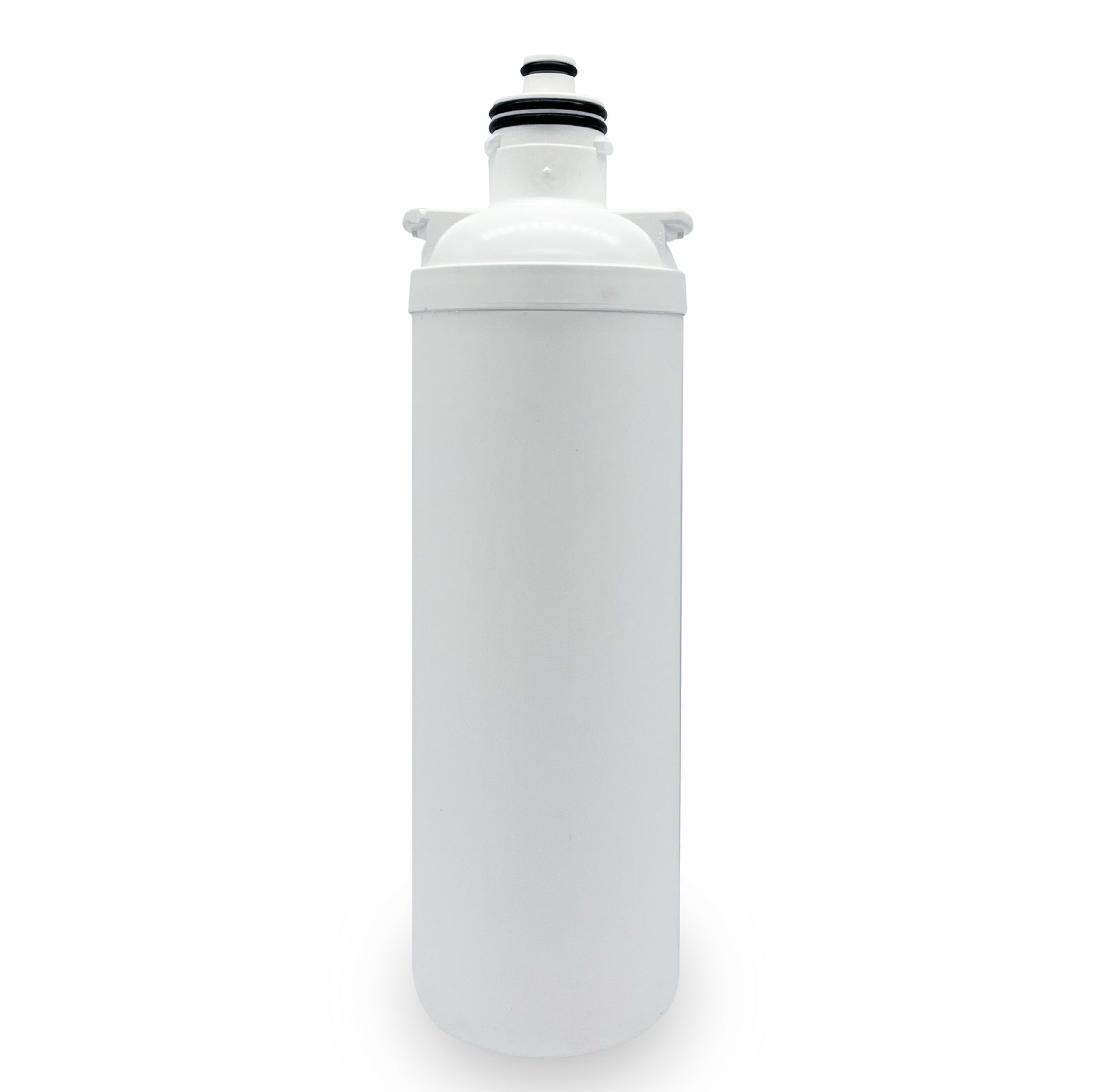

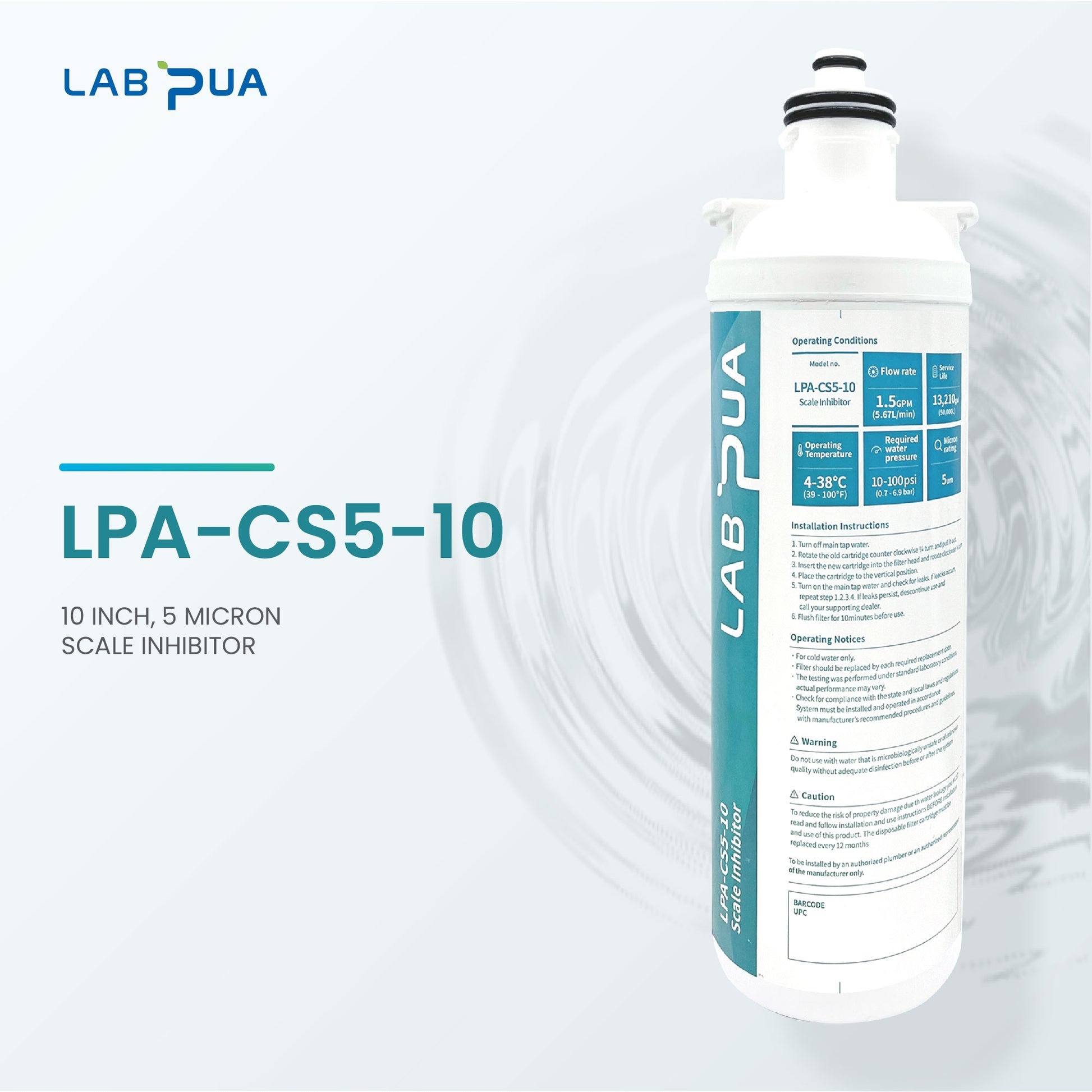

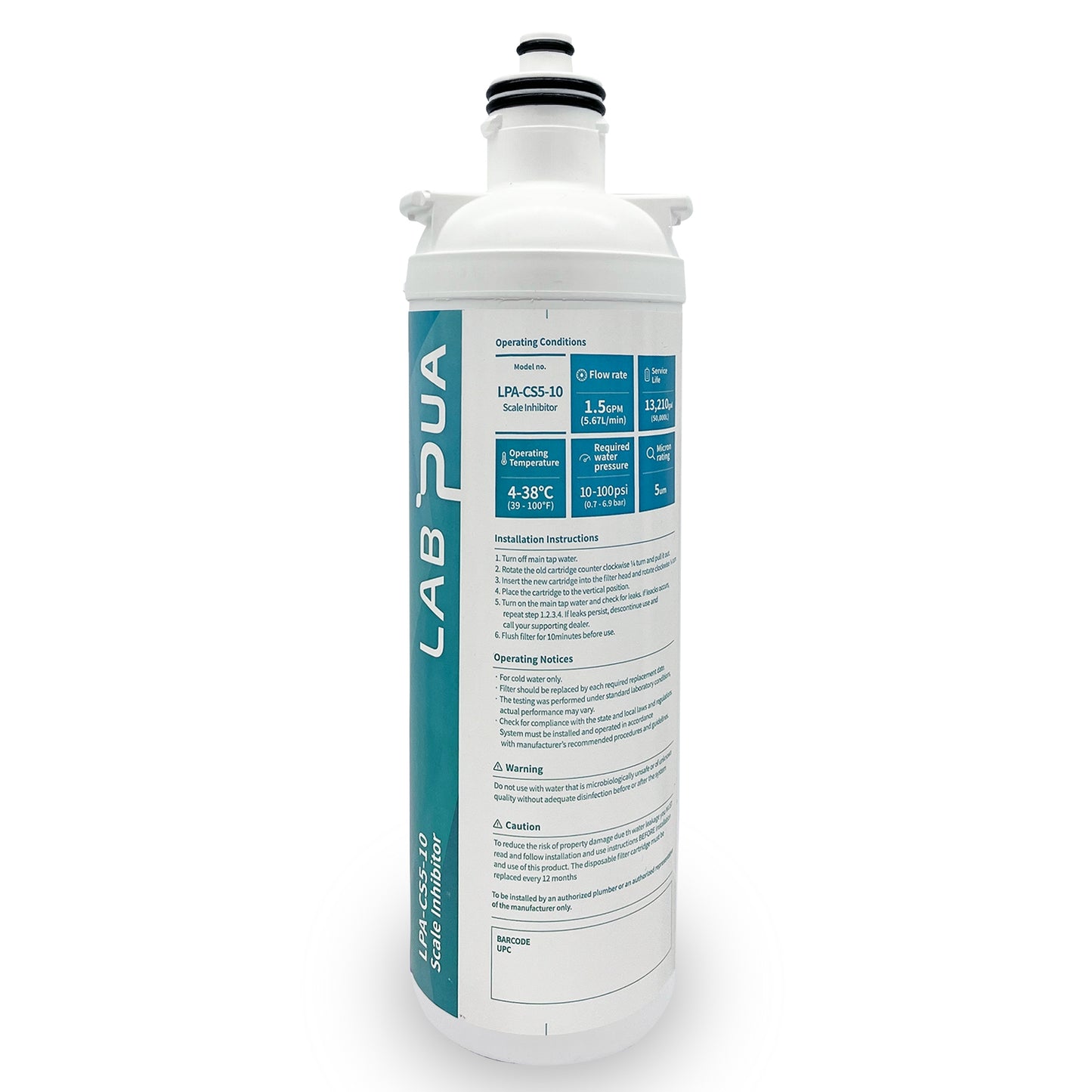

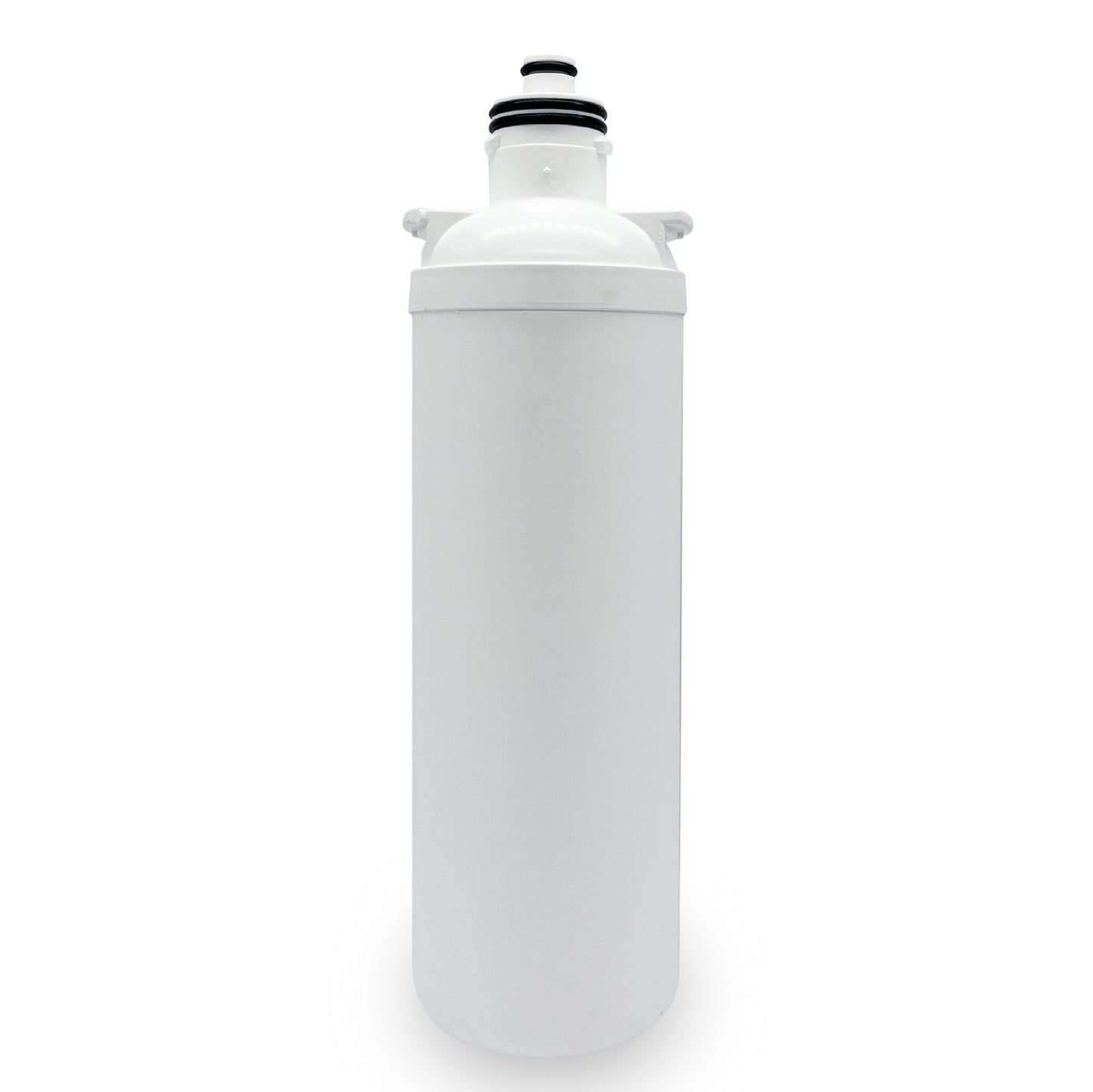

 LPA-CS5-10 – 5μm carbon block filter with built-in scale inhibitor for added appliance protection.

The Lab Pua LPA-CS5-10  Everpure EV9617-06 / EV961706 Filter Cartridge is intended for food service, vending machine and coffee service applications, and is ideal for problem water areas

Applications
- Ideal for problem water areas
- Foodservice
- Vending
- Office coffee service (OCS)

Installation Tips
- Never use saddle valve for connection
- Use 3/8" water line
- Install vertically with cartridge hanging down
- Allow 2-1/2" (6.35 cm) clearance below the cartridge for easy cartridge replacement
- Flush The Lab Pua LPA-CS5-10  cartridge by running water through the filter for five (5) minutes at full flow

Operation Tips
- Change cartridges on a regular six (6) month preventative maintenance program
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
- Service flow rate must not exceed 1.0 gpm (5.4 Lpm)
- Always flush the filter cartridge at the time of installation and cartridge change

Sizing
Service Flow Rate: Maximum 1.0 gpm (5.4 Lpm)
Capacity: 50,000L

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity
13,210 Gallons (50,000 L)

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8″

Electrical Connection
None required

Dimension

• Overall: 3.7″ × 12.5″

• Cartridge: Ø3.3″ × 10.7″

Weight
1.1 kg

Claim

• Chlorine

• Taste and Odor

• Particulate

• Scale Inhibitor

FEATURES · BENEFITS

• Phosphate helps prevent scale formation in boilers or heaters

• 5-micron pore size CTO block

• Extrusion carbon production ensures consistent and stable quality

• Pre-shield technology prevents early clogging and extends filter life

• Easy and clean quick-change replacement method
